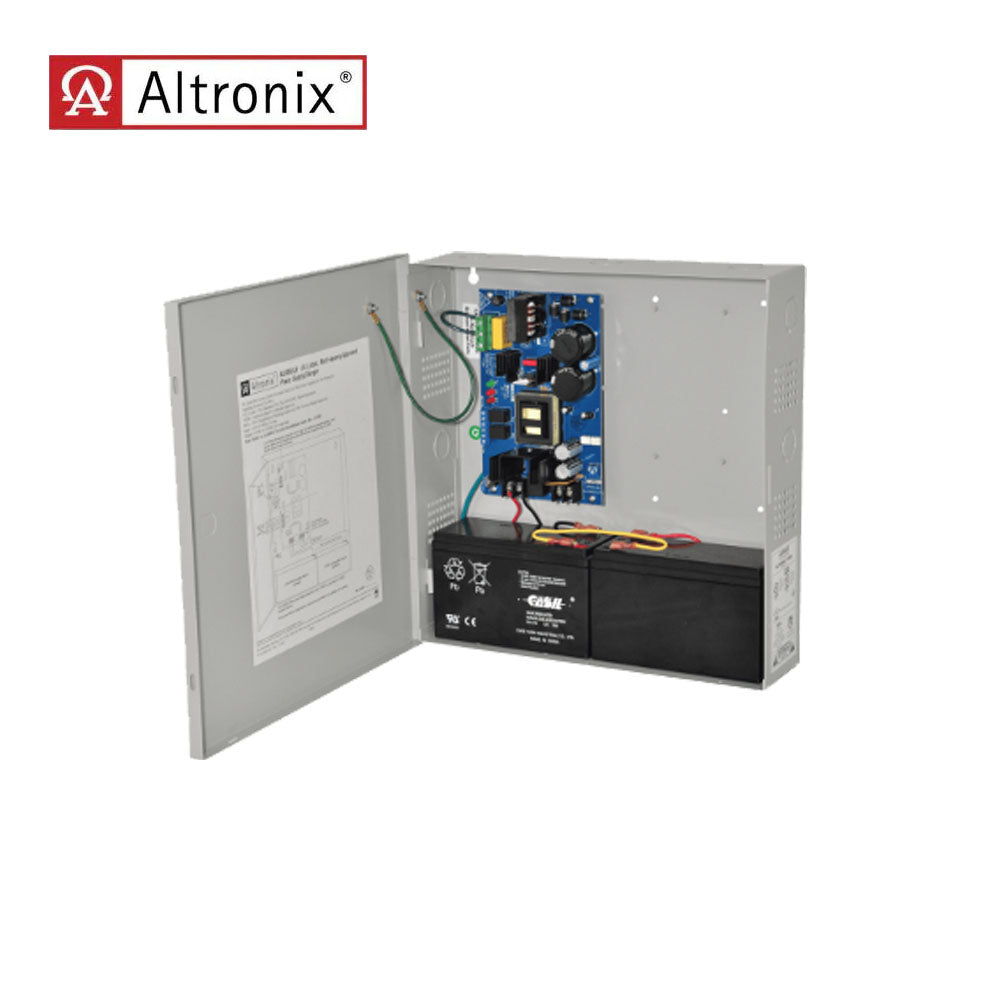

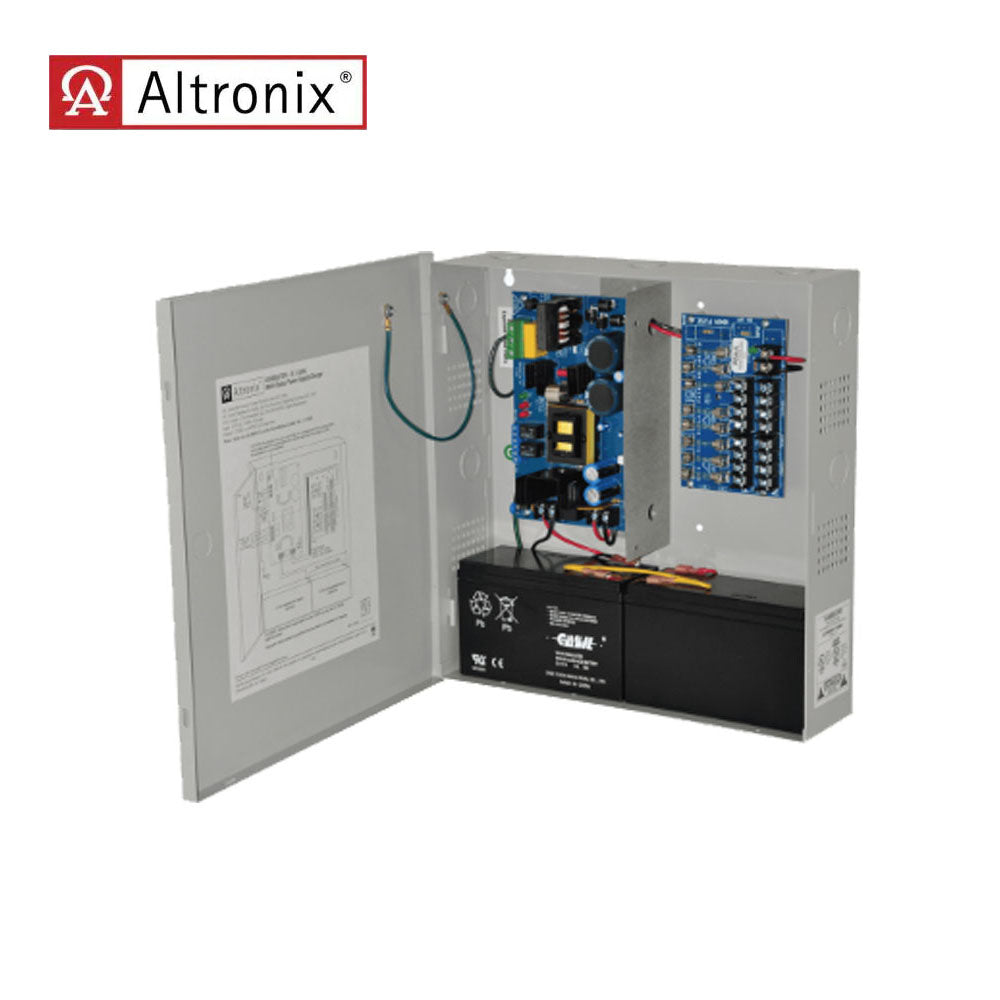

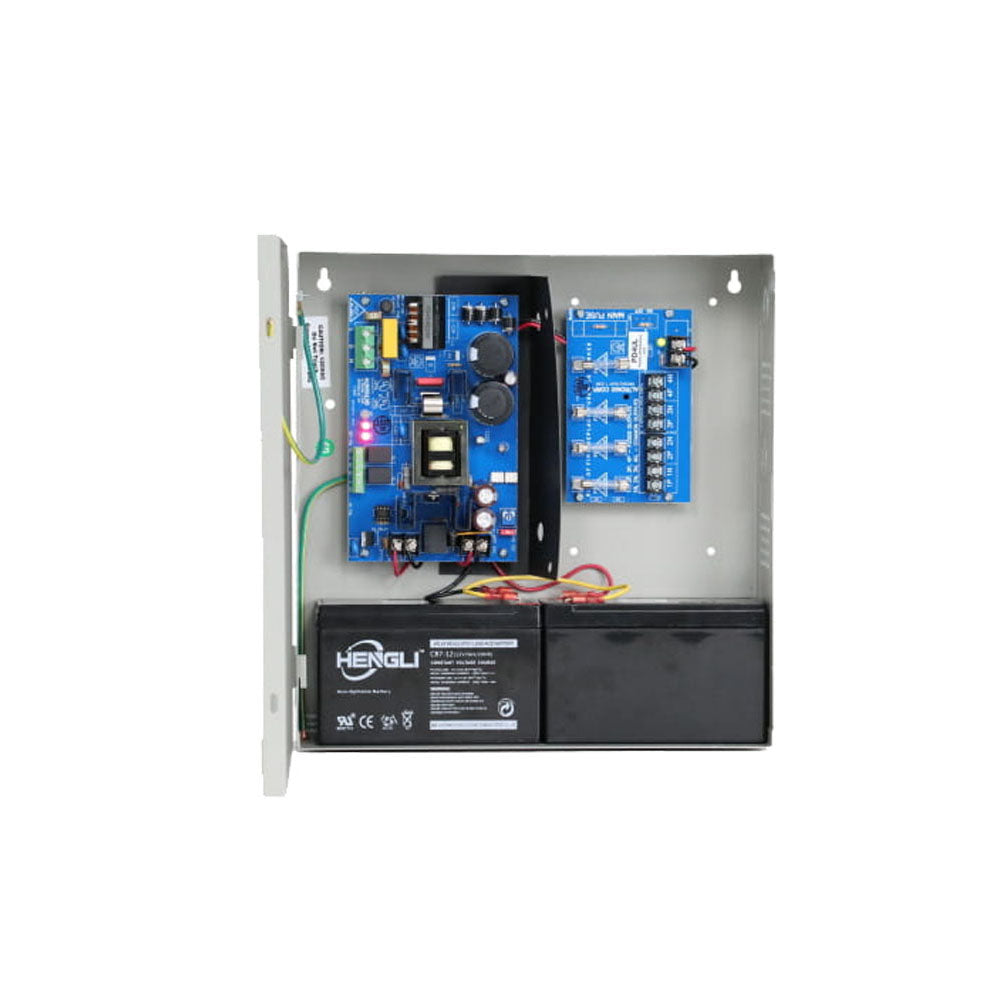

Altronix - AL600UL Series - Power Supply Charger - 115VAC at 3.5A Input - 6A Output with Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Input:
- Input 115VAC / 60Hz, 3.5A
Output:
- 12VDC or 24VDC selectable outputs
- 6A continuous supply current
- Output rated @ 2.5A and fuses are rated @ 3.5A/250VAC.
- Single, Four (4) and eight (8) fuse protected outputs and Class 2 Rated PTC protected power limited outputs (auto-resettable)
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection
Supervision:
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery presence supervision (form "C" contact).
- Battery presence supervision (form "C" contact).)
Visual Indicators:
- AC input and DC output LED indicators.
AL600ULX Series Power Supply Configuration Reference Chart:
| Model Number | Power Distribution Module | Fused Output Ratings | PTC Output Ratings |
|---|---|---|---|
| AL600ULPD4 | PD4UL | 3.5A | - |
| AL600ULPD4CB | PD4ULCB | - | 2.5A |
| AL600ULPD8 | PD8UL | 3.5A | - |
| AL600ULPD8CB | PD8ULCB | - | 2.5A |
| AL600ULX | N/A | 6A | - |
Temperature:
- Operating 0° C to 49° C (32° F to 120° F)
- Storage: - 20° C to 70ºC ( - 4° F to 158° F)
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.): 12VDC: 37 BTU/Hr and 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Battery Backup:
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails.
Enclosure:
- Wall mount enclosure for indoor use
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts
Download:
