Aiphone - JOS-1FW Mobile-Ready Box Set - Flush-Mount Door Station - 7 Screen And Vandal Resistant Door Station

Aiphone - JOS-1FW Mobile-Ready Box Set - Flush-Mount Door Station - 7" Screen And Vandal Resistant Door Station

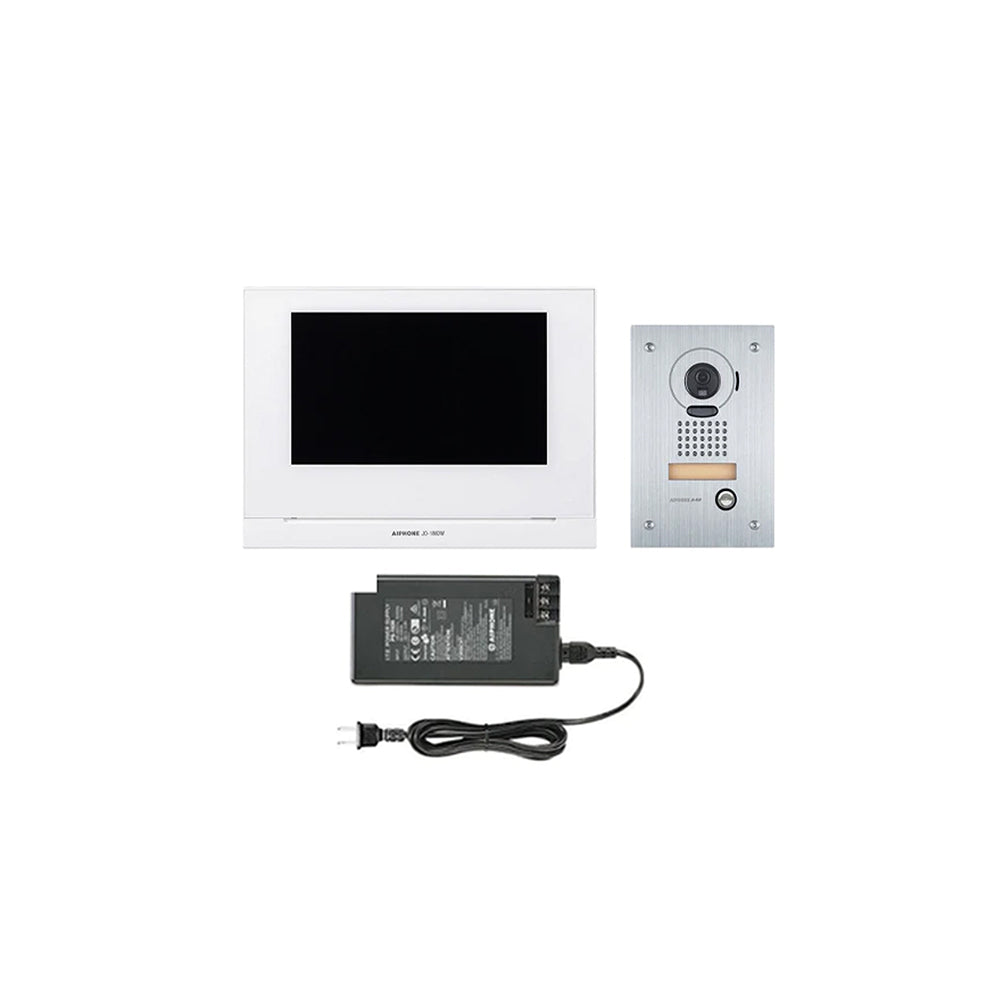

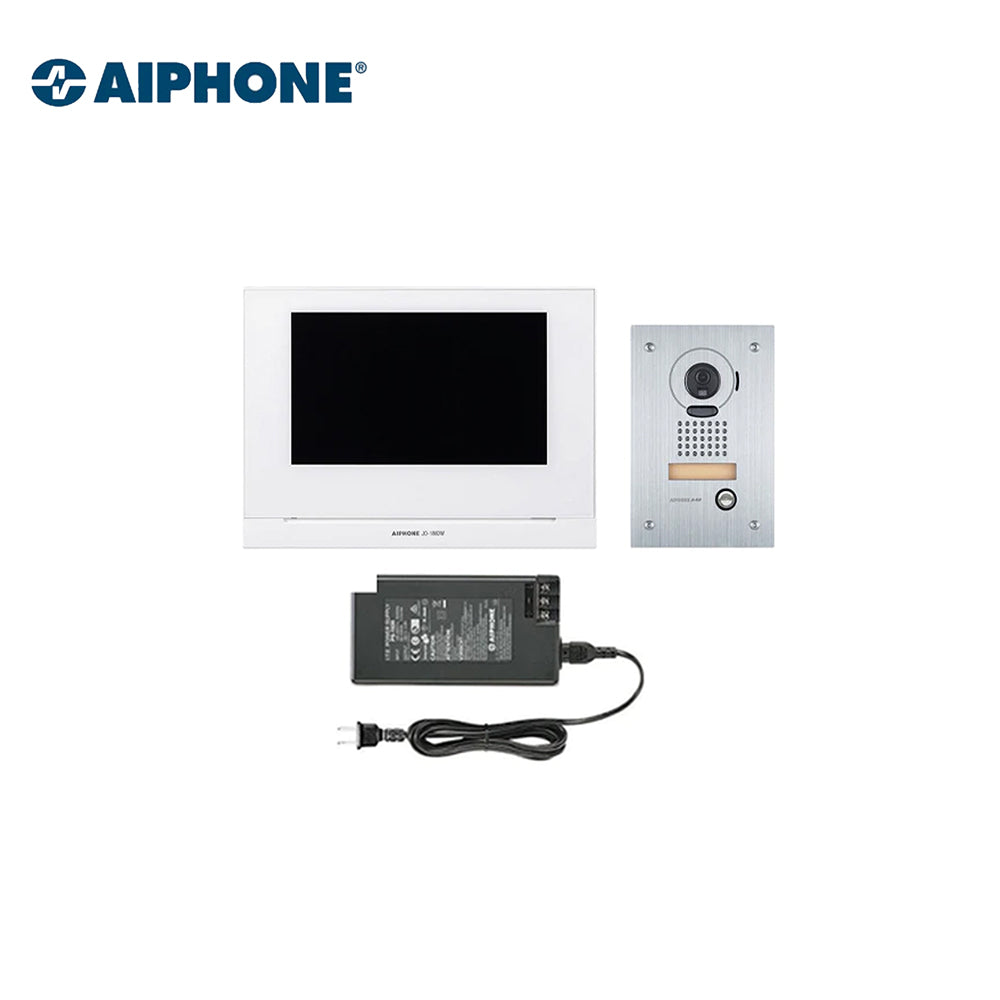

Aiphone JO is a Touch Button Video Intercom System. It identifies visitors at locked doors in a convenient way.Also can accommodate one door and up to two inside stations. Ready to install box sets include one door station, one inside station, and power supply.

Features:

• Box set includes all you need for an app capable video intercom system
• Answer and open your door from the on-site master or your mobile device
• Connect up to 8 smartphones or tablets per system
• On-site monitor ensures calls get answered or recorded
• Store calls with no added fees using onboard memory
• Adding a MicroSD card to the on-site monitor increase call storage
• Watch recorded calls from the on-site master or on the mobile app
• Large 7” touchscreen provides crisp, clear detail of your caller
• The vandal resistant surface mount video door intercom faceplate is crafted using stainless steel
• Video door intercom automatically activates white LED lights to see clearly at night
• Replace standard doorbells to add the security of seeing and speaking with visitors
• JO-DVF is not sold separately, add JO-DV for a second door station option

Specifications:

Inside Monitor

• Model: JO-1MDW
• Video Display: 7" TFT Touchscreen
• Mounting: Surface wall mount or desk mount with MCW-S stand
• Internal Call Recording: 10 calls max. @ 10 seconds/call
• Memory Expansion: micro SDHC card slot, 32GB max.
• Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
• Communication style: Handsfree or PTT
• Wireless Frequency: 2.4 GHz
• Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

App

• Model: Intercom App Type B
• Max per system: 8 devices
• Available at: Apple App Store℠ or Google Play™

Video Door Station

• Model: JO-DVF
• Power Source: Supplied by inside monitor
• Camera: 1/4 inch color CMOS
• Mounting: Flush mount using supplied box
• Faceplate Material: Stainless steel
• Enclosure Rating: IP54
• Impact Rating: IK07
• Communication style: Handsfree
• Operational Tempature: -40°~140° F (-40° ~ 60° C)
• Wiring to master: 2-cond., low cap, solid, non-shielded
• Max. Wire distance: 165' (22AWG) 330' (18AWG)

Power Supply

• Model: PS-1820UL
• Power Source:AC 100~240V 50/60Hz
• Power Output: DC 18V 2A

Installation Instructions:

• JOS-1V Installation Instruction
