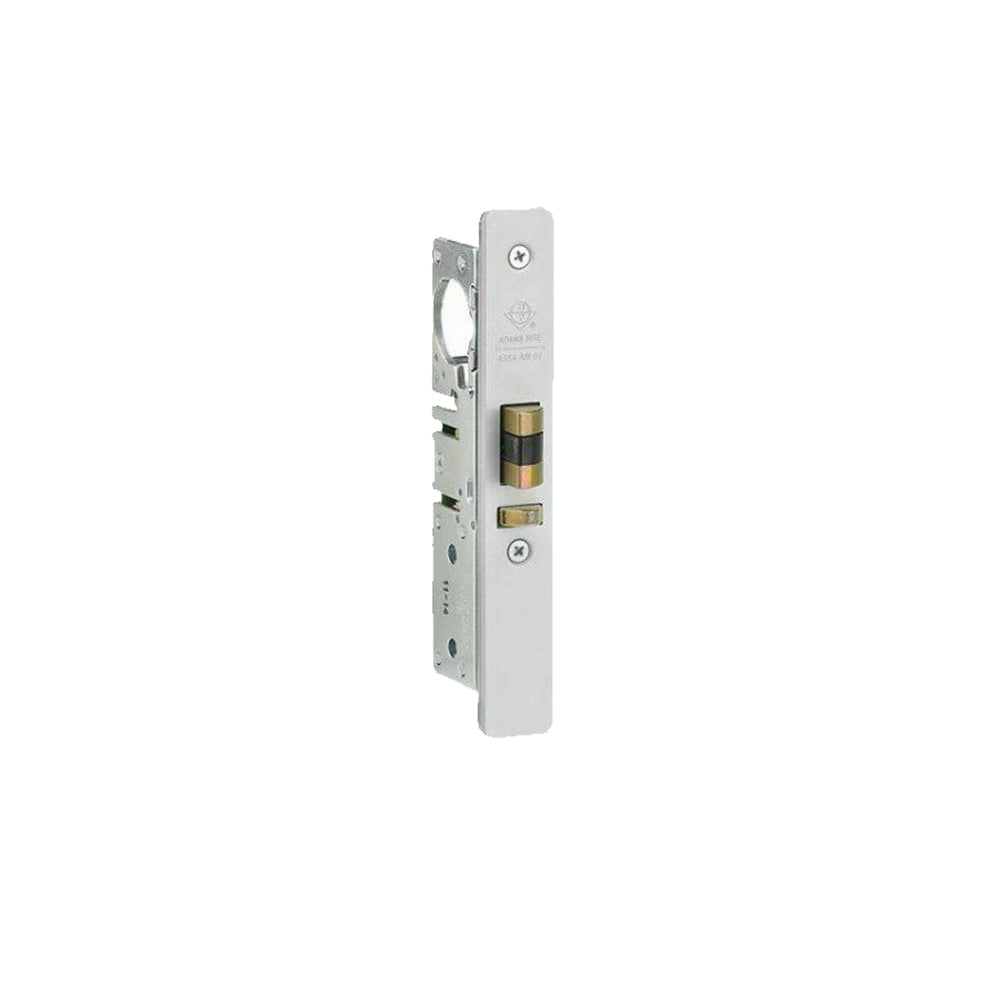

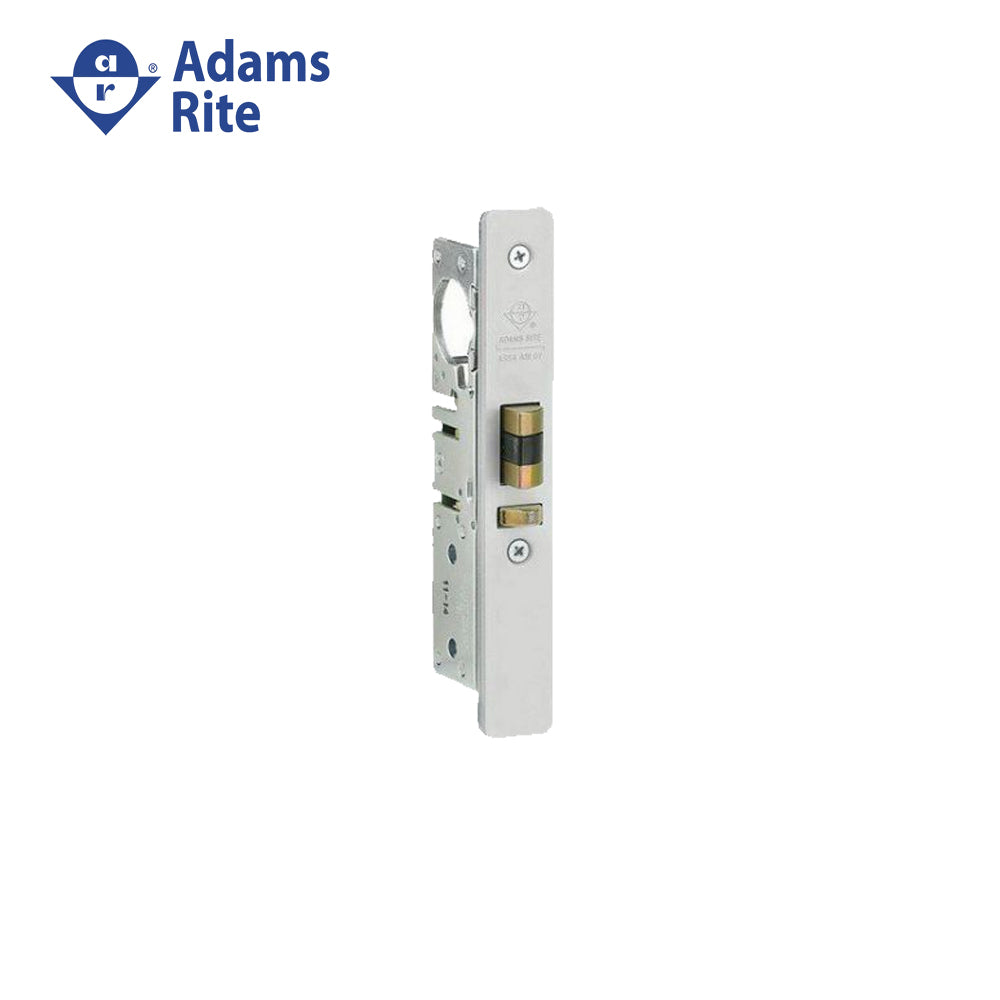

Adams Rite - 4513-36-IB - Standard Duty Deadlatch Lock Body Flat Faceplate with 1-1/8 Backset and Right-Handed or Left Hand Reverse - Zinc Plated
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Adams Rite - 4513-36-IB - Standard Duty Deadlatch Lock Body Flat Faceplate with 1-1/8" Backset and Right-Handed or Left Hand Reverse - Zinc Plated
4510 Standard Duty Deadlatches provide flexible traffic control during and after business hours. The 4510 Series has includes a reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of same backset and faceplate shape.
Features:
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
- Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
- Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Product Specifications:
Vendor | Assa Abloy |
Manufacturer | Adams Rite |
SKU | 4513-36-IB |
UID | ADA100451336IB |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Base Material | Steel |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Technical Specifications:
Function | Narrow Stile Latch Lock |
Cylinder Type | Less Cylinder |
Handing | RH or LHR |
Door Thickness | 1-3/4" to 2" |
Std. Latch Type | Guarded Latch |
Std. Latch Backset Dim | 1-1/8" |
Lock Face Size | 6-7/8" x 1" |
Bolt Projection | 1/2" |
Std. Strike Number | Less |
Std. Strike Type | Mortise |
Screws | Machine |
Product Type | Mortise Lock |
