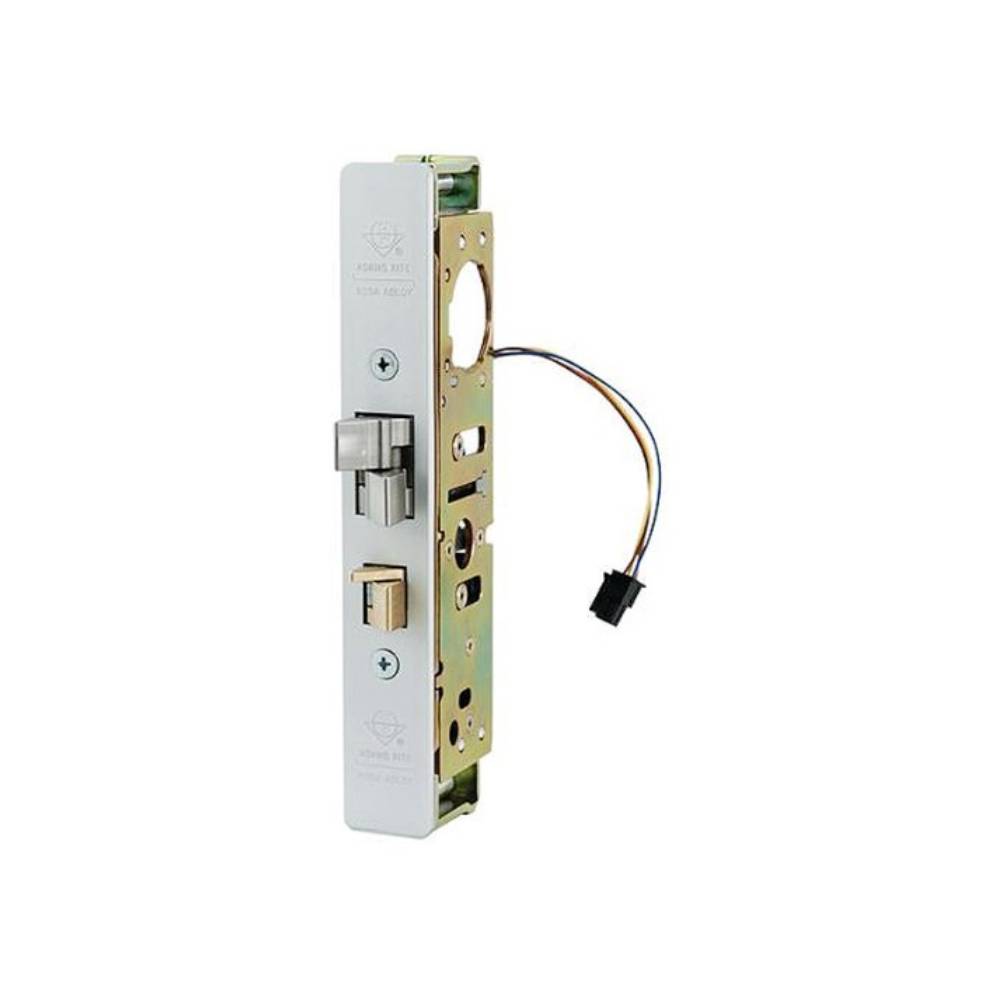

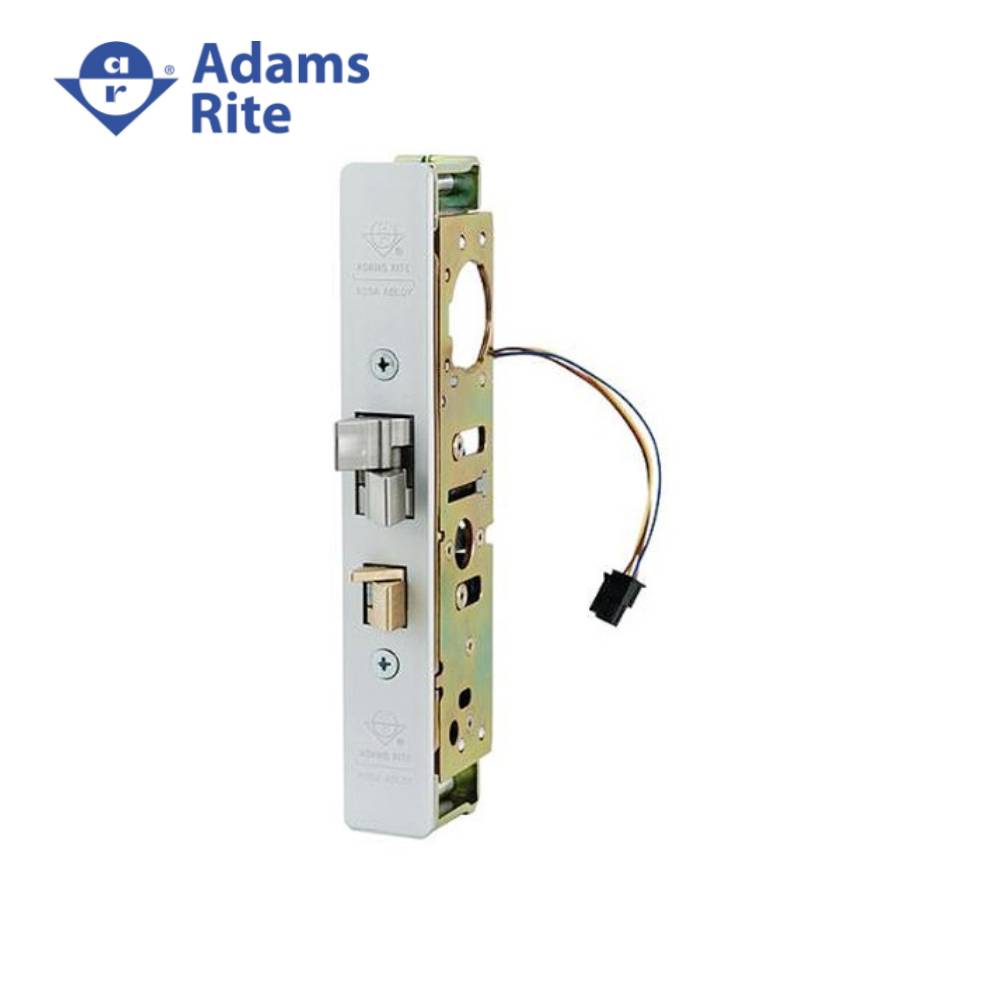

Adams Rite - 4300-20-101-628 - Steel Hawk Electrified Deadlatch with 31/32 Backset and Surface Strike - 628 (Satin Aluminum Clear Anodized Finish)

Adams Rite - 4300-20-101-628 - Steel Hawk Electrified Deadlatch with 31/32" Backset and Surface Strike - 628 (Satin Aluminum Clear Anodized Finish)

Combines non-handed, narrow backset, mechanical locking hardware with electrified access control.

The 4300 eLatch combines mechanical locking hardware with electrified access control while working within standard aluminum entrance door preparations. Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control element. The standard 4300 operates on 12, 16, or 24 volt DC power and is rated for continuous duty. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or 4500 and 4900 Deadlatches. 1-3/4" minimum door thickness required.

Features:

• Cylinder Backset: 31/32”, 1-1/8”, and 1-1/2”
• Case: Measures 15/16” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
• Latchbolt: 5/8” x 1” x 5/8” throw. Stainless steel.
• Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
• Voltage: Field-selectable to match power source of 12, 16, or 24 VAC/VDC
