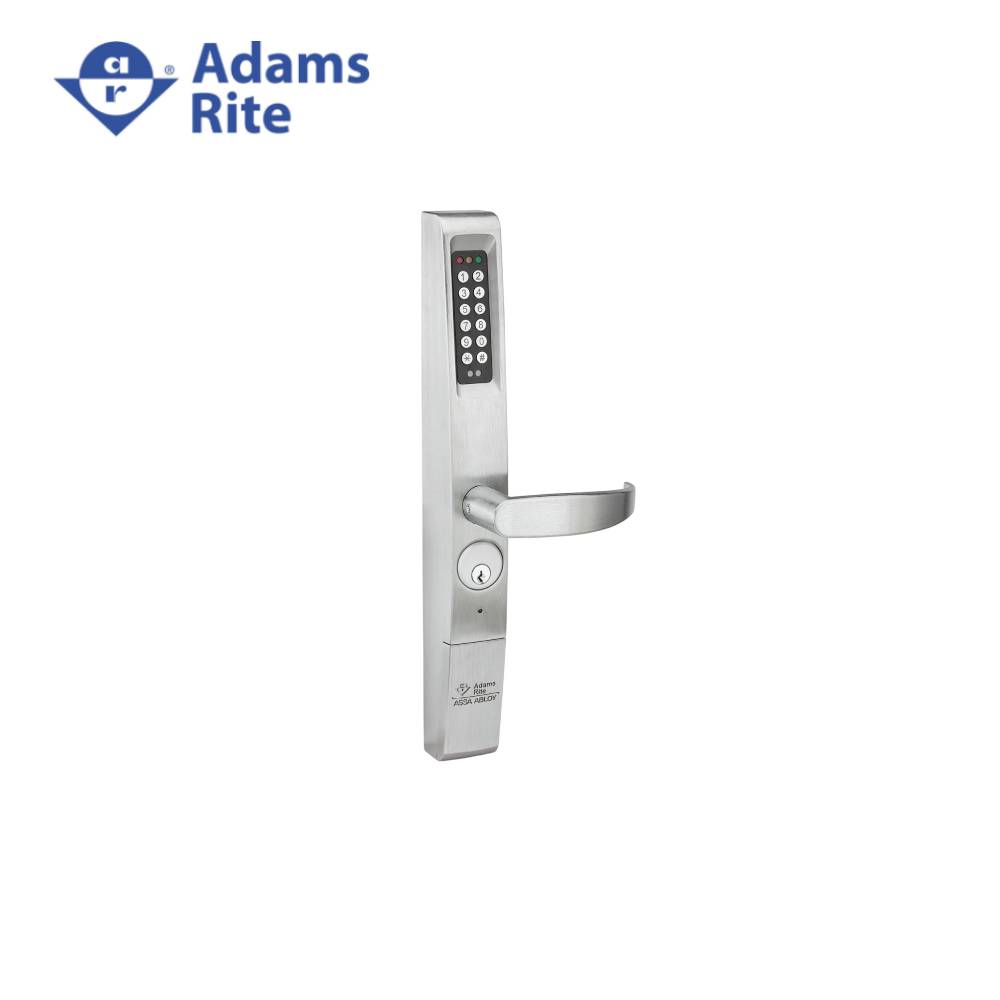

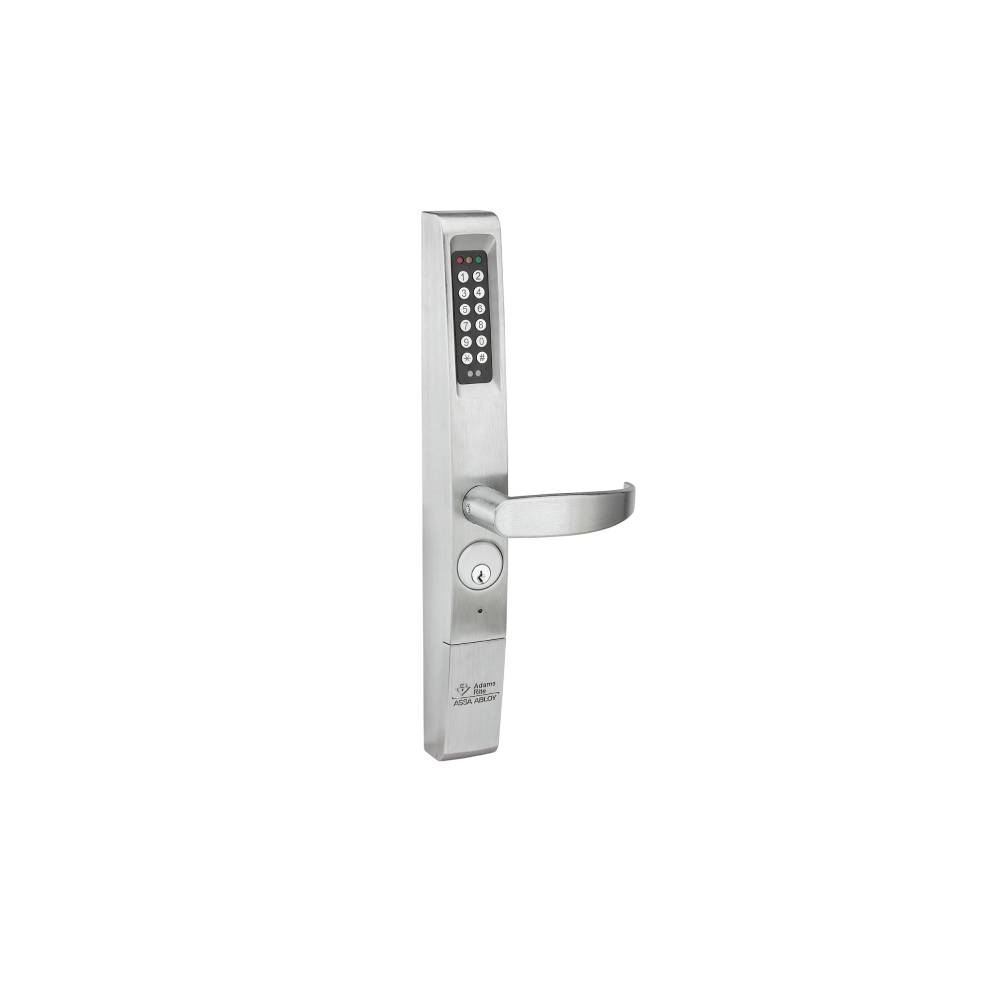

Adams Rite - 3090-02-626 - eForce Keyless Keypad Entry Lever Trim - 626 (Satin Chromium Plated)

Adams Rite - 3090-02-626 - eForce Keyless Keypad Entry Lever Trim - 626 (Satin Chromium Plated)

This battery-operated keyless entry control device provides access control for Adams Rite deadlocks, deadlatches, and exit devices.

Features:

• Housing: The sleek-looking 3090 eForce measures 1-3/4" wide x 15-3/8" high, with Satin Chrome (626) and Powdercoat Dark Bronze (121) finishes.
• Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing.
• Compatible Locking Devices: The 3090 eForce retrofits to Adams Rite MS® Deadlocks, 4500 and 4900 Deadlatches and 8000 Series Exit Devices in 31/32" backsets and greater. Additionally, the 3090 eForce-150 is compatible with Yale 7200 Series and Corbin Russwin ED4000 Series exit devices (check model number for availability).
• Options: RSK-3090, Remote activation input cable.
• Standard Package: Individually boxed with installation instructions, manual, and mounting hardware for metal door applications from 1-3/4" to 2-1/4" thick. Shipping weight approximately 5.5 lbs.
• Note that 3090-01 models are compatible with deadlatches and exit devices, while 3090-02 models are compatible with MD deadlocks.

Product Specifications:
