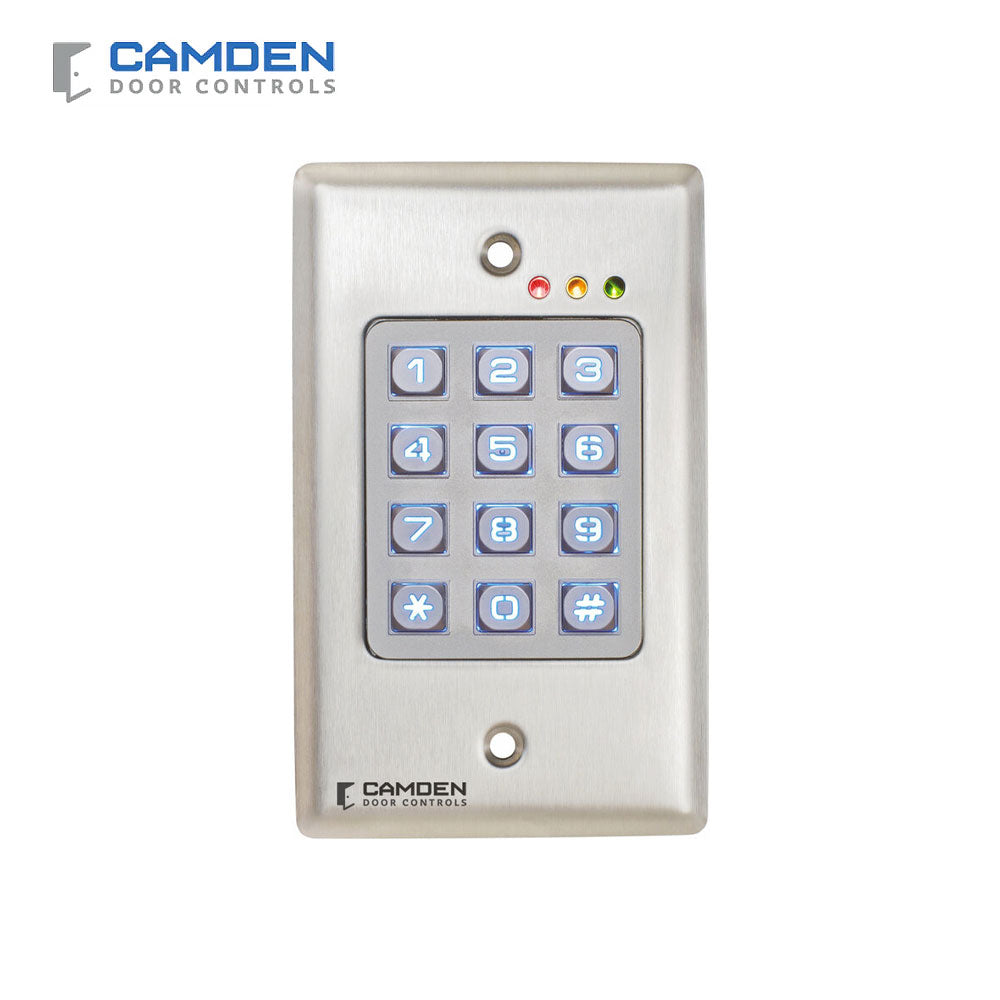

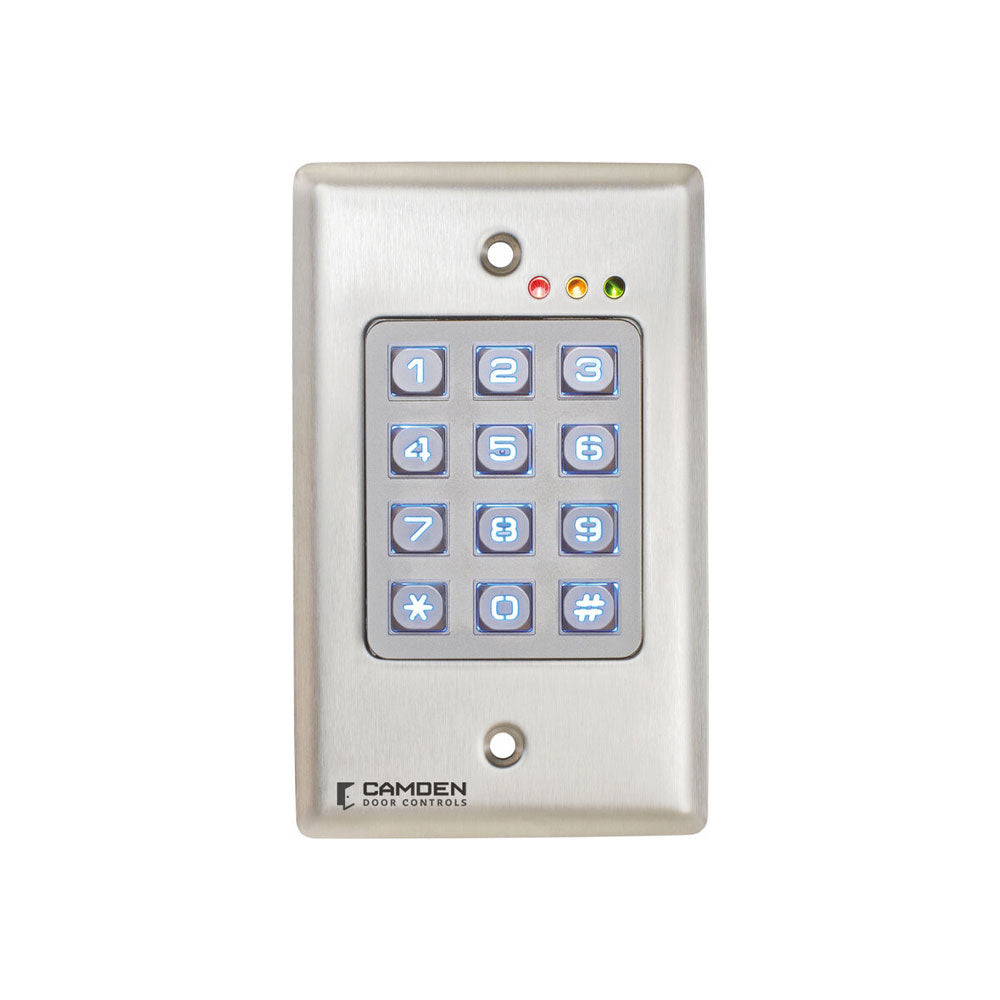

Camden CM-120WV2 Vandal Resistant Backlit Outdoor Keypad 999 Users - 12/24V AC/DC
The Camden 120W-V2 is an indoor/outdoor, selectable, stand-alone or wiegand digital keypad used where control of electrically locked doors (with electric locks, magnetic locks, or electric strikes) is required. The unit may also be used for activating/deactivating machinery or equipment. The 120W-V2 is ideal for use in storage closets, recreation centers, safe rooms, self-storage facilities, pools/saunas, restaurant freezers and computer rooms. The unit features a vandal-resistant all-metal keypad with blue backlighting for night time use.
Features:
- CM-120i keypad for indoor use, features stainless steel faceplate and polycarbonate keys
- CM-120wV2 features backlit, weatherproof & vandal resistant metal keypad
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driver
- Option for plug-in TX-99 wireless transmitter, 2 channel
Specifications:
| Voltage: | 12/24V AC/DC |
| Mounting: | Single gang, flush (2) #6 machine and tamper proof screws |
| Current Draw: | 30 mA Standby, 90 mA Max |
| Input: | 1 x Rex Input / 1 x Door Contact Input |
| Contact Type: | 2 x Form 'C' |
| Contact Rating: | 3 AMPS @ 24 VDC |
| Capacity: | 999 User Codes |
| Length: | Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time: | 0.3 Seconds |
| Time Delay: | 1 to 255 Seconds, or Latched |
| Temp Range: | -40°F to + 122°F (-40°C to +50°C) |
| Dimensions: | 4-1/2" x 2-3/4" x 3/4" (114mm x 70mm x 19mm) |
| RF Output: | Optional Plug-In Transmitter, 2 Channel |
Specification Sheets:
Manuals:
- CM-120_Manual_R5
- CM-120 Series Keypads_Programming Guide_R3
- CM-120 Series Keypads_Programming Guide_French_R3
- CM-120TX_Manual_R1
- CM-120TX_Manual_French_R1
Reference Guides:
