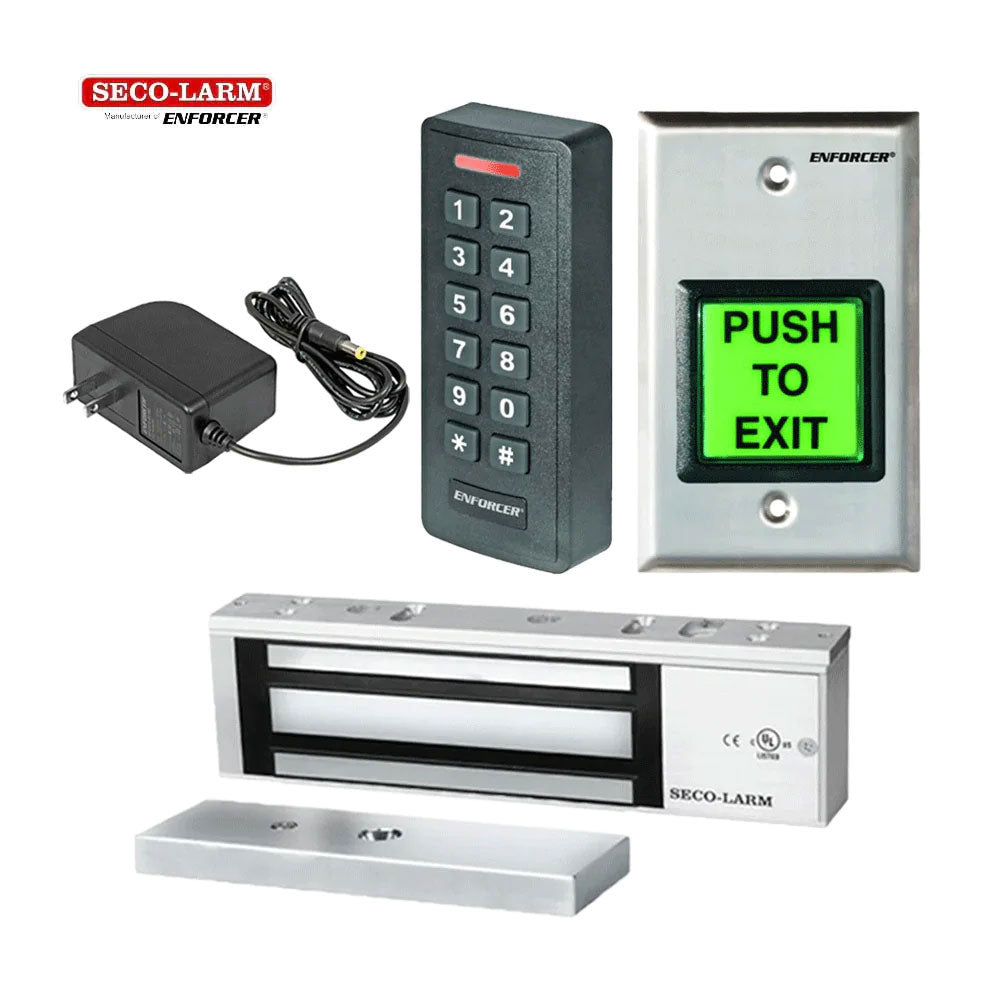

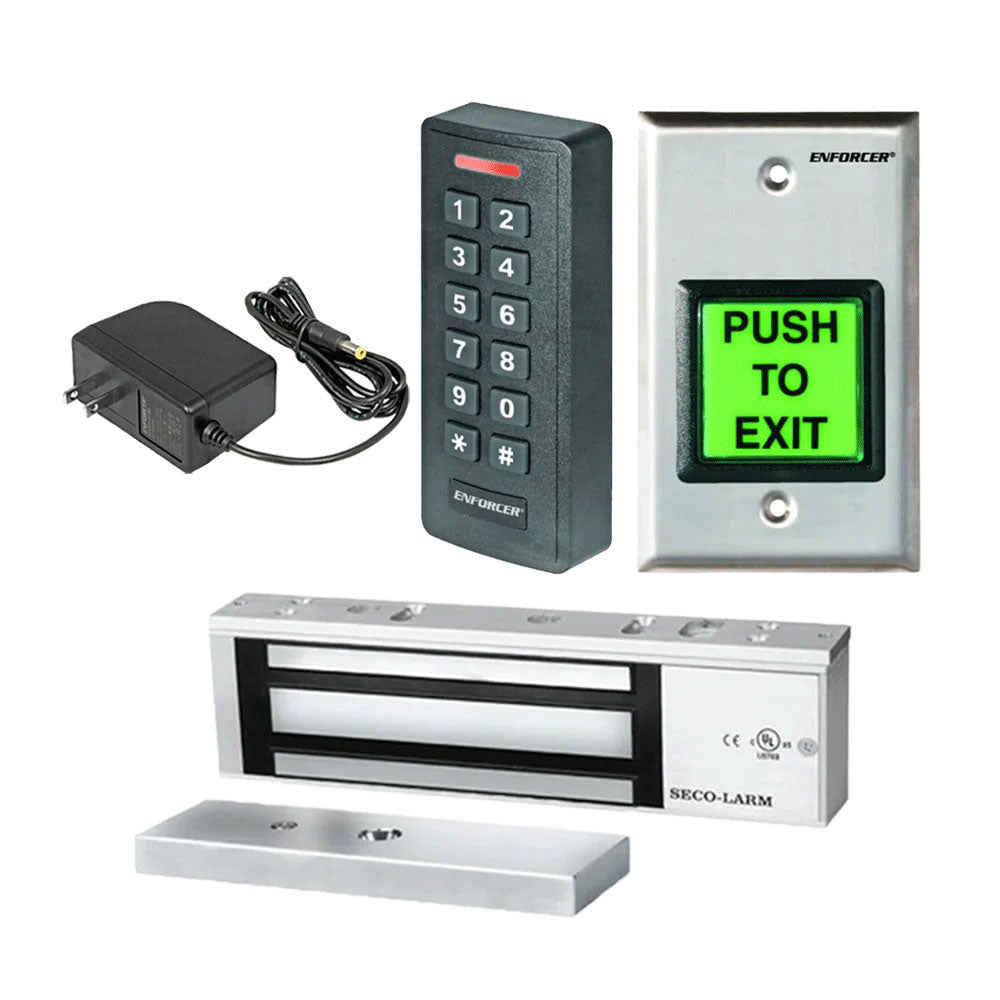

SECO-LARM - Single Door Maglock - 600lb Holding Force with Wiegand Keypad, Single-gang Wall Plate and 12VDC Plug-In Transformer

SECO-LARM - Single Door Maglock - 600lb Holding Force with Outdoor Wiegand Keypad, Single-gang Wall Plate and 12VDC Plug-In Transformer

Includes:

• Single Door Maglock - 600lb Holding Force
• Outdoor Wiegand Keypad
• Single-gang Wall Plate
• 12VDC Plug-in Transformer

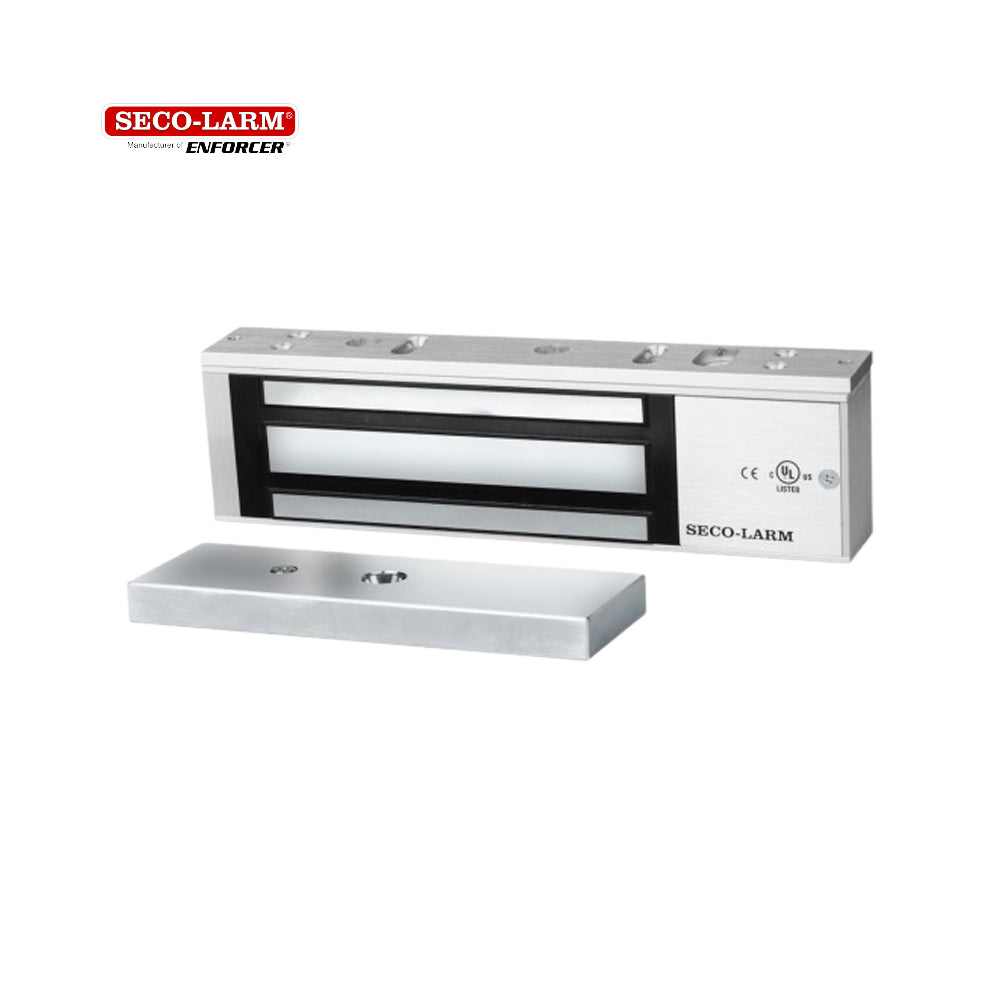

SECO-LARM E-941SA-600 Single Door Maglock – 600-lb Holding Force, UL

Features:

• UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
• Anodized aluminum housing (US 28)
• 12/24VDC selectable
• MOV surge protection.
• Adjustable mounting bracket.
• Complete mounting hardware for typical installations.
• "L" bracket and "Z" brackets available for easy mounting.
• Detachable faceplate
• Lifetime Limited Warranty*

*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.

Specifications:

Downloads:

• Data Sheet
• User Manual
• Diagram

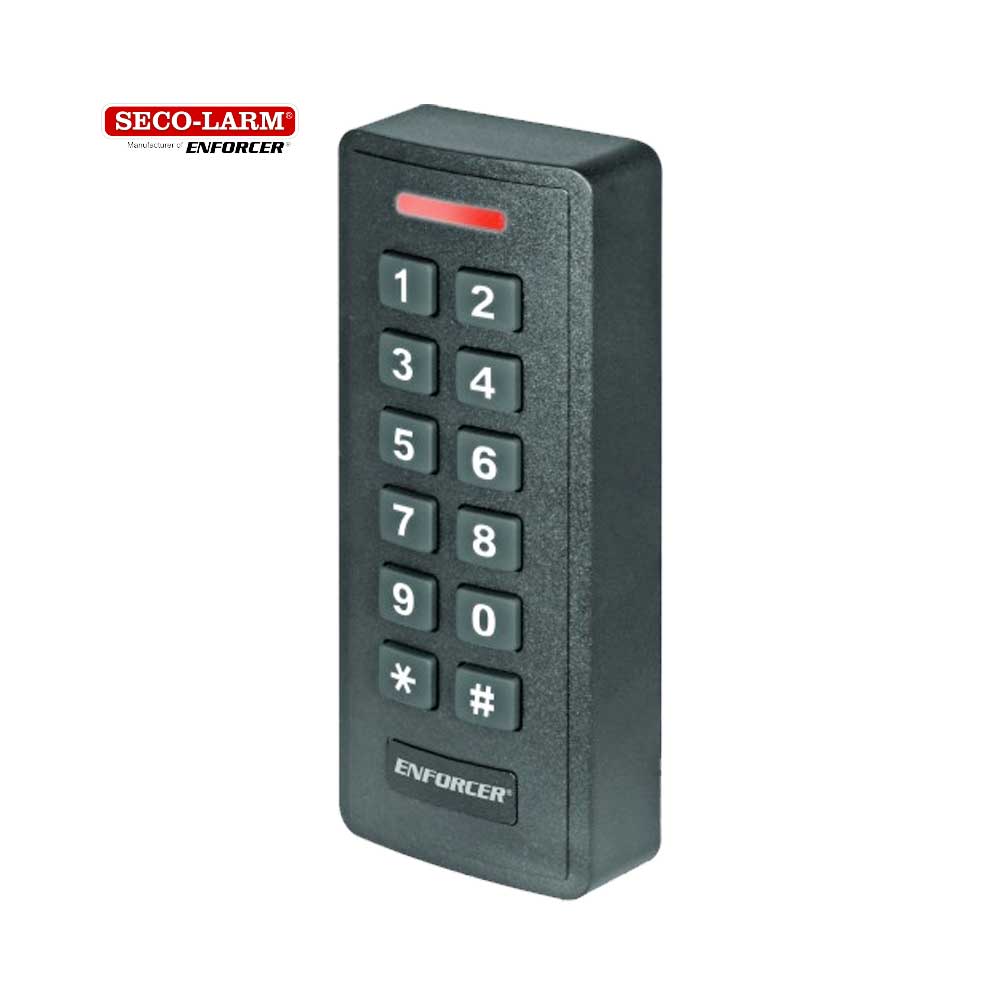

SECO-LARM SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Features:

• 1,000 Users (up to 998 users and 2 duress users)
• User code length 4~6 digits
• 9~18 VDC Operation, low current draw – 105mA max.
• Form C relay output – 2A@12VDC
• Adjustable output time – 0.5~99s, or toggle
• Built-in tamper alarm and external alarm (duress) output
• Backlit keypad and multicolor status LED
• EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
• Easy transfer of users to additional devices using Wiegand output
• All features programmed directly on the keypad: No need for an external programmer
• Egress input lets users exit the premises without a code/card
• Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
• 2-Door interlock function
• Extreme cold tolerance to -40° F (-40° C)
• Epoxy-filled black ABS plastic housing –Weatherproof IP66

Specifications:

Downloads:

• Data Sheet
• User Manual

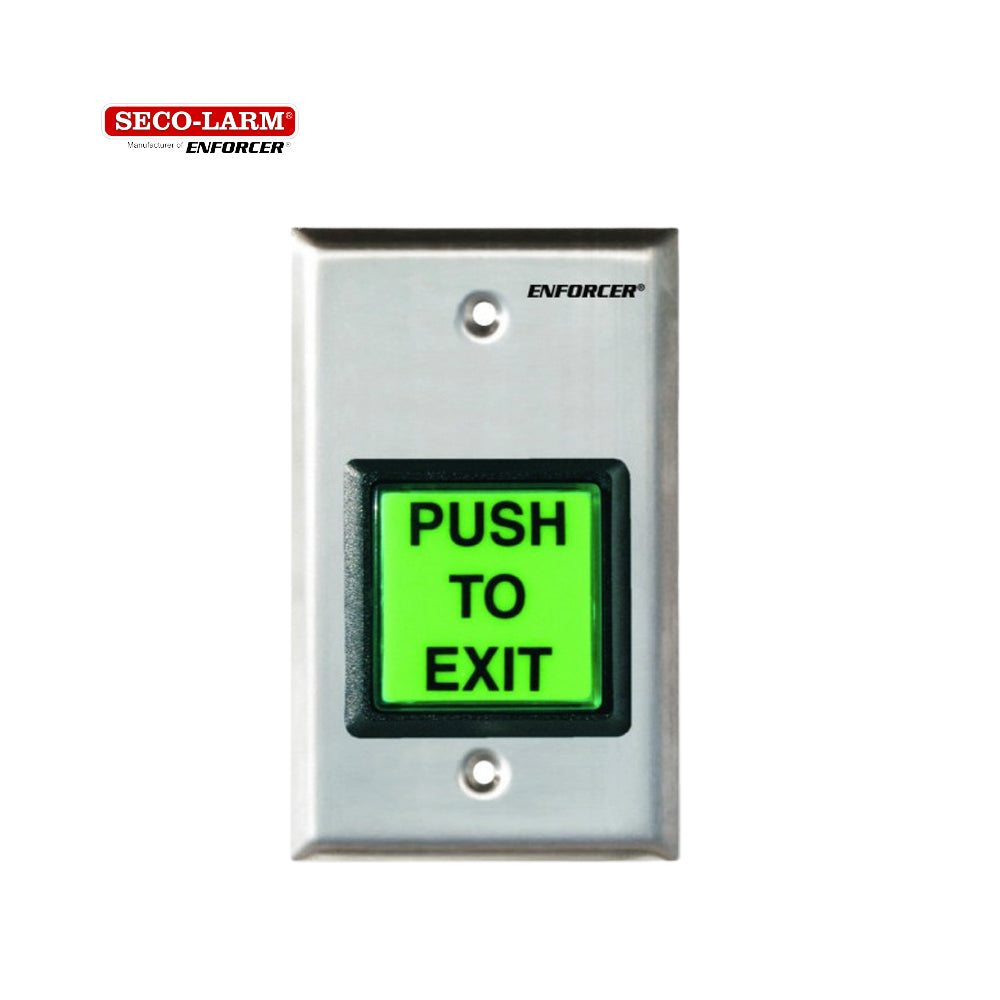

SECO-LARM SD-7202GC-PEQ LED Illuminated RTE Single-gang Wall Plate w Large Green Button, 12~24 VDC, stainless-steel

Features:

• Large illuminated pushbutton with caption "PUSH TO EXIT"
• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
• Pushbutton rated 50A@24VAC
• Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
• LED Gives over 50,000 hours of illumination
• 12~24 VDC: No resistors required
• Includes stainless-steel single-gang plate

Specifications:

Downloads:

• Data Sheet
• User Manual
• Diagram

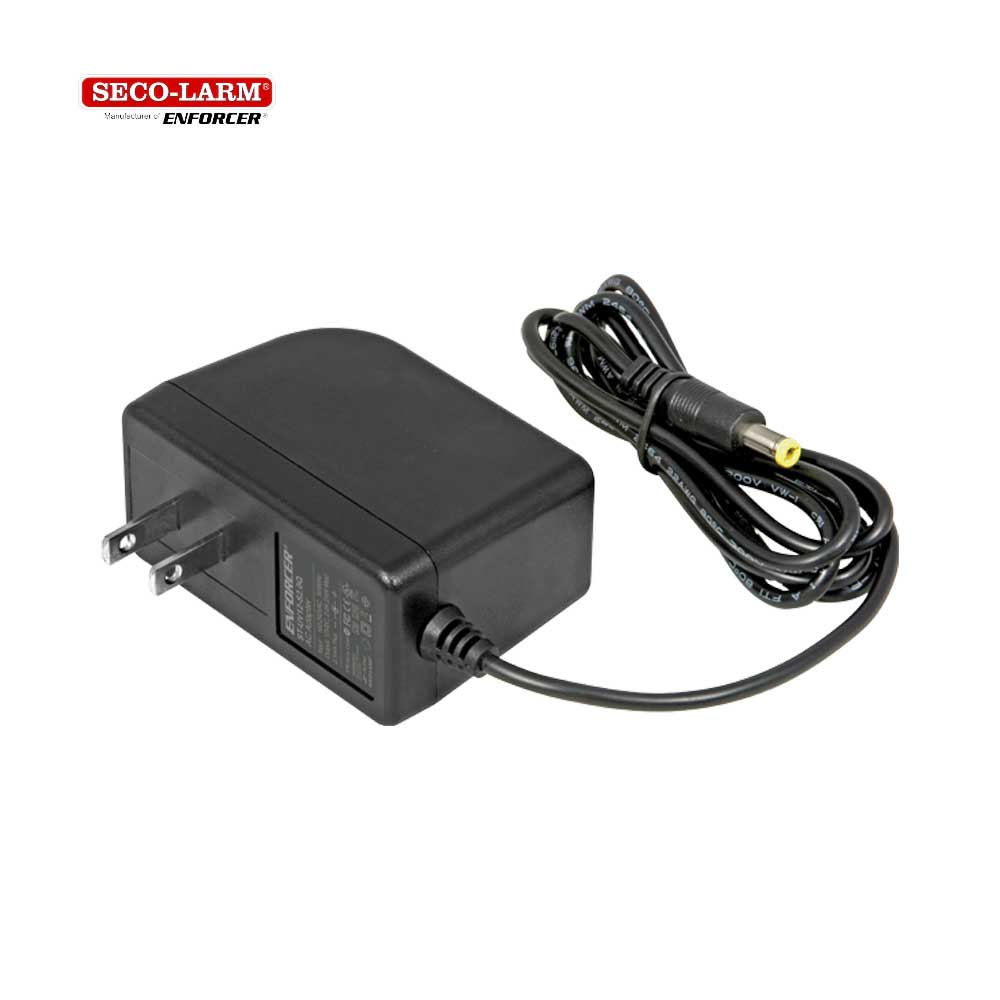

SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer

Description:

The SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer is a reliable and convenient power supply solution for various electronic devices and low-voltage systems. With its plug-in design, this transformer can be easily connected to standard electrical outlets, providing a stable 12VDC output. The compact and efficient design makes it suitable for a wide range of applications, including powering security cameras, access control systems, and other electronic components. Its 2.0-amp output capacity ensures ample power for most devices, and the 12VDC output is commonly used in many electronic systems. Whether for residential or commercial use, the SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer offers a hassle-free and dependable power source for various low-voltage applications.

Features:

• Regulated 2.0A
• Use in a wide variety of applications including CCTV, access control, and security
• Sideways plug for easy use with power strips
• Universal 100-240 VAC input. Regulated 12VDC output
• 4ft (1.2m) cord, 2.1mm plug (positive center)
• Low power consumption

Download:

• Product Information Sheet
