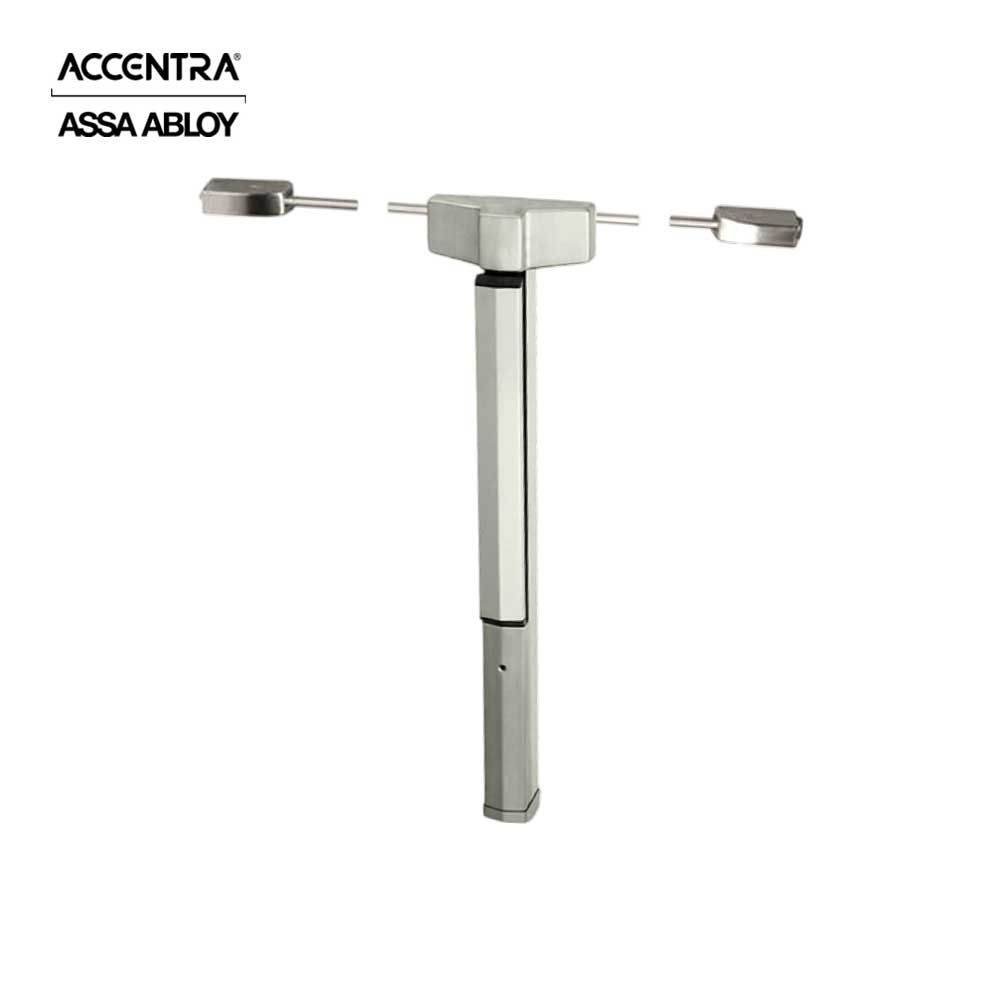

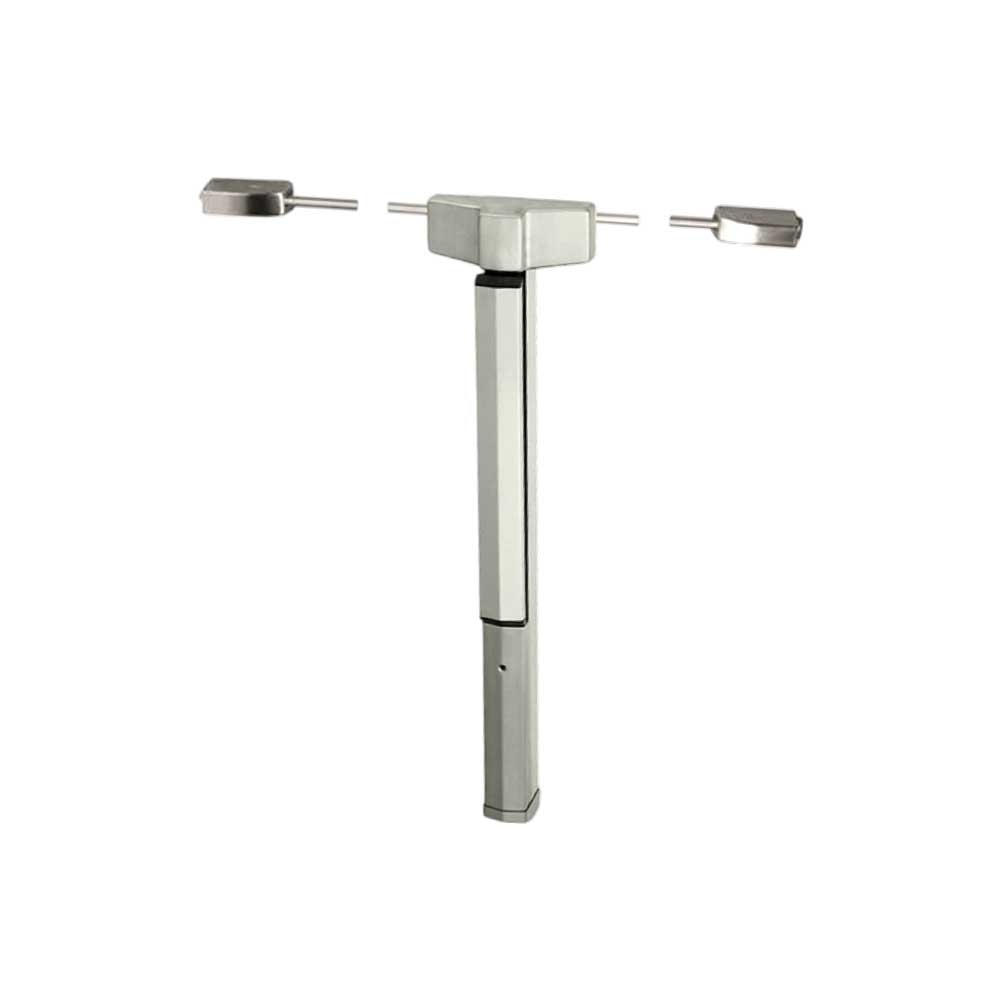

Yale - 7110F - Surface Mounted Vertical Rod Exit Device with Wide Stile Pushpad and Less Trim - 36" Fire-rated Device - Grade 1 - 630 (Stainless Steel)
7000 Series Pushpad Exit Devices is a Steel chassis and heavy-duty components for superior strength. Yale 7000 Series Exit Devices deliver an unparalleled combination certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building.
Features:
- Innovative: Featuring patented security options including SquareBolt latchbolt and delayed egress function
- Durable: Heavy-duty steel components are ANSI/BHMA Grade 1 certified for the ultimate in strength and security
- Flexibility: Various options available to customize this exit device to suit any opening
- Clean, modern look: Sleek design with a variety of attractive finish options to suit any decor
- High quality steel chassis and heavy-duty components
- Full range of mechanical and electromechanical options to suit any life safety application and pair with existing security systems
- ANSI/BHMA Grade 1 certified
- UL/cUL listed for panic and fire doors
- Windstorm certified (refer to local codes)
- Five year mechanical warranty, one year trim warranty, two year warranty on electrical options and components
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Yale |
| SKU | 7110F 36 630 |
| UID | YAL2007110F36630 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| ANSI Number | Certified A156.3 Type 2, Grade 1 |
| Limited Warranty | 5 Years |
| Fire Rated | Variable |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Device Length | 36" |
| Hand | Field Reversible |
| Dogging Options | Less Dogging |
| Includes Trim | No |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal, Wood or Composite |
| Door Width | 30" - 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
