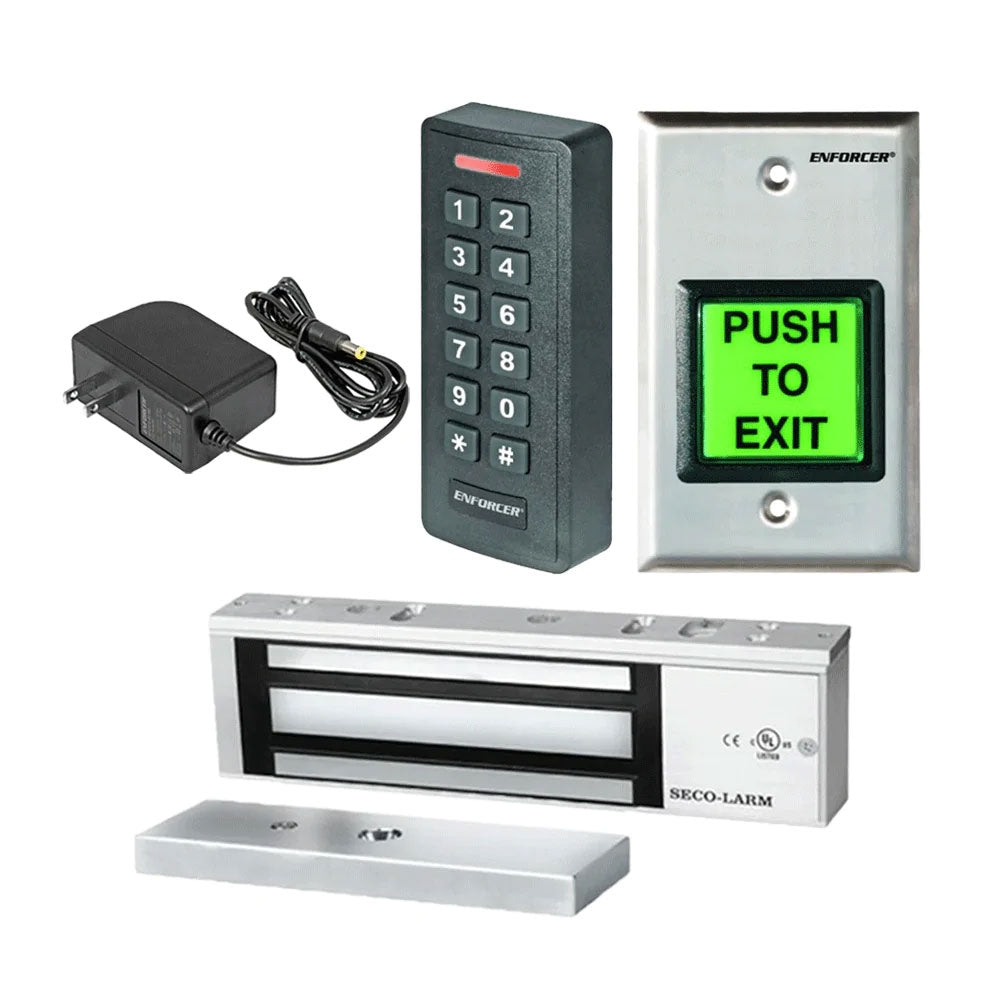

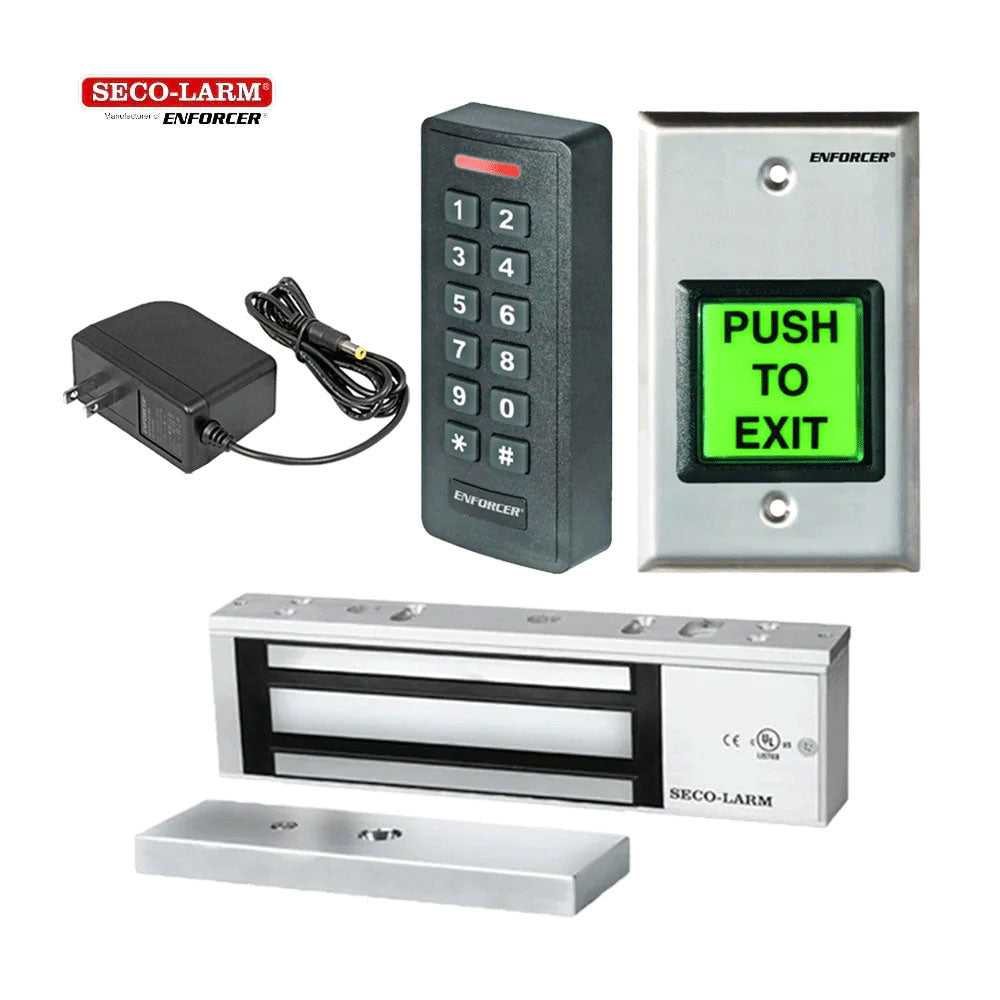

SECO-LARM - 1200lb Electromagnetic Lock with Outdoor Wiegand Keypad, Single-gang Wall Plate and 12VDC Plug-In Transformer
Includes:

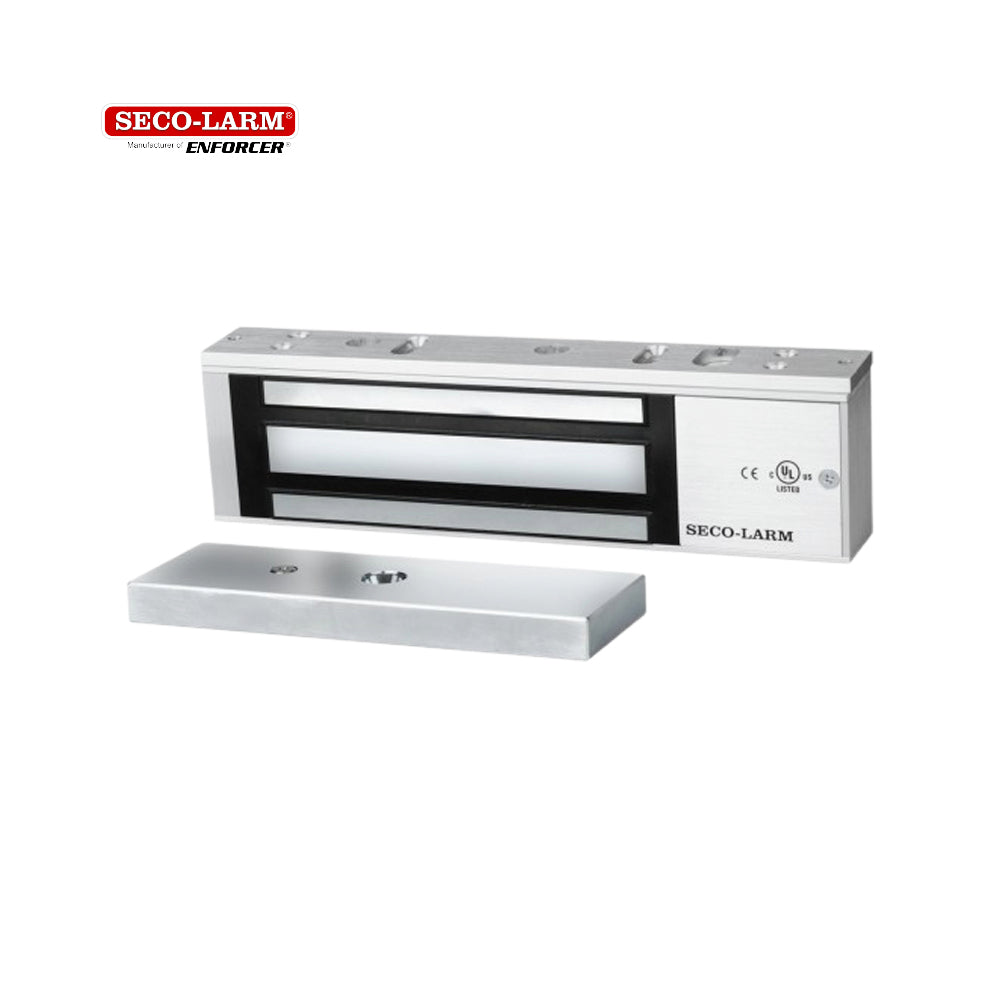

SECO-LARM E-941SA-1200 1,200-lb Electromagnetic Lock - UL Listed
Features:
- UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
- Anodized aluminum housing (US28)
- 12/24VDC selectable
- MOV surge protection.
- Adjustable mounting bracket.
- Complete mounting hardware for typical installations.
- "L" bracket and "Z" brackets available for easy mounting.
- Detachable faceplate
- Lifetime Limited Warranty
*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
Specifications:
| Holding Force | 1,200-lb (545kg) |
| Operating Voltage | 12/24 VDC±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 14Âş~131Âş F (-10Âş~55Âş C) |
| Electromagnet Dimensions | 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm) |
| Armature Dimensions | 7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Case Shipping Weight | 54-lb (24.5kg) |
| Weight | 11-lb (5kg) |
| Case Quantity | 5 pcs |
Download:

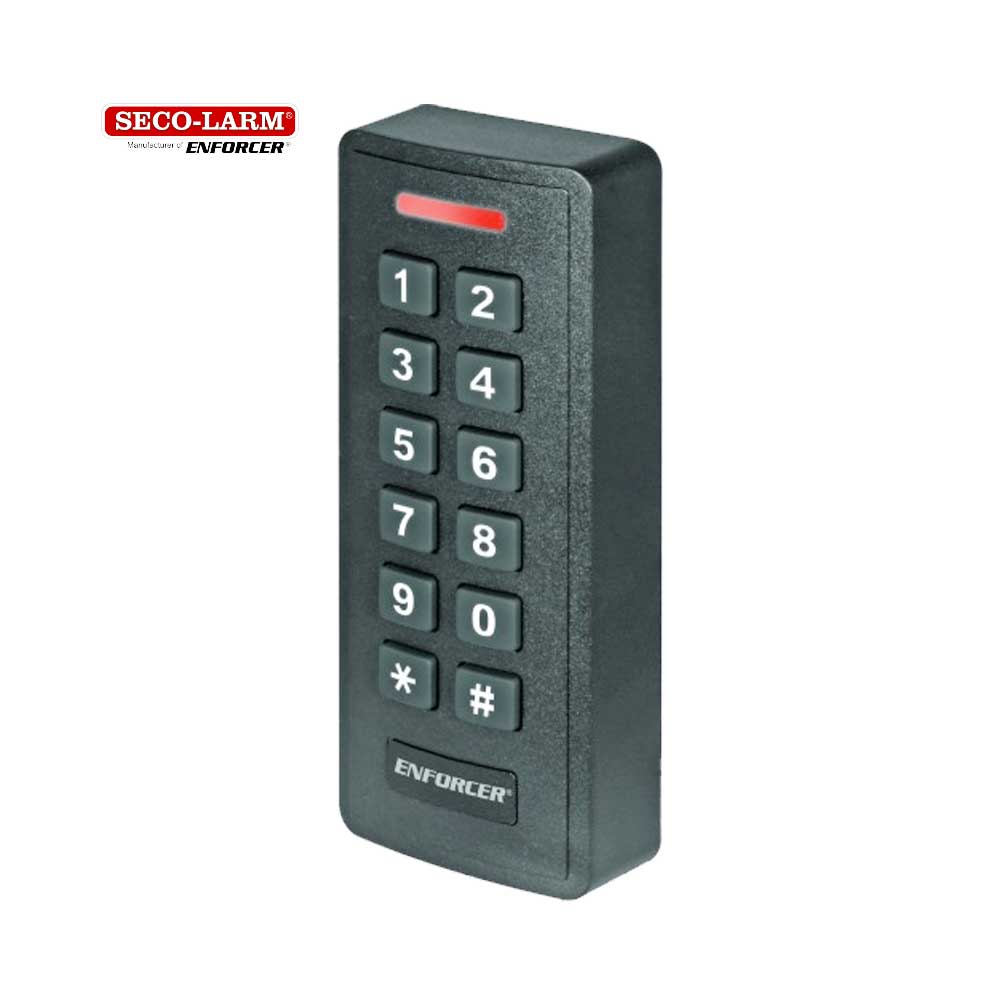

SECO-LARM SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader
Features:
- 1,000 Users (up to 998 users and 2 duress users)
- User code length 4~6 digits
- 9~18 VDC Operation, low current draw – 105mA max.
- Form C relay output – 2A@12VDC
- Adjustable output time – 0.5~99s, or toggle
- Built-in tamper alarm and external alarm (duress) output
- Backlit keypad and multicolor status LED
- EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
- Easy transfer of users to additional devices using Wiegand output
- All features programmed directly on the keypad: No need for an external programmer
- Egress input lets users exit the premises without a code/card
- Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
- 2-Door interlock function
- Extreme cold tolerance to -40° F (-40° C)
- Epoxy-filled black ABS plastic housing –Weatherproof IP66
Specifications:
| IP Rating | Weatherproof IP66 |
| Operating Voltage | 9~18 VDC |
| Current Draw - Standby | 40mA@12VDC |
| Current Draw - Active | 105mA@12VDC (max.) |
| Output - Form C | 2A@12VDC |
| Output - Alarm | 2.5A@12VDC |
| Output - Wiegand | 26~37 bits, PIN output bits – 4, 8, or 10 |
| Input - Egress | N.O. Ground |
| Input - Door Sensor | N.C. Ground |
| Input - Wiegand | 26~37 bits, PIN input bits – 4, 8, or 10 |
| Card type | EM 125kHz |
| Enclosure / IP Rating | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~90% non-condensing |
| Dimensions | 1-15/16"x4-3/4"x15/16" (49x120x24 mm) |
| Weight | 5.8-oz (165g) |
Download:

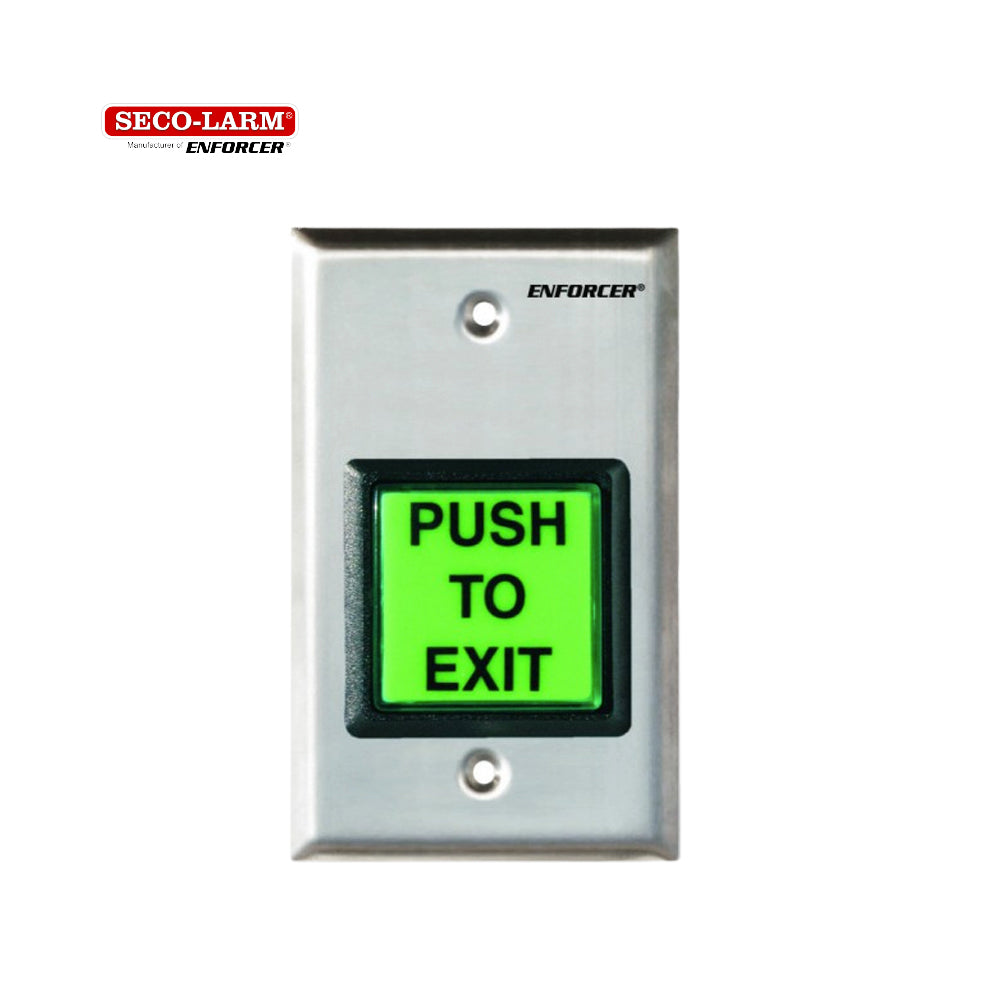

SECO-LARM SD-7202GC-PEQ LED Illuminated RTE Single-gang Wall Plate w Large Green Button, 12~24 VDC, stainless-steel
Features:
- Large illuminated pushbutton with caption "PUSH TO EXIT"
- Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
- Pushbutton rated 50A@24VAC
- Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
- LED Gives over 50,000 hours of illumination
- 12~24 VDC: No resistors required
- Includes stainless-steel single-gang plate
Specifications:
| Operating Voltage | 12~24VDC |
| Current Draw | 50A@24VAC |
| Operating Temperature | -40°~167° F (-40°~75° C) |
| Material | Brushed stainless |
| Dimensions | 4-1/2” x 2-3/4” x 2-3/4” (114 x 70 x 70 mm) |
| Weight | 3.7-oz (105g) |
Download:

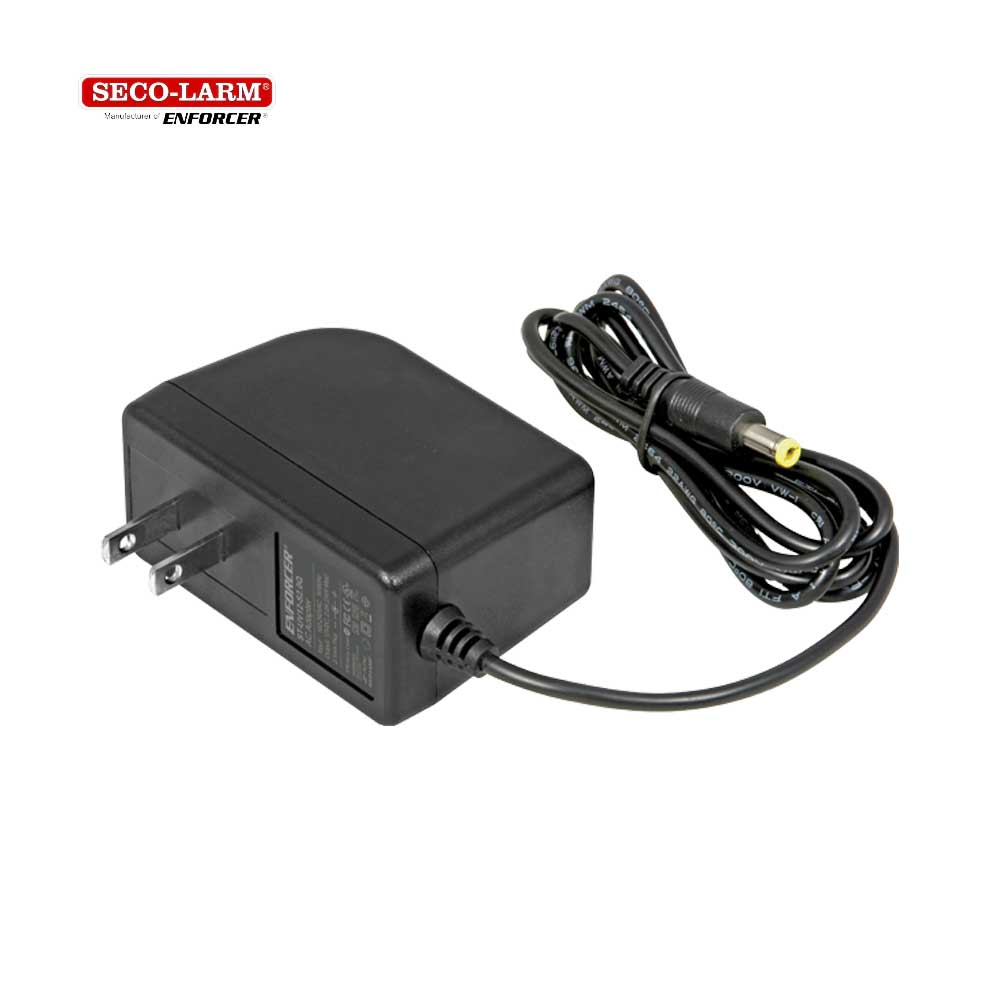

SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer
The SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer is a reliable and convenient power supply solution for various electronic devices and low-voltage systems. With its plug-in design, this transformer can be easily connected to standard electrical outlets, providing a stable 12VDC output. The compact and efficient design makes it suitable for a wide range of applications, including powering security cameras, access control systems, and other electronic components. Its 2.0-amp output capacity ensures ample power for most devices, and the 12VDC output is commonly used in many electronic systems. Whether for residential or commercial use, the SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer offers a hassle-free and dependable power source for various low-voltage applications.
Features:
- Regulated 2.0A
- Use in a wide variety of applications including CCTV, access control, and security
- Sideways plug for easy use with power strips
- Universal 100-240 VAC input. Regulated 12VDC output
- 4ft (1.2m) cord, 2.1mm plug (positive center)
- Low power consumption
Download:
