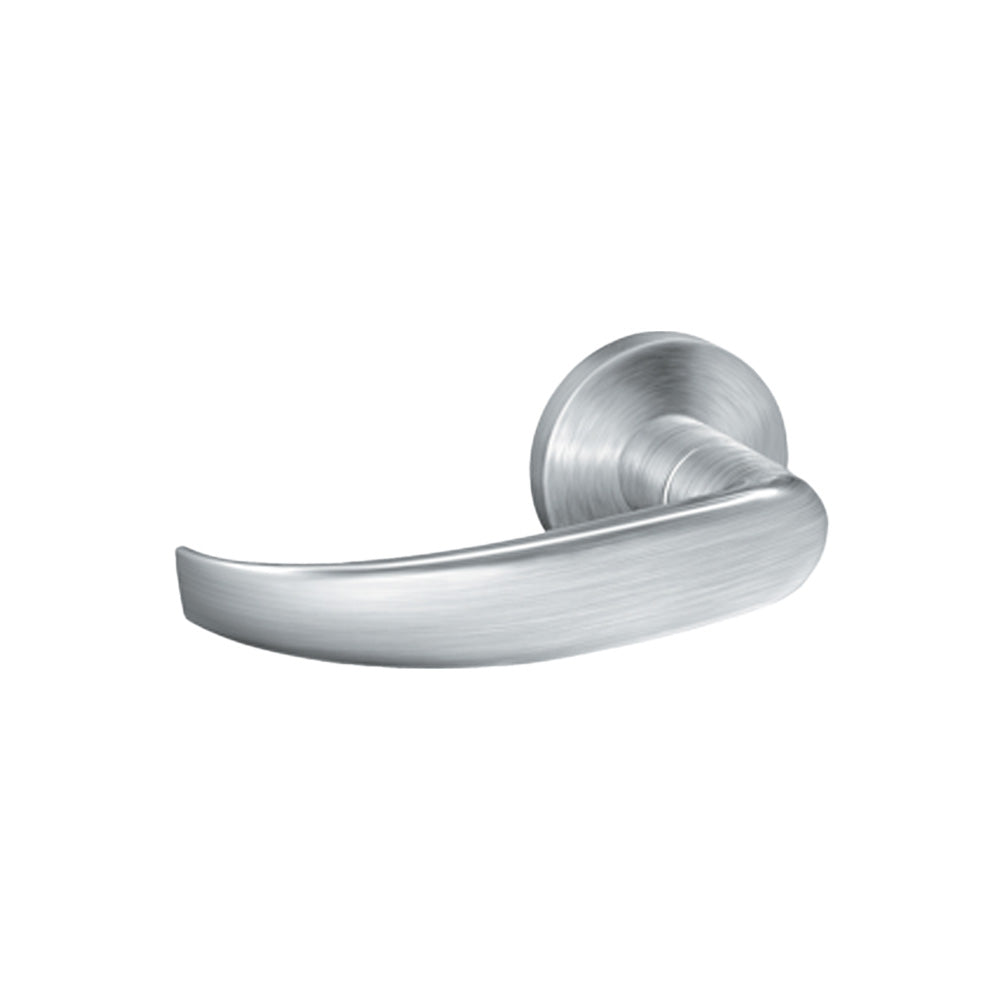

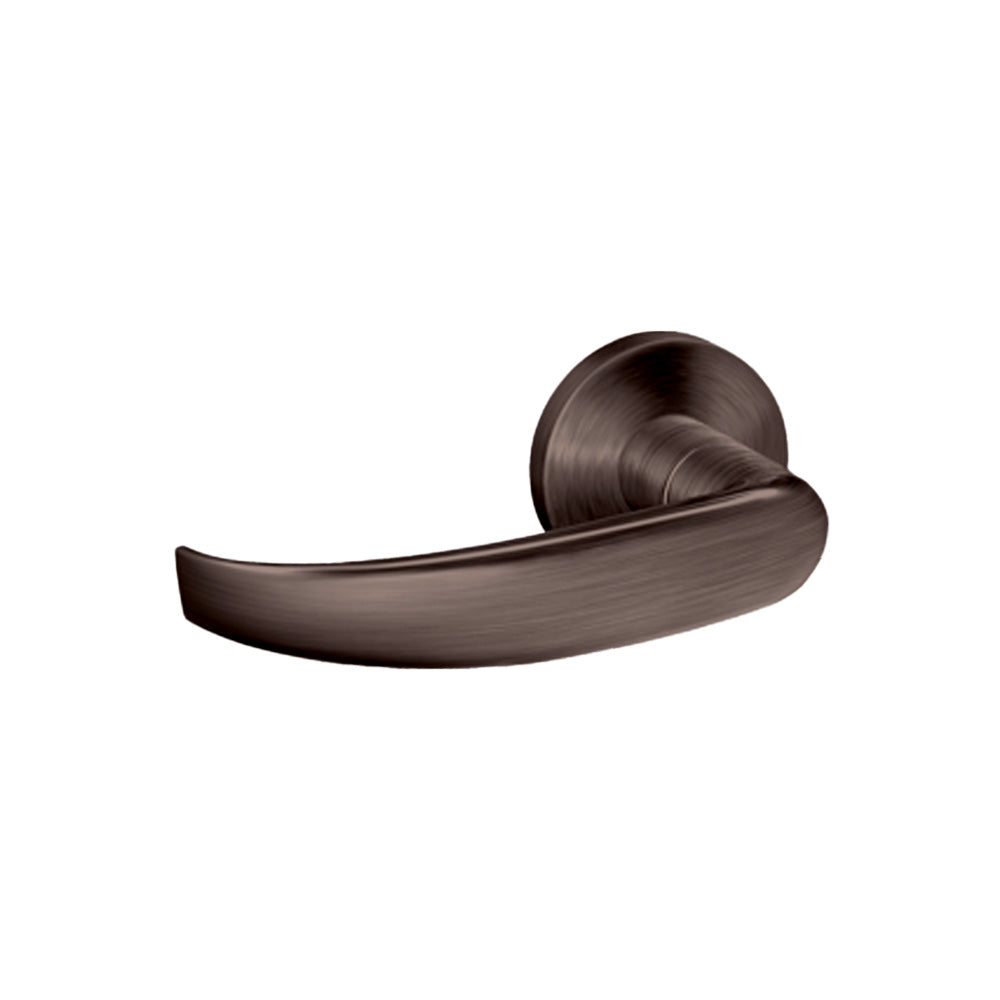

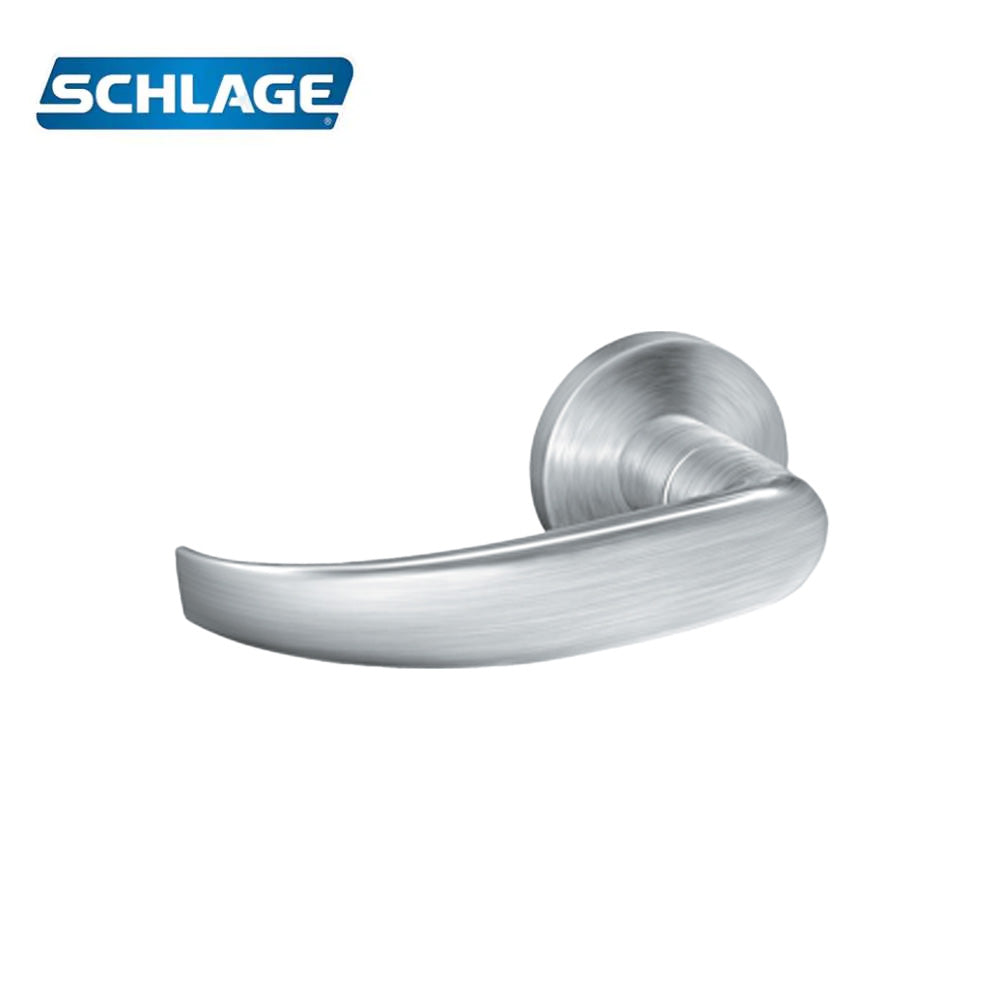

Schlage - L9092EU - Fail Secure Electric Mortise Lock - FSIC with Construction Core Field Reversible - 17 Lever - Grade 1
$1,19800
$1,43760
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Schlage - L9092EU - Fail Secure Electric Mortise Lock - FSIC with Construction Core Field Reversible - 17 Lever - Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 9092EU-Fail Secure |
| Cylinder Type | Schlage FSIC With Construction Core |
| Num Pins | 6 |
| Keyway | C |
| Keying | Keyed Different |
| Hand | Field Reversible |
| Door Thickness | 1-3/4" |
| Bolt Projection | 3/4" |
| Strike Number | 10-072 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Dust Box | Plastic |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 400mA |
| Switch Type | Request to Exit |
| Product Type | Electric Mortise Lock |
