Rosslare | SKU:
RSL-LK-M12L
39% off
Rosslare - LK-M12L - Electromagnetic Lock with Lock Status and Indicator - 1200 LBS - 12/24 VDC
$14008
$23113
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Rosslare - LK-M12L - Electromagnetic Lock with Lock Status and Indi...
$14008
$23113
Unit price
/
Unavailable
Description
Description
Rosslare - LK-M12L - Electromagnetic Lock with Lock Status and Indicator - 12/24 VDC

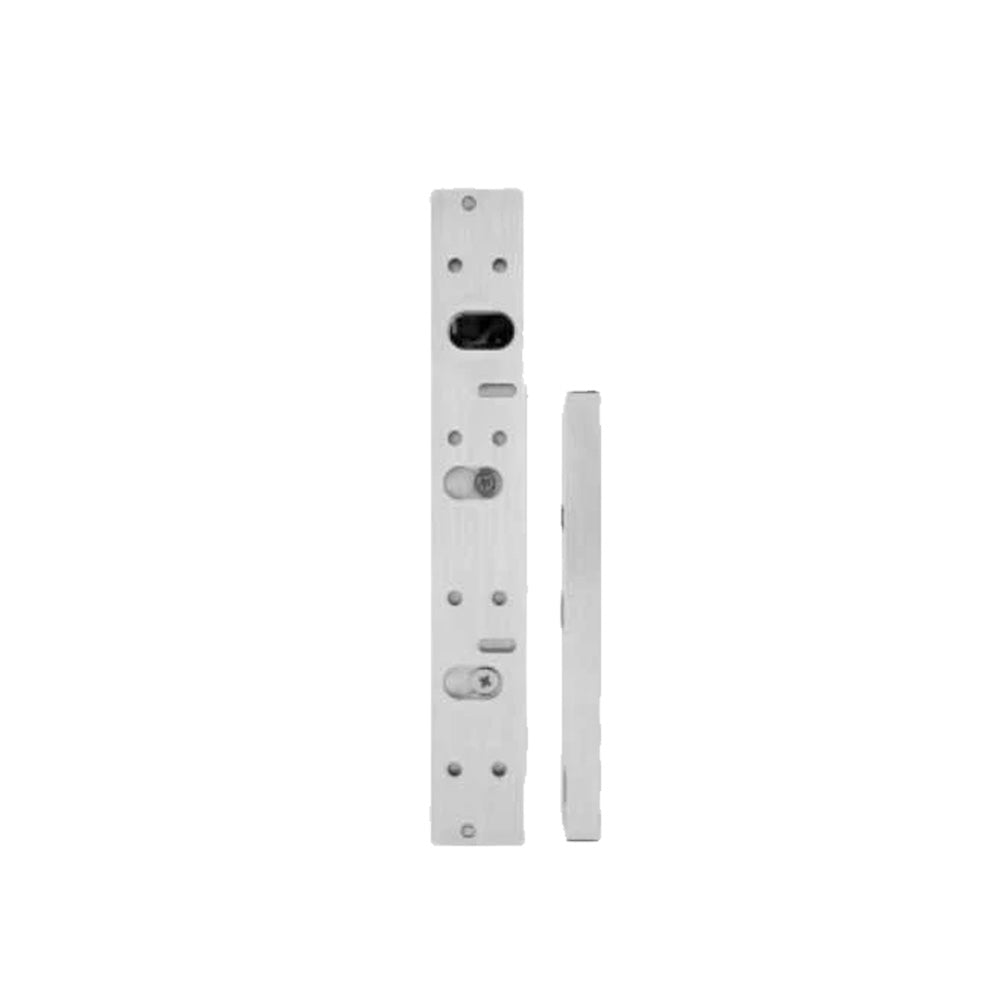

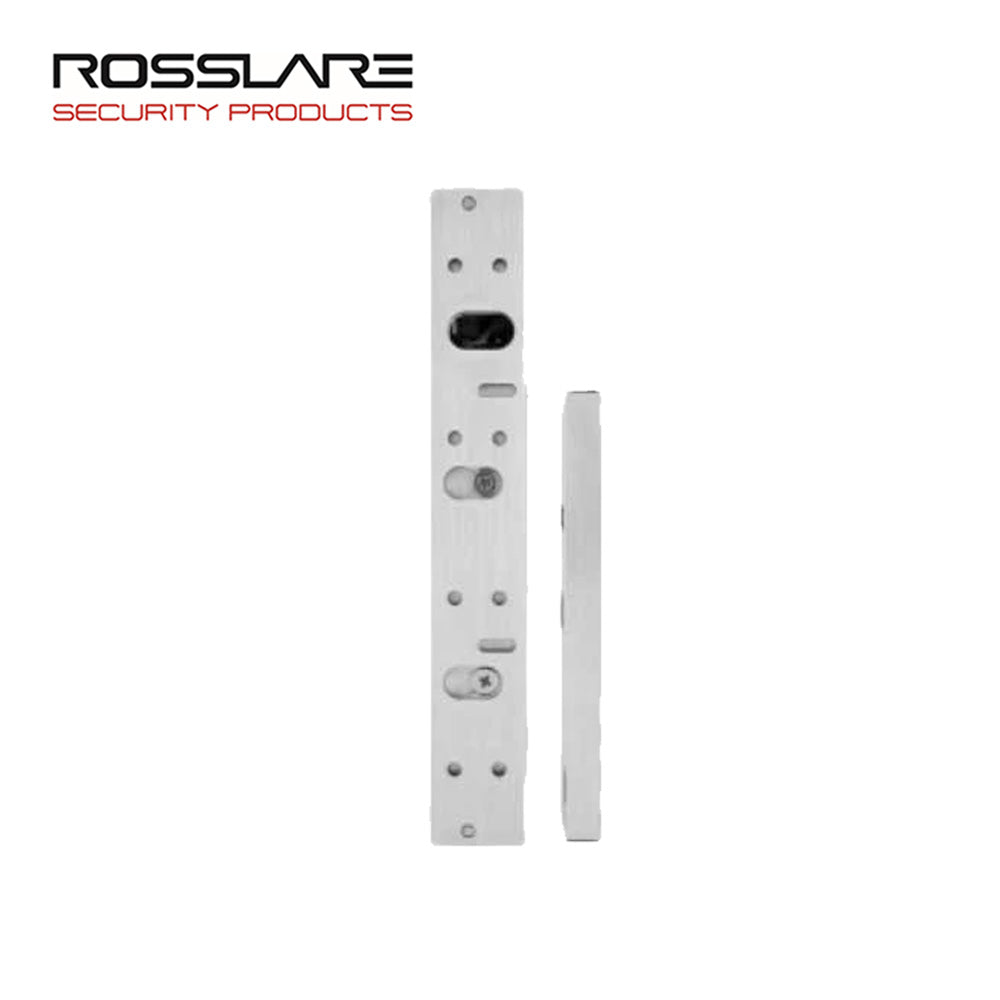

The LK-M12L is a surface mounted magnetic lock with anodized aluminum housing with 1200 lbs of holding force, respectively. LK-M12L operates on dual voltage (12 VDC or 24 VDC) and low current consumption. In addition, it has built-in voltage spike suppressor and no residual magnetism.
Features:
- Surface Mounted Magnetic Lock.
- 1200 lbs holding force and is built from corrosion resistant anodized aluminum.
- Dual voltage (12/24VDC)operability, has low current consumption and has a built-in voltage spike suppressor and no residual magnetism.
Specifications:
| Type | Magnetic Lock |
| Voltage | Dual voltage: 12/24 VDC |
| Current | 12 VDC: 500 mA / 24 VDC: 250 mA |
| Dimensions | 266 x 73 x 40 mm (10.5 x 2.87 x 1.57 in.) |
| Holding Force | 272 kg (1200 lb) |
| Operating Environment | Suitable for indoor use |
Downloads:
