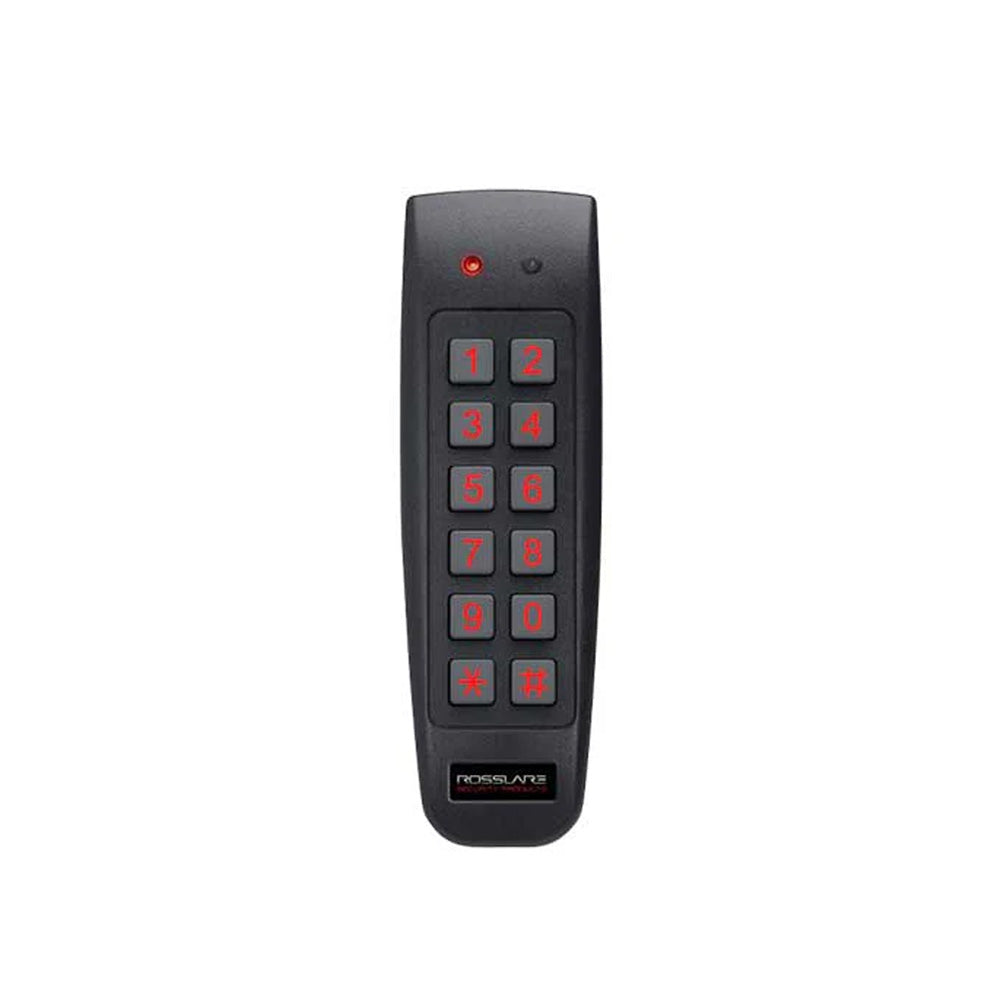

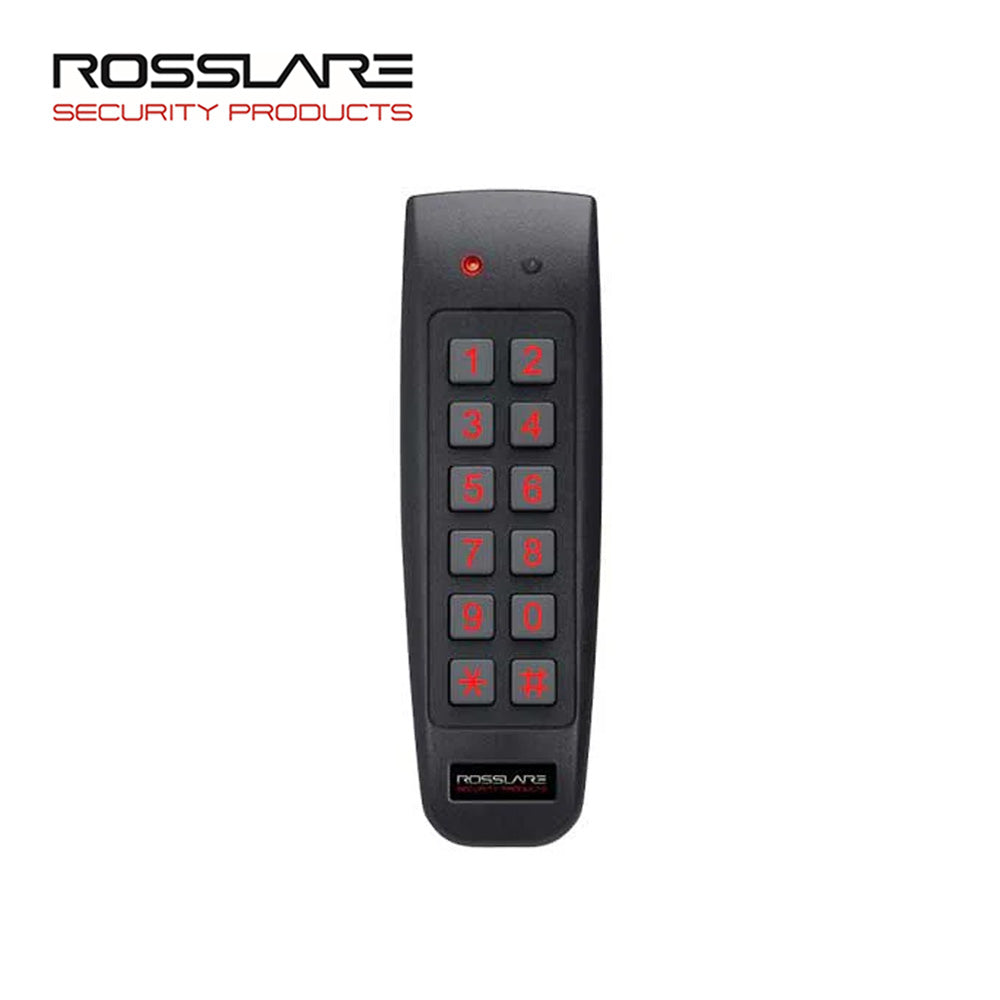

Rosslare - AYC-G64 - Mullion PIN Convertible Reader/Controller
The AYC-G64 offers programmable PIN and proximity transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible RED backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User friendly menu, based on keypad, LED, and sounder indicators.
- Back and cover optical tamper detection and output.
- Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data).
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
- 8 selectable PIN transmission modes including options for key stream, Binary, Parity, and 3x4 Matrix.
- Supports Wiegand 26-Bit or Clock & Data transmission formats.
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN).
- 60 cm (23.6 in.) shielded interface cable.
- Meets IP65.
Specifications:
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | 105 mA |
| Input Current Max | 140 mA |
| Tamper | Open collector, active low, 32 mA max sink current |
| Keypad | 2x6 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| LED Control Input | Dry Contact N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from single to 8-digit PIN codes, including: - Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare - 1-5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26-bit - 2x6 Matrix single key - 1 to 8 keys BCD, Clock & Data |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Inputs | REx (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Environment | Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
| Weight | 160 g (5.6 oz) |
