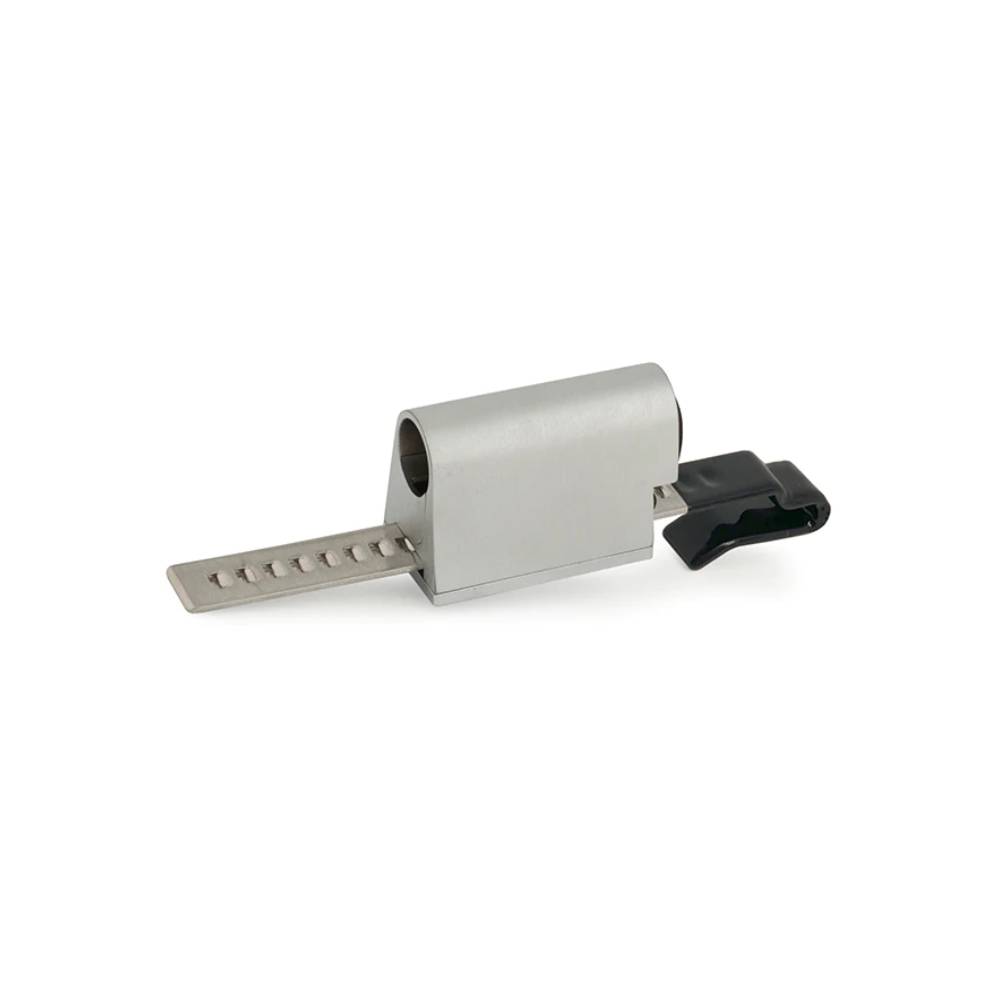

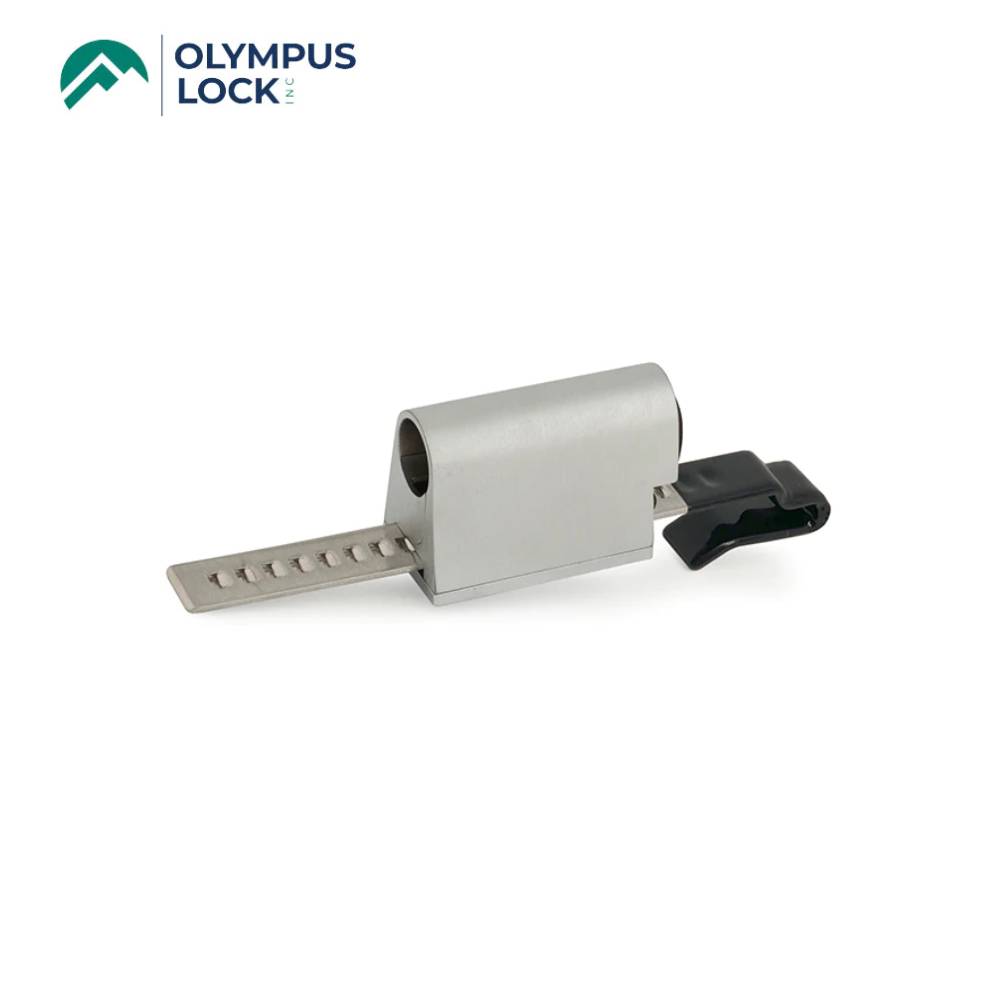

OLYMPUS LOCK - 829LC - LC Series - Schlage C Keyway Showcase/Ratchet Lock - Sliding Door Lock - US26D (Satin Chrome-626)

OLYMPUS LOCK - 829LC - LC Series - Schlage C Keyway Showcase/Ratchet Lock - Sliding Door Lock - US26D (Satin Chrome-626)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• 829R-LC Ratchet lock - for bypassing sliding doors
• Easily rekeyable: remove bottom plate, then remove set screw to remove cylinder
• ANSI/BHMA: E07191
• Includes 729RS-1 strap: 6" stainless steel strap for 3/16" to 1/4" glass thicknesses
• Zinc die cast cylinder housing, steel strap

Specification:

• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards
• Use: Sliding glass or wood doors
• Body: Zinc die cast
• Strap: Steel
• Cylinder: Not included
• Includes: All parts necessary to work with other manufacturers’ cylinders
• Accepts: Schlage compatible key-in-knob cylinders including ILCO cylinder #1599 and Medeco cylinders
• Compatible electronic cylinders: Medeco LOGIC, ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders
• Finish: Satin Chrome US26D

MPN: 829R-LC-26D

Download:

• Installation Instruction
• Data Sheet
