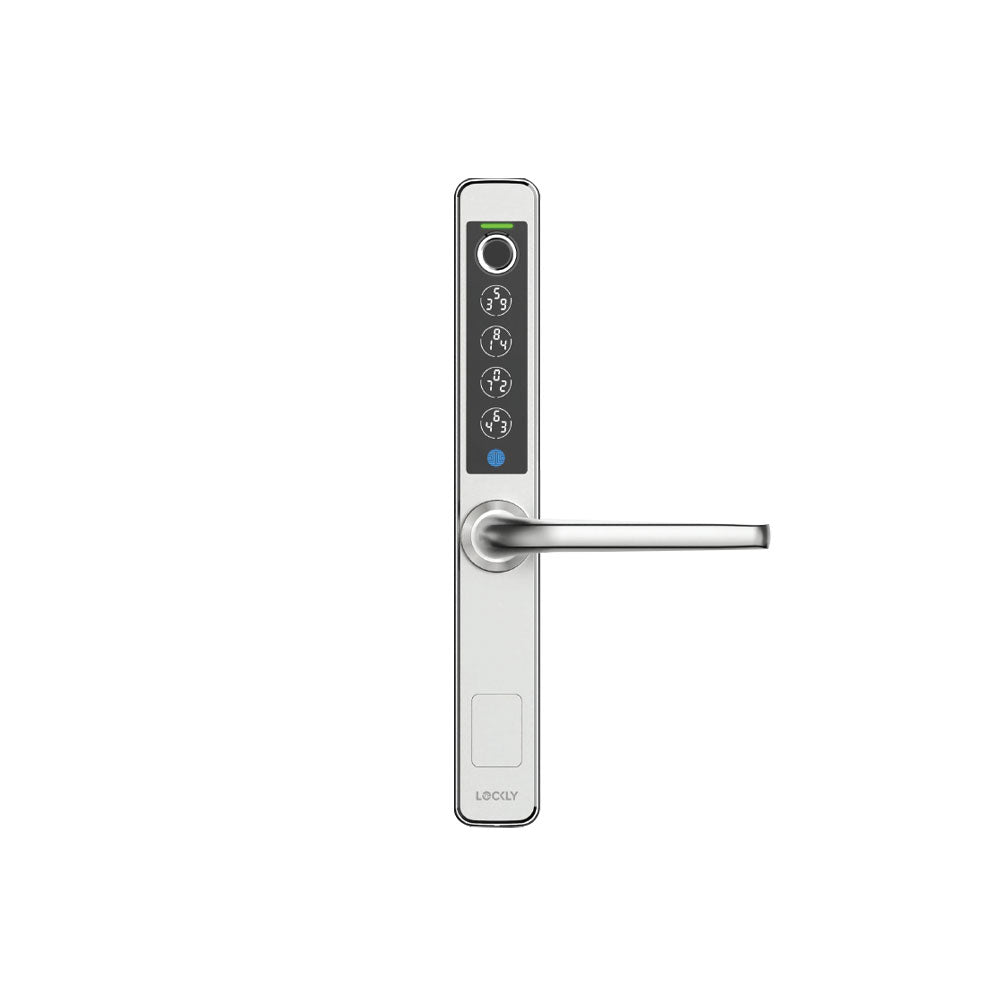

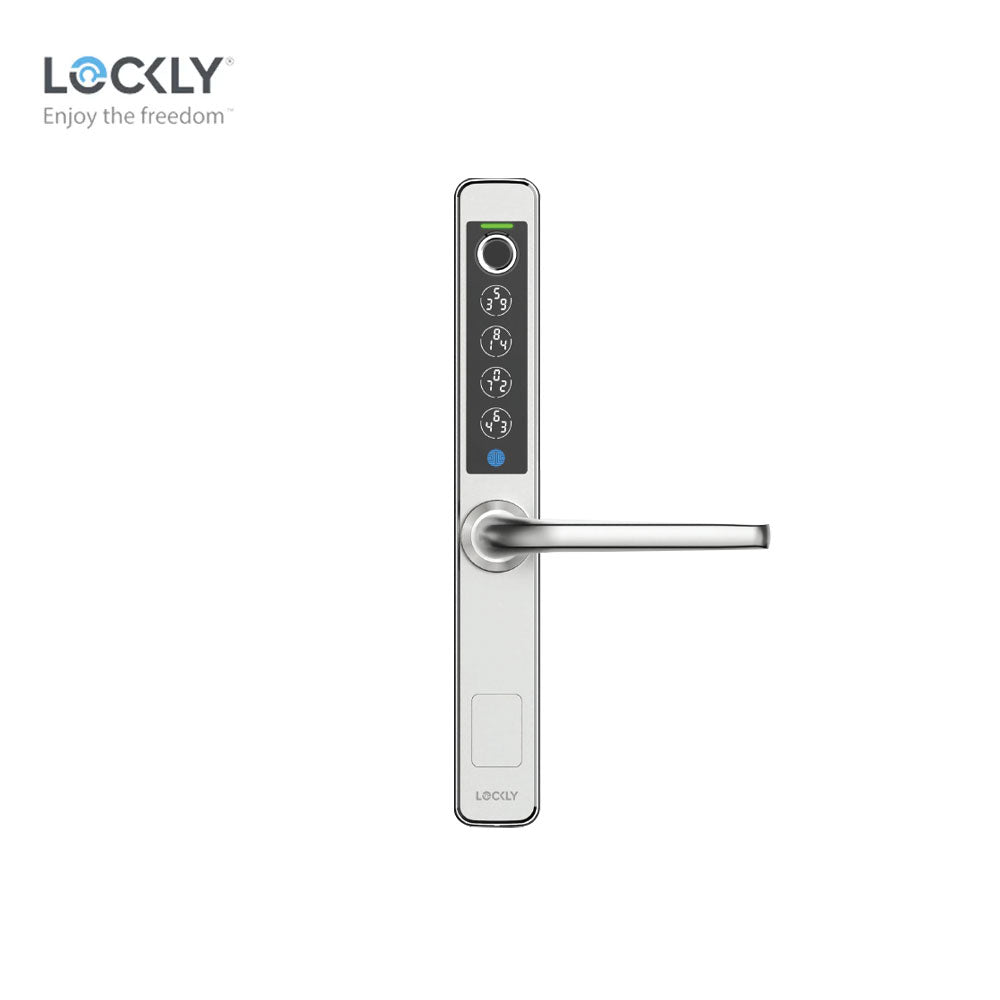

Lockly Guard - PGD228WSL - Narrow Stile Double Hook Mortise Lever Set - Slide Edition - RFID - Biometric Fingerprint - Keypad - Wi-Fi/Bluetooth App - Backset 1-1/8" - Athena 228SL - Stainless Steel
Lockly Guard Athena 228SL Slide Edition brings security, and control to the world of sliding doors with thin metal wooden frames. Athena boasts all the best-in-class features such as hack-proof PIN Genie digital keypad, 3D Biometric fingerprint access, RFID access, 24/7 lock control and monitoring from anywhere in the world through Lockly app. Its forward-thinking design assures that any living or office space is complemented with safety and elegance.
Features:
- Advanced 3D Biometric Reader: Instantly recognizes fingerprints for fast unlocking, storing up to 99 fingerprints.
- Patented PIN Genie Keypad: Prevents code guessing by randomizing PIN locations, with storage for up to 49 access codes.
- MIFARE RFID Access: Use cards, fobs, or tags for quick entry, customizable logs, and permissions tracked via the Lockly app or LocklyOS, stores up to 999 RFIDs.
- Auto-locking Convenience: Program auto-locking to automatically secure your door after each use, eliminating the worry of forgetting to lock up.
- Remote Access and Control: With the included Secure Link Wi-Fi Hub, remotely lock/unlock doors, and manage and monitor your property from anywhere using the Lockly app or LocklyOS.
- Versatile fit: Designed for right or left-hand slim aluminum or metal-framed glass sliding doors with a door thickness of 13/8" to 2 9/16" (35mm - 65mm). Includes all necessary mounting hardware and a 1-3/16" (30mm) backset mortise lockset. Advanced DIY skills or professional installation required.
- Premium Built and Design: IP65 made to withstand extreme temperatures. ADA compliant. Backed by a limited 2-year mechanical, finish, and electronics warranty, plus lifetime technical support.
- Long Battery Life: Powered by 4 AA batteries (included) lasting up to 9 months. Low battery alerts on your app, plus backup keys and power options for emergencies.
- Secure Air Transfer: Transfer fingerprints and access codes between locks using the Lockly app or LocklyOS.
- Offline and Timed Access: Generate temporary access codes or eBadges, and monitor your property from anywhere using the Lockly app or LocklyOS. Users can scan QR codes via the app for instant unlocking.
- Works with LocklyOS: Manage single or multiple properties with LocklyOS, offering full visibility and control of access points from anywhere (subscription required).
Product Specifications:
Handing | Field reversible |
Materials | Stainless Steel chassis and escutcheon |
Door Thickness | 1-3/8" - 2 9/16" (35mm-65mm) |
Slide Backset | 1 3/16" (30mm) |
Deadbolt/Latch | 2/3" (17mm) Hook Throw |
Door Frame Width | 2" - 3" (50.8mm - 76.2mm) |
Physical Keys | 12-pin SCC Laser cut key, 2pcs included |
Technical Specifications:
Access Codes | Stores up to 49 PIN access codes |
RFID/Fob Key Access | Stores up to 999 MIFARE RFID/fob |
Fingerprint Access | Stores up to 99 biometric fingerprints |
Remotely Shareable Temporary Access | Unlimited Offline Access Codes / eBadgess |
Access Logs | Unlimited Accessible via LocklyPro Commercial app or LocklyOSTM |
Visual and audible |
Exterior: LED (Red, Green)
Interior: LED (Red) Configurable Lock/Unlock Audio Indicator |
Communication Standards |
BLE 4.2Wi-Fi 2.4GHz RF433.92MHz
Advanced Encryption Standard (AES), 256-bit |
Gateway Communication Range (networked solution) |
Up to 98' (30m) BLE
Up to 197' (60m) Wi-Fi Up to 164' (50m) RF433.92MHz Unobstructed open environment |
Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
Connectivity Options |
LocklyPro app, LocklyOS, Matter Controller
ALL in real-time communication |
Available Signal Status |
Battery Status via App
Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
Battery Life |
AA Alkaline Batteries x 4
Type-C Backup charging Up to 1 year (offline mode) up to 9 months (regular use with App and Sensor |
Operating Humidity | 0-95% non-condensing |
Operating temperature | -4°F to 151°F (-20°C to 66°C) |
Credential Technologies |
RFID Card (13.56 MHz),
BLE (2.4 GHz) Wi-Fi (2.4GHz) Capacitive Sensor Patented PIN Genie Keypad |
Standards | ISO 14443 |
Maximum Read Range |
RFID: up to 0.79"
BLE: up to 98' (30m) Wi-Fi: up to 197' (60m) |
RFID/Fob Compatibility | MIFARE S50 |
Mobile compatibility | LocklyPro Commercial app BLE 4.2 LocklyOS, Matter |
