dormakaba | SKU:
DMK-E2051XSLL-626-41
15% off

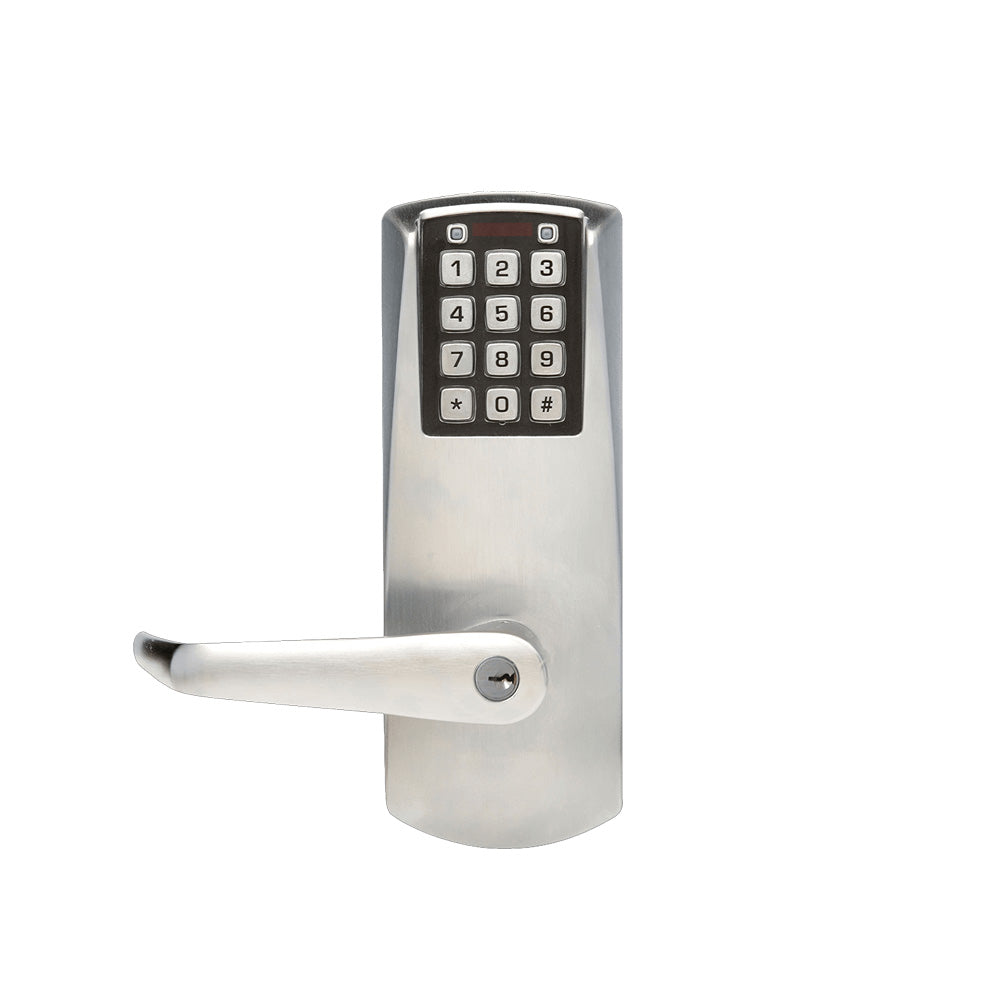

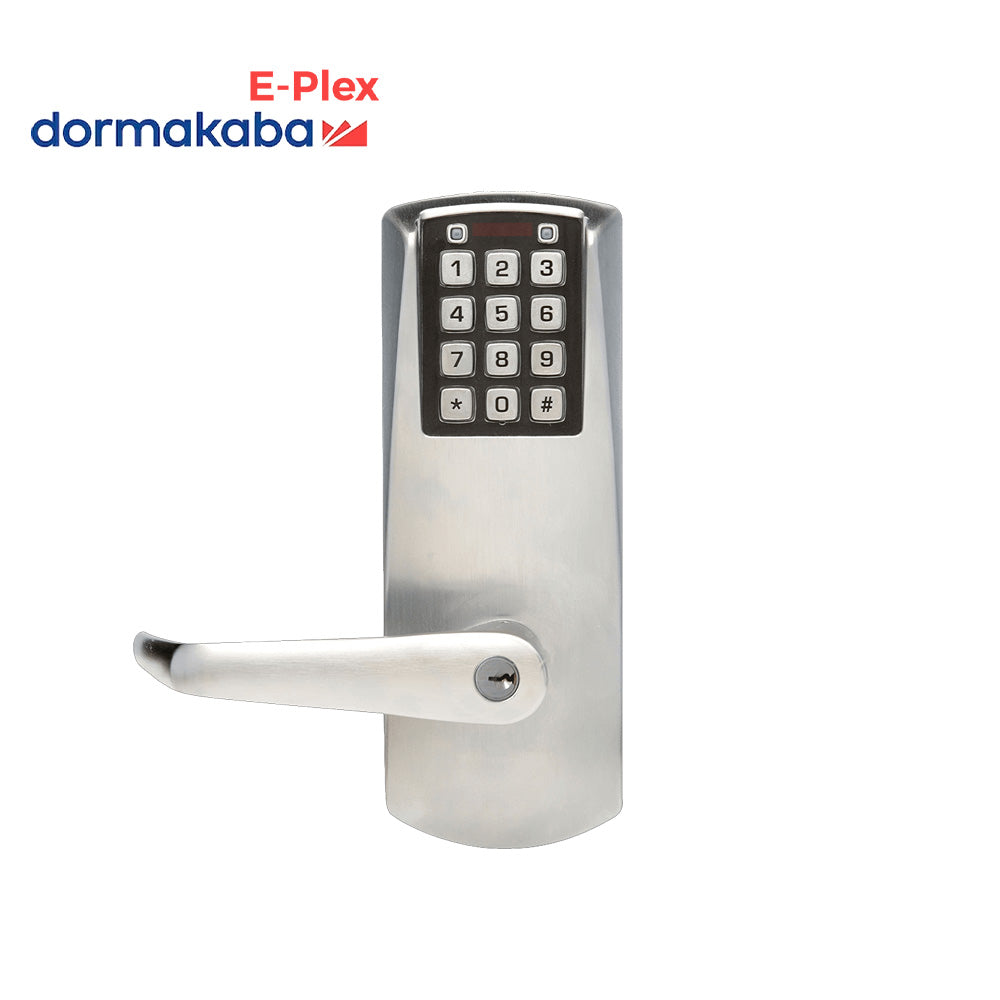

Dormakaba E-Plex - E2051XSLL - Electronic Pushbutton Cylindrical Lock with Privacy and 2-3/4" Backset - 1/2" Throw - Schlage C Keyway - Grade 1
$51346
$60673
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
Dormakaba E-Plex - E2051XSLL - Electronic Pushbutton Cylindrical Lock with Privacy and 2-3/4" Backset - 1/2" Throw - Schlage C Keyway - Grade 1
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Cylindrical with Privacy.
Features:
- Requires no wiring to or through the door-eliminates risk of damage from pinched wires that can result in costly callbacks. AA Batteries needed.
- Multiple Users-100 Codes.
- Non-handed; pre-assembled for left-hand door installations-easily changed in the field.
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
- PIN access.
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level.
- Code length-adjustable to accept 4 to 8 digits.
- Anti-tamper lockout-adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
- Re-lock time-adjustable from 2 to 20 seconds.
Specifications:
| Construction | Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Handing | Non-handed, pre-assembled for left-hand door installation-easily changed in the field |
| Locking Device | Cylindrical With Privacy 1/2" (13 mm) throw latch, floating face plate 2-3/4" (70 mm) backset |
| Backset | 2-3/4" (70 mm) backset |
| Key Override | Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included |
| Minimum Stile Recommended | 5" (127 mm) |
| Latch | 1/2" (13 mm) throw latch, floating face plate |
| Strike | Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike |
| Door Preparation | ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors) |
| Door Thickness | 1-3/8" (35 mm) to 2-1/2" (64 mm); pre-assembled to accommodate doors 1-5/8" (41 mm) to 2" (50 mm) |
| Accessibility Standard | Americans with Disabilities Act (ADA) |
| Certification | ANSI/BHMA Grade 1 Certified |
| Fire Rating | 3-hour UL/ULC fire rating for "A" label doors |
Downloads:
