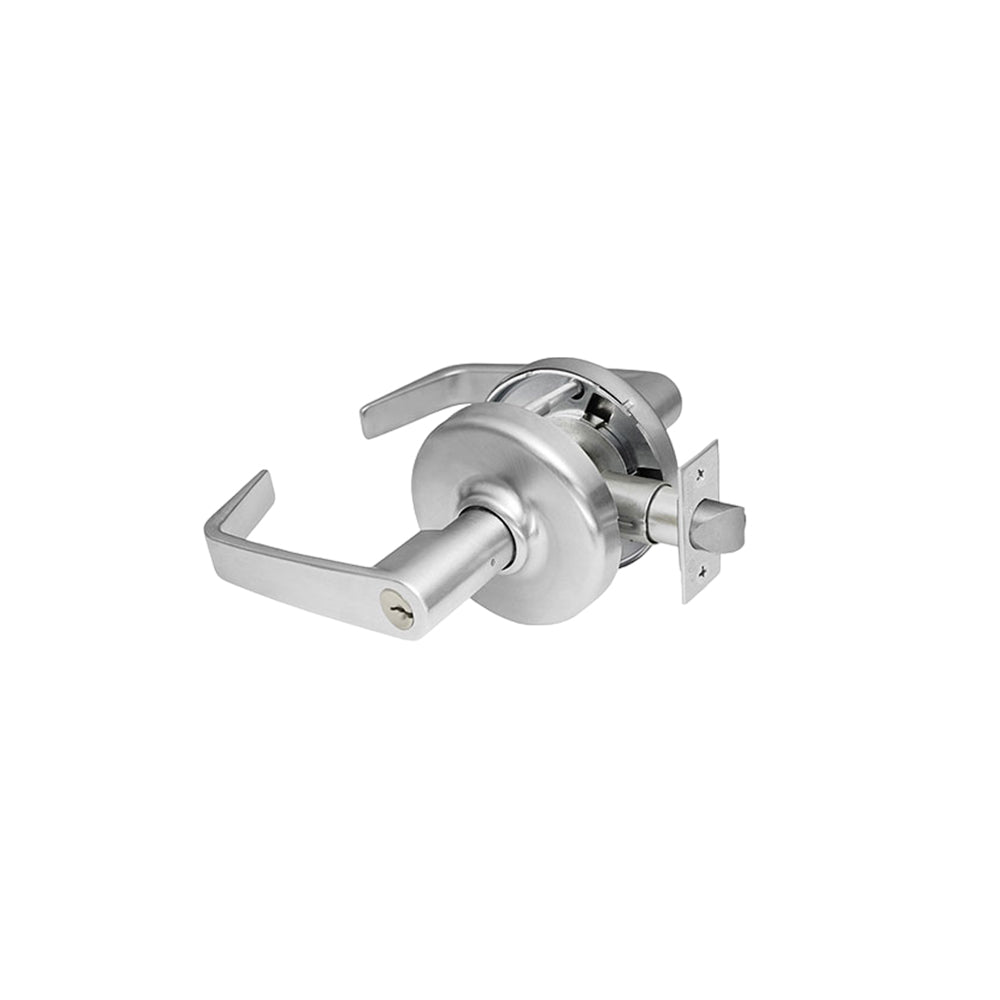

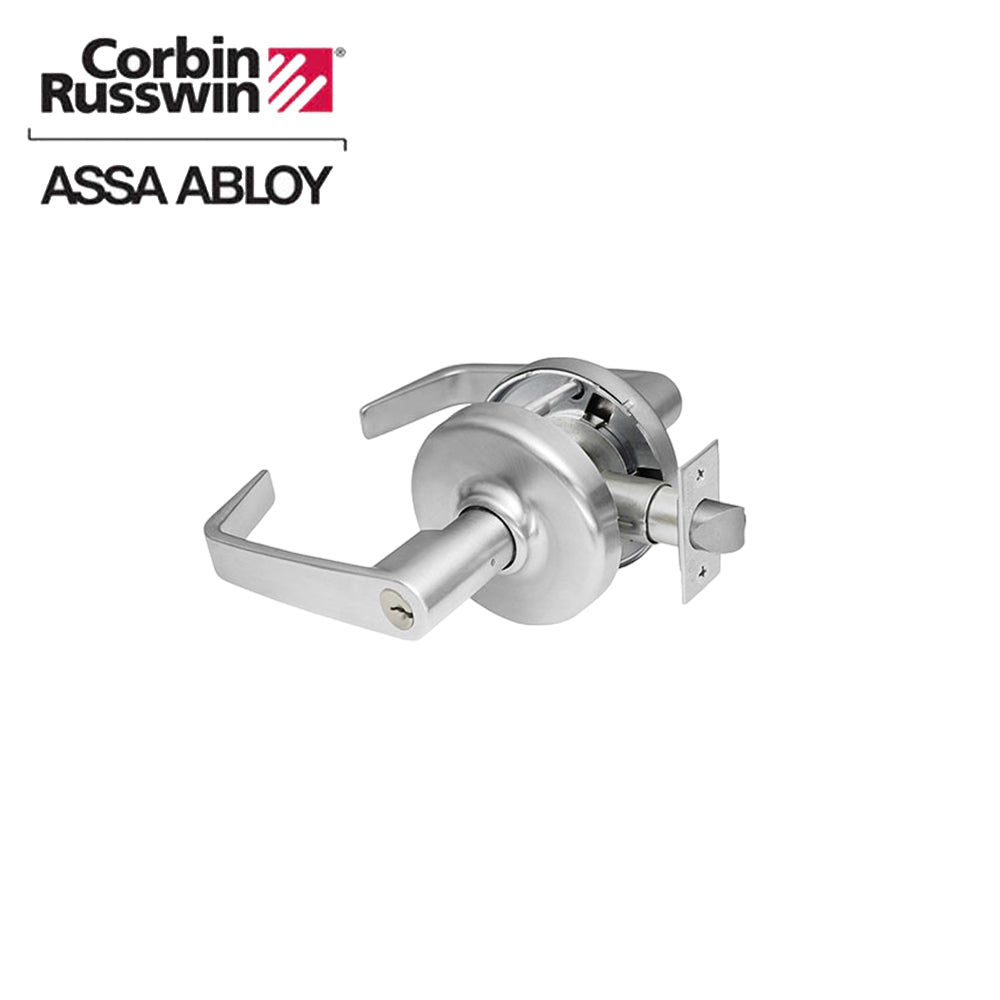

Corbin Russwin Conventional Cylindrical Lockset Key-In-Lever - Grade 2 - 626 (Satin Chrome)
- Product SKU: CBRN-CL3851-NZD-626
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
Corbin Russwin Conventional Cylindrical Lockset Key-In-Lever - Grade 2 - 626 (Satin Chrome)
CL3800 Series is an ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.
Features
- Meets ANSI/BHMA Grade 2 requirements
- UL 3-hour fire rating
- Solid-cast levers and independent lever-return springs prevent lever sag
- Designed to thru-bolt onto door to prevent chassis rotation and ensure proper alignment
- Non-handed
- Available in multiple finishes and lever styles
- Meets ANSI A117.1 accessibility code standards
- Available with non-toxic MicroShield® antimicrobial coating
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Corbin Russwin |
| SKU | CL3851 NZD 626 |
| UID | COR300CL3851NZD626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Limited Warranty | 7 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 51-Entrance or Office Lock |
| Function Family | Entrance |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | NZ - Newport Lever |
| Lever/Knob Design Family | Return Lever |
| Rose/Escutcheon Design | D Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Not Handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Number | 600F10 |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" Latch |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 217L13 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
