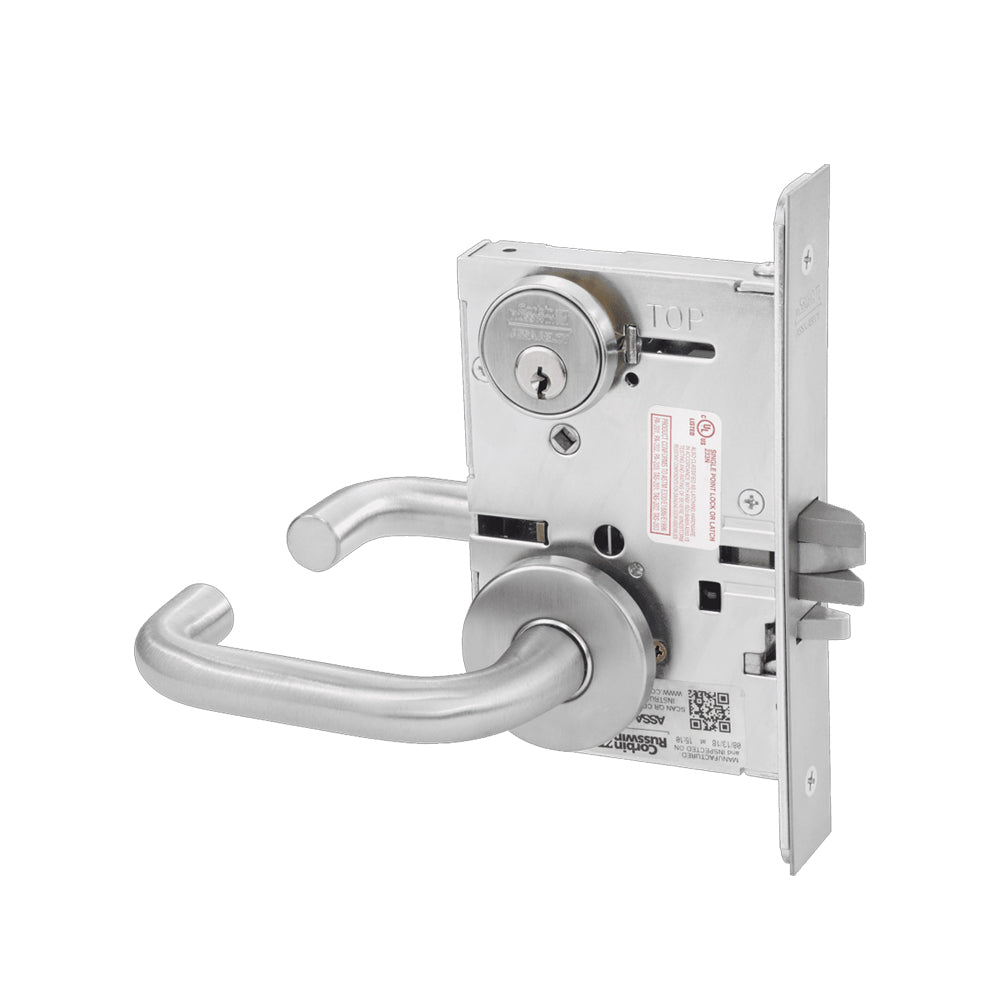

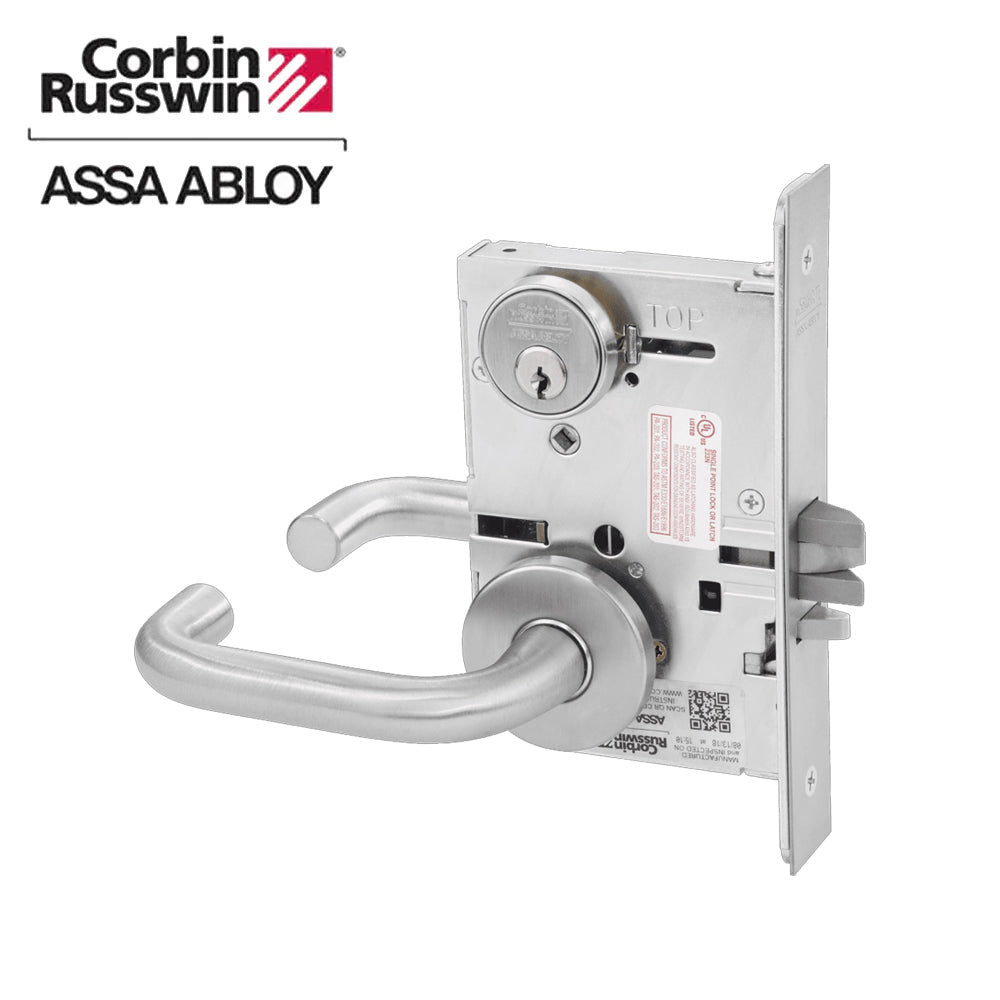

Corbin Russwin - ML2055 Classroom Function Mortise Lever Lockset - Standard Conventional 6-pin Cylinder - L4 Keyway - Satin Chrome-626
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features patented Quick Reversible latchbolt, and a 1” stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Security
Further discourage intrusion and abuse with the ML2000VR (Vandal Resistant) Series mortise lock featuring vandal-resistant stainless steel escutcheons with tapered edges and Torx® pin tamper resistant screws. When matched with Corbin Russwin patented high-security Pyramid or Access 3® cylinders, any door can become a formidable barrier to intruders.
Flexible
The ML2000 Series provides multi-function capability, employing a universal lockbody that offers the ability to reconfigure a select group of functions without disassembling the lock case and using only a few additional parts.
Aesthetics
Complement any application with the full range of trim designs and finishes offered with ML2000 Series. From stainless steel security trims to bright brass Vineyard™ levers, design continuum can be achieved without forfeiting aesthetics. For additional information regarding designer trim, see the Corbin Russwin Vineyard™ Collection and Muséo® Collection catalogs.
Features:
- ANSI function F05.
- Latchbolt by grip either side, unless outside grip is locked by key outside.
- Latchbolt by key when outside grip locked.
- Auxiliary latch deadlocks latchbolt.
- Inside grip always free.
- Outside grip remains locked unless unlocked by key.
Key Advantages:
- UL Cycle above and beyond test completed at 14.5 Million Cycles. Verification ID: V875753.
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case (Patent pending and/or patent www.assaabloydss.com/patents).
- Security trims provide a vandal resistant barrier.
- Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock.
- Thru-bolted trim designs for proper alignment and increased security.
- Multi-function lockbody.
- Status indicator options provide peace of mind on the locked/unlocked status of a door.
Product Specifications:
| Manufacturer | Corbin Russwin |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 55-Classroom |
| ANSI Function | F05 - Classroom |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | L4 |
| Door Thickness | 1-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latchbolt |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
