Command Access - MLRK1-KAWP - Motorized Latch Retraction Kit for Kawneer Paneline Series

Command Access - MLRK1-KAWP - Motorized Latch Retraction Kit for Kawneer Paneline Series

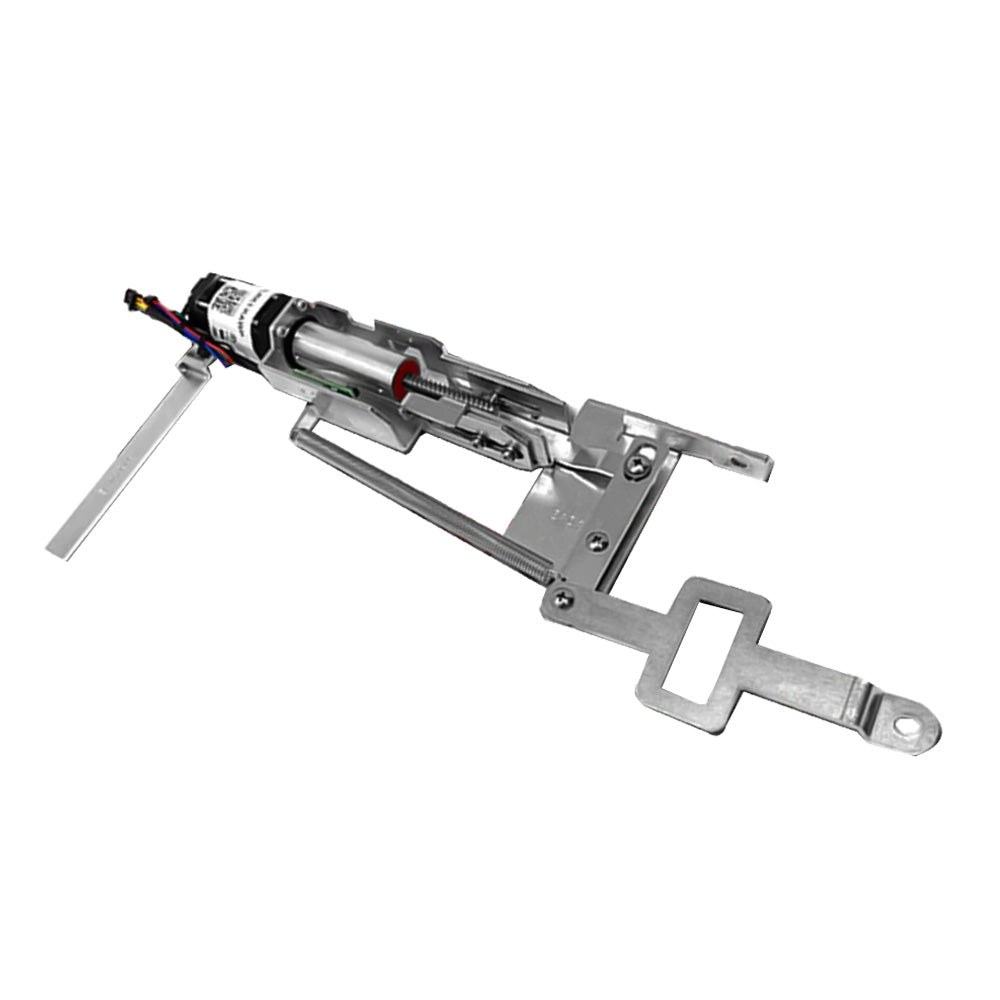

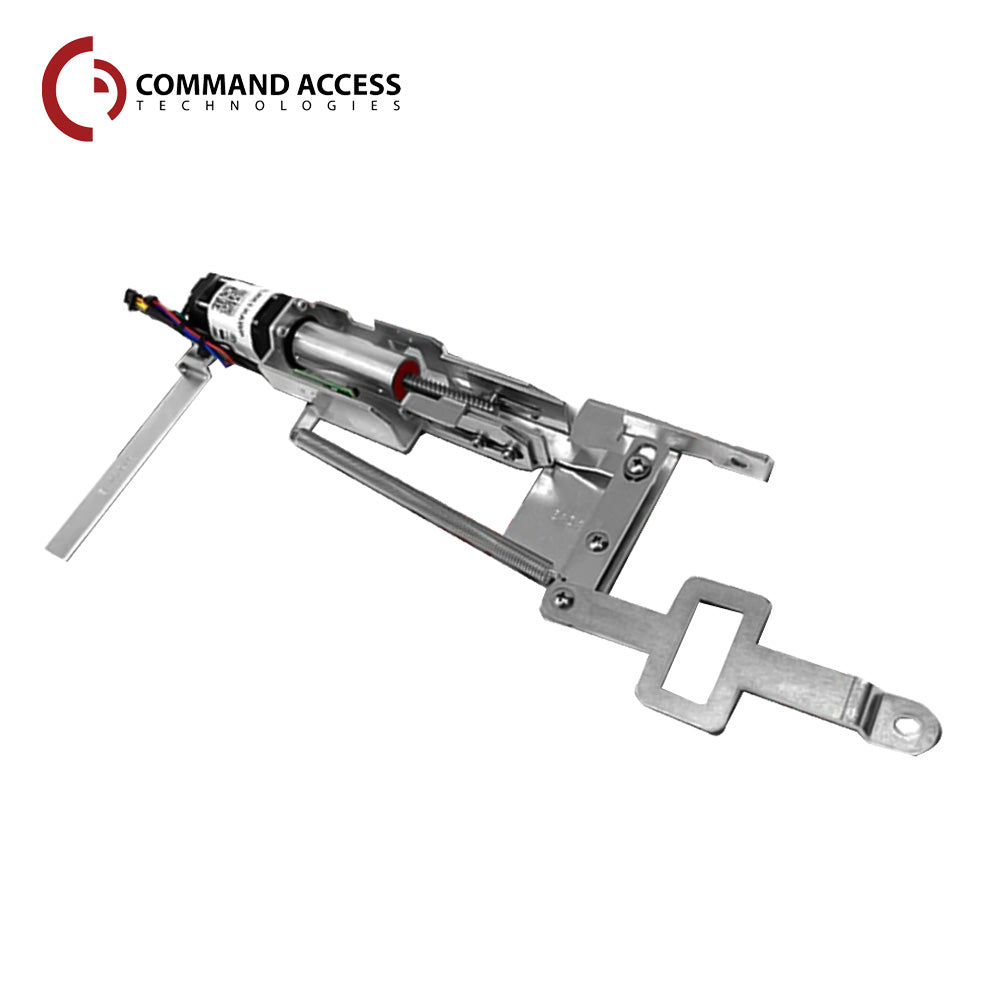

The MLRK1-KAWP is a robust, groundbreaking field installable motorized latch retraction kit for Kawneer Paneline® series exit devices. It utilizes our patent-pending custom ball screw assembly and CAT designed custom stepper motor to maximize the pulling force in a package small enough to fit inside the push pad with no clearance issues. The only hole you’ll need to drill is the raceway! It utilizes our PTS “Push to Set” technology making post installation adjustments incredibly easy.

• Retrofits Kawneer Paneline Series Exit Devices
• “PTS” Push to Set Technology
• Patent Pending Custom Ball Screw
• Fast, Quiet, Smooth, Easy Installation
• True Electronic Dogging - Full Push Pad Retraction
• UL Listed

Features:

• MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to a “Low Current” or “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’ cable with Quick Connect for MM4 module to easily connect to power supply lead.
• Optional add on: Pre-prepped for Request to Exit (REX) to be built-in or easy field add.
• 3-Year “No Hassle” Warranty

Voltage:

• Voltage range – 24 to 25.3 VDC
• Must be used with a CAT Power Supply - PS210/220/440B
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• Installed in-between activating brackets

Kawneer Paneline Kit:

• Mechanical Device
• CAT Modified Motor

Download:

• Installation Instruction
