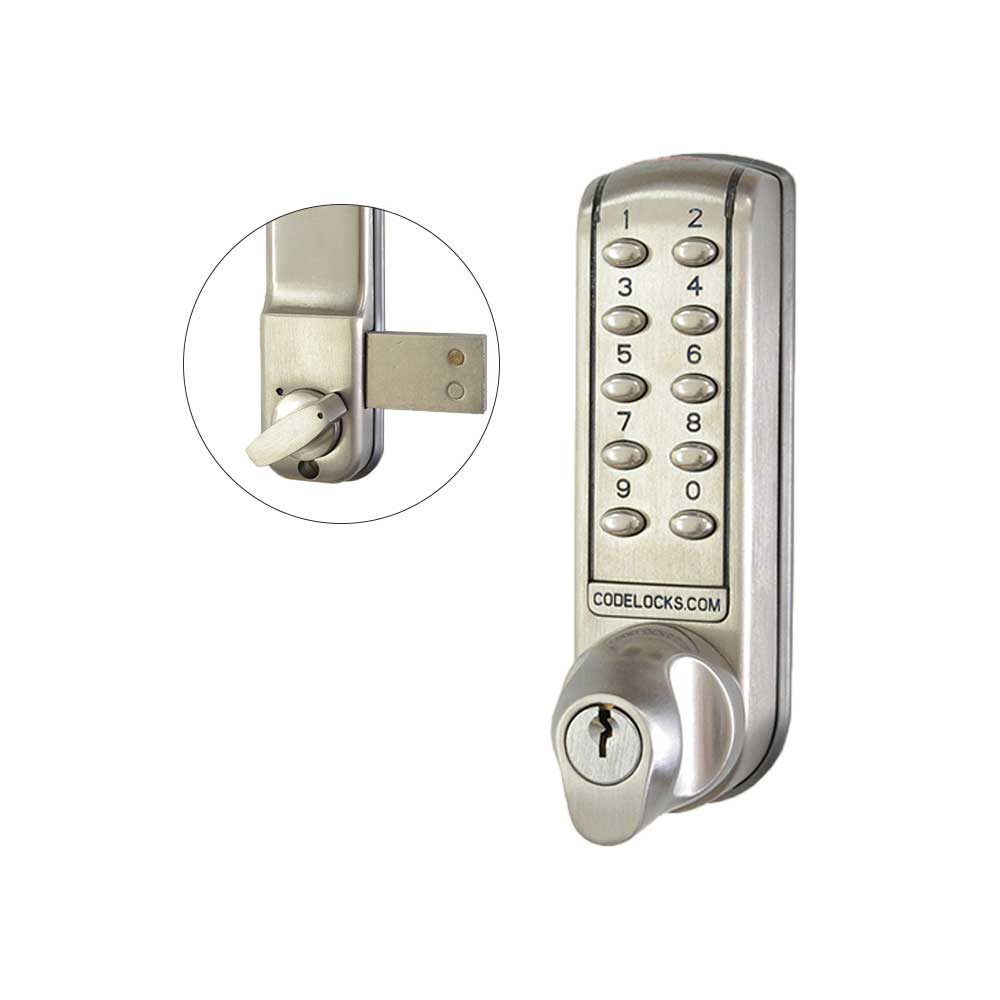

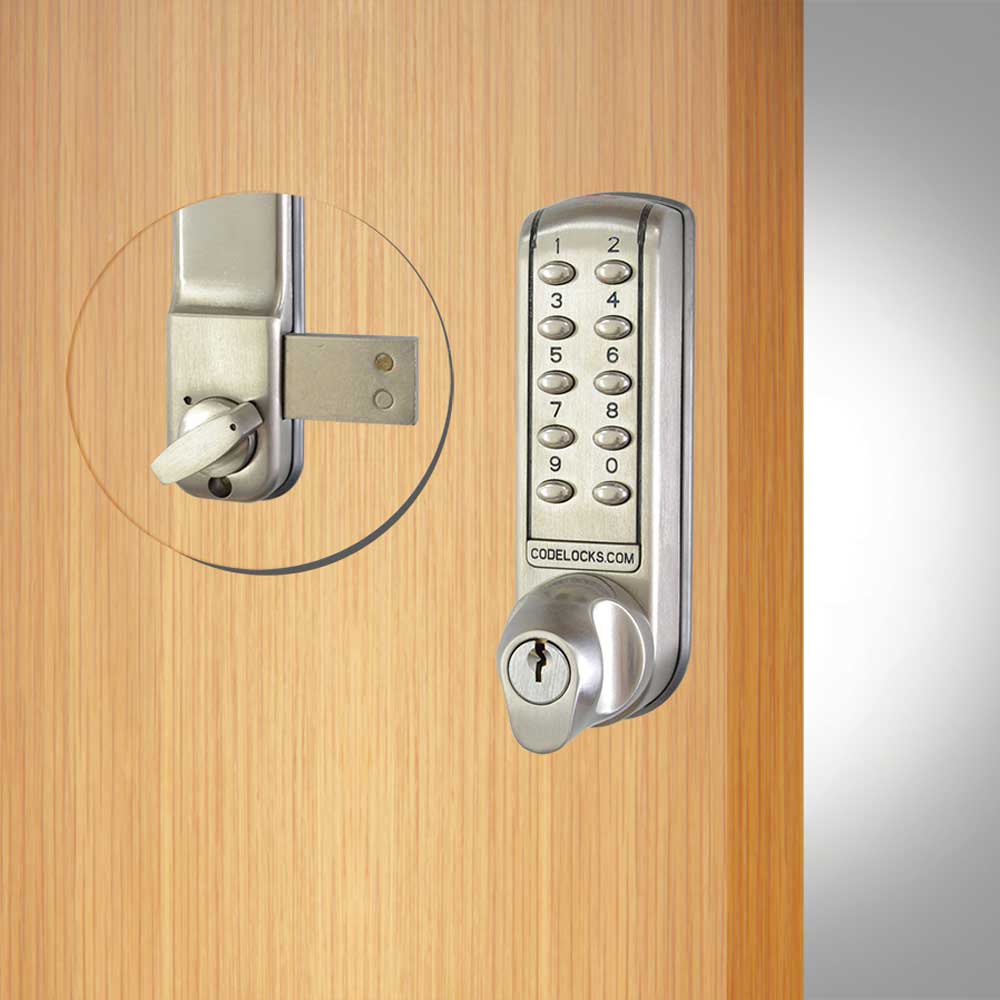

Codelocks CL2200 Electronic Brushed Steel Surface Deadbolt with Dual Backset

Codelocks CL2200 Electronic Brushed Steel Surface Deadbolt with Dual Backset

CL2000 Electronic Range fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. CL2000 electronic locks are ideal for a wide range of light duty access control applications. The CL2000 is fully programmable on the door via the keypad with a multiple range of functions.
The CL2200 is a medium duty electronic lock. The bolt slides on the inside surface of the door to lock or unlock. The bolt is moved manually by means of the outside knob after the code is entered, and freely by the inside knob at all times. When a valid code is entered and the blue LED lights burn, the knob will retract the bolt. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.

Features:

• Surface deadbolt
• Rapid retrofit for basic single code mechanical locks
• On door programming via Master Code in seconds
• Allows up to 80 User Codes
• Allows up to 10 One-Time User Codes
• Over 80,000 operations from 2 x AA cells (supplied)
• Non handed
• PVD low maintenance finish
• Key override as standard
• The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long
• Programming is via the keypad, using the Master Code
• The lock has fitted as standard two alarm release terminals:
• REM1 is used to open the lock from a reception desk button or answer phone
• REM2 can be linked to an alarm system which, when activated by a momentary contact, will release the door for 30 minutes. This allows emergency personnel to enter the room to rapidly check that no one has been trapped and overlooked

Technical Specifications:

Download:

• CL2255 - Installation Instructions
• CL2000 - Brochure
• CL2000 - Programming and Operating Instructions
