Camden CX-EPD0009 Magnetic Cabinet Lock
Description
Description

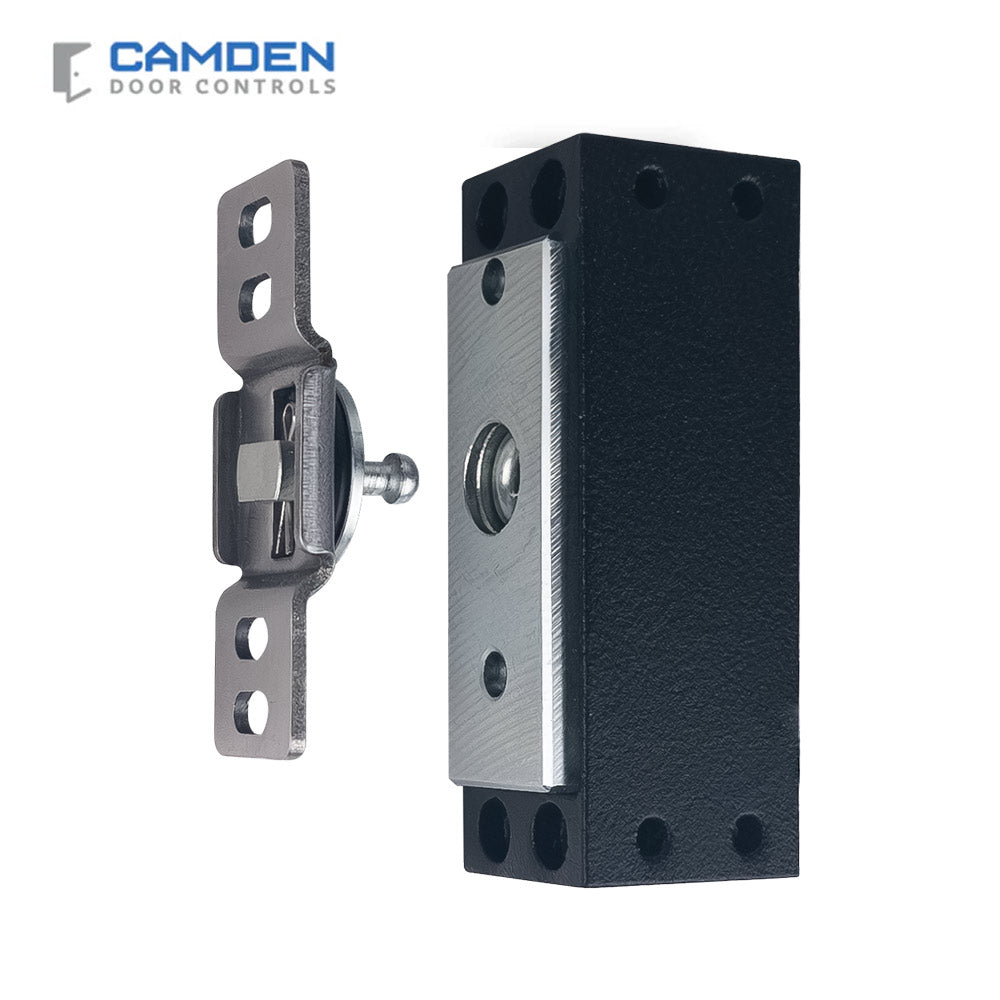

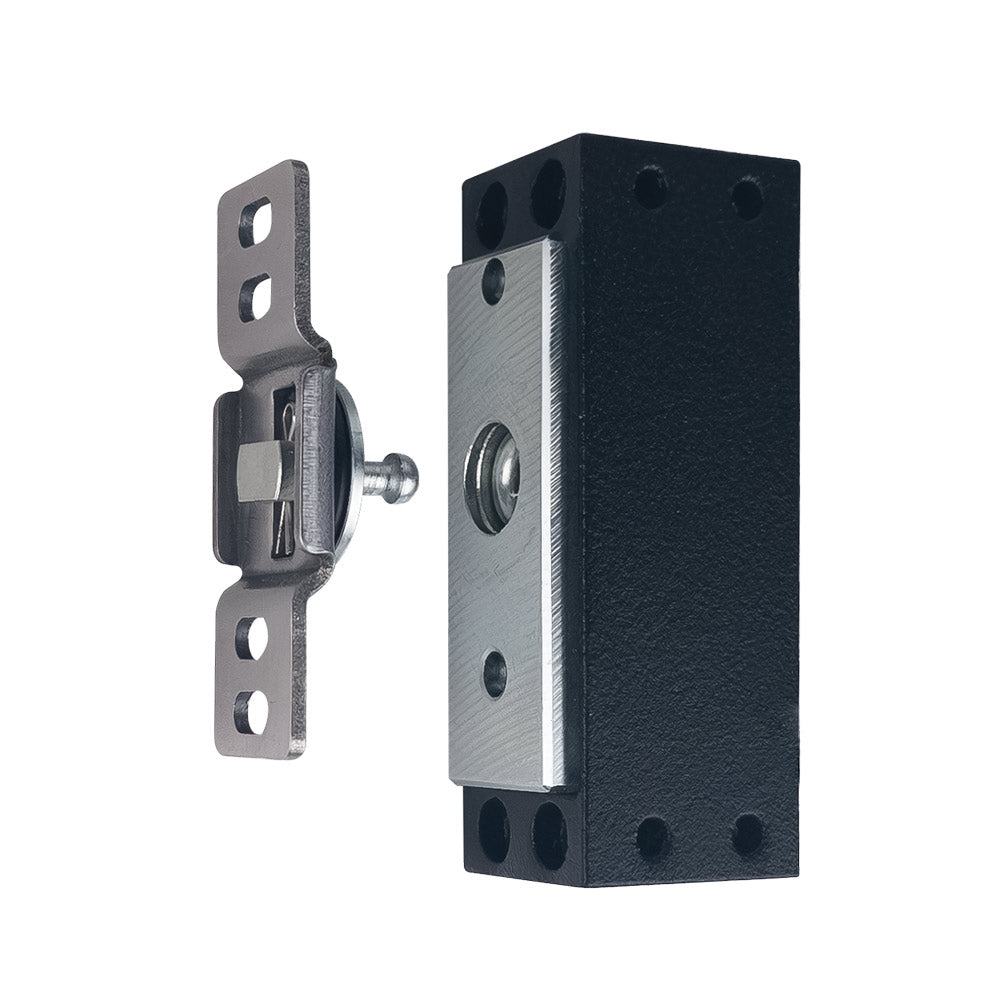

Camden CX-EPD0009 Magnetic Cabinet Lock
Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters. This 12V or 24V magnetically operated lock has a holding force of 440 lbs. (200 kg) and is water-resistant, making it ideal for humid environments, including inside fridges and freezers.
Feature:
- Front or side mounting for use with swing or sliding doors and drawers
- Armature plate adjusts to door alignment
- Water resistant for indoor and outdoor use
- Ultra-compact design
- 440 lbs. (200 kg) holding force
- 5 lbs. (2.3 kg) preload
- 3 year warranty
Specifications:
| Power Input: | 12 / 24 VDC |
| Current Draw: | 60mA @ 12VDC, 110mA @ 24VDC |
| Endurance: | 250,000 Cycles |
| Static Strength: | 440 lbs. (200 kg) Holding Force |
| Preload: | 5 lbs. (2.3 kg) |
| Temperature Rating: | -4°F to 140°F (-20°C to 60°C) |
| Operation Mode: | Fail-Safe |
| Installation Options: | Front Mount, Side Mount |
| Dimensions*: | 2-1/2"H x 27/32"W x 1-1/4"D (64mm x 21.5mm x 31.6mm) *Dimensions are of assembled product |
