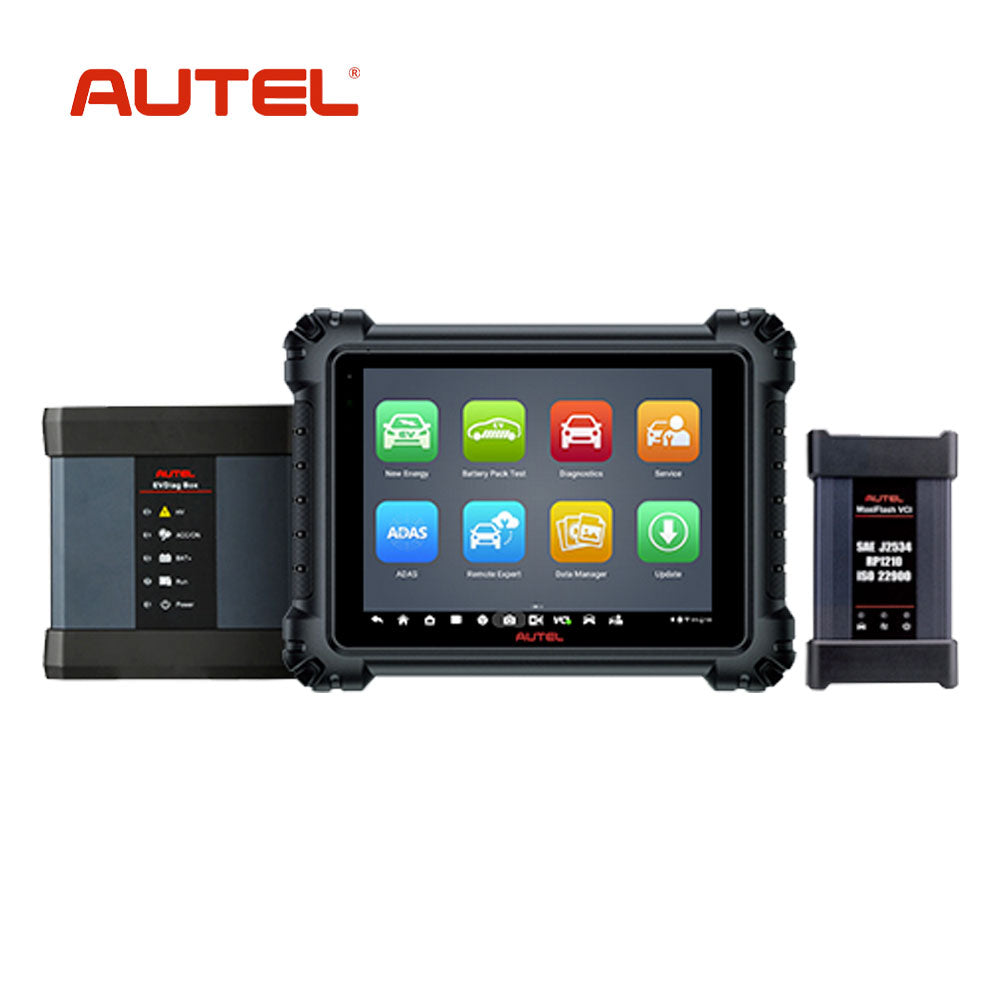

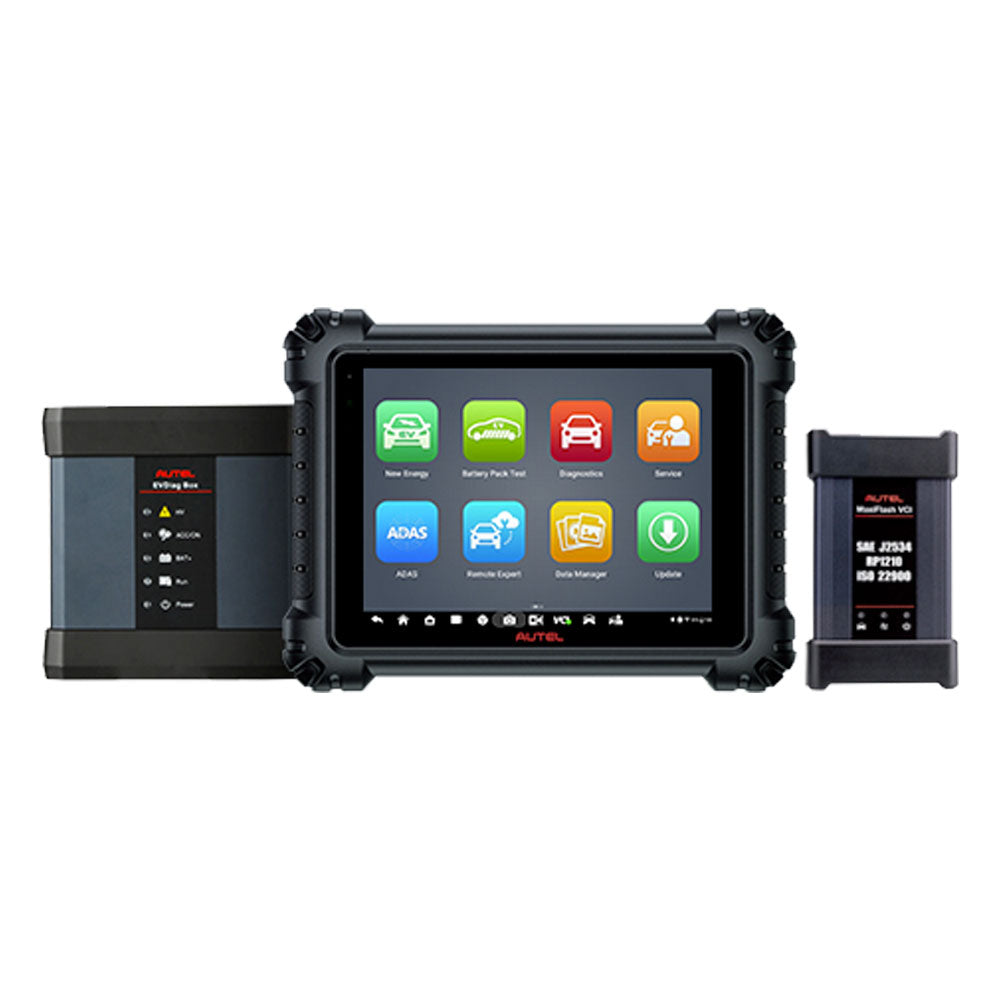

Autel MaxiSYS MS909EV Intelligent Diagnostics Tablet with MaxiFlash VCI/J2534
The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. Includes one year of software updates and is covered by one-year limited warranty.
Description
- Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
- Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
- Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
- State of Charge and State of Health analysis for true battery condition
- Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Specifications
| Operating System | Android 10.0 |
| Processor |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Comparison
|
MS909EV |
Ultra EV |
MS909 |
MS919 |
Ultra |
|
|
Hardware |
|||||
|
Connection |
Bluetooth MaxiFlash VCI |
Bluetooth MaxiFlash VCMI |
Bluetooth MaxiFlash VCI |
Bluetooth MaxiFlash VCMI |
Bluetooth MaxiFlash VCMI |
|
Screen |
9.7inch touchscreen |
12.9inch touchscreen |
9.7inch touchscreen |
9.7inch touchscreen |
12.9inch touchscreen |
|
Battery |
15,000mAh |
18,000mAh |
15,000mAh |
15,000mAh |
18,000mAh |
|
Processor |
2.2GHz+1.8GHz |
2.2GHz+1.8GHz |
2.2GHz+1.8GHz |
2.2GHz+1.8GHz |
2.2GHz+1.8GHz |
|
Memory |
128GB SSD/ 4GB RAM |
256GB SSD/ 4GB RAM |
128GB SSD/ 4GB RAM |
128GB SSD/ 4GB RAM |
256GB SSD/ 4GB RAM |
|
Camera |
16MP rear/16MP front |
16MP rear/5MP front |
16MP rear/16MP front |
16MP rear/16MP front |
16MP rear/5MP front |
|
Docking Station |
Included |
Included |
|||
|
EVDiag Box |
Included |
Included |
|||
|
Software |
|||||
|
Operating System |
Android 10.0 |
Android 7.0 |
Android 10.0 |
Android 10.0 |
Android 7.0 |
|
Automatic Detection |
Auto-VIN/Auto-Scan |
Auto-VIN/Auto-Scan |
Auto-VIN/Auto-Scan |
Auto-VIN/Auto-Scan |
Auto-VIN/Auto-Scan |
|
Secure Gateway Access |
Authorized FCA Access |
Authorized FCA Access With AutoAuth account |
Authorized FCA Access |
Authorized FCA Access |
Authorized FCA Access With AutoAuth account |
|
License Plate Reader |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
|
Vehicle Coverage |
U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
U.S.,European and Asian electric, gas and diesel, and hybrid vehicles |
|
OBDII Test Modes |
All 10 test modes |
All 10 test modes |
All 10 test modes |
All 10 test modes |
All 10 test modes |
|
Service Resets |
36 service features |
36 service features |
36 service features |
36 service features |
36 service features |
|
Diesel PM |
Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
|
System Diagnostics |
Access all modules in all systems |
Access all modules in all systems |
Access all modules in all systems |
Access all modules in all systems |
Access all modules in all systems |
|
High-voltage System Diagnostics |
Diagrams of high-voltage system block |
Diagrams of high-voltage system block |
|||
|
Battery Pack Diagnostics |
SOC and SOH analysis |
SOC and SOH analysis |
|||
|
Component Activations |
Bi-directional control |
Bi-directional control |
Bi-directional control |
Bi-directional control |
Bi-directional control |
|
Enhanced Functions |
Coding&adaptations |
Coding&adaptations |
Coding&adaptations |
Coding&adaptations |
Coding & adaptations |
|
ADAS Calibration |
ADAS Upgrade & Frame Kit |
ADAS Upgrade & Frame Kit |
ADAS Upgrade & Frame Kit |
ADAS Upgrade & Frame Kit |
ADAS Upgrade & Frame Kit |
|
Cloud Services |
Remote programming & Report storage |
Remote programming & Report storage |
Remote programming & Report storage |
Remote programming & Report storage |
Remote programming & Report storage |
|
Repair Assist |
Guided procedures with DTC analysis & fault code solutions |
Guided procedures with DTC analysis & fault code solutions |
Guided procedures with DTC analysis & fault code solutions |
Guided procedures with DTC analysis & fault code solutions |
Guided procedures with DTC analysis & fault code solutions |
|
Topology Module Mapping |
Color coded all system status screen on supported vehicles |
Color coded all system status screen on supported vehicles |
Color coded all system status screen on supported vehicles |
Color coded all system status screen on supported vehicles |
Color coded all system status screen on supported vehicles |
|
Relevant Cases |
DTC troubleshooting |
DTC troubleshooting |
DTC troubleshooting |
DTC troubleshooting |
DTC troubleshooting |
|
Technical Service Bulletins |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
Available on select vehicles |
|
Oscilloscope |
VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester |
VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester |
VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester |
||
|
Split ScreenDisplay |
View multiple functions at once |
||||
