Adams Rite  |  SKU: ADMR-4900-26-101-628

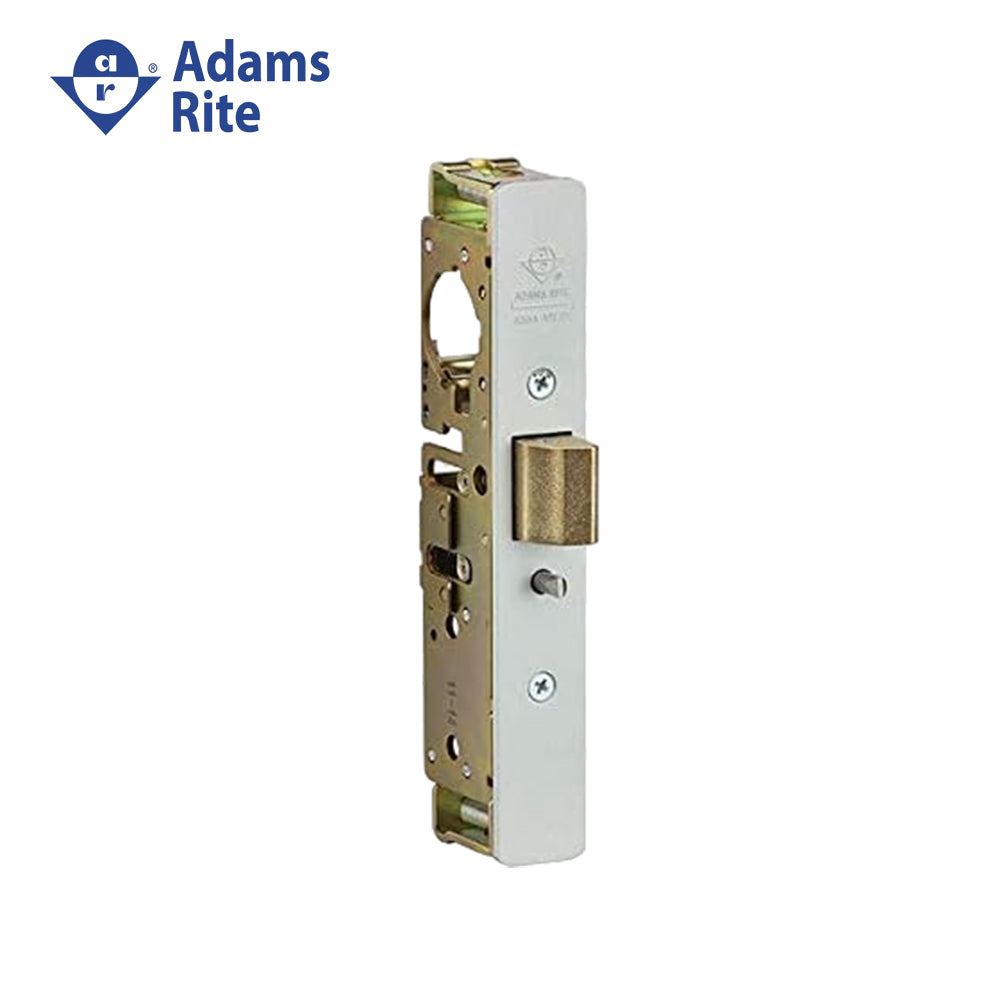

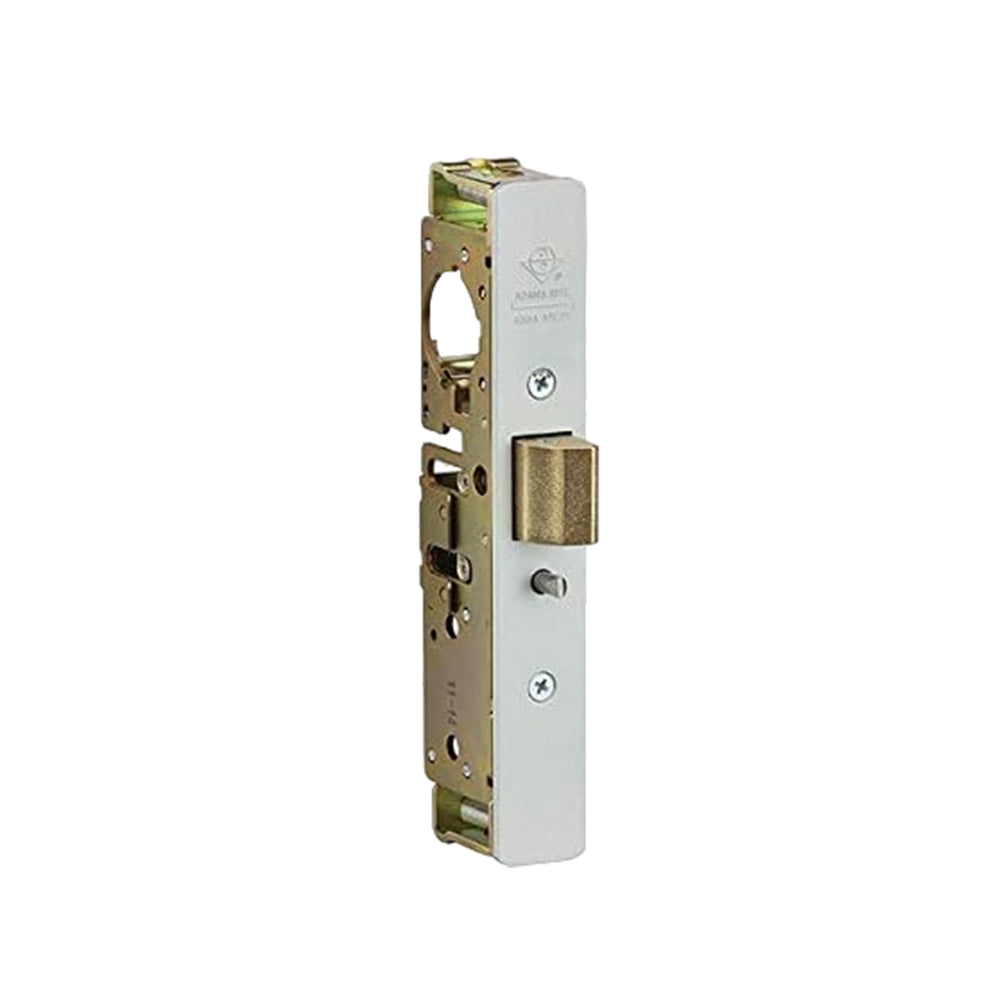

Adams Rite - 4900-26 - Heavy Duty Deadlatch Flat Faceplate with 31/32 Backset and 4-5/8 Flat Mortised Strike - 628 (Satin Aluminum Clear Anodized Finish)

$8743 $10492
Shipping calculated at checkout.
 More payment options
Trust Guard Security ScannedSecure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

Adams Rite - 4900-26 - Heavy Duty Deadlatch Flat Faceplate with 31/32" Backset and 4-5/8" Flat Mortised Strike - 628 (Satin Aluminum Clear Anodized Finish)

4900 Heavy Duty Deadlatch Flexible traffic control and easy installation. A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for applications which require free entrance at certain times and exit-only at other times.

Features:
  • Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
  • Cylinder Backset: 31/32”, 1-1/8”, or 1-1/2”
  • Case: Measures 7/8” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
  • Latchbolt: 5/8” x 1” x 5/8” throw. Solid brass. Handing is easily reversible using only a screwdriver.
  • Auxiliary Latchpin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
  • Faceplates: Measures 1” x 6-7/8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
  • Strikes: Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
  • Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Options: Backset, strike, and finish must be specified when ordering. For information on handles, paddles, and lever operators, see TRIM. See ELECTRIC STRIKES for compatible access control products. See 4920AN Heavy Duty Deadlatch (ANSI Size) for wood and hollow metal door applications.
  • Standard Package: Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1/4 lbs.
Product Specifications:
Vendor Assa Abloy
Manufacturer Adams Rite
SKU 4900-26-101-628
UID ADA100490026101628
Installation Commercial
Origin USA
Unit of Measure Each
Base Material Aluminum
BAA Qualified Yes
Limited Warranty 5 Years
Technical Specifications:
Function Narrow Stile Latch Lock
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4" - 2"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 31/32"
Lock Face Size 6-7/8" x 1"
Bolt Projection 5/8"
Std. Strike Number 4901-01
Std. Strike Type Mortise
Std. Strike Height 4-5/8"
Std. Strike Width 1-9/16"
Dust Box Plastic
Screws Machine
Product Type Mortise Lock
Installation Instructions:
