Uniview Tec | SKU:
UVT-PWR-DC12-350A-IN
17% off

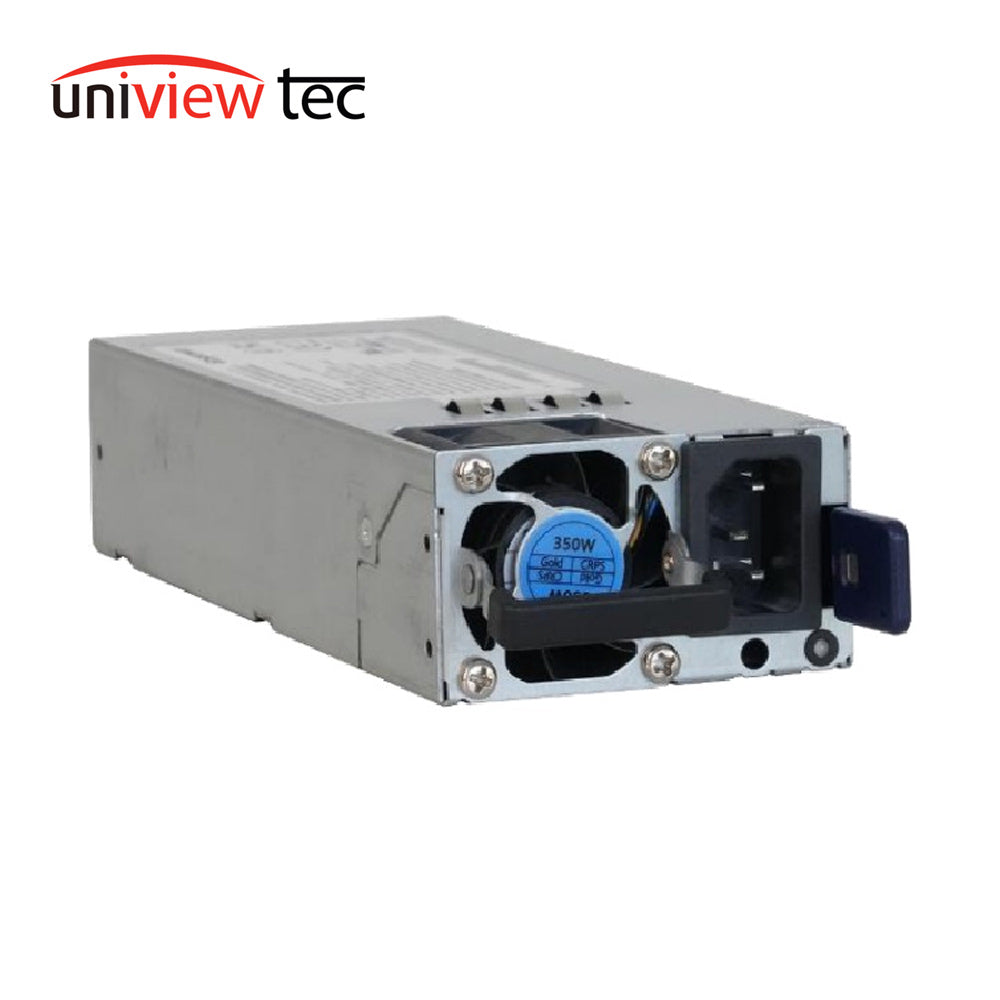

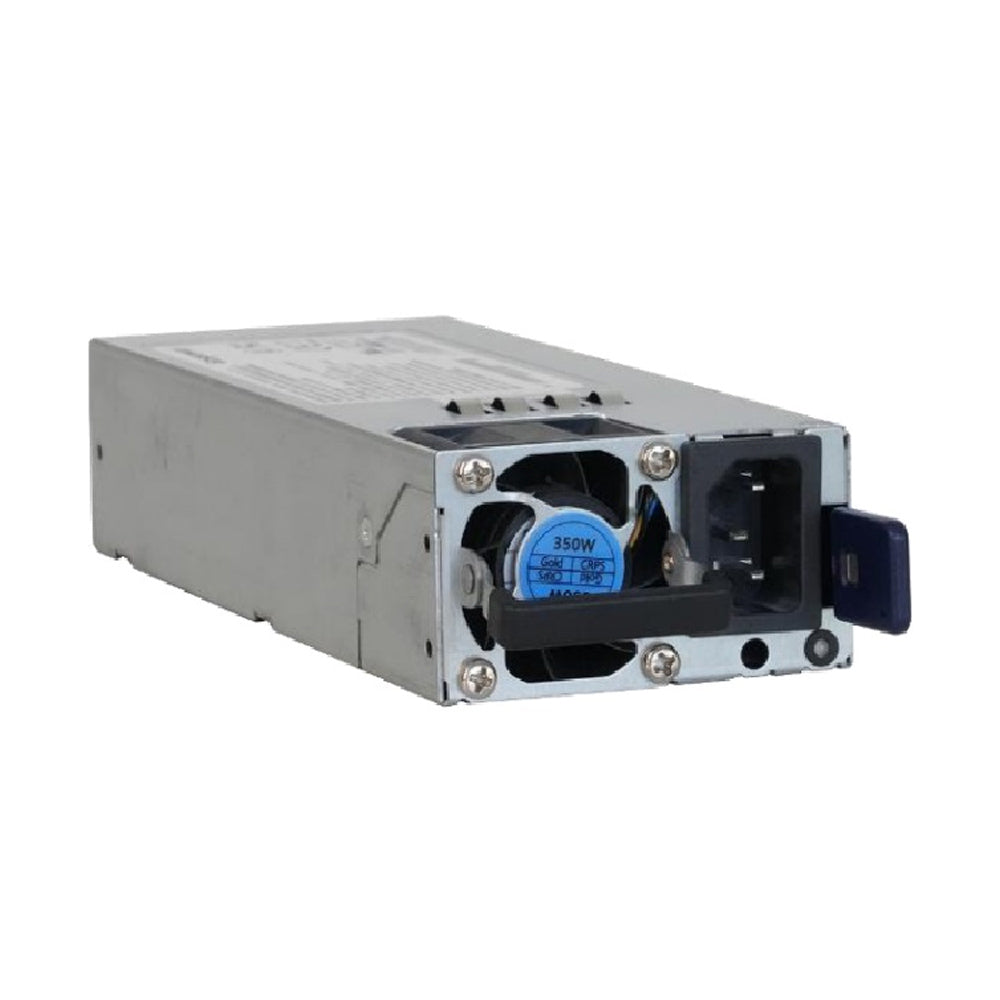

Uniview Tec PWR-DC12-350A-IN Redundant Power Supply for Network Video Recorders 648XC Series
$59200
$71040
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Uniview Tec PWR-DC12-350A-IN Redundant Power Supply for Network Vid...
$59200
$71040
Unit price
/
Unavailable
Description
Description
Uniview Tec PWR-DC12-350A-IN Redundant Power Supply for Network Video Recorders 648XC Series
Key Features:
- Redundant Power Supply for recorders with large quantities of hard disk drives, such as NR648XC
- Protection against short circuit, overload & overvoltage
- Front panel indicator lights alert to normal and abnormal conditions
- Meets regulatory standards: UL, CE
Specifications:
AC Input:
| Voltage | 90 ~ 264VAC |
| Frequency | 47~63 Hz |
| Power factor | ≥0.95 |
| Input current | ≤ 6.3A @ 100-240VAC |
| Input protection | Input under voltage or over voltage |
DC Output:
| Voltage / Electricity | +12VDC/29A, +12V Standby/2.1A |
| Output Power | 350W |
| Output Efficiency | ≥89%, 220V AC/29A |
| Line & Load Regulation; Regulated Voltage Accuracy, Dynamic Response Overshoot, Current Sharing Rate | ±5% |
| Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection |
General:
| Indicator Light | Normal: Green “On”; Abnormal: Yellow “On” |
| Working Temperature | 0 ~ 50C |
| Storage Temperature | -40 ~ 70C |
| Heat Dissipation | Ventilating fan design, heat emission at back |
| Dimension (D x H x W) | 185 x 40 x 73.5mm |
Conformity Standards:
| EMC | EN55032, EN 61000-3-2, EN55035 |
| NEBS | SR-332 ISSUE 2 |
| Approvals | UL, TUV, CE |
