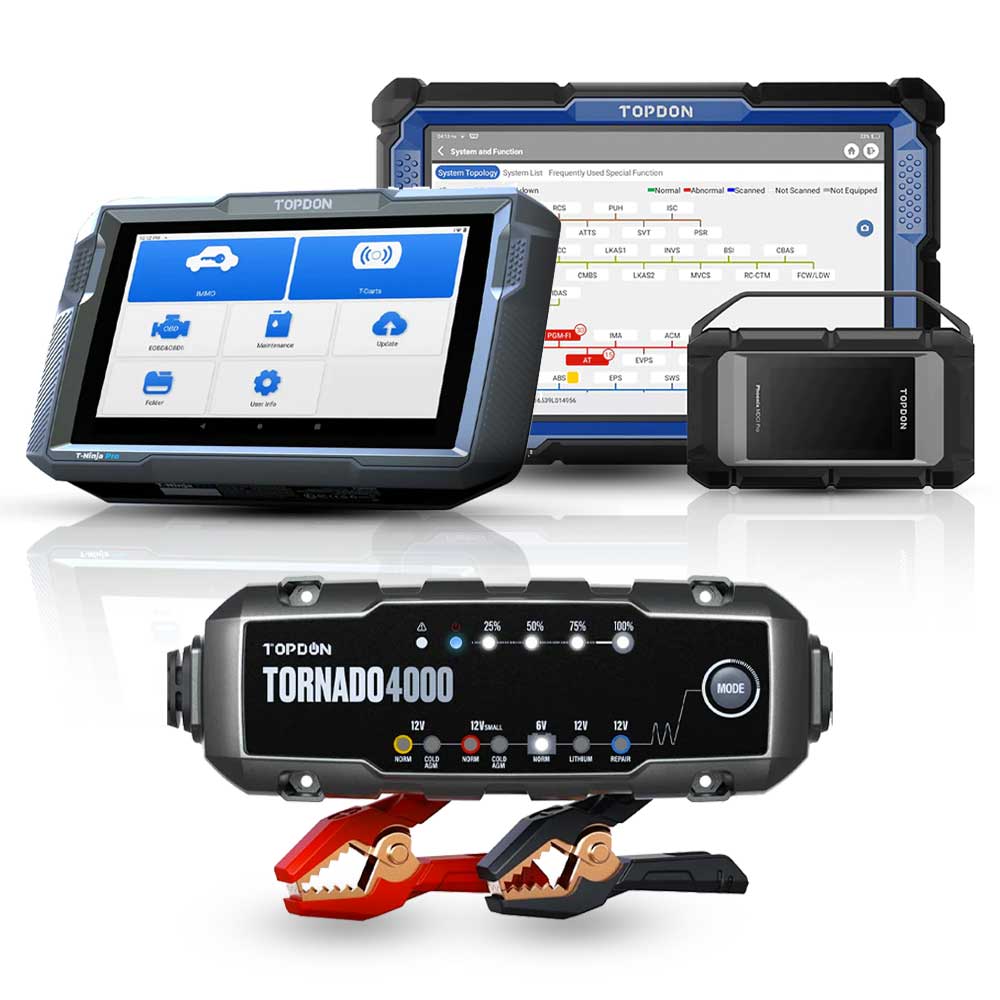

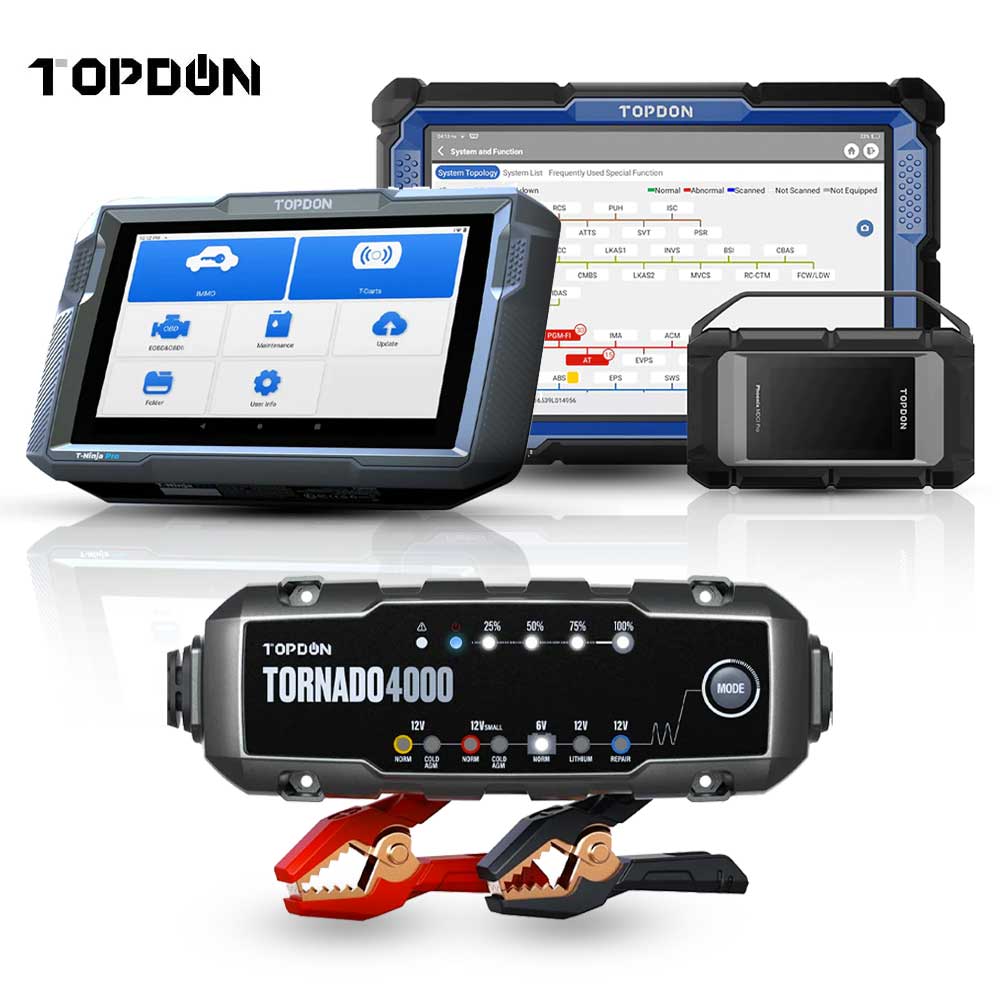

TOPDON Phoenix Smart Diagnostic Scanner with T-Ninja Pro Key Programmer and TORNADO 4000 Battery Charger

TOPDON Phoenix Smart Diagnostic Scanner with T-Ninja Pro Key Programmer and TORNADO 4000 Battery Charger

Includes:

• Phoenix Smart - Diagnostic Scanner
• T-Ninja Pro - Key Programmer
• TORNADO 4000 - 65W Battery Charger

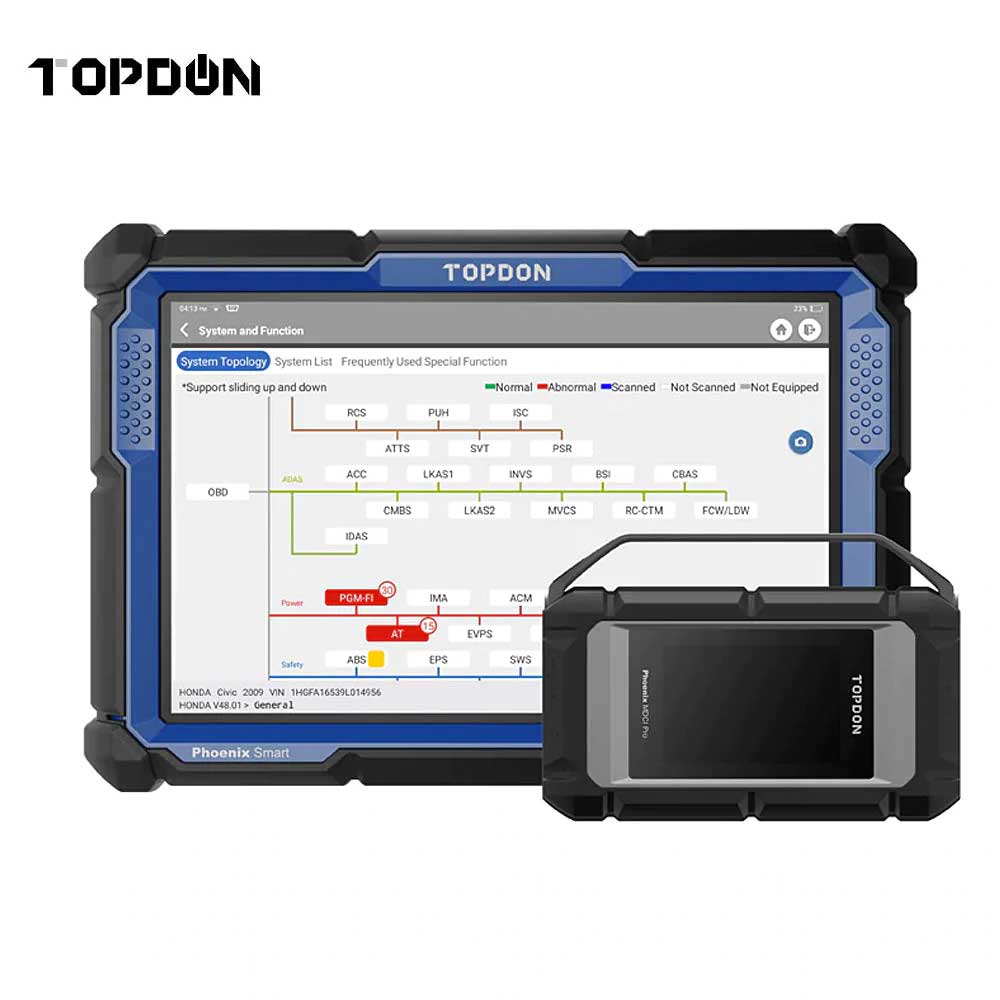

TOPDON - Phoenix Smart - Intelligent Diagnostic Scanner

The Phoenix Smart® is part of TOPDON's new generation of intelligent diagnostic tools. Equipped with quad-core processors and a 10.1" HD touch screen, this tool allows you to diagnose fault codes and trouble codes with one click. Its 12000mAh battery can work all day without fear of losing power. The Phoenix Smart also supports online programming for over 9 car brands and includes 2 years of free software upgrades. Combined with the MDCI Pro, this scanner gives you unprecedented coverage, intelligent diagnoses, and a wide array of maintenance functions.

Features:

• The Phoenix Smart supports full system fault diagnosis of more than 200 vehicle brands. This tool offers OE level diagnostics for Asian, American, and most of the models.
• The Phoenix Smart includes supports Cloud-Based Programming functions for 9+ car brands, such as Mercedes-Benz, BMW, Volkswagen(Audi/Skoda/Seat), Porsche, Land Rover/Jaguar, Nissan, Subaru, Renault, and much more!
• The Phoenix Smart's software includes intuitive step-by-step guided procedures based on code for Volkswagen, Audi, Skoda, and SEAT vehicles.
• This advanced diagnostics tool supports FCA Gateway Access, allowing you to work on the most modern makes and adjust protected functions.
• TOPDON's Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols.
• The Phoenix Smart Utilizes Topology mapping, displaying the vehicle’s entire sensor system. Raw data is transformed into clear graphics, so technicians can see the entire status of the car system and get right to the vehicle’s issues.
• With the Phoenix Smart, users can unlock special features and settings of vehicles. Advanced functions include enabling Video-In-Motion via DVD or USB, disabling seatbelt the light, and many other options. Applicable to vehicle makes such as Audi, Volkswagen, BMW, Porsche, Toyota, and more.
• Offer more to your customers with TOPDON’s ADAS calibration.The Phoenix Smart and pair with a TOPDON Phoenix ADAS Mobile package to easily calibrate intricate driving assistance functions.

Specifications:

• Display: LCD 10.1-Inch, 1280 * 800
• CPU: 4-core Processor, 2.0GHz
• Android 10.0
• RAM: 4G, ROM 128G
• Battery: 12000 mA / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃（-4℉~140℉）
• Working Temperature: 0℃~50℃（32℉~122℉）
• Dimension: 278*191*48 mm（10.94*7.52*1.89 inch）
• Package Size: 468*320*143 mm (18.43*12.60*5.63 inch) - Net Weight: 1455 g (3.20 lb)
• Multilingual Support: English, French , German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish

Package List:

• 1* Phoenix Smart Tablet
• 1* VCI Dongle (J2534)
• 1* OBDI Adapter BOX Transfer Line
• 1* OBDII Extension Cable
• 1* Cigarette Lighter Cable
• 1* Type-C to USB Cable
• 1* Battery Clamps/Cable Set
• 1* Power Adaptor
• 1* User Manual
• 1* Password Envelope
• 1* Non-16pin Adaptor Cable Kit
• 1* BMW Programming Line
• 1* Ethernet Cable
• 1* USB Ethernet Adapter

Warranty & Updates

• Two Years Warranty
• Two Years of Updates

TOPDON T-Ninja Pro - 8" Tablet OBD Automotive Key Programmer

The T-Ninja Pro is a automotive key programmer tool developed by TOPDON Technology. As an upgrade over the T-Ninja1000, the T-Ninja Pro boasts a variety of functions including, Number of Keys, PIN Reading, Key Learning, Remote Control Learning, Delete Keys, and All Keys Lost.
Running on Android 11.0, the product features a quad-core A17 processor, an 8-inch color display, and 32GB of storage (128GB expendable storage supported), presenting more stable performance over the T-Ninja1000.
The T-Ninja Pro supports chip recognition and frequency detection when used together with T-Darts (optional), a TOPDON-designed Transponder & Remote Tester Tool, enabling users to perform key programming for most automobiles available on the global market.

Features:

• Pin Reading & Key Learning
• Remote Control Learning
• Deletes Keys
• All Keys Lost
• Number of Keys
• Expandable Memory Storage
• Transponder Recognition and Frequency Detection with T-Darts Add-On
• Reads & Clears Fault Codes
• 8 Maintenance Services
• Support wireless and wired dual connectivity

Specifications:

• Dimensions: L255*W155.24*H51mm (10*6.1*2 in.)
• Net Weight: 939g (33.1 in.)
• Material: ABS plastic
• Display: 8 inches, image resolution 1280*800 pixels
• Memory & Storage: 32G (128GB expendable storage supported)
• Operating System: Android 11.0
• CPU: Quad-Core 1.8Ghz
• Input Voltage: DC 12V/2A
• USB Port: Type-A & Type-C
• Camera: 5MP Battery
• Capacity: 10,000mAh
• Working Voltage: 12V ±10%
• Current: 500mA、0.5A*3.8V
• Working Environment: 0℃ to 50℃ (32℉to 122℉)
• Storage Environment: -20℃ to 60℃(-4℉to 140℉)

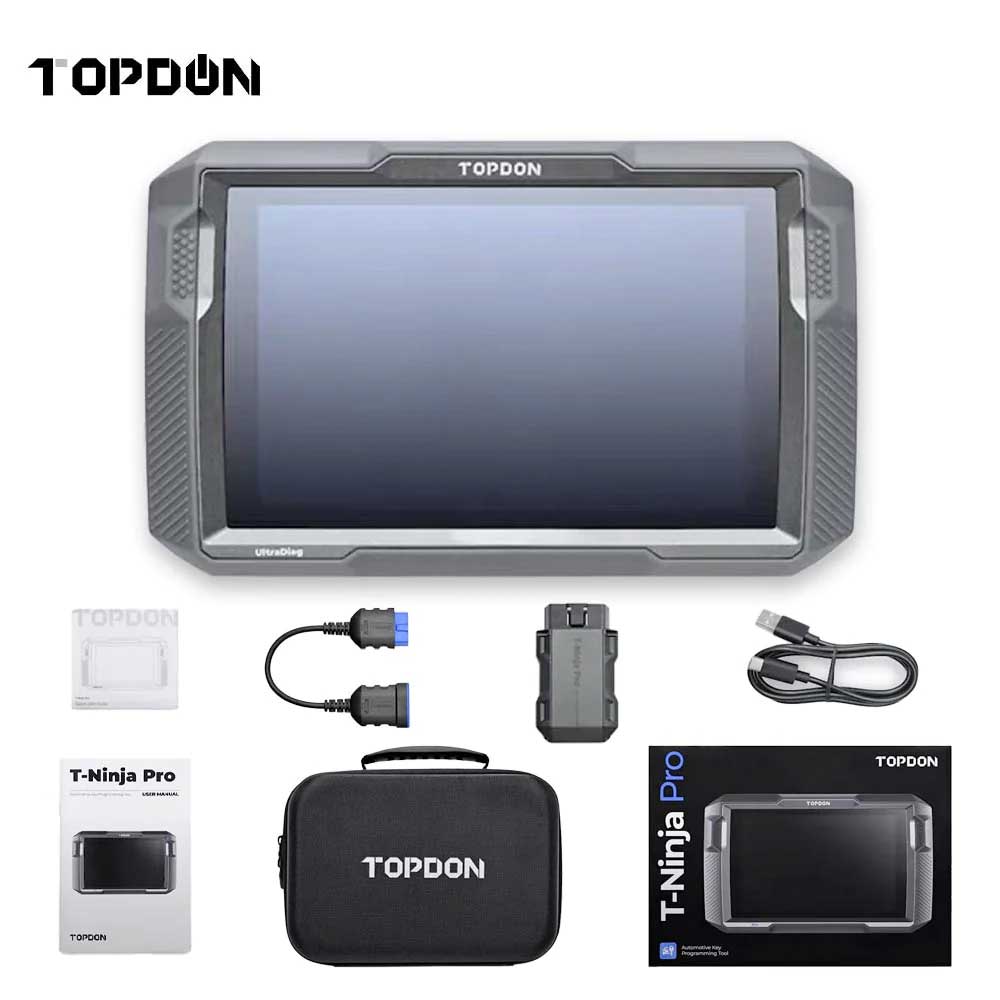

What’s In The Box:

• 1 * T-Ninja Pro
• 1 * VCI OBDII 16 PIN
• 1 * OBD-II Extension Cable
• 1 * USB Type-C Cable
• 1 * 12V Power Adapter
• 1 * Manual
• 1 * Quick Guide
• 1 * EVA Case

Warranty & Updates:

• One-Year Manufacturer Warranty

Download:

• T-Ninja Pro & T-Darts Sell Sheet
• T-Ninja Pro User Manual
• T-Ninja Pro Quick Guide

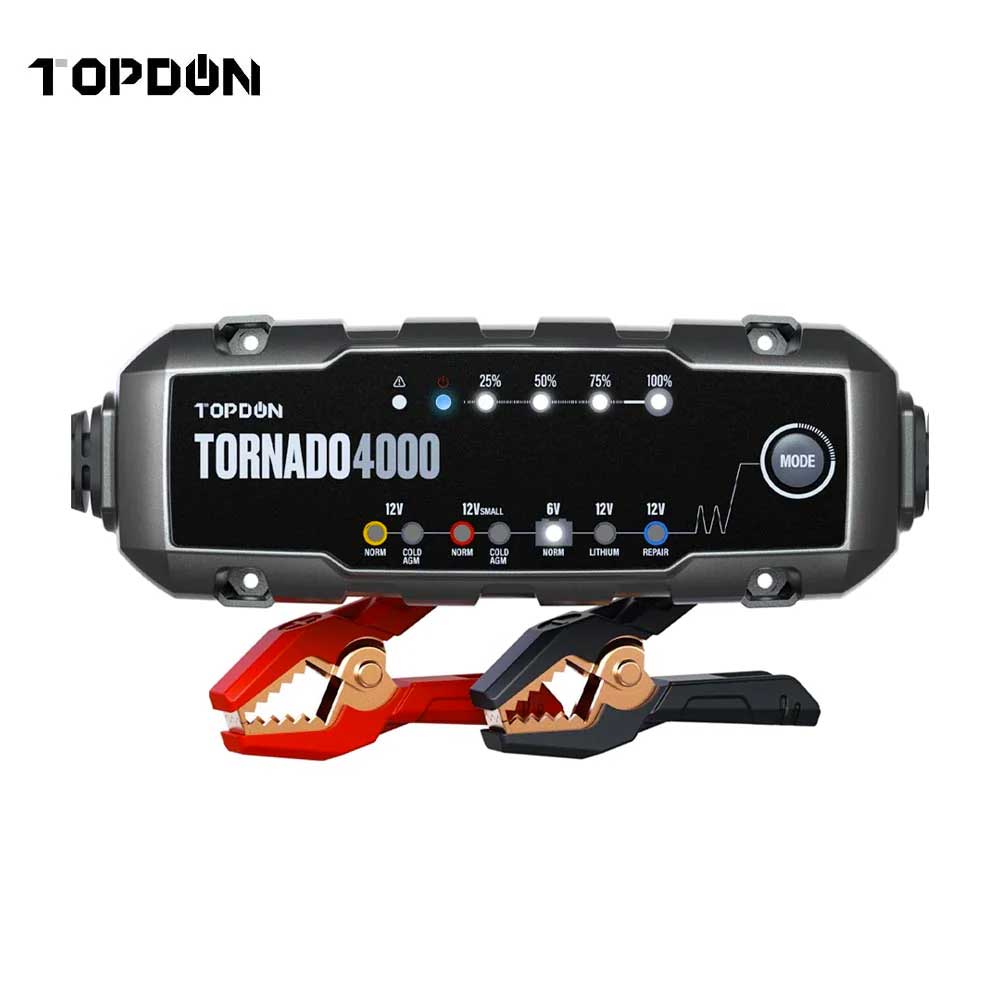

TOPDON TORNADO 4000 - Versatile and Safe All-in-one Battery Charger - 65W

The Tornado4000 is a versatile and safe all-in-one battery charger. With this product you will be able to reverse the damaging effects when batteries are left uncharged for extended periods, saving you the money that would be spent replacing the battery. The Tornado4000 minimizes energy consumption when full power is not needed, improving the performance and longevity of the batteries in your shop. With intelligent microprocessors, this product will charge two times faster than standard chargers, so you can offer timely and efficient services.

Features:

• Advanced, versatile, safe all-in-one battery charger
• Battery maintainer, trickle charger, plus battery desulfator
• 10-Step 4A Smart Charging technology
• Intelligent microprocessors for a faster and more efficient charge
• 2X faster than ordinary battery chargers
• Universally compatible with 6V & 12V Lead-acid, and12V lithium-ion batteries (Wet, MF, GEL, AGM, etc.) from up to 150Ah
• 8 unique charging modes to suit requirements for small and large batteries even in cold temperatures
• Built-in 5 protections against Reverse Polarity, Over-voltage, Overcharging, Overheating, and Low Voltage
• Safely connected 24/7, UV and IP65 water-resistant
• Compact design with intuitive LED indicators

Specifications:

• Input Voltage AC: 100-240VAC, 50-60Hz
• Working Voltage AC: 100-240VAC, 50-60Hz
• Power: 65W Max Charging Voltage
• Various Charging Current: 4A (12V)4A (6V)
• Low-Voltage Detection: 2V(12V), 2V(6V)
• Back Current Drain: < 5mA
• Working Temp.: -4°F to 104°F (-20° to 40°C)
• Storage Temp.: -4° to 130°F (-20°C to 54°C)
• Charger Type: 10 Step Smart Charger
• Type of Batteries: 6V & 12V
• Battery Chemistries: Wet, Gel, MF, CA, EFB, AGM & LIB
• Battery Capacity: Up to 150Ah (6V & 12V)
• Maintains All Sizes Housing: Protection
• IP65 Cooling
• Dimensions: 8.09x2.92x1.83 inches
• Weight: 545g (1.20 lb)

Warranty & Updates:

• 3-year warranty
