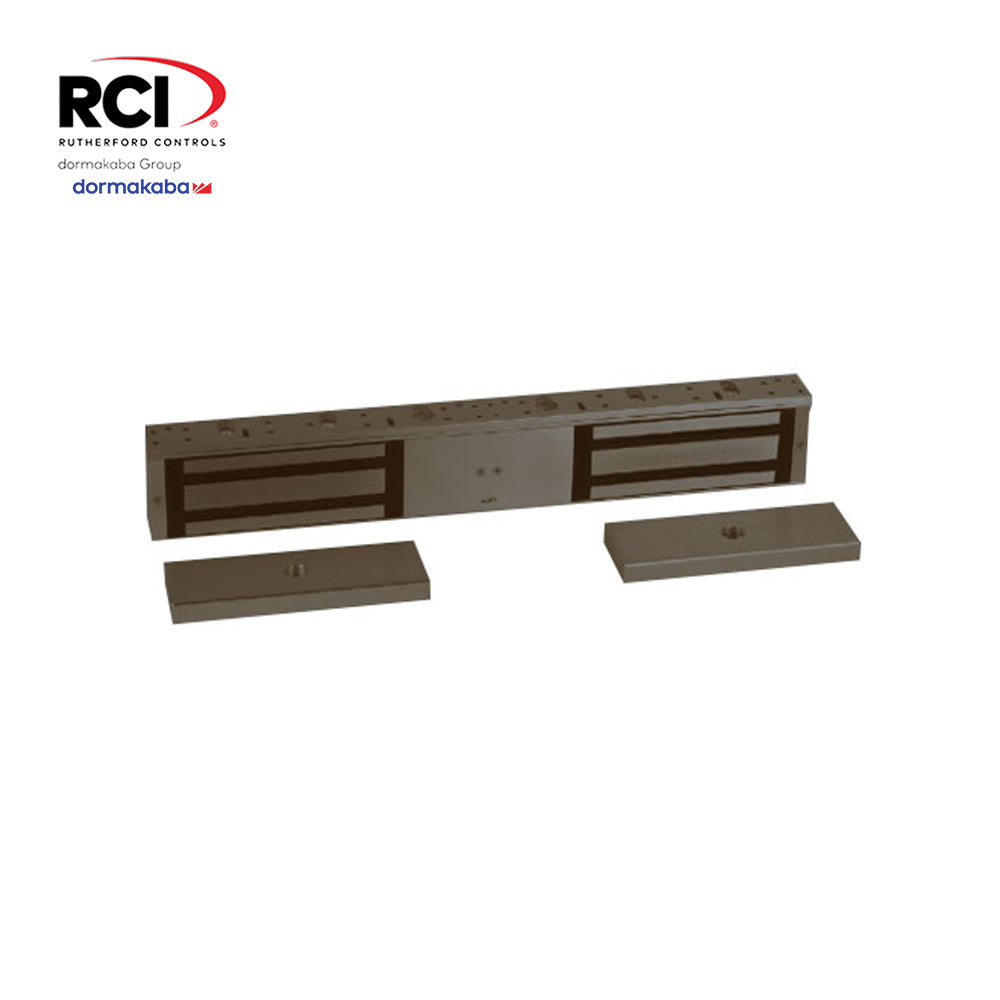

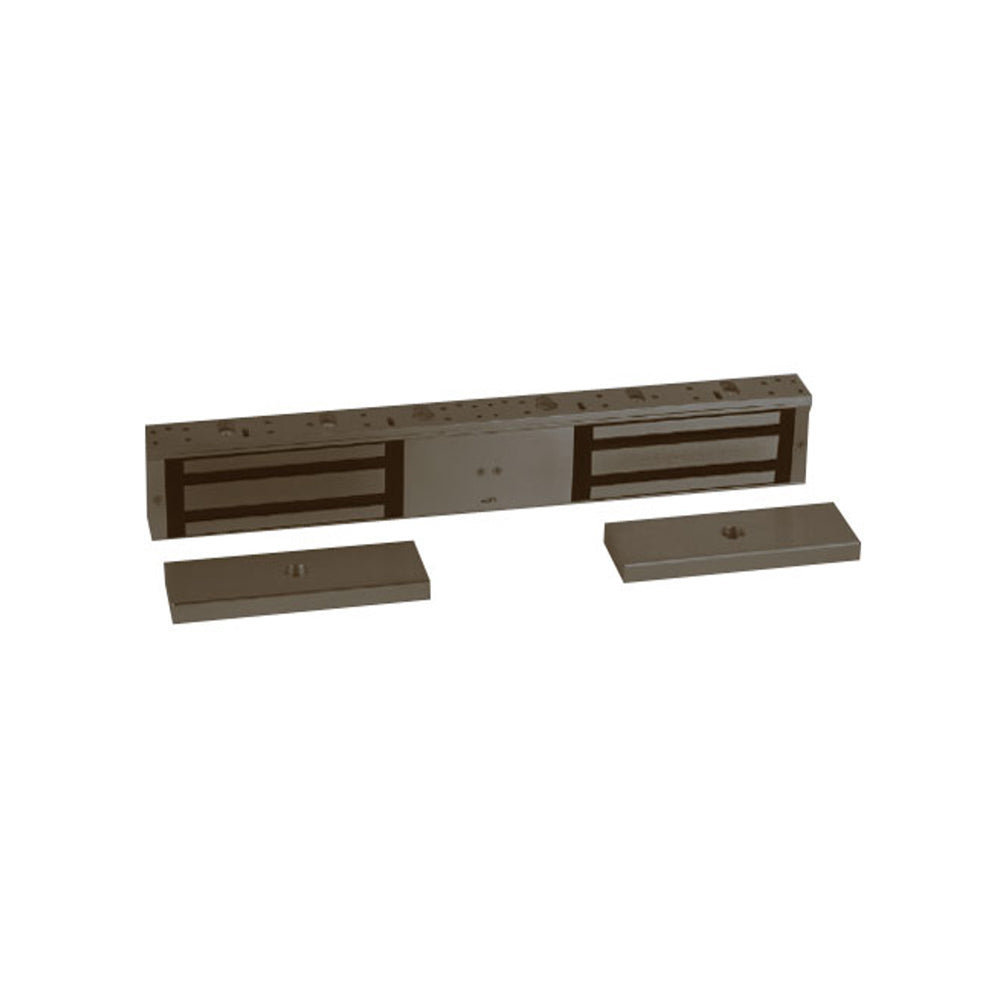

RCI 8320-40 - MultiMag Electromagnetic Lock With 2-Door Status Sensor - 12/24VDC - 40 (Dark Bronze-695)
The MultiMag® series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring.
The RCI 8320 MultiMag® is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.
Features
- Keyhole mounting for ease of installation
- Up to 1,200lbs Holding Force (Each Electromagnet)
- Convenient plug-in wiring terminals
- Easy-access wiring cavity
- Stabilizing 4-bolt “drop stop” mounting
- Surge protection
- Designed to overcome residual magnetism
- 230mA Auto-Sensing 12-24VDC (Max at 460mA for 8320)
- Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
- Fail-Safe
Product Specifications:
| Vendor | DormaKaba |
| Manufacturer | RCI |
| SKU | 8320 40 |
| UID | RUT100832040 |
| Installation | Commercial |
| Origin | |
| Unit of Measure | Each |
| Base Material | VARIES |
| Limited Warranty | Lifetime |
| Fire Rated | 1 Hour {C} |
Technical Specifications:
| Function | Electrically Locked (Fail Safe) |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | .56 Amps |
| Holding Force | 1500 Lbs. |
| Switch Type | None |
| Product Type | Maglocks |
Installation Instructions:
