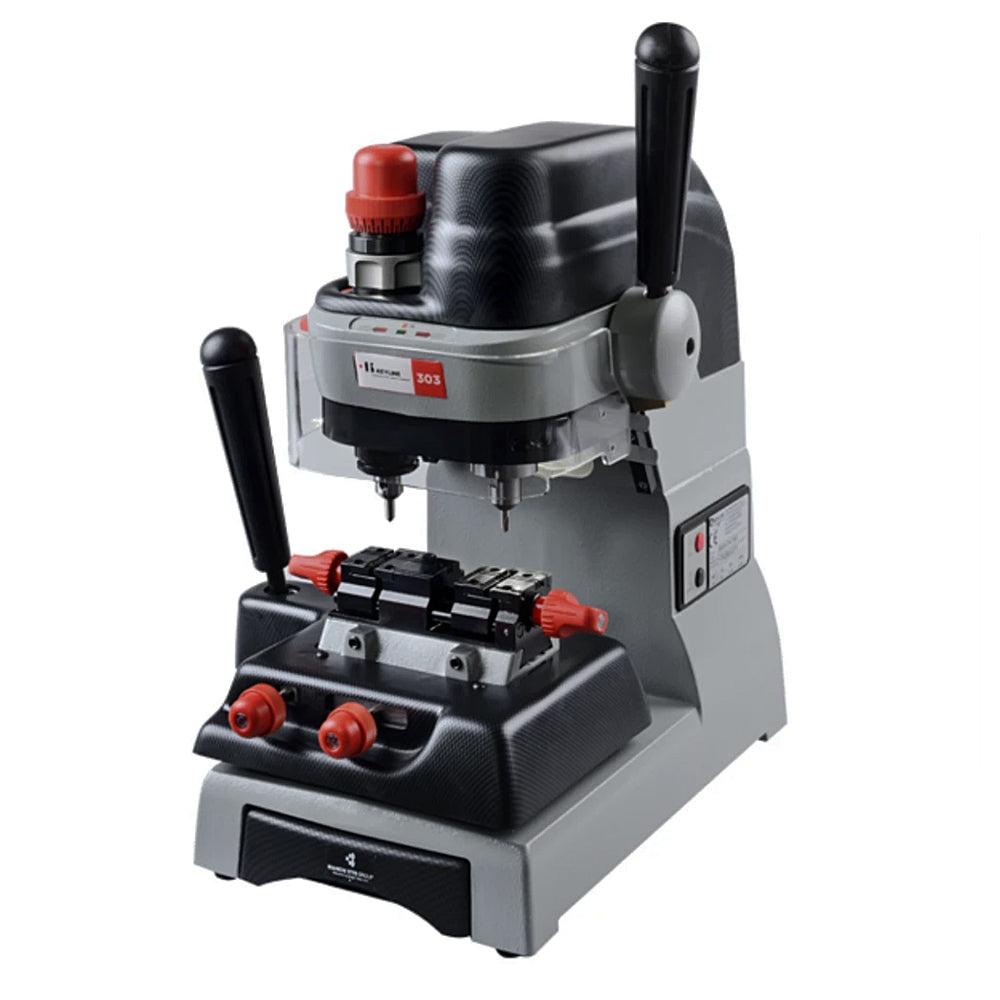

Keyline 303 High Security Key Duplicator - 303 / Key Cutting Machine

Keyline 303 High Security Key Duplicator - 303

The 303 duplicates high-security laser and dimple type keys. Its robust construction and innovative design result in an extremely durable, precise, and easy to use machine.

Details

• Microswitch activated cutter start with a vertical and lateral carriage locking system to ease the cutting process;
• The one-piece cast-iron body reduces vibration and noise improving both cut consistency and cutter life;
• Dual-mode system; red button calibrates, black button cuts;
• Large, full view coverage shield for improved visibility and reduction of key shaving dispersal;
• Three-dimensional calibration results in greater cut accuracy; machine beeps when calibrated correctly;
• Electronic height adjustment with directional indicator;
• Removable faceplates;
• Long-lasting and bright LED-style light;
• Storage tray at the base of the machine for tools, keys, etc.;
• Optional equipment; Mercedes 2-track adapter set, Audi/VW adapters, and dimple cutter and tracer set.

303 is designed for:

• Automotive professionals who want innovative high security and dimple key duplicating key machine
• Users who want additional features such as removable faceplates, LED-style light, and more advanced technical features.

Supported Keys:

• Dimple Keys

• Laser Keys

• Tibbe Keys


Technical Specification

Power Supply: 110V 60Hz

Dimensions: 12" x 15" x 21"

Lighting: LED

Motor: Asynchronous, one speed

Weight: 51 lbs.

Cutter Speed: 6,000 rpm

Absorption: 200W

Cutter: 2.5mm and 3mm

Clamps: Fixed, with removable faceplates

Movements/Axes: 3 axis

Tracer Point: 2.5mm and 3mm

Accessories: MA (Audi/VW Adaptor) and MM (Mercedes 2-Track Adaptor)
