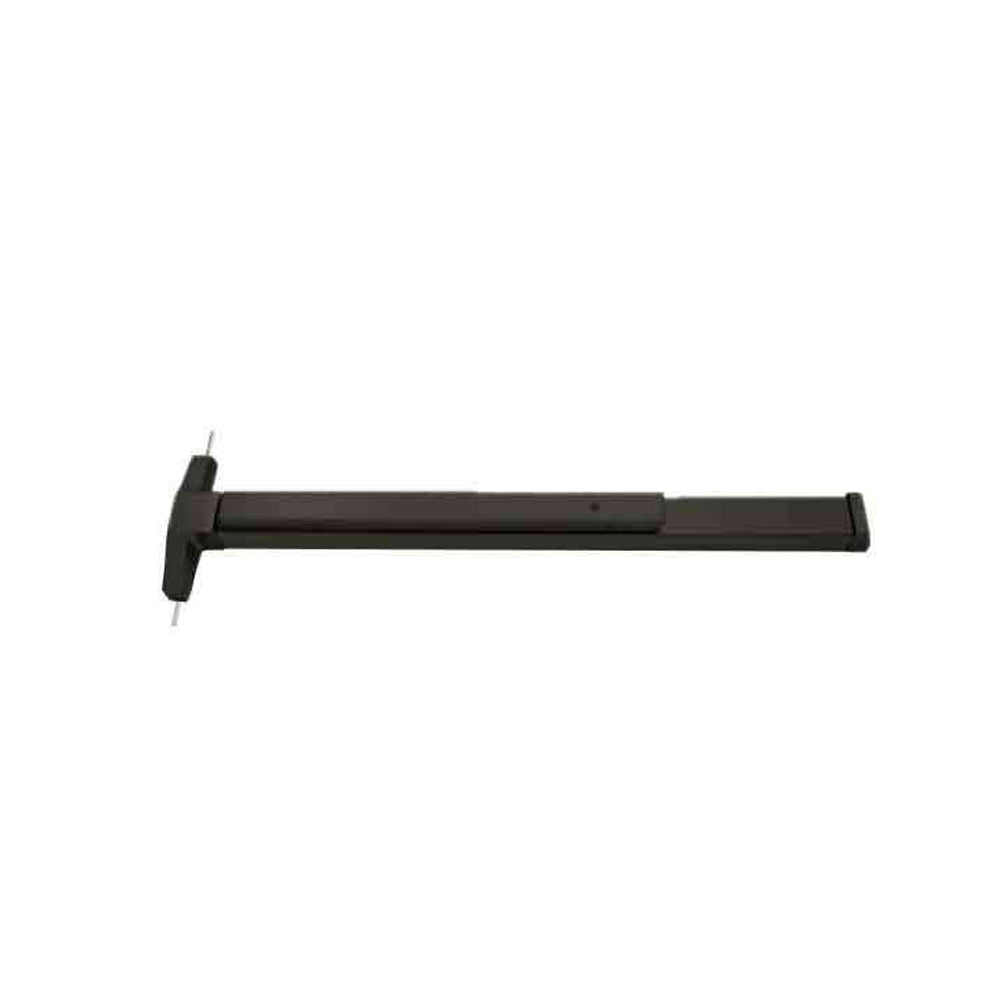

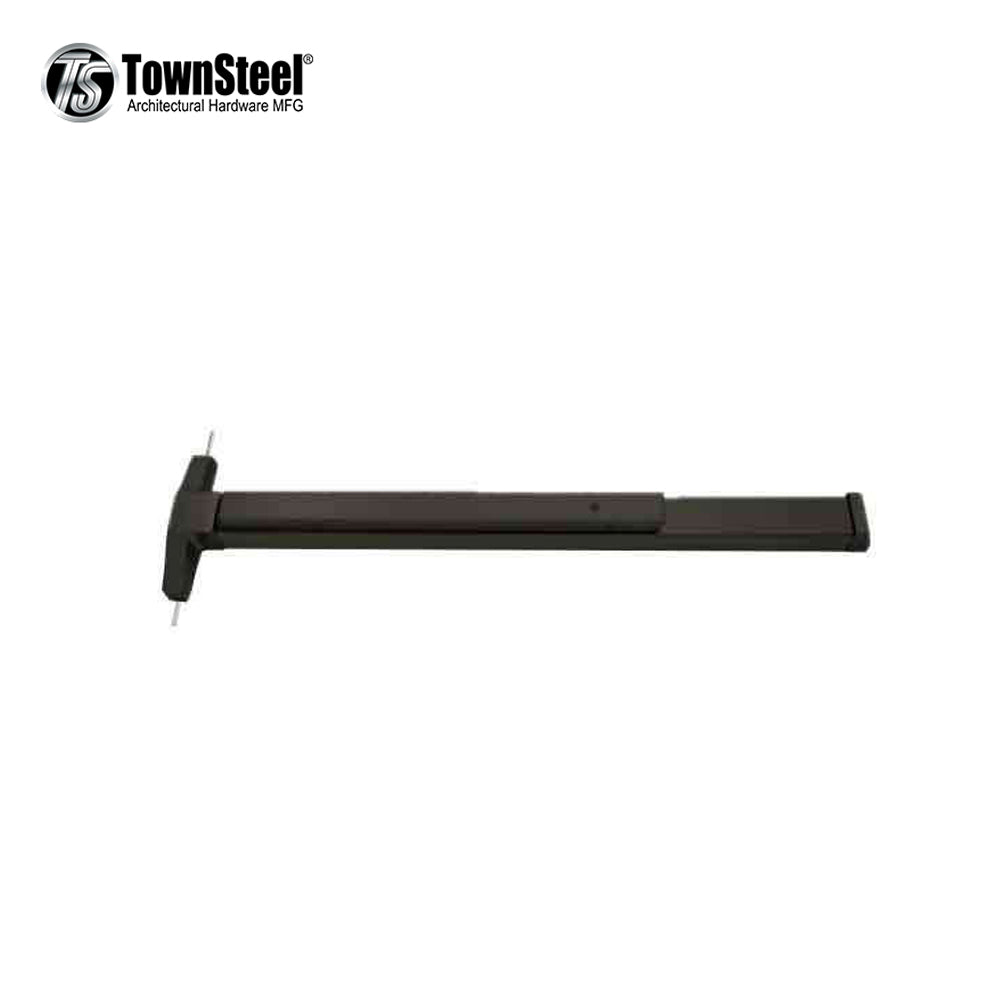

TownSteel - ED3747 - Narrow Stile Cocealed Vertical Rod Exit Device - Push Bar - 36 - Oil Rubbed Bronze - Grade 1 - TS-ED3747-3684-10B

TownSteel - ED3747 - Narrow Stile Cocealed Vertical Rod Exit Device - Push Bar - 36" - Oil Rubbed Bronze - Grade 1 - TS-ED3747-3684-10B

Features

- Full line of exit devices are certified to ANSI/ BHMA A156.3 Grade1.
- All devices are non-handed or reversible design.
- UL Listed for Fire Exit hardware , 3 hours.
- High shock -resistant latching mechanical design for vandalism protection.
- "A" Label (3 hr) rating on pairs of doors up to 8' x 8' for same or double egress.
- All internal components are made of electro-plated steel or corrosion-resistant alloy.

Specifications

Application	For wood, metal or aluminum glass door with 1-3/4″ minimum stile width
Handing	Field Reversible
Door Thickness	1-3/4″ standard
Door Widths	28″ to 36″, no cutting for 36″ door
Door Width	36″ device for up to 3′ wide opening
Device Length	34-1/2″
Maximum Cut Down	8″
Centerline from Finished Floor	41″
Projection	Push bar Neutral 3 9/32" (83mm) Push bar Depressed 2 17/32" (64.5mm)
Top Latch Bolt	3/4" (19mm) throw, stainless steel
Bottom Latch Bolt	1/2" (12.7mm) throw, stainless steel

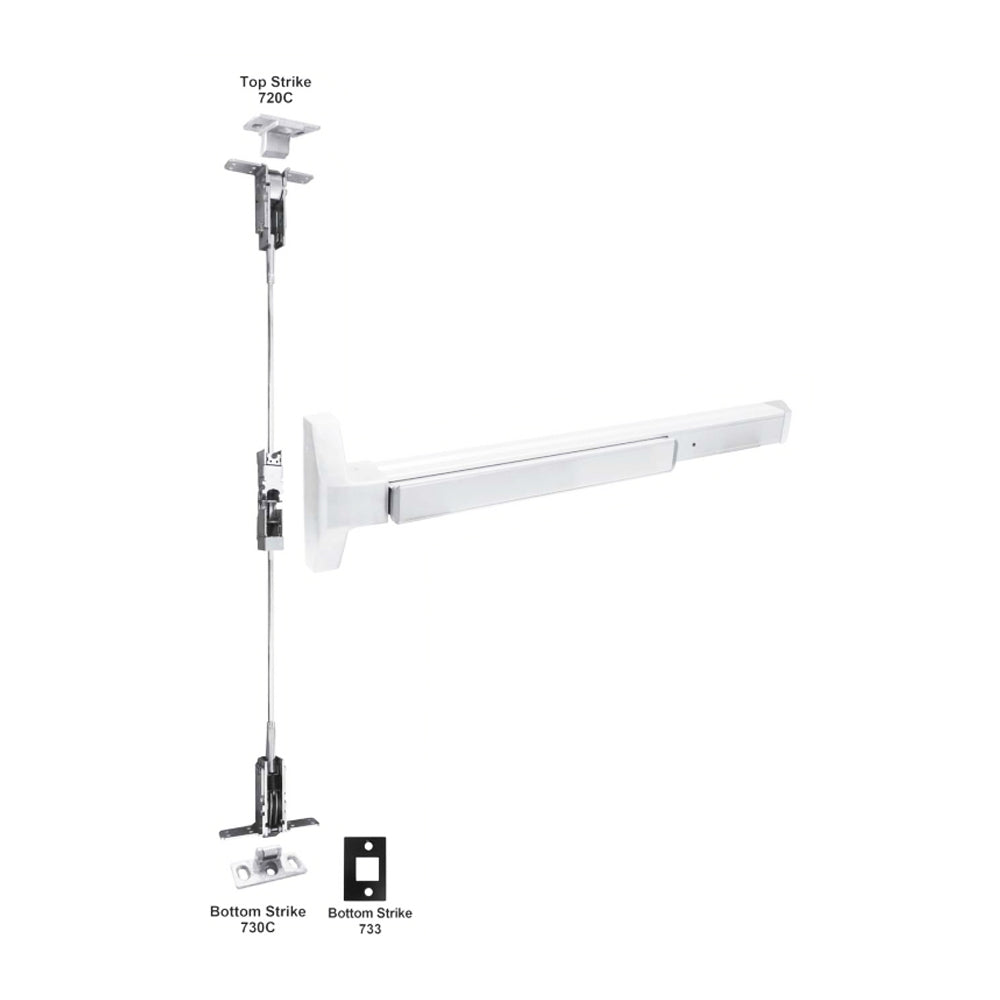

Top Strikes	720C standard 730C Bottom Strike standard or 733 Bottom Strike
Bottom Strike	730C Bottom Strike standard or 733 Bottom Strike
Dogging Feature	1/2 turn hex key dogging standard For non-fire rated devices
Mounting	Furnished with wood and machine screws
Finish	10B - Oil Rubbed Bronze
Certifications	UL/ULC - 305 & UL fire rated, 3 hours ANSI/BHMA  A156.3 Grade 1 standard
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical
