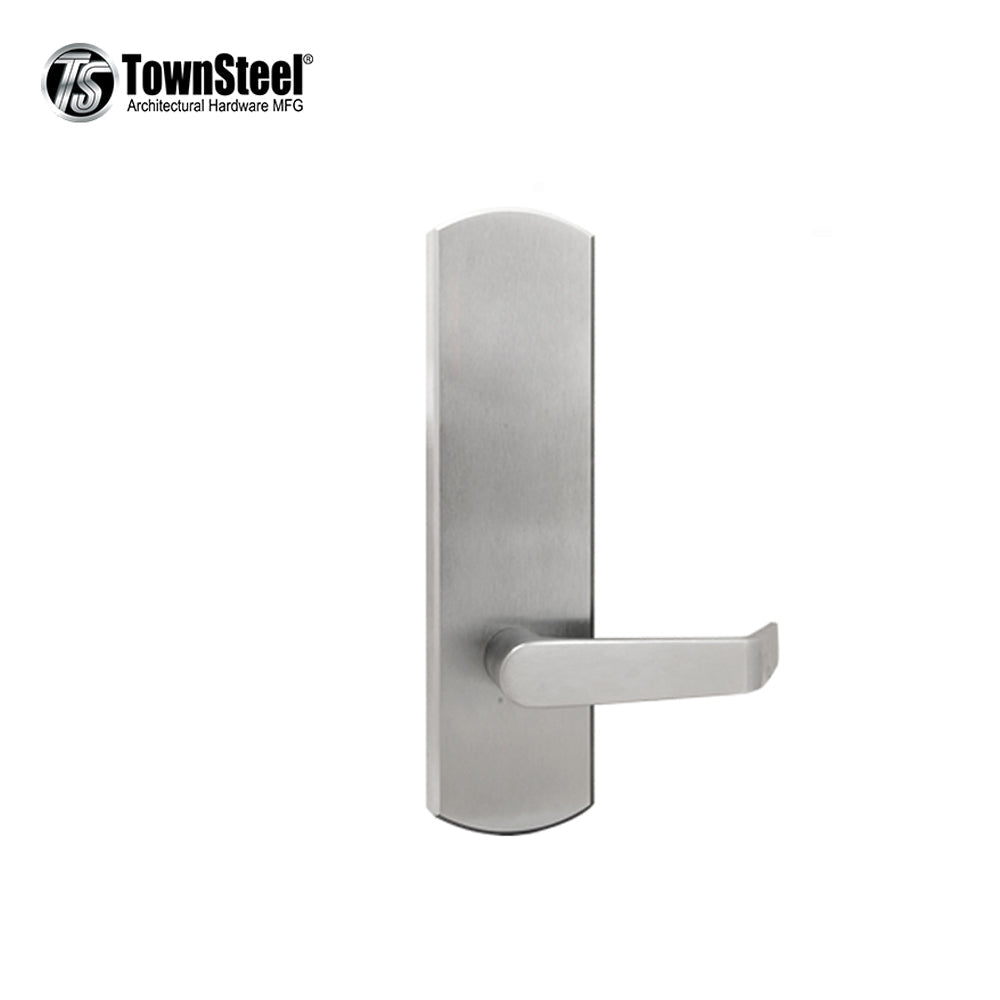

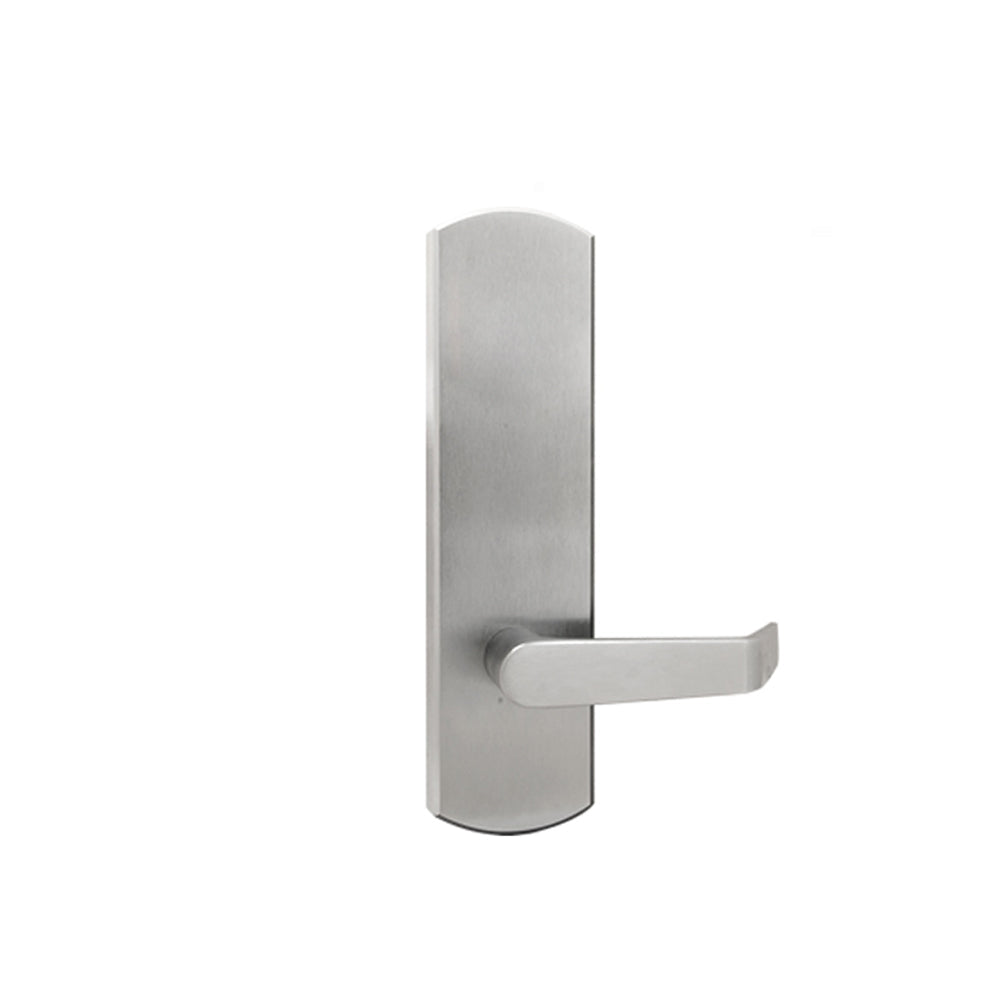

TownSteel - Escutcheon Lever Trim for 8900 & 9700 Kestros Exit Devices - Passage Function - Satin Chrome - Grade 1 - KES-914R-SRHR626

TownSteel - Escutcheon Lever Exit Trim - 2-3/4" Backset - for 8900 & 9700 Kestros Exit Devices - Passage Function - Satin Chrome - Grade 1 - KES-914R-SRHR626

Specifications

Application	Escutcheon Lever Exit Trim
Function	Passage Function- Lever always operable
Handling	Field Reversible
Door Thickness	1-3/4″ to 2-1/4″
Backset	2-3/4″ standard
Door Prep	Fits and covers 161 cutout
Trim	Escutcheon Lever Exit Trim
Escutcheon	Forged brass, 2-5/16″ x 8-1/2″
Lever	Cast zinc, 4-3/4″ long
Cylinder	No Cylinder
Keying	No Keying
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical
