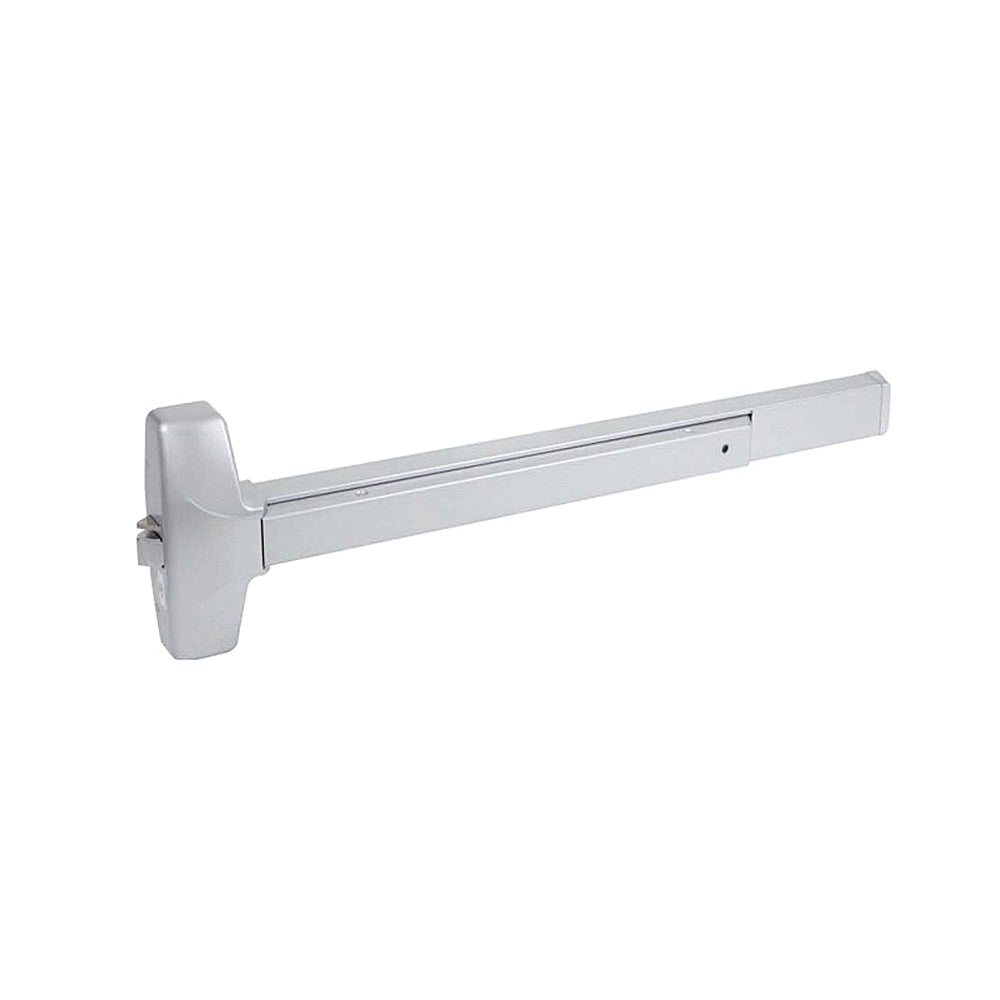

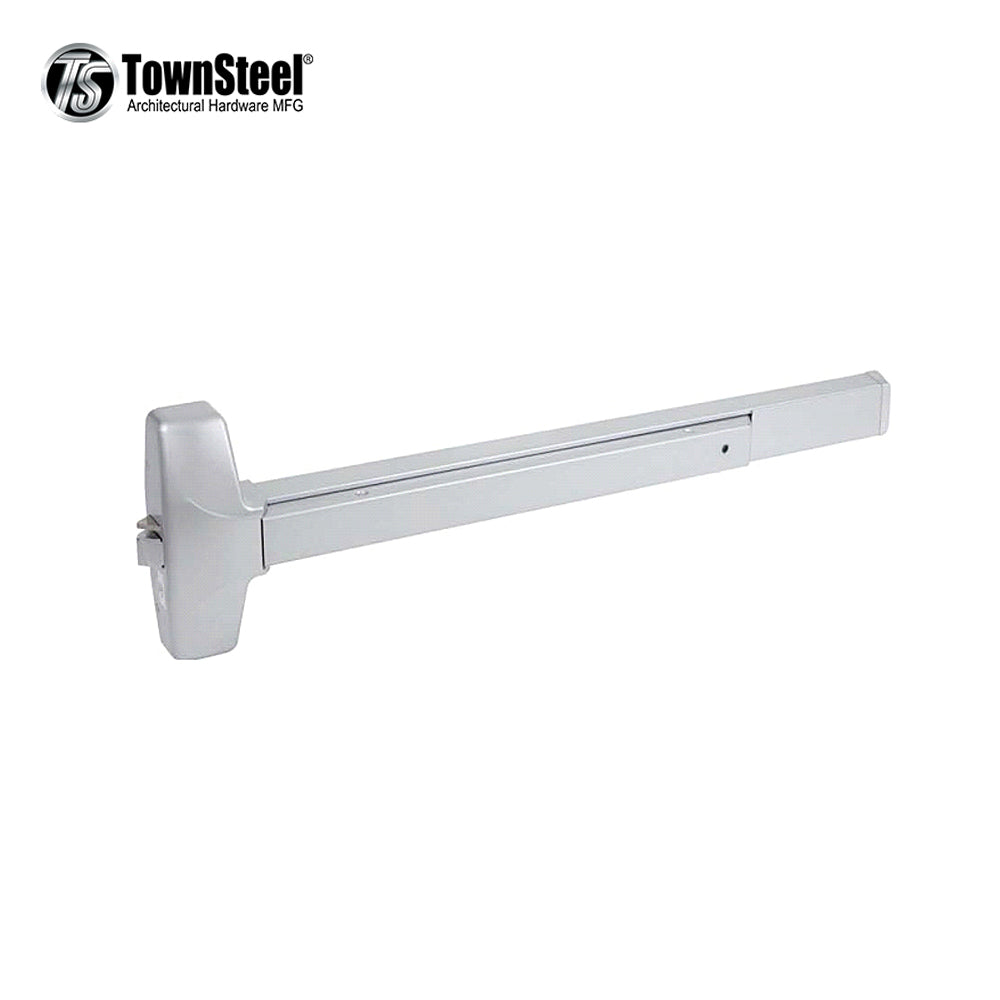

TownSteel - ED8900 - Panic Exit Device Push Bar - 36 - Satin Stainless - Grade 1 - ED8900-36-630

TownSteel - ED8900 - Panic Exit Device Push Bar - 36" - Satin Stainless - Grade 1

Features

- ANSI/BHMA A156.3, Grade 1 in ALL series exit devices.
-  All devices are non-handed or reversible design.
-  UL Listed for Fire Exit hardware, 3 hours.
-  Variety of rose and escutcheon levers.
-  Trims feature a through-bolt design that allow for a secure and durable installation.
-  High shock-resistant latching mechanical design for protection.
-  "A" Label (3 hr) rating on pairs of doors up to 8' x 8' for same or doub le egress.
-  All internal components are made of electro-plated steel and corrosion-resistant alloy.

Dimensions

Standard for Door Width 36"

Specifications

Handing

Non-handed

Finishes

630 standard, AL, Dura (Consult factory for others)

Strikes

600 Rigid Strike standard

Alarm

Available with AK8

Latch bolt

Stainless Steel, 3/4" (19mm) throw

Dead Latch bolt

Stainless Steel

Dogging Feature

1/2 turn hex dogging standard

For non-fire rated devices

Cylinder Dogging

Available with CDS

Door Size

36" (914mm) standard, 48" (1219mm) available (Consult factory for others)

Minimum Stile Width

4 3/4" (120mm)

Door Thickness

1 3/4" - 2" (45-50.Bmm) standard (Consult factory for others)

Projection

Push bar Neutral 2 15/32" (63mm)

Push bar Depressed 1 27/32" (46.5mm)

Mounting Height

41" (104.1cm) from CL to finished floor

ANSI

Certified ANSI/BHMA  A156.3 Grade 1 standard

UL

Certified UL 305 & UL 10C fire rated, 3 hours

Shim Kit

750 shim kit standard
