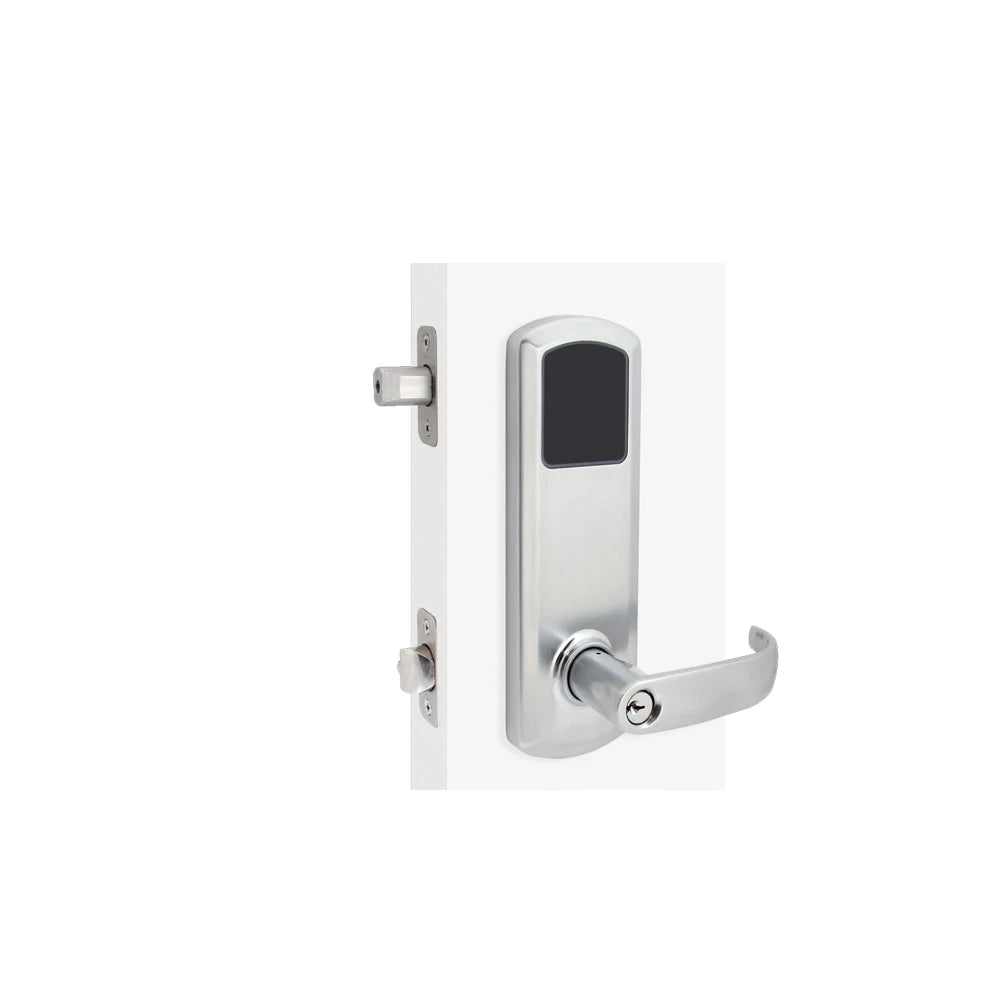

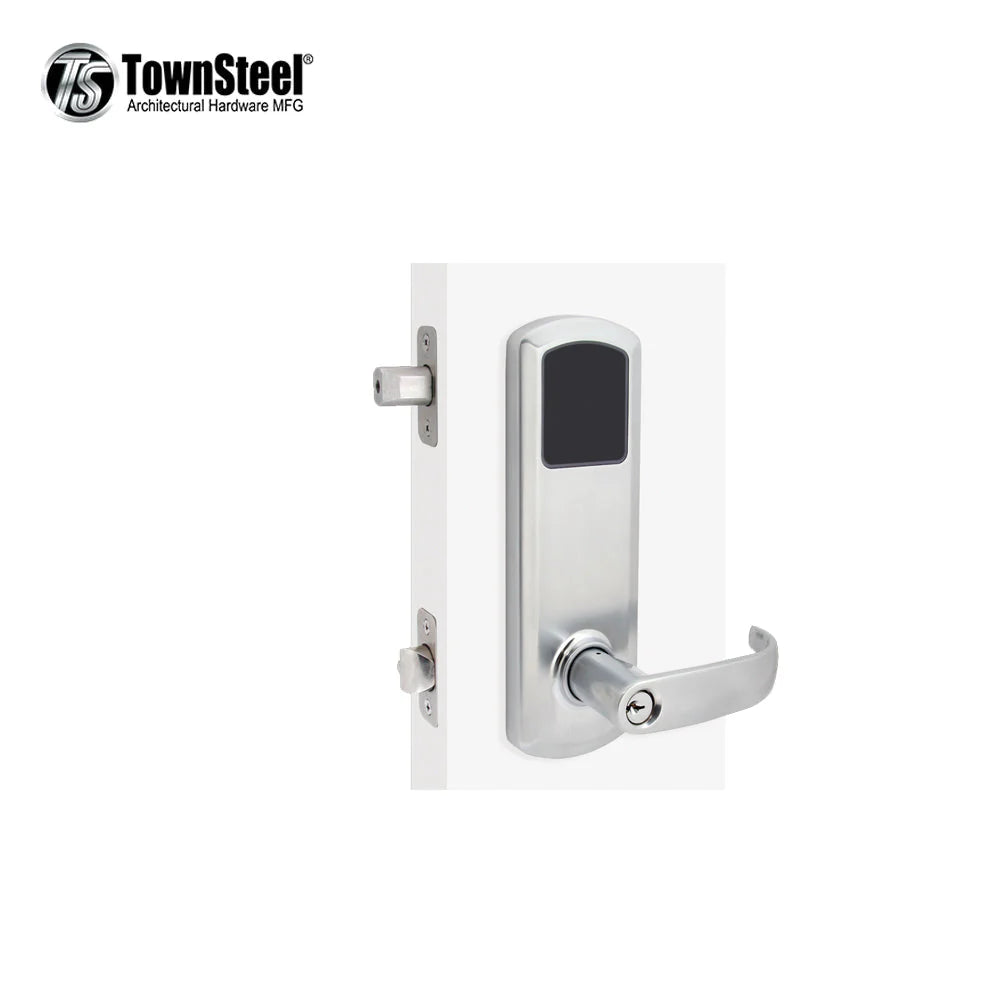

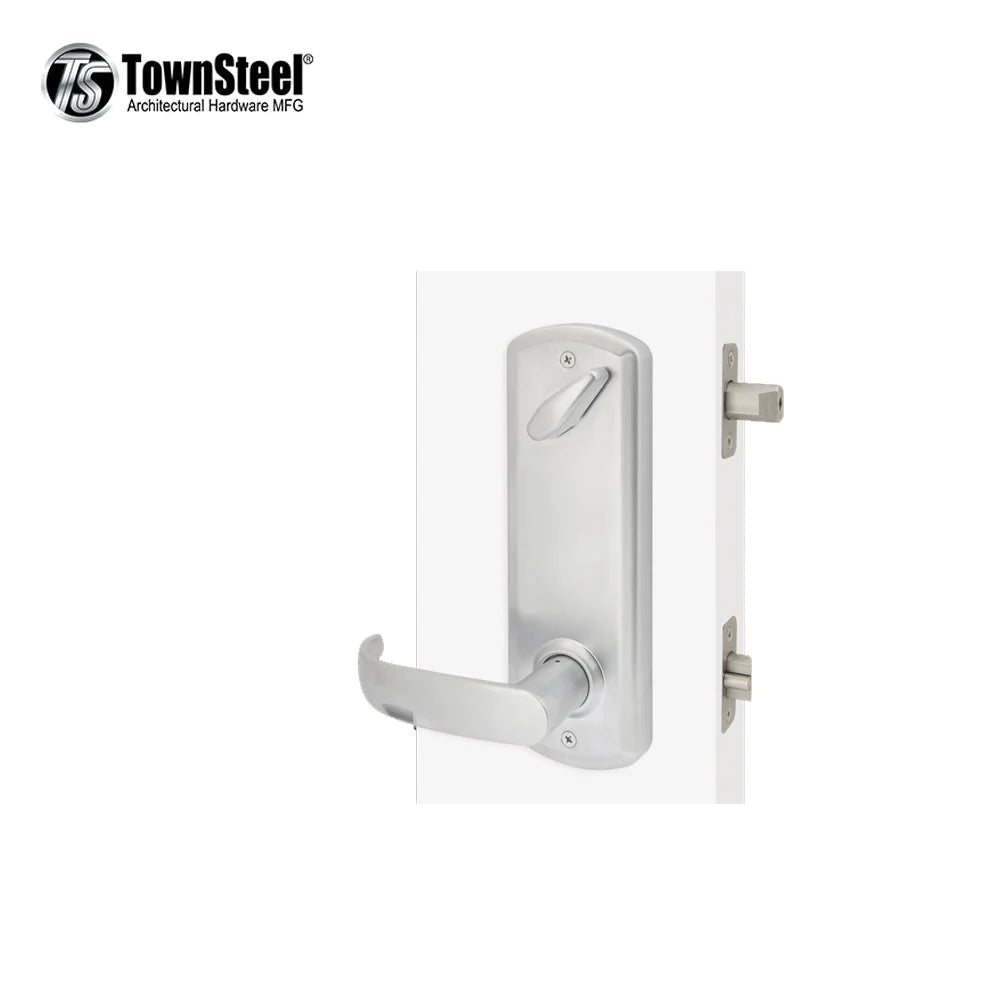

TownSteel - e-Genius - 6000 Series Smart Interconnected - Schlage C Keyway - 5-1/2" Lockbodies - 1" x 2-1/4" Radius Corners - Entry Function
The e-Genius 6000, pairing with our MAXX Access system, is ideal for property management with multiple locks and controllers for hospitality and apartments. This electronic lock is an access control lock with a 2000 event audit trail, door position sensor, privacy sensor, and built-in REX sensor. Selectable RFID keycard is available for our sleek black designed RFID reader. When the door is closed, the lever will not retract the deadlatch or deadbolt, providing instant lock security. For additional security with extended deadbolt, simply lift the lever upwards to throw. To unlock the door, simply provide valid credentials and push the lever downwards to reentry with single motion.
Feature:
- Sleek black designed RFID reader
- Interconnected deadbolt and deadlatch
- Single motion egress
- Clutched lever design
- MAXX Access
- 2000 event audit rail
- Door position, privacy, and built-in REX sensor
- Work with multi-locks and controller
Specification:
| Series | e-Genius |
| BHMA/ANSI Grade | Grade 1 Certified, ANSI/BHMA A156.12 |
| Lockbodies | 4″ 5.5″ |
| Handings | RHR LHR RH LH Field Reversible for KIK cylinder Field Irreversible for IC core |
| Backsets | 2-3/8″ and 2-3/4″ available |
| Electronic Specifications | RX Switch |
| Faceplates | W: 1-1/8” x 2-1/4” with square corners N: 1" x 2-1/4" with radius corners |
| Door Thickness | 1-3/4" 1-3/8” with 2 spacers |
| Latch bolt | 1/2" throw stainless steel deadlocking |
| Latch strike | Full lip with radius corners T-Strike with square corner ASA Strike with radius corner |
| Deadbolt Strike | 1-1/8" x 2-3/4" radius corners with security underplate 1-1/8” x 2-3/4” square corner with security underplate |
| Escutcheon | Zinc |
| Levers | Quest Sentinel Wolfsburg Wolfsburg R |
| Trims | Escutcheon |
| Finishes | 619- Satin Nickel 622- Flat Black 626- Satin Chrome |
| Compliance | Americans with Disabilities Act Compliant UL 10C Compliant CAN/ULC S104 Compliant FCC part 15 certified |
Available Keyway:
- Kwikset® 6-pin with “KW” Keyway
- High security 6-pin with Townsteel® “L” Keyway
- High security 7-pin IC core with Townsteel ® “L” Keyway
- 6-pin IC core with Best® “A” Keyway
- 7-pin IC core with Best® “A” Keyway
- Small format IC, SFIC, Less cylinder core option
- Schlage® LFIC less core
Corbin LFIC less core
