TownSteel  |  SKU: TS-CRX-A-IC-LH-234-86

TownSteel - CRX-A-IC - Heavy Duty 5-Point Ligature Resistant Arch Trim Cylindrical Lockset - SFIC Prep - Storeroom (86) Keyed - Grade 1 - Satin Stainless Steel-630

$67995 $84648
Shipping calculated at checkout.
Trust Guard Security Scanned
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

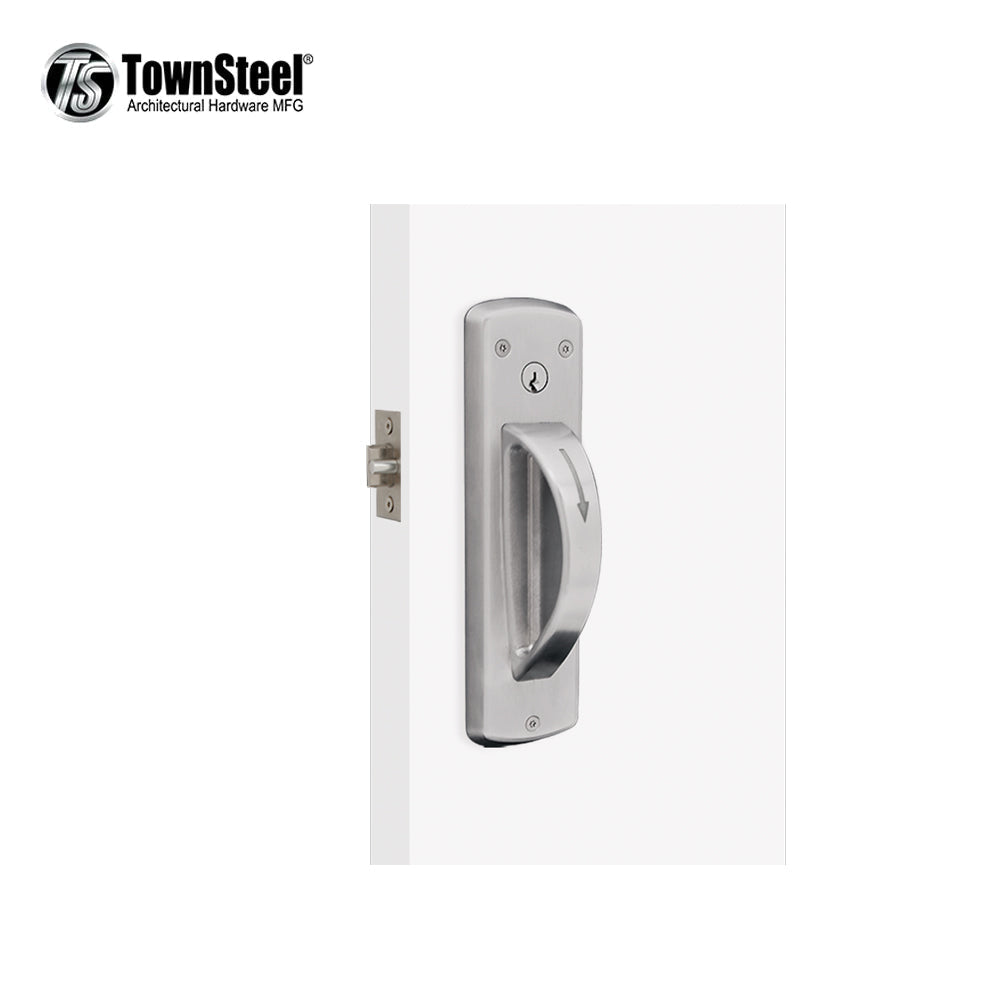

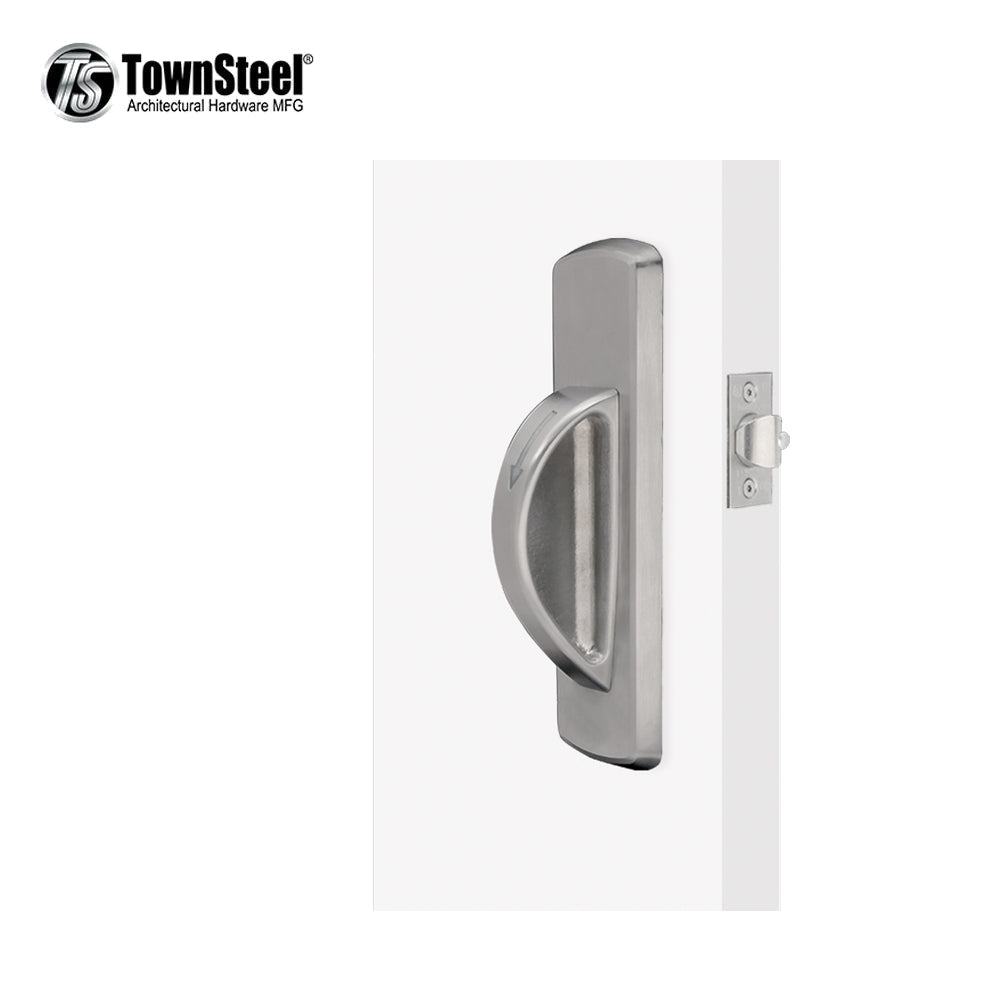

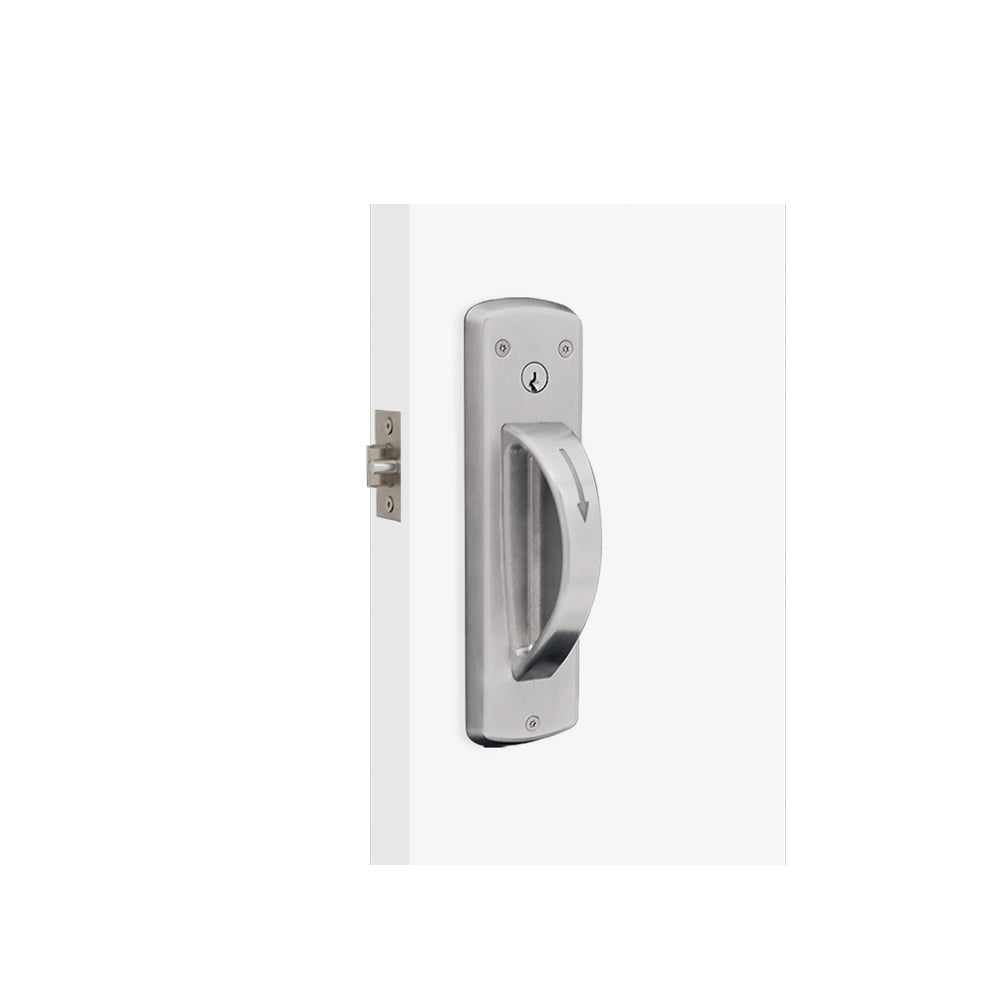

TownSteel - CRX-A-IC - Heavy Duty 5-Point Ligature Resistant Arch Trim Cylindrical Lockset - SFIC Prep - Storeroom (86) Keyed - Grade 1 - Satin Stainless Steel-630

The CRX-A is an ANSI Grade 1 Cylindrical Lock with Ligature Resistant Trim-Arch. CRX-A is recommended for high-risk areas in facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch trim and tamper-resistant mounting screws. The CRX-A can be mounted on both a wood and metal door.

Feature:
  • Equipped with a 5 point ligature resistant arch trim
  • Meets all ligature resistant requirements
  • Heavy-duty Grade 1
  • Various cylinder and keying options
  • Through-bolt mounting with tamper-resistant screws
Specification:
Series CRX
BHMA/ANSI Grade Grade 1 Certified, ANSI/BHMA A156.2
Lockbodies Rigid
Handings RHR
LH
RH
LHR
Backsets 2-3/4″
5″
Faceplate 1-1/8" x 2-1/4", square corner
Door Thickness 1-3/4"
Strike ASA strike standard
Latch Bolt ½" throw, stainless steel
Door Prep Standard 161
Mounting Though-bolt, tamper resistant mounting screws, for wood and metal door
Escutcheon Stainless steel, 9-5/8" x 2-13/16
Arch Trim Stainless steel, 2-5/8" projection
Cylinder Specifications Small Format Interchangeable Core (SFIC)
Prepped for (SFIC) Small Format Interchangeable Core (less core)
Finishes Satin Stainless Steel - 630
Function Storeroom (86)
Compliance Ligature Resistant
Americans with Disabilities Act Compliant
UL 10C Compliant
Certifications ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements.
Additional Charge Will Apply For The Available Cylinders:
  • 6-pin IC core with Best® “A” Keyway
  • 7-pin IC core with Best® “A” Keyway
  • Corbin® Large Format IC less core available, for 6 pin core
  • Schlage® Large Format IC less core available
  • High security 6 pin cylinder with TownSteel “L” keyway
