Schlage | SKU:
SLG-L9453LB-RH-134
17% off

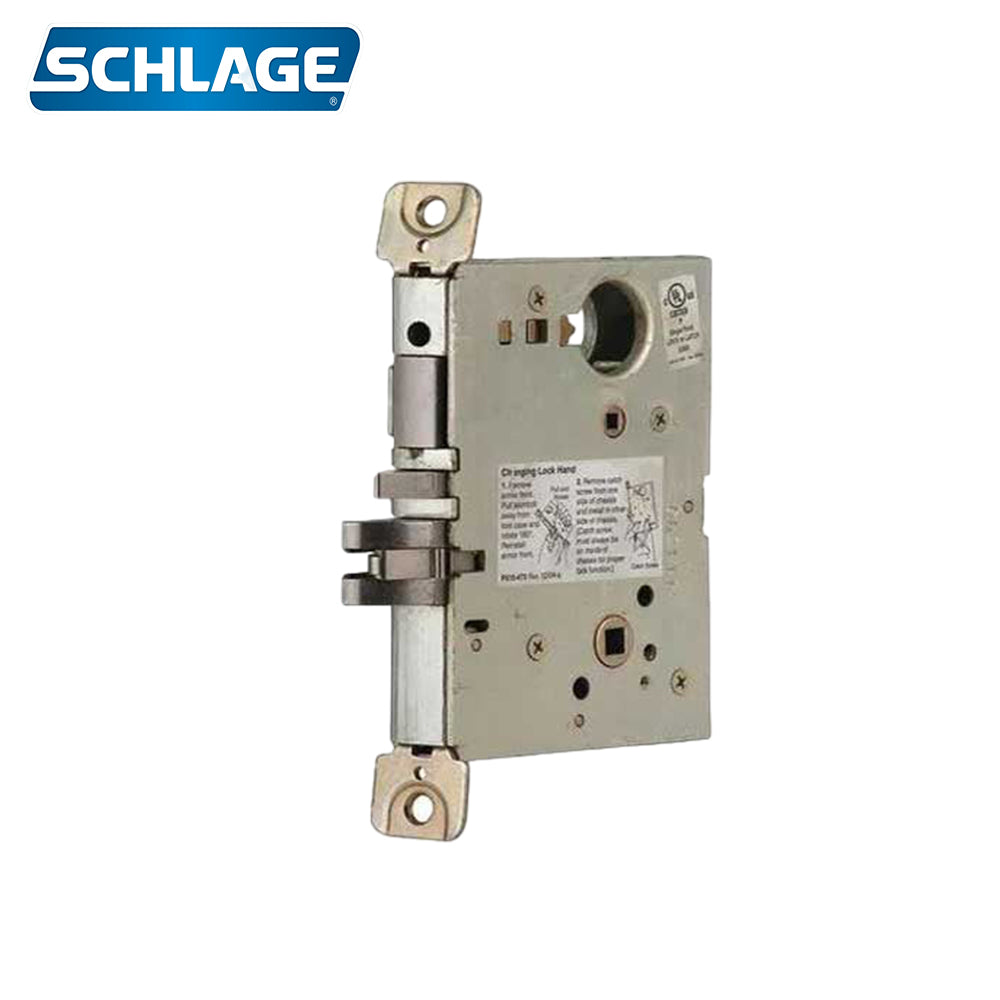

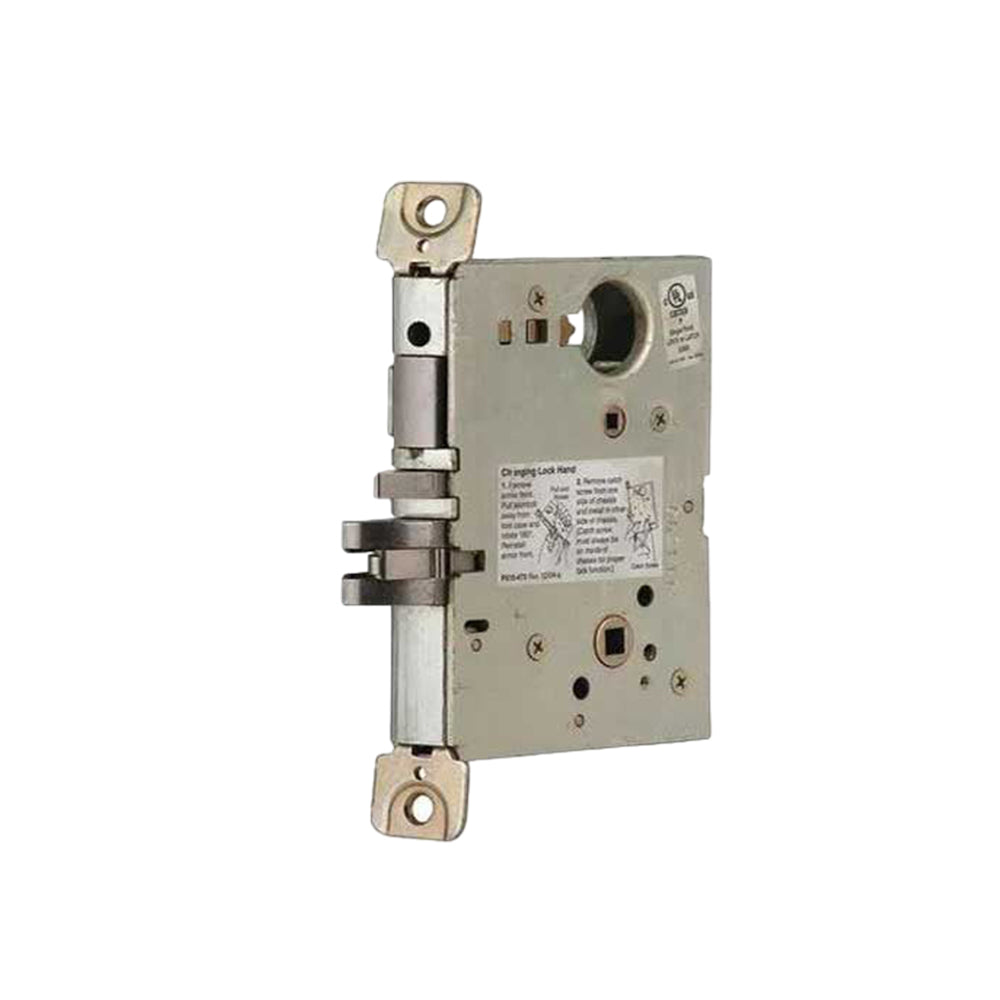

Schlage - L9453LB Entrance Mortise Lock - Right Handed Body Only
$22890
$27468
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Schlage L9453LB Entrance Mortise Lock - Right Handed Body Only
The Schlage L9453LB-RH-134 Entrance Mortise Lock, Body Only is an Entrance Mortise Lock, Body Only, Right Handed. The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application.
Features:
- Entrance Mortise Lock with Deadbolt
- Lock Body Only
Handing:
- Right Hand
- Entrance lock - Latchbolt retracted by lever/ knob from either side unless outside locked by 20° thumbturn rotation. Deadbolt actuation through 90° thumbturn rotation. When locked, outside key or inside lever/knob retracts both deadbolt and latchbolt. Outside lever/knob locked until thumbturn is restored to vertical position. Throwing deadbolt locks outside lever/knob. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate egress.
- Door thickness 1 3⁄4" (44 mmm)
Product Specifications:
| Manufacturer | Schlage |
| SKU | L9453LB RH 134 |
| UID | SCH100L9453LBRH134 |
| Grade | Grade 1 |
| Origin | Mexico |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9453-Entrance Office Lock w Deadbolt |
| ANSI Function | F20 - Entry/Office |
| Handing | RH |
| Door Thickness | 1-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch, 1" Deadbolt |
| Std. Strike Number | 10-072 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
Installation Instructions:
