Rosslare - DR-6255 - CSN SELECT Desktop Enrollment Reader - 13.56 MHz
Description
Description

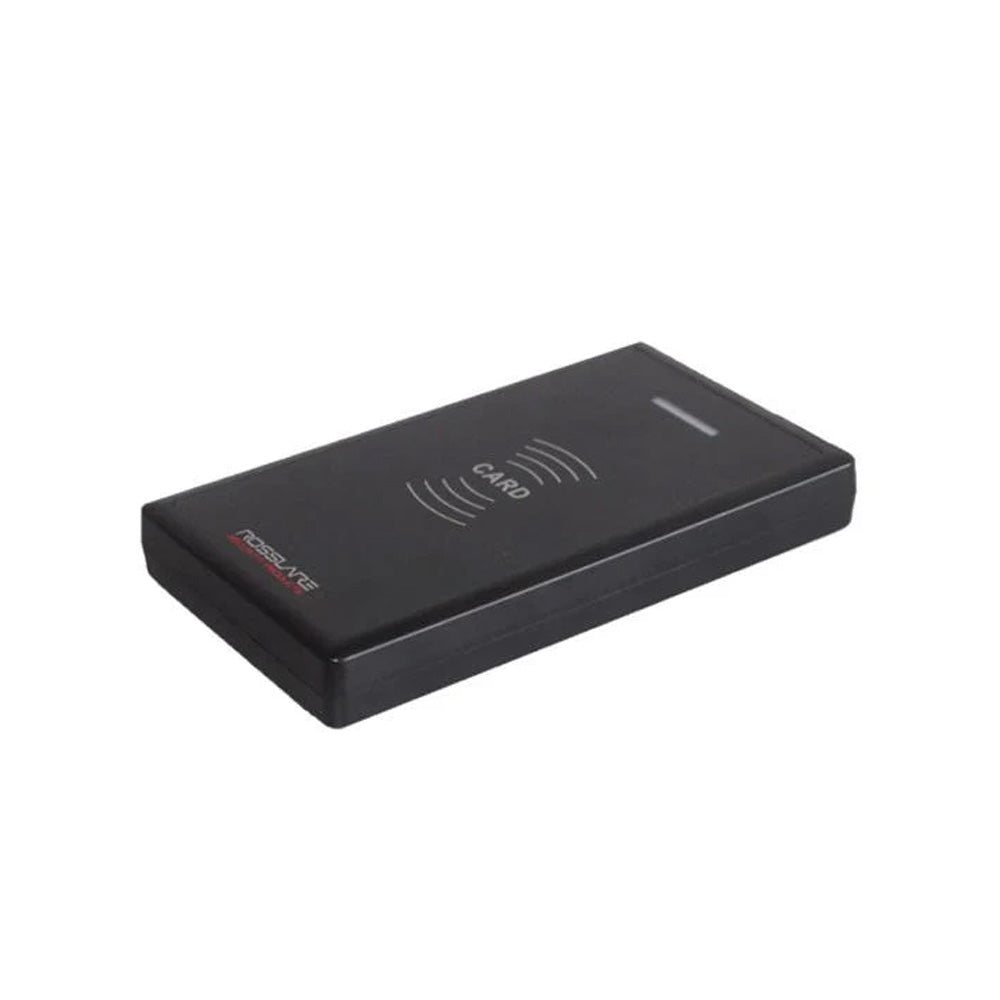

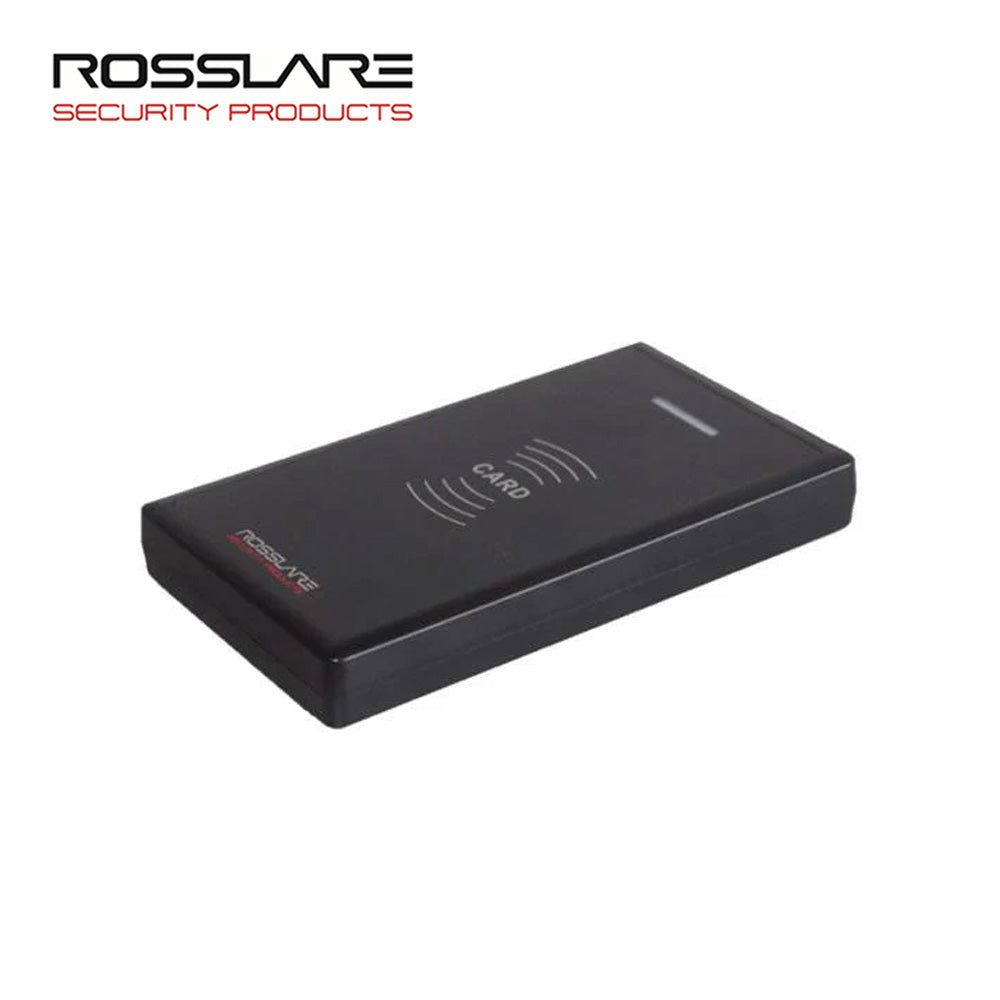

Rosslare - DR-6255 - CSN SELECT Desktop Enrollment Reader - 13.56 MHz
Rosslare's DR-6255 is a desktop smart card CSN enrollment reader with a USB interface for use when enrolling user credentials to access control software such as Rosslare's AxTraxNG. The reader is part of the CSN SELECT series of multi-credential technology contactless smart card (13.56 MHz) readers that support access by an NFC compatible Android smartphone app. This reader has the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards implementations, perfect for transitioning from one technology to another. CSN SELECT readers are able to read the CSN from many smart card RFID standard implementations. The reader has a sleek and modern design, and is powered by the USB port itself for easy and convenient installation.
Features:
- Compatible with Rosslare AxTraxNG management system.
- NFC Android smartphone is supported with the Android App for HCE (Host Card Emulation).
- Reads the CSN from many smart card RFID Standards implementations.
- Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application.
- Built-in buzzer.
- USB 2.0 compliant and USB powered.
- Wiegand output format can be configured using a PC software.
Specifications:
| Operating Voltage | 5 VDC (USB powered) |
| Standby Current @ 5 V | 90 mA |
| Maximum Current @ 5 V | 30 mA |
| ISO14443A Smart Card | - MIFARE Ultralight Nano / Ultralight EV1/ Ultralight C - MIFARE Classic / Classic EV1 - MIFARE Plus S / SE / x / EV1 - MIFARE DESFire EV1 / EV2 - NFC N-TAG / Card Emulation |
| ISO14443B Smart Card | China National ID |
| ISO15693 Smart Card | HID iClass, PicoPass, iCode, LEGIC |
| ISO18092 Smart Card | SONY FeliCa (Hong Kong Octopus) |
| Reader Data Output Format | Appears a COM port device when connected to a PC. The standard reader outputs the Wiegand CSN data in Wiegand 26-Bit format. Other Wiegand formats are selectable using the DR-6255 Hardware Configuration Tool PC software. |
| Read Range | 5 cm (2 in.) |
| USB Cable Length | 150 cm (59 in.) |
| Operating Environment | Indoor use |
| Storage Temperature Range | -20°C to 63°C (-4°F to 145°F) |
| Relative Humidity Range | 0 to 95% (non-condensing) |
| Dimensions (L x W x H) | 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.) |
| Weight | 130 g (4.6 oz) |
Downloads:
