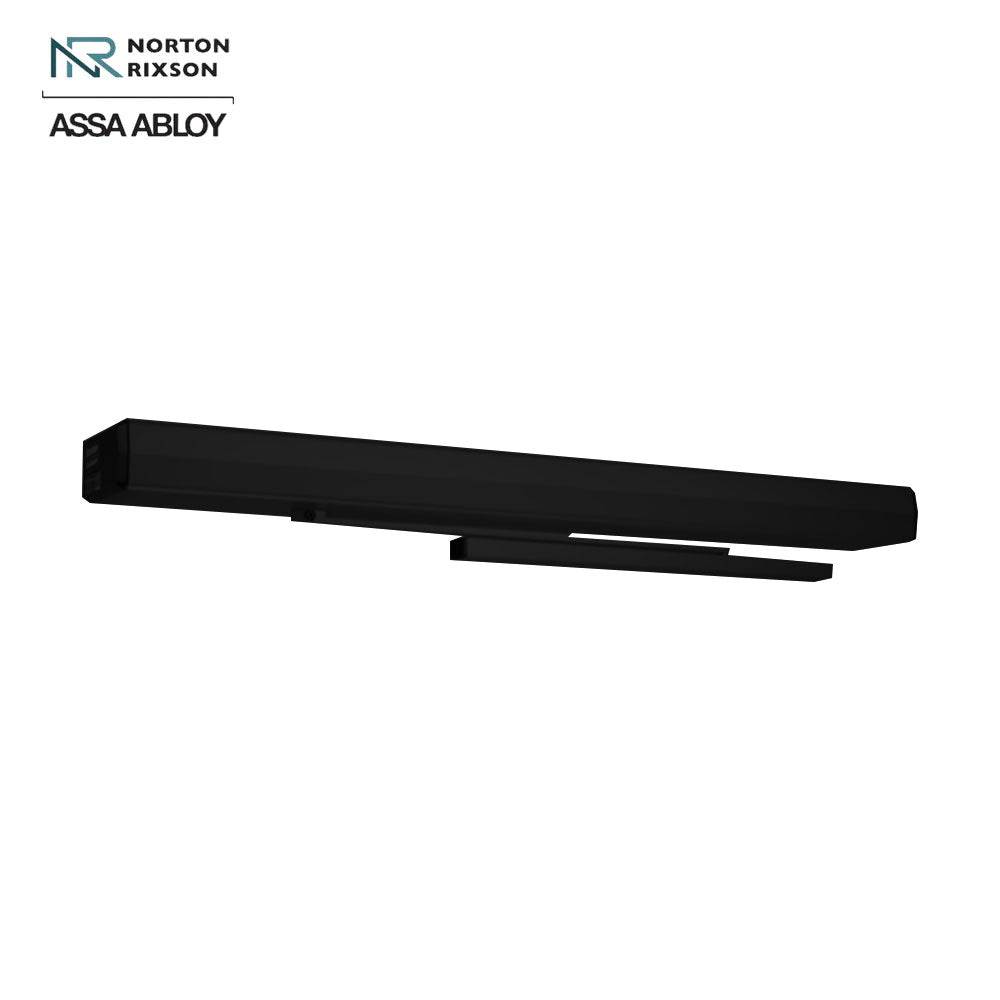

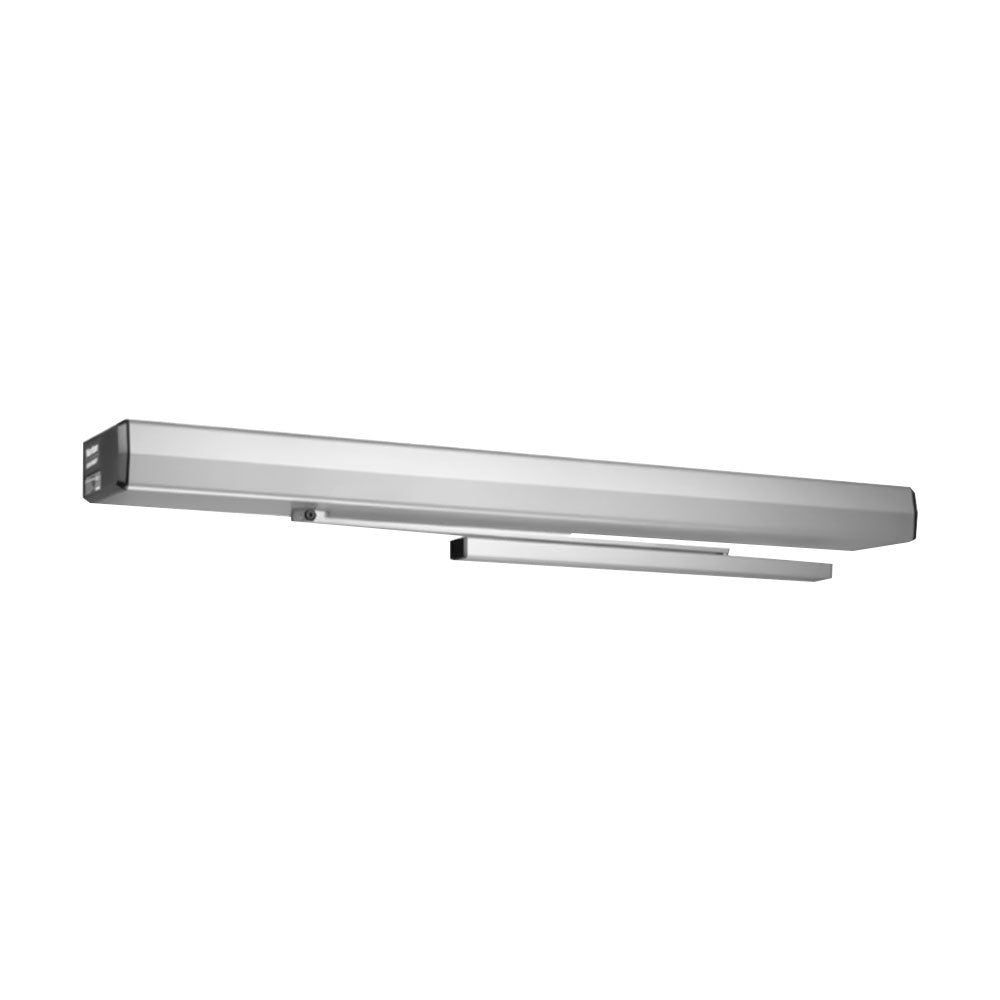

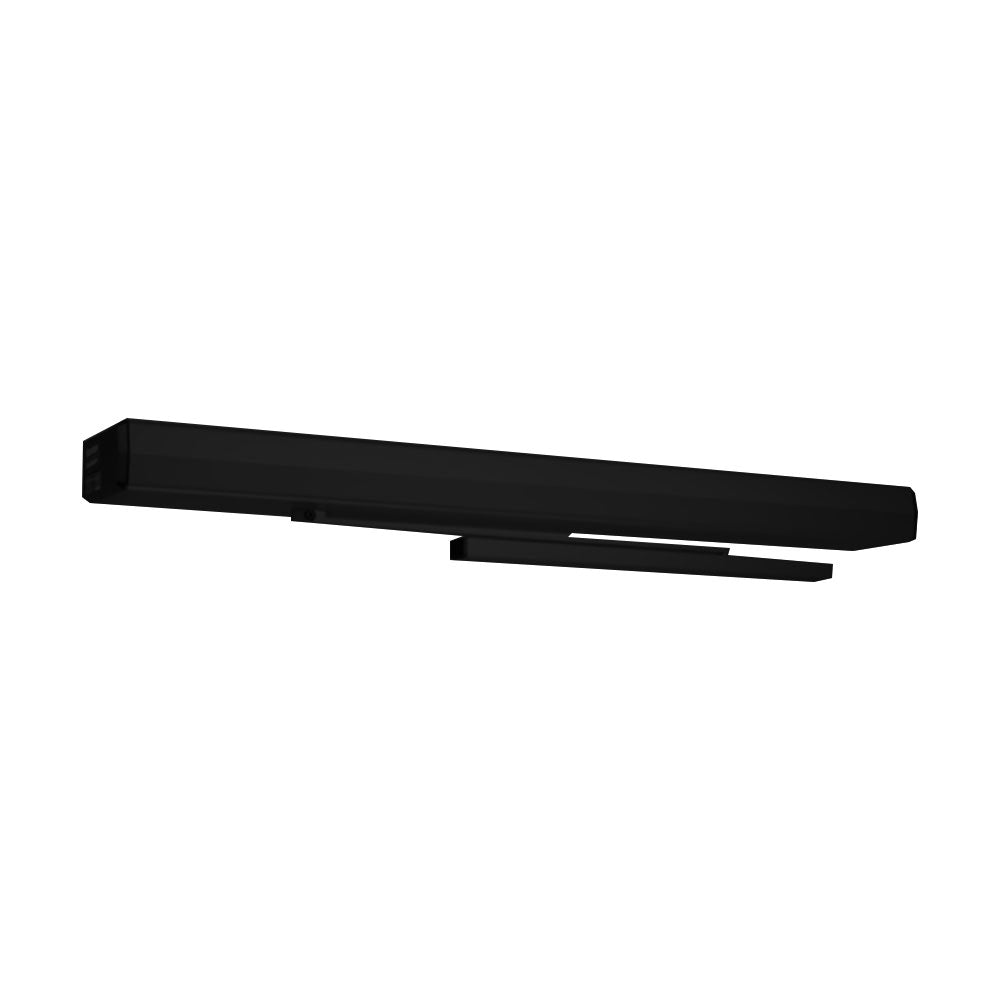

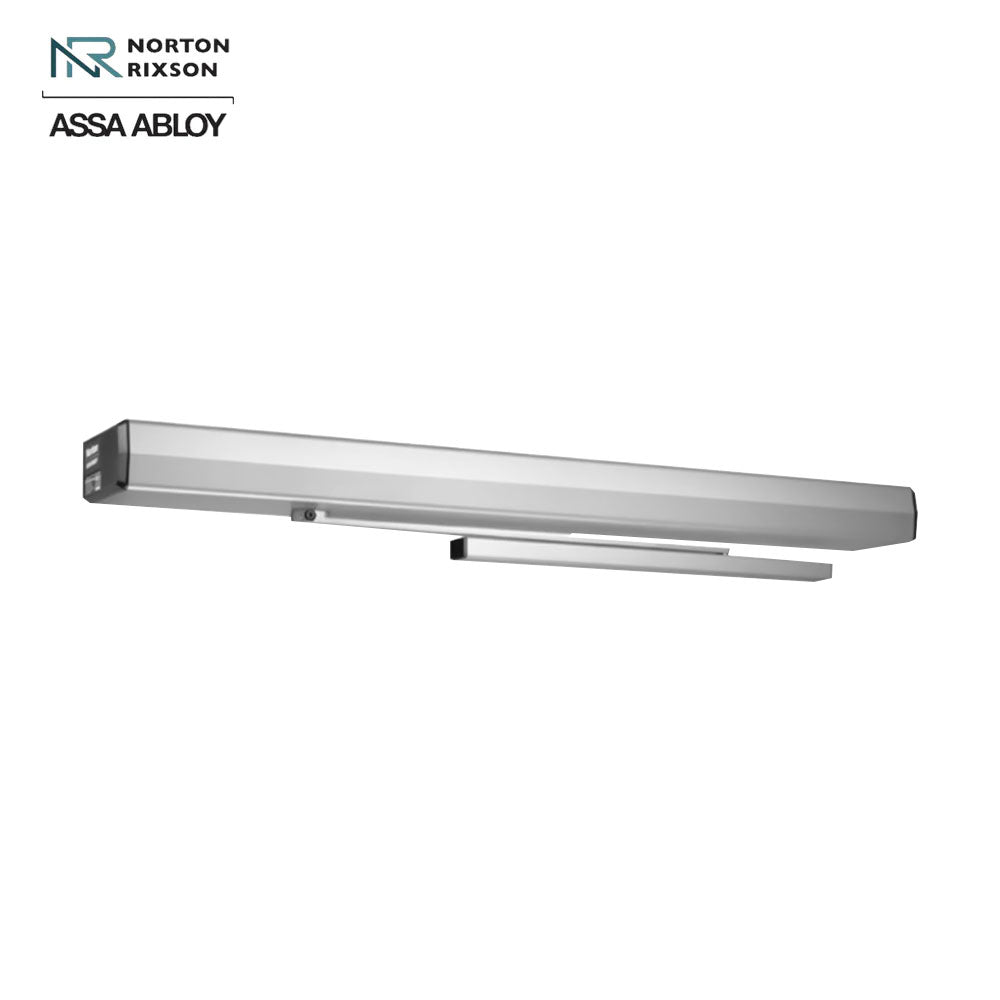

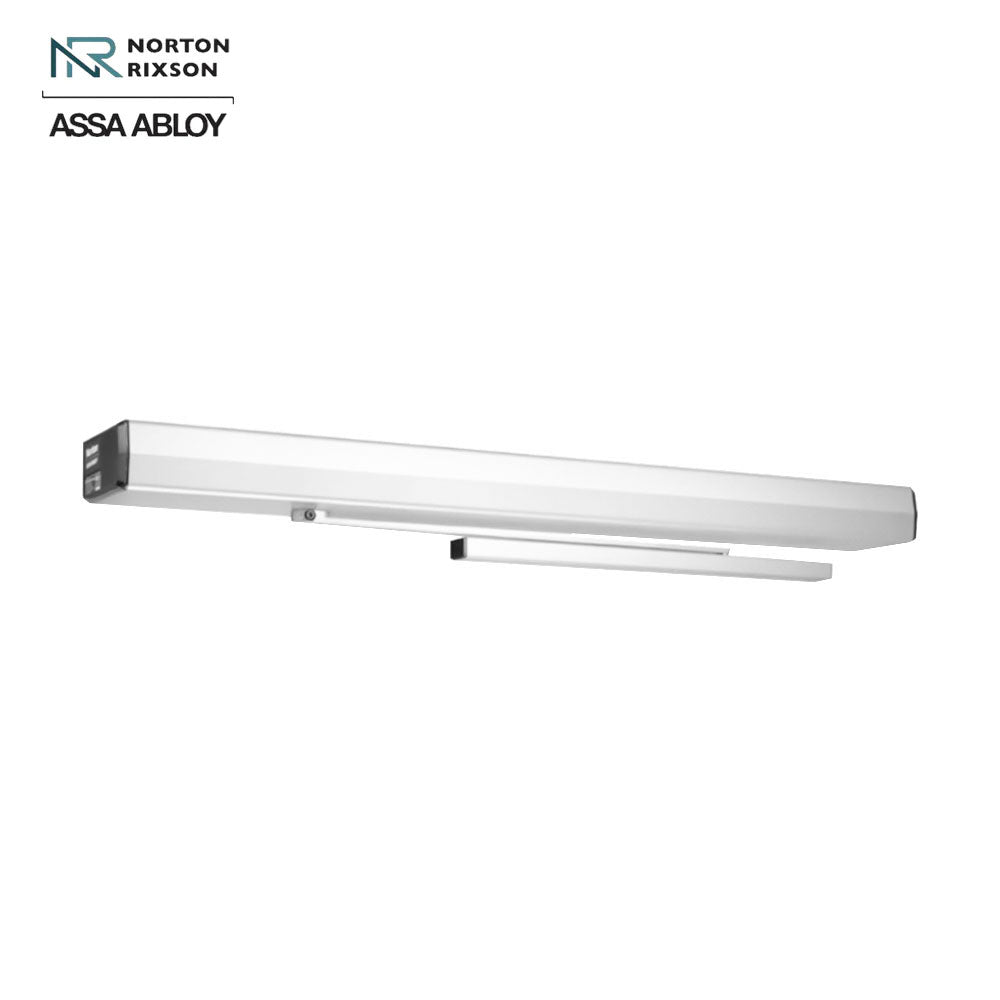

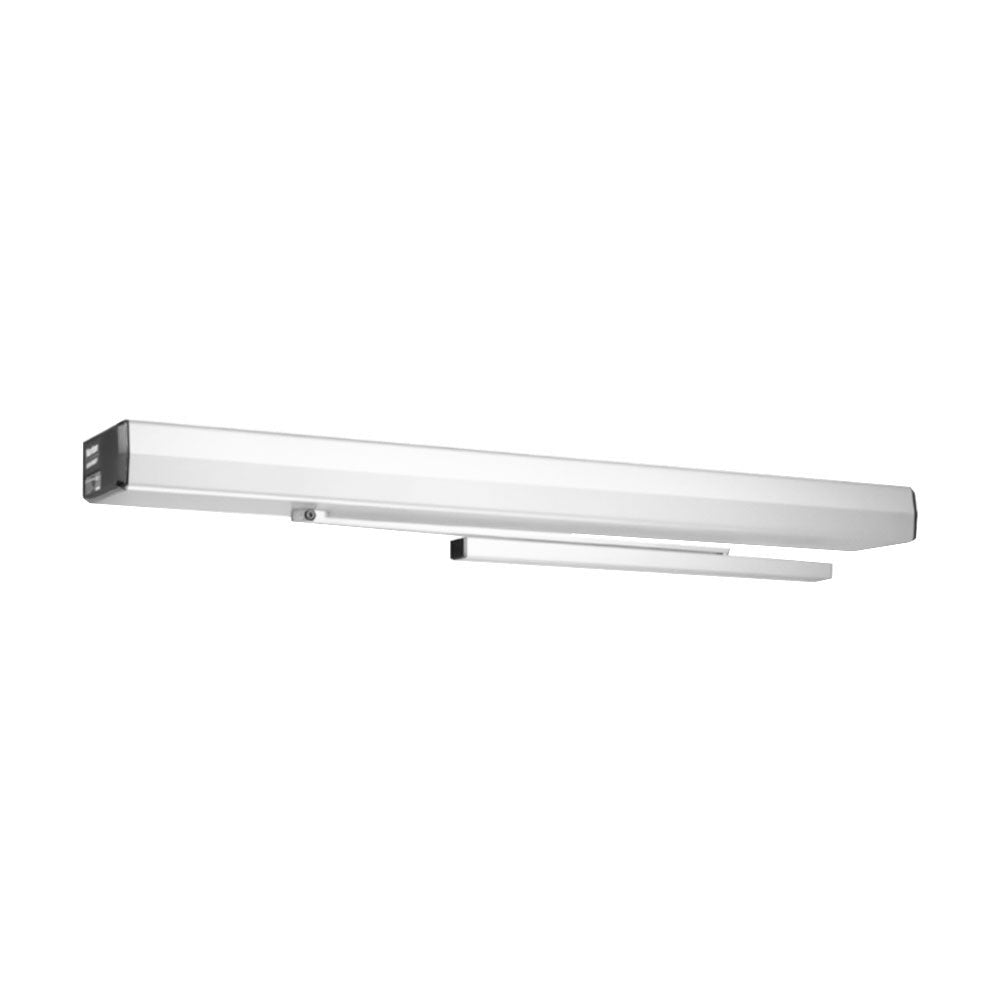

Norton - 6342K2 - Hands-free Low Energy Door Operator Surface Mount with Push or Pull Side and Double Lever Arm Regular
The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup.

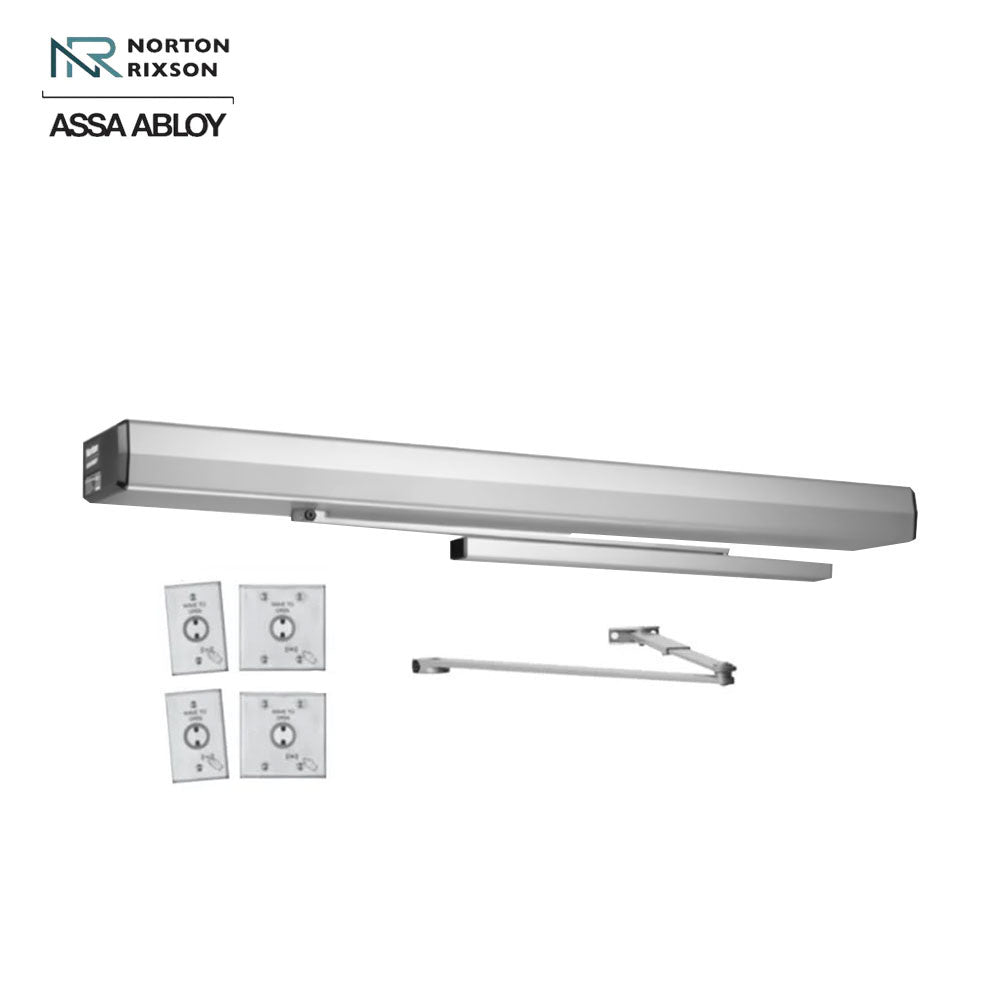

Hands-Free Kit Includes: Operator, Cover, Push & Pull Arms, and (2) 700 Wave-to-Open Switches
Features:
- Push and pull side mounting
- Non-handed
- Door Width (single or pair): min 36" max 48"
- Door Weight: 200 lbs.
- Overall Length: 39-5/8"
Product Specifications:
| Manufacturer | Norton |
| SKU | 6342K2Â |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | For Single 36"-48" Doors |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| ADA Compliance | Yes |
| Finish | 689/US28 : Aluminum Painted 690/US20 : Dark Bronze Painted BSP : Black Suede Powder Coat WSP : White Suede Powder Coat |
Technical Specifications:
| Type | Surface |
| Technology | Low Energy Door Operator |
| Mounting Location | Push or Pull Side |
| Mounting Style | Slide Track or Top Jamb |
| Hold Open Type | Electric |
| Degree Hold Open | Adjustable |
| Arm Type | Double Lever Arm, Regular & Slide Track Arm, Standard |
| Degree Swing | Up to 180 Deg. |
| Back Check | Adjustable |
| Delay | Yes |
| Cover | Full |
| Door Size | Min. 36 In. - Max 48 In. |
| Door Weight | 254 lbs. Push, 198 lbs. Pull |
| Reveal Size | 1/8 In. |
| Voltage | 24V |
| Product Type | Door Operators |
