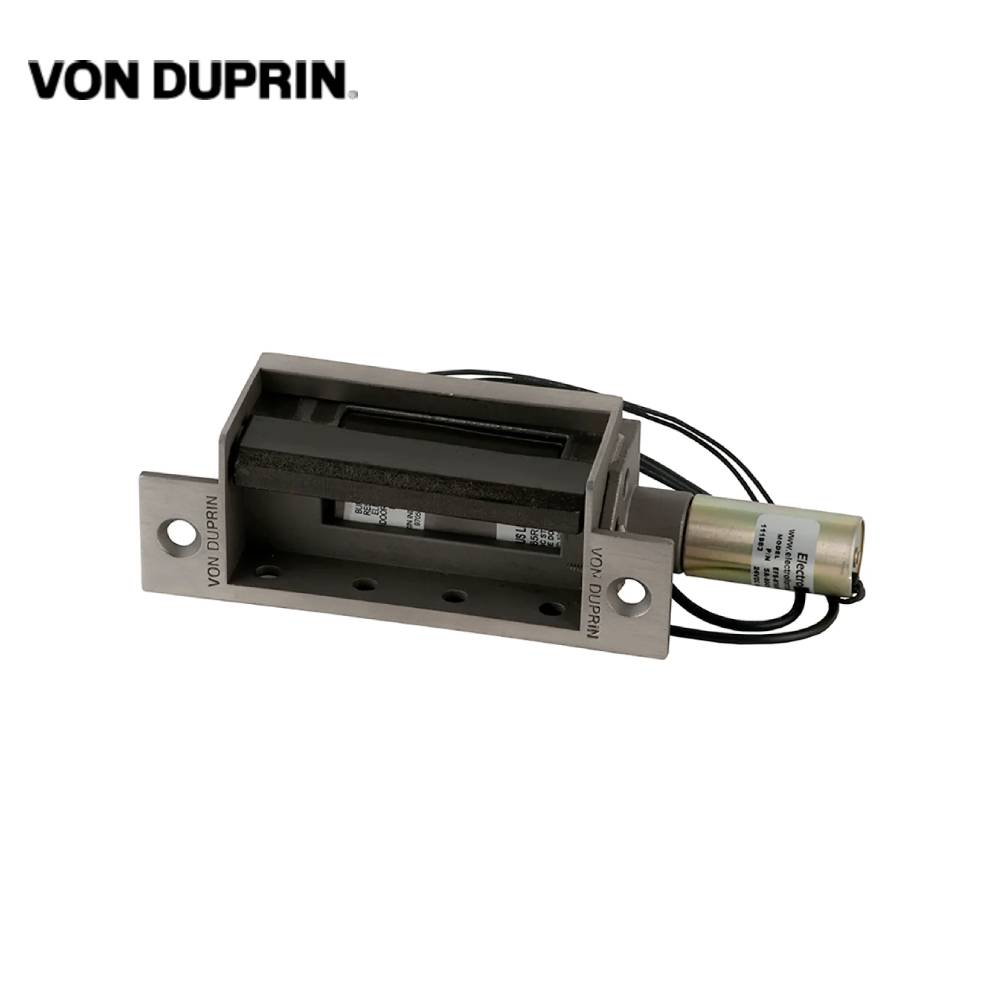

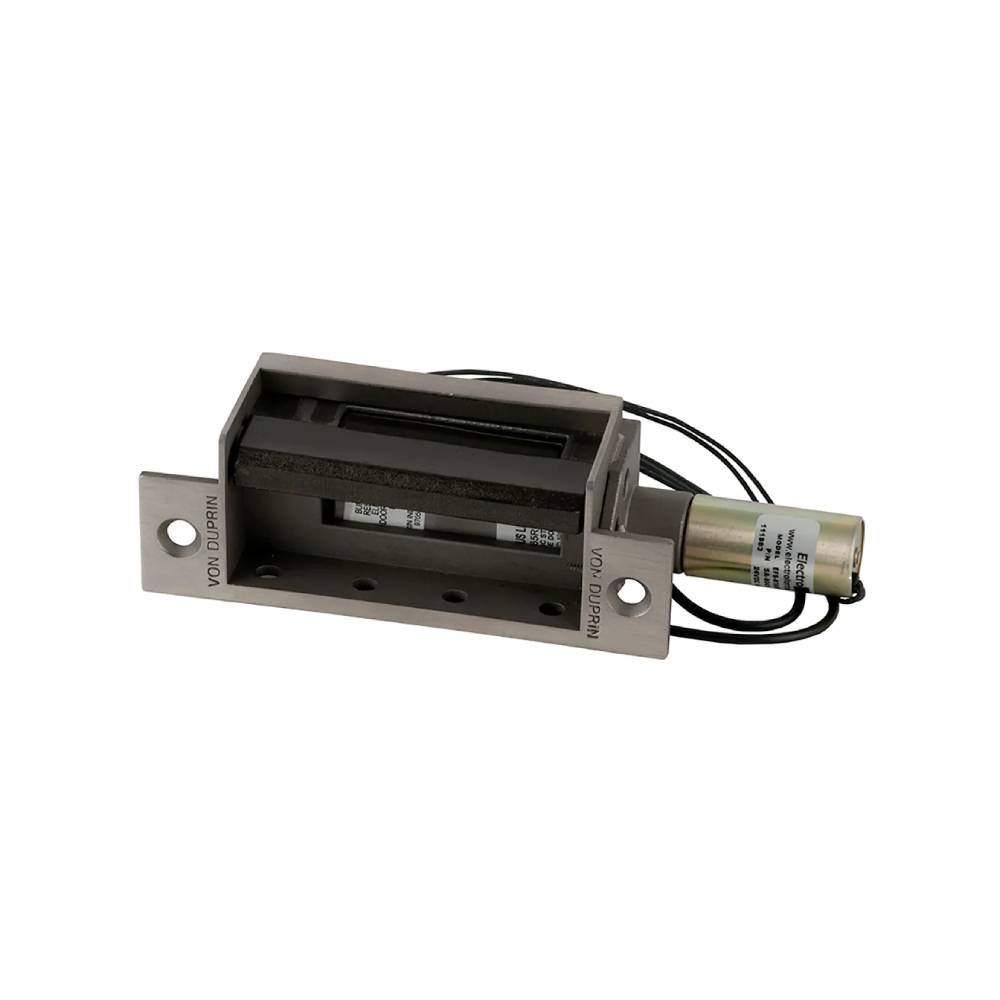

Von Duprin - 6210 - Electric Strike Mortise Locks on Single Doors - 24 VDC - Hollow Metal or Aluminum Frame - Satin Stainless Steel Finish
$73320
$87984
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Von Duprin - 6210 - Electric Strike Mortise Locks on Single Doors -...
$73320
$87984
Unit price
/
Unavailable
Description
Description
Von Duprin - 6210 - Electric Strike Mortise Locks on Single Doors - 24 VDC - Hollow Metal or Aluminum Frame - Satin Stainless Steel Finish
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Features:
- Non handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
- ANSI 156.5 Grade 1, 1500 lb hold-force rated
- UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 6210 24V 32D FS |
| UID | VON100621024VUS32DFS |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Single Door |
| UL Listing Type | UL 10C, 1034 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Function | Electrically Locked (Fail Safe) |
| Operating Voltage | 24VDC |
| Amp Draw | 330mA |
| Keeper Size | Pullman Keeper |
| Configuration | Universal |
| For Use With | Mortise Locks |
| Faceplate Size | 4-7/8" x 1-1/4" |
| Frame Depth | 1-3/4" |
| Ramp Cut Out | 3-3/8" |
| Frame Application | Hollow Metal or Aluminum |
| Product Type | Electric Strikes |
Installation Instructions:
