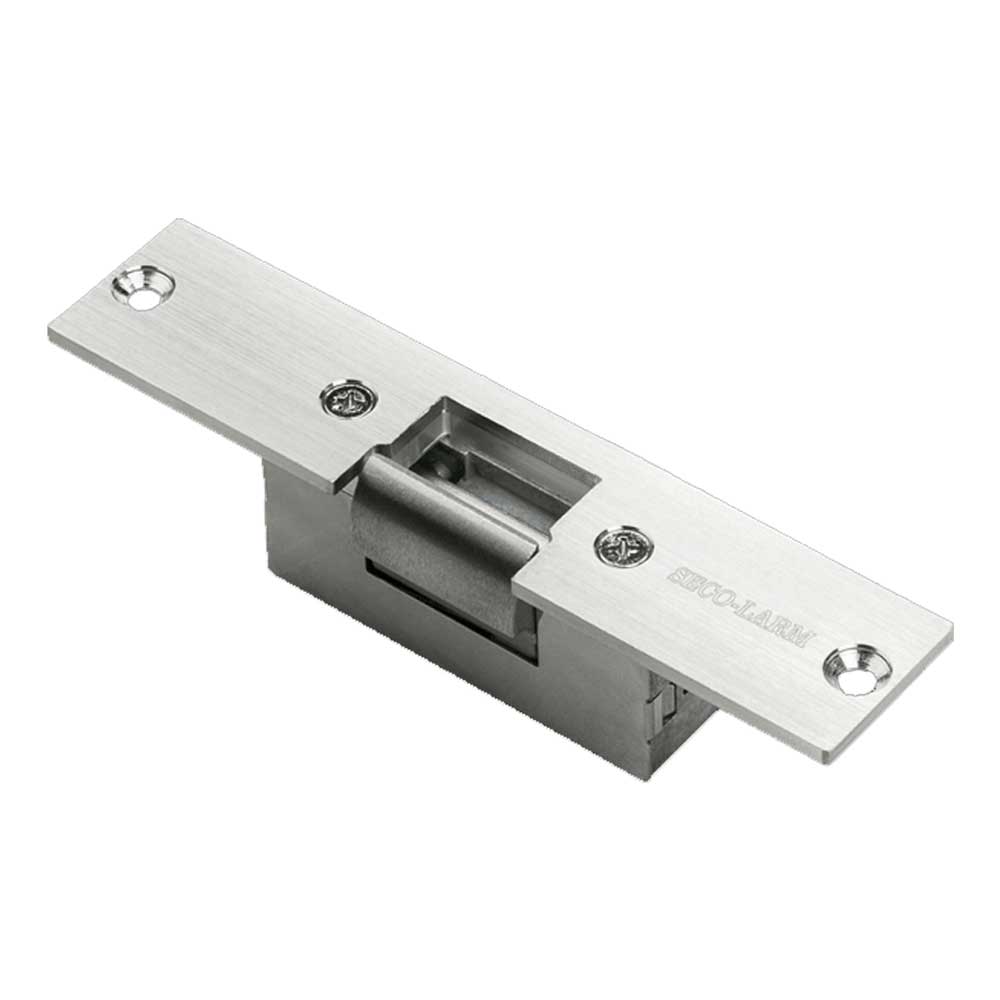

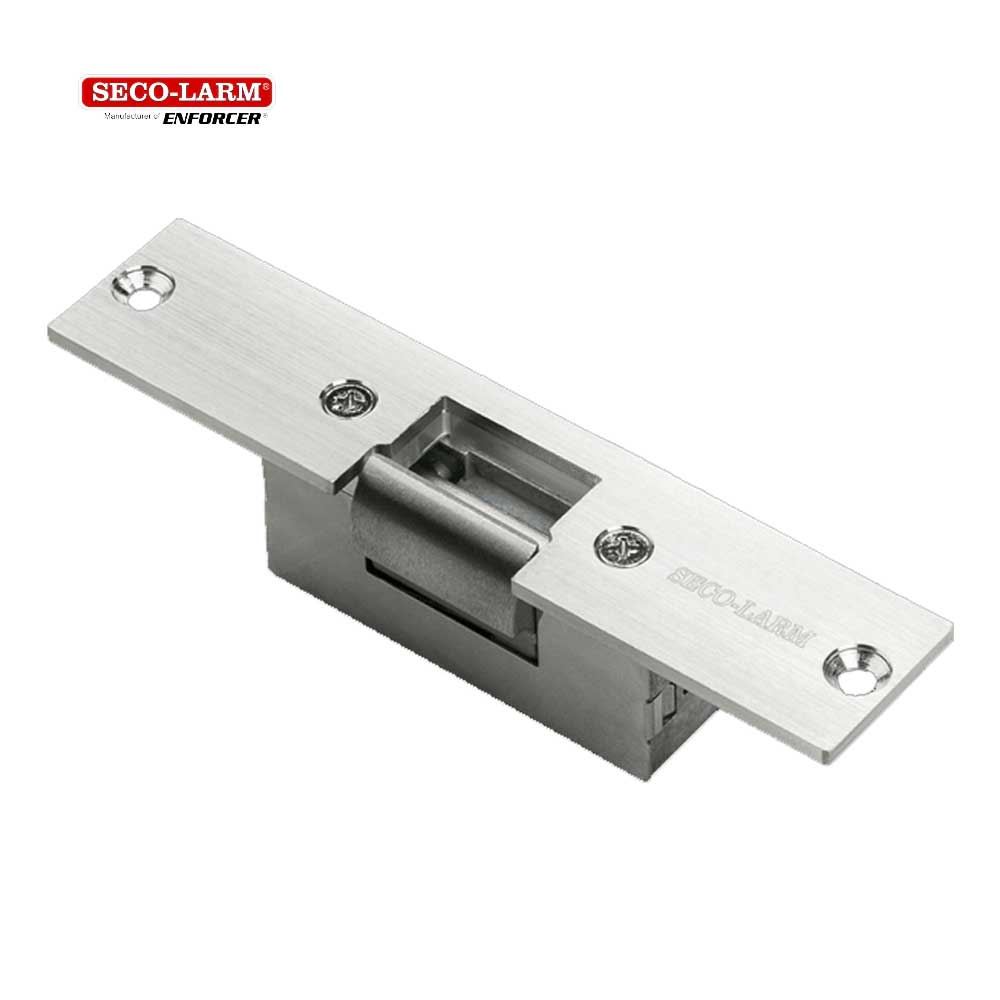

SECO-LARM SD-994A-A1SQ Reversible Electric Door Strike for Wood Doors, Symmetric, Fail-Secure, 8~16VAC / 12VDC
The SECO-LARM® Electric Strikes are the ideal way to convert cylindrical lock sets into an electronic access-controlled locking system. The strikes come in two varieties: asymmetric and symmetric. Both models come with a reversible faceplate for right-hand or left-hand doors and have a fail-secure operation
Feature:
*The strike portion is centered on the reversible faceplate
- 8~16VAC / 12VDC Operating voltage
- For use on wood doors
- Can be used with virtually any cylindrical-door locking system
- Fail-secure operation
- US26D Chrome faceplate
- Miniature lock body for easier installation
- Faceplate size: 57/8“x11/4“x1/8” (150x32x3.2 mm)
- Corrosion-resistant case and moving parts
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Reversible for right- or left-hand doors
- Current draw: 800mA@16VAC, 750mA@12VDC
- Keeper depth: 21/32” (16.8mm)
- Latch depth: 3/4” (19mm)
- Strike depth: 11/2” (38mm)
Specifications:
| Operating Voltage | 8~16 VAC/12VDC |
| Operation | Fail secure |
| Current Draw | 800mA@16VAC, 750mA@12VDC |
| Operating Temperature | 14°~113° F (-10°~45° C) |
| Weight | 10.3-oz (292g) |
Troubleshooting:
| Electric strike does not activate |
|
| Door does not open when the electric strike is activated |
|
