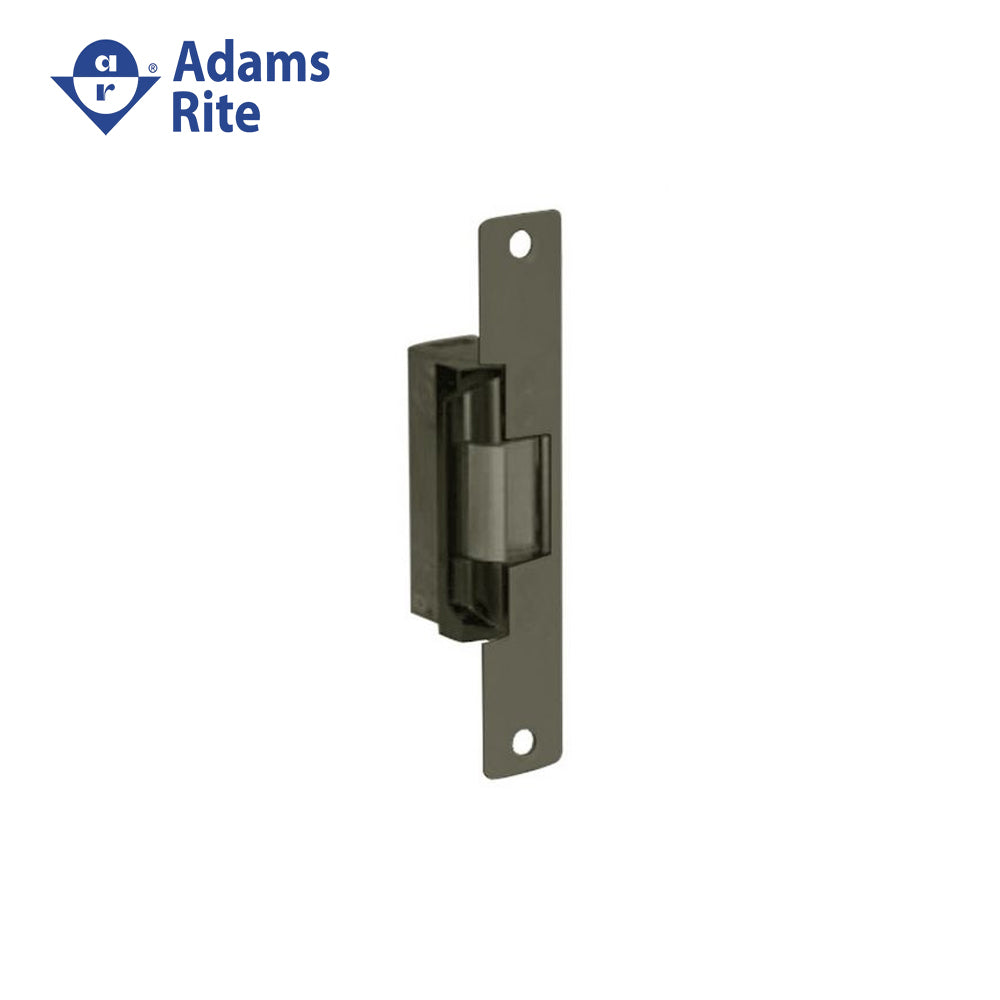

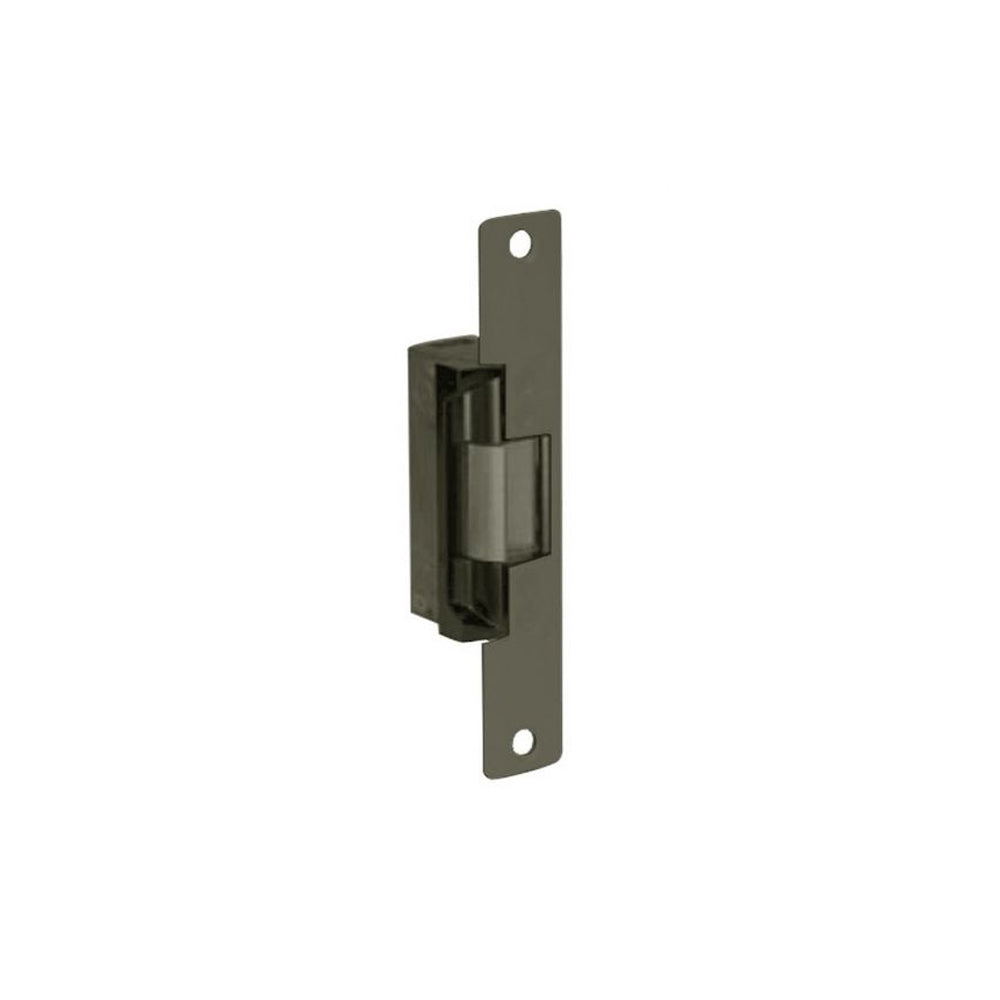

Adams Rite - 7130-510 - Door Electric Strike Standard/Fail Secure and 6-7/8 X 1-1/4 Flat Faceplate with Radius Corners - 24VDC - 313 (Dark Bronze Anodized Aluminum)

Adams Rite - 7130-510 - Door Electric Strike Standard/Fail Secure and 6-7/8" X 1-1/4" Flat Faceplate with Radius Corners - 24VDC - 313 (Dark Bronze Anodized Aluminum)

7100 Electric Strikes Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Features:

• Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
• Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
• Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
• Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Product Specifications:

Technical Specifications:

Installation Instructions:

• 7100 Electric Strike Installation Instructions
