Tell Manufacturing | SKU:
TELL-LC2686CTL-US26D
17% off

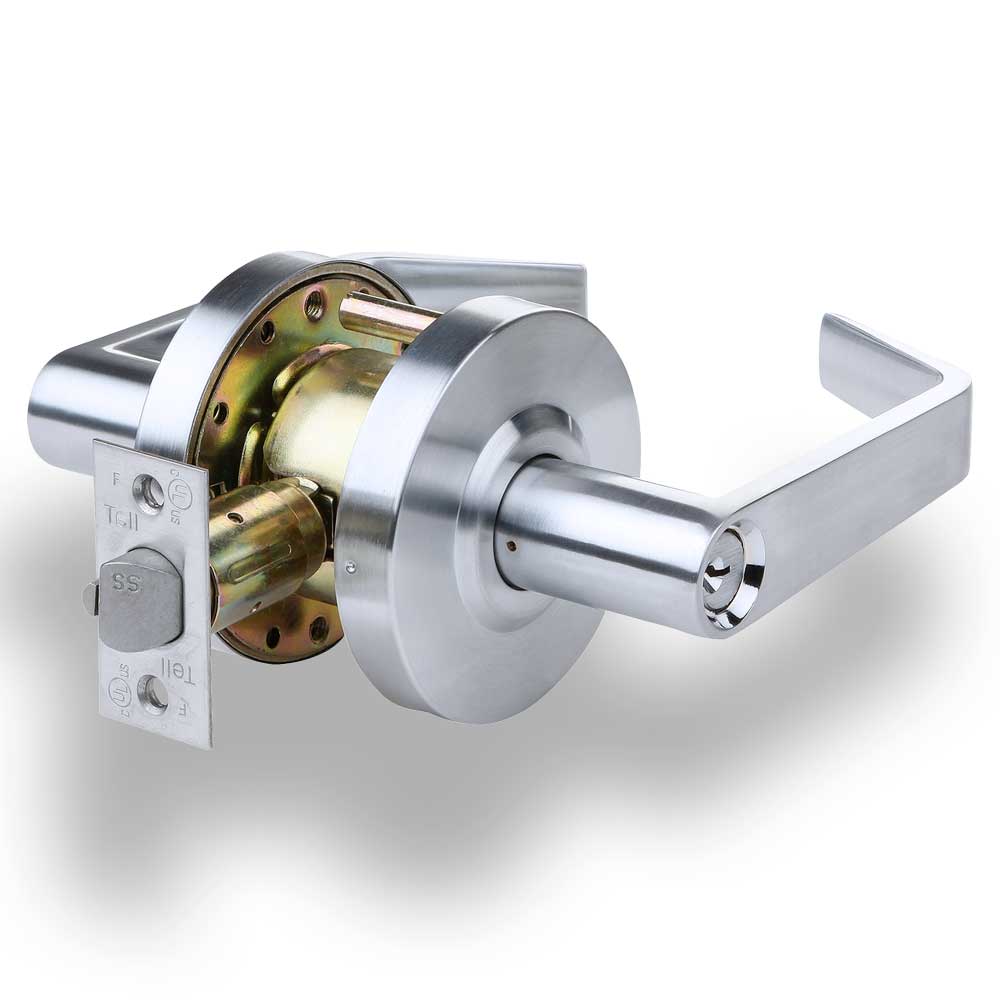

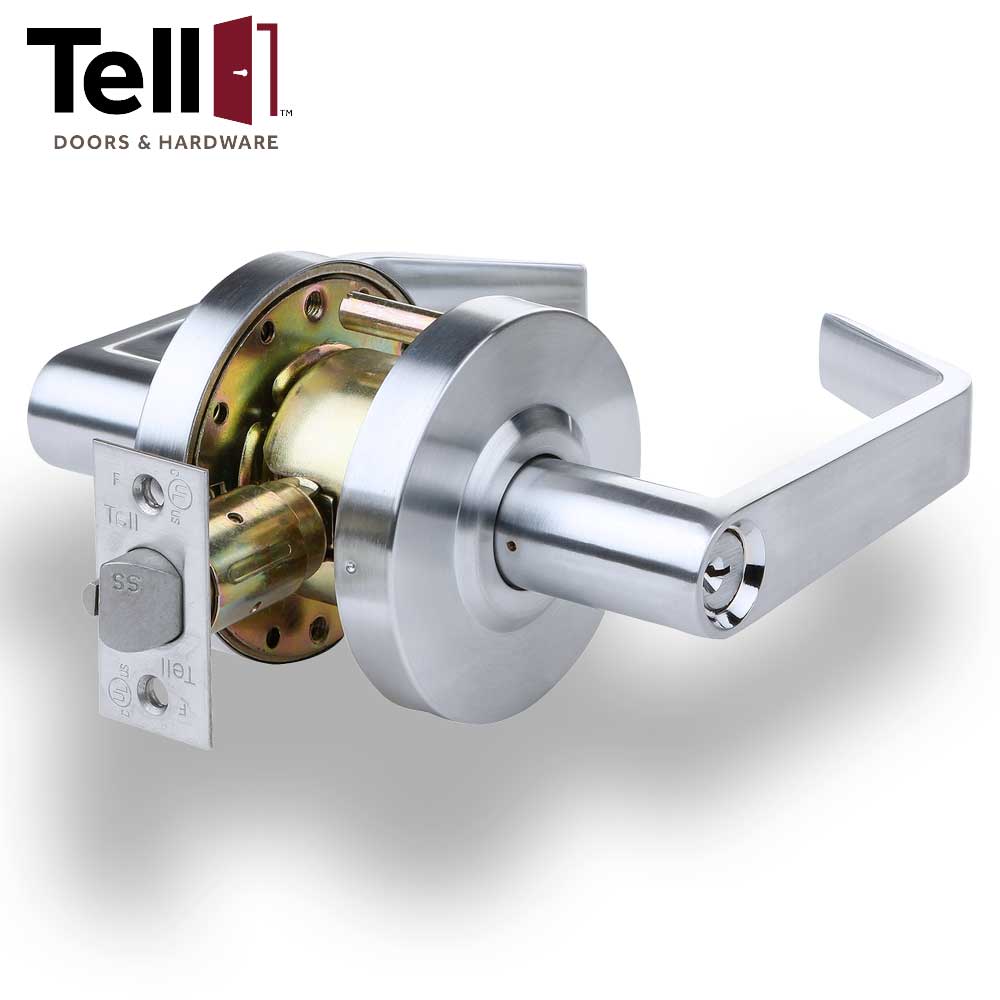

TELL LC2686 Cortland Lever (CLT) Standard Duty Cylindrical Leverset - Brushed Chrome (US26D) - 2-3/4" Backset Grade 2 Storeroom
$4179
$5015
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
TELL LC2686 Cortland Lever (CLT) Standard Duty Cylindrical Leverset...
$4179
$5015
Unit price
/
Unavailable
Description
Description
TELL LC2686 Cortland Lever (CLT) Standard Duty Cylindrical Leverset - Brushed Chrome (US26D) - 2-3/4" Backset Grade 2 Storeroom
Standard duty storeroom, always locked on outsideGreat for commercial use of mechanical or storage roomsGrade 2, complies with ANSI A156.2, 400,000 cycles
Specifications:
| Function | Storeroom - Inside Always Unlocked, Outside Always Locked |
| Finish | Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Keys | Two per lock |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
Notes:
- LC2600 Series comes with removable thru bolts.
- Locks furnished keyed different (KD) with Schlage C (SCC) keyway unless specified.
- Other keyways available no charge: Arrow AR1, Corbin 60/L4, Falcon/Weiser, Kwikset, Russwin D1, Sargent LA/RA, Yale 8.
Downloads:
Options:
- Thru-bolts: Removable thru-bolts standard
- Keying: 6-pin cylinders, can be pinned to 5-pin
- Cylinder Options: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA)
- Tell Cylinder: Restricted Tell keyway cylinder can key both the cylinder and interchangeable core in one lock. The cylinders and IC cores are interchangeable. Tell keyway cylinder is available only keyed to 6-pin. Tell IC cylinder can be keyed to 6-pin or 7-pin interchangeable core (IC)
- IC Keyway Cylinder: Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX)
- Keying Options: Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
