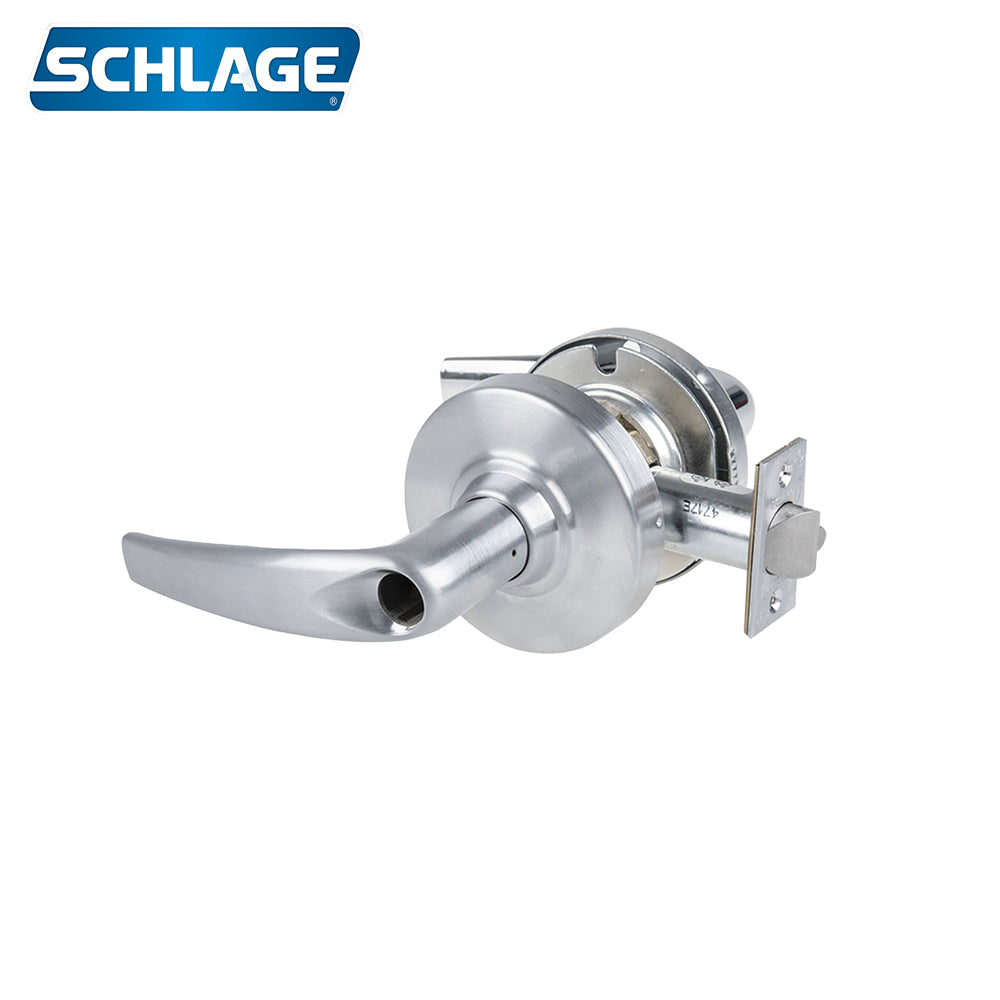

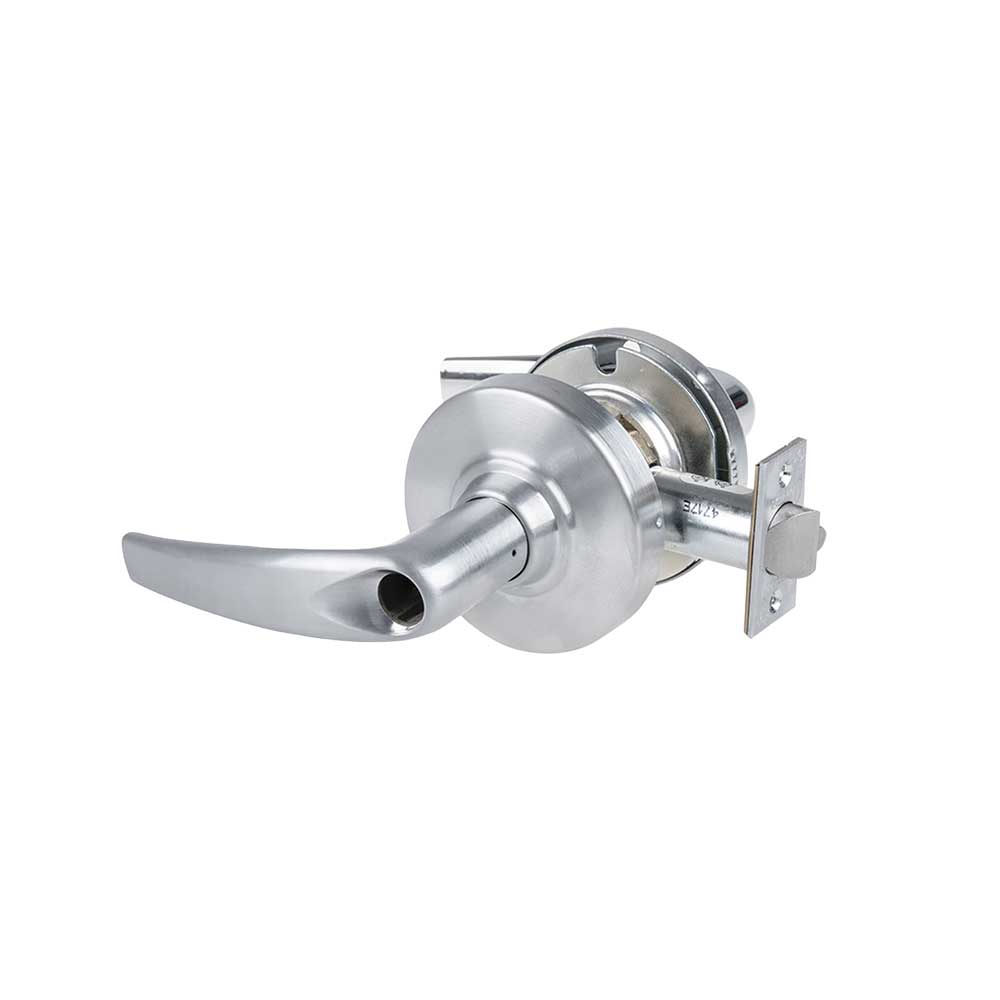

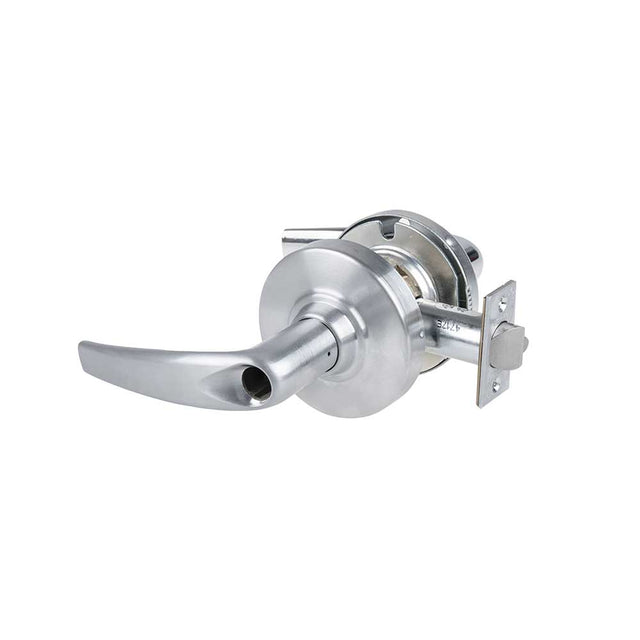

Schlage ALX53L Entry Athens Lever Lock Less Cylinder - Grade 2 ANSI 47267101 - Strike Satin Chrome
The AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.
Specifications:
| Chassis |
Material: Steel, zinc dichromated for corrosion resistance Door thickness: Fits 1 3⁄8" to 1 3⁄4" doors without adjustment Handing: Non-handed |
| Functions |
Non-keyed functions: 10 Passage; 40 Privacy; 44 Hospital Privacy; 170 Single dummy; 172 Double dummy Keyed functions: 50 Entrance/office; 53 Entrance; 70 Classroom; 80 Storeroom |
| Trim |
Levers: Pressure cast zinc, plated to match product finish Roses: Wrought brass, bronze or zinc plated to match finish, 3 7⁄16" diameter; blank outside rose is 3 1⁄2" diameter |
| Latches |
Backset: 2 3⁄4" (standard) or 2 3⁄8" Faceplate: 1 1⁄8" x 2 1⁄4" square corners Bolt: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in Stainless Steel Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch |
| Strike | ANSI curved lip (1-1⁄4" x 4-7⁄8" x 1-3⁄16") Optional: T strike (see catalog for details) |
| Keying |
Cylinder format: Conventional 6-pin in solid brass Optional: SL Conventional and FSIC; Full Size and Small Format IC cylinders; construction cylinders Keyway: Everest 29 S123 patented open keyway, keyed different Optional: Classic open, Everest 29 restricted and legacy keyways |
| Warranty | 10-year limited |
| Certifications | Exceeds ANSI/BHMA A156.2 Series 4000, Grade 2 standards UL/cUL: All locks listed for A label single fire door 4' x 8' and pair doors UL 437: Optional UL listed high-security cylinders Other: ADA compliant levers (all designs); CA Fire Code compliant levers (all with return of 1⁄2" (64 mm) or less; ICC A117.1 compliant; meets Federal FF-H-106C Series 161; meets FL Building Code and Miami Dade requirements for hurricanes |
