Schlage | SKU:
SLG-ALX10-ATH-626
17% off

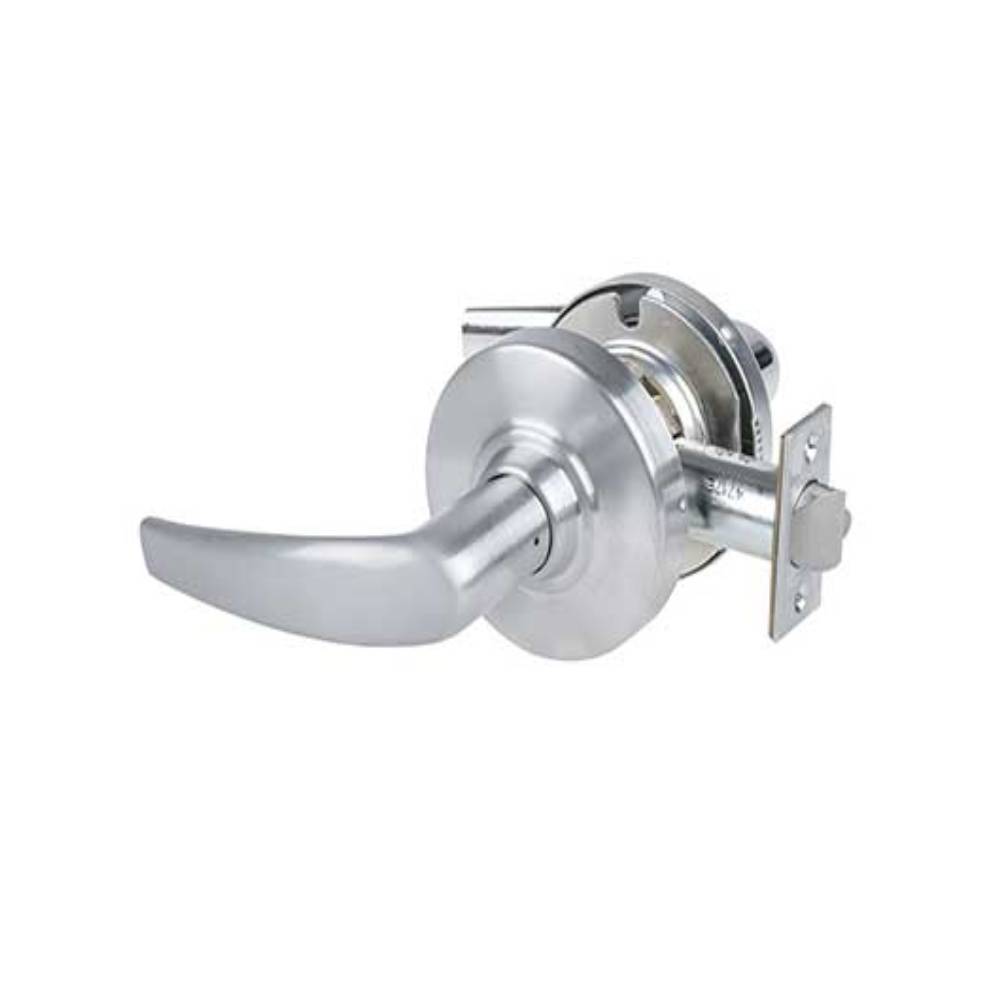

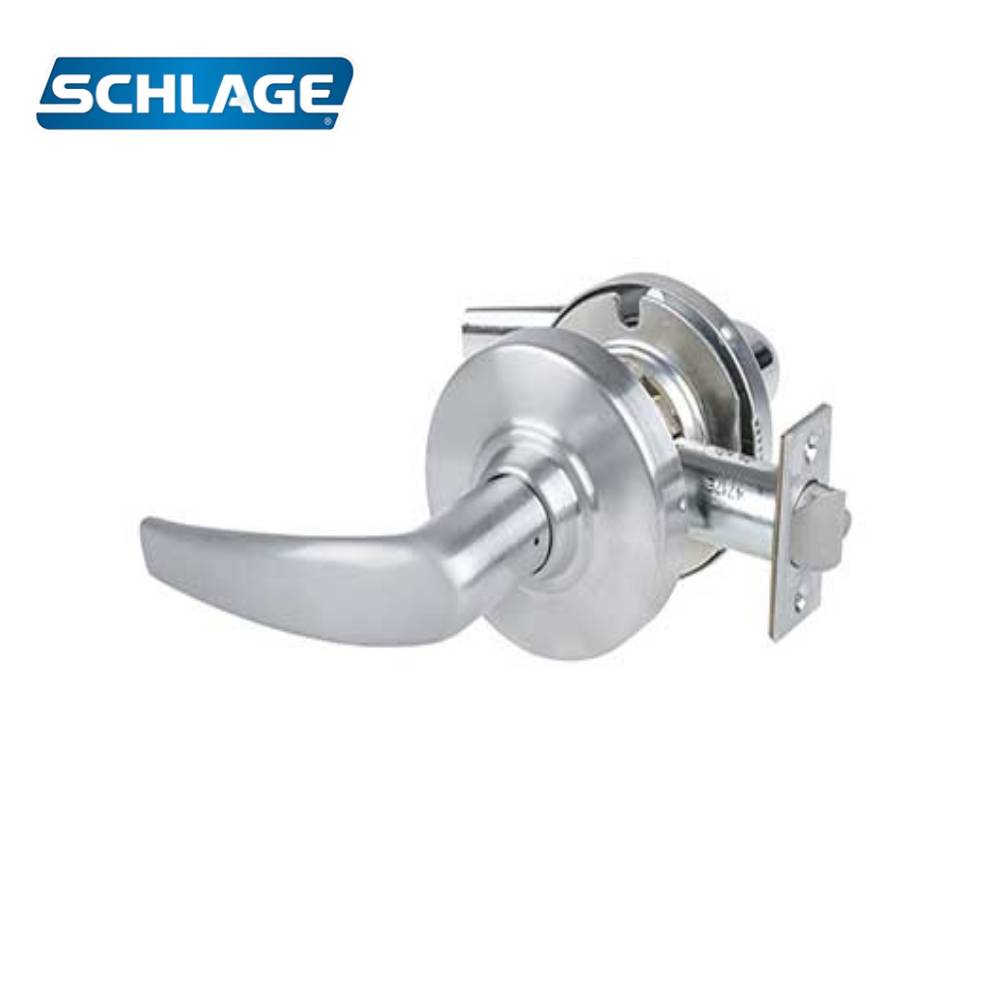

Schlage - ALX10 - Passage Cylindrical Lock with 2-3/4 Backset and 4-7/8 ANSI Strike - Athens Lever - Grade 2 - 626 (Satin Chrome Finish)
$14100
$16920
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
Schlage - ALX10 - Passage Cylindrical Lock with 2-3/4" Backset and 4-7/8" ANSI Strike - Athens Lever - Grade 2 - 626 (Satin Chrome Finish)
The AL Series has always offered a combination of strength and durability, Though these qualities remain, the lock has changed, ALX Series features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | ALX10 ATH 626 |
| UID | SCHALX10ATH626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 10-Passage Latch |
| Function Family | Passage |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | ATH - Athens Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Number | 47267038 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
