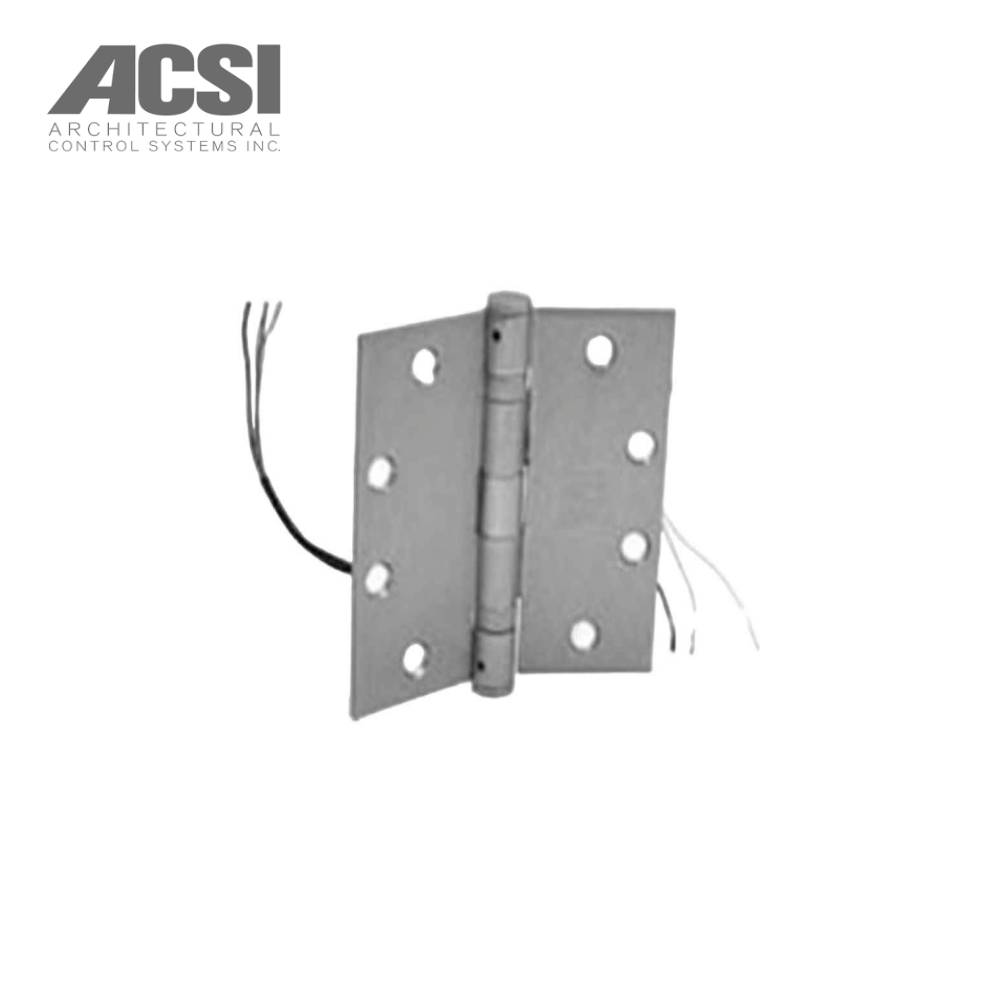

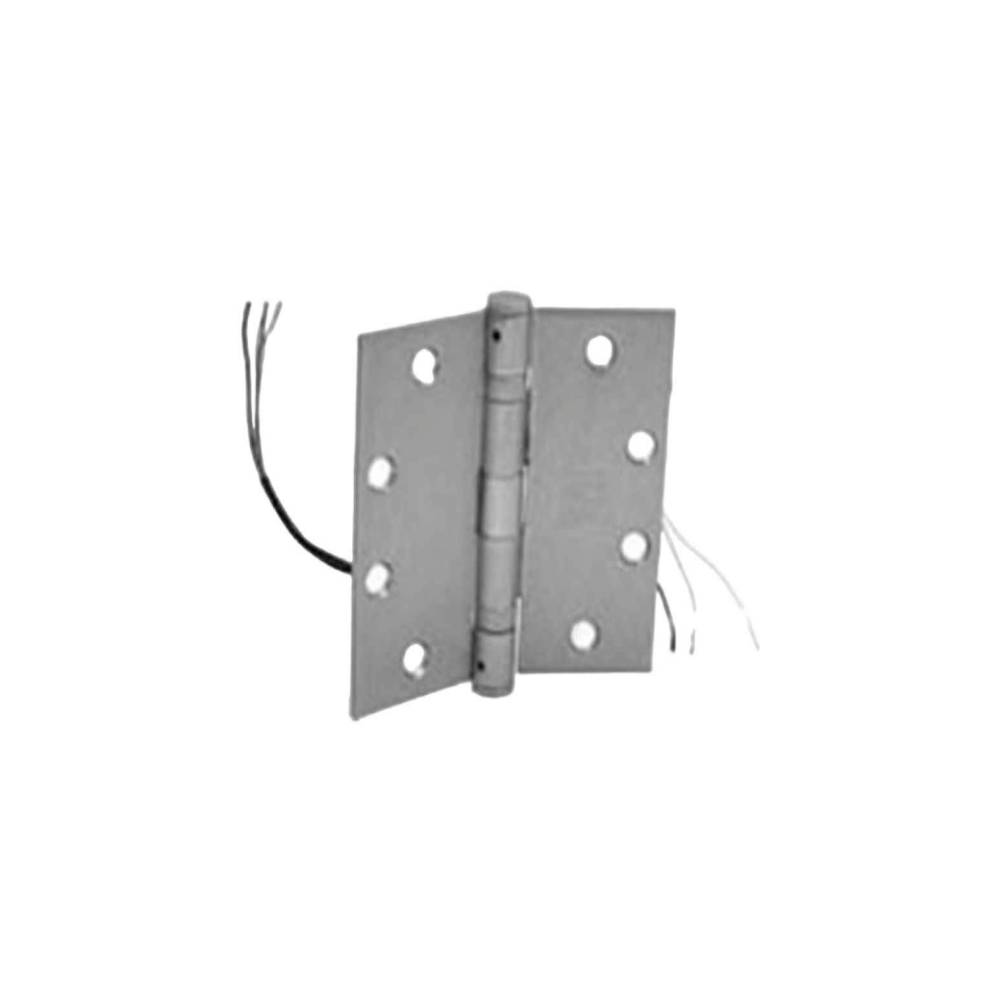

ACSI - BB1191 - Full Mortise Ball Bearing - Commercial Hinge - Concealed Electric Through-Wire - 32D (Satin Stainless)
BB1191 Hager Full Mortise Ball Bearing Standard Weight Commercial Hinge with Concealed Electric Through-Wire. Hager Full Mortise Ball Bearing Standard Weight Commercial Hinge with Concealed Electric Through-Wire.
ACSI Series 1100 Electric Hinges/Pivots are designed for doors that require concealed low voltage current transfer concealed electric monitoring or concealed low voltage current transfer with monitoring. With over 30 years of experience ACSI Series 1100 products are UL Listed and carry a full one-year warranty. UL Listed. UL Fire Rating on steel and stainless electric hinges. Provide current transfer to electrified mortise or cylindrical locks exit devices with electric latch retraction electric strikes (pairs of doors) and locks with monitoring or request to exit switches. UL Rated for 3.5 amp continuous and 16 amp pulse. Note Electric hinge must be placed in the center position only. ACSI requires NON-NRP hinges for modification. Hinge pin is not field removable after modification.
Buy the ACSI BB1191 Hager Full Mortise Ball Bearing Standard Weight Commercial Hinge with Concealed Electric Through-Wire for easy installation and dependable door hardware solution.
Specifications:
| Function | Electric Hinge |
| Hinge Size | 4-1/2 x 4 Inch |
| Product Type | Electronic Hinge/Pivot |
| Pin Type | Non-Removable |
| Size | 4.5" x 4" 4.5" x 4.5" |
| Finish | 32D - Satin Stainless |
| Recommended For | Medium Weight Doors or Doors Requiring Medium Frequency Service |
| Distance From Leaf Edge To Swag Line | 1-7/8" |
| Bearing Type | Ball |
| Function Family | Hinge/Pivot |
| Mount | Full Mortise |
| Standards | NSI A5133 |
| Hinge Corner | Square Corner |
| Number of Knuckles | 5 |
| Features | Two Ball Bearings: Non-Rising Removable Pin with Button Tip and Plug: Electric Through-Wire Only |
| Product Materia | Stainless steel |
| ADA Compliant | No |
| Number of Wires | 6 |
| Knuckle diameter | 39/64" |
| Included Components | Fasteners/Screws |
| Manufacturer Parent | ACSI |
