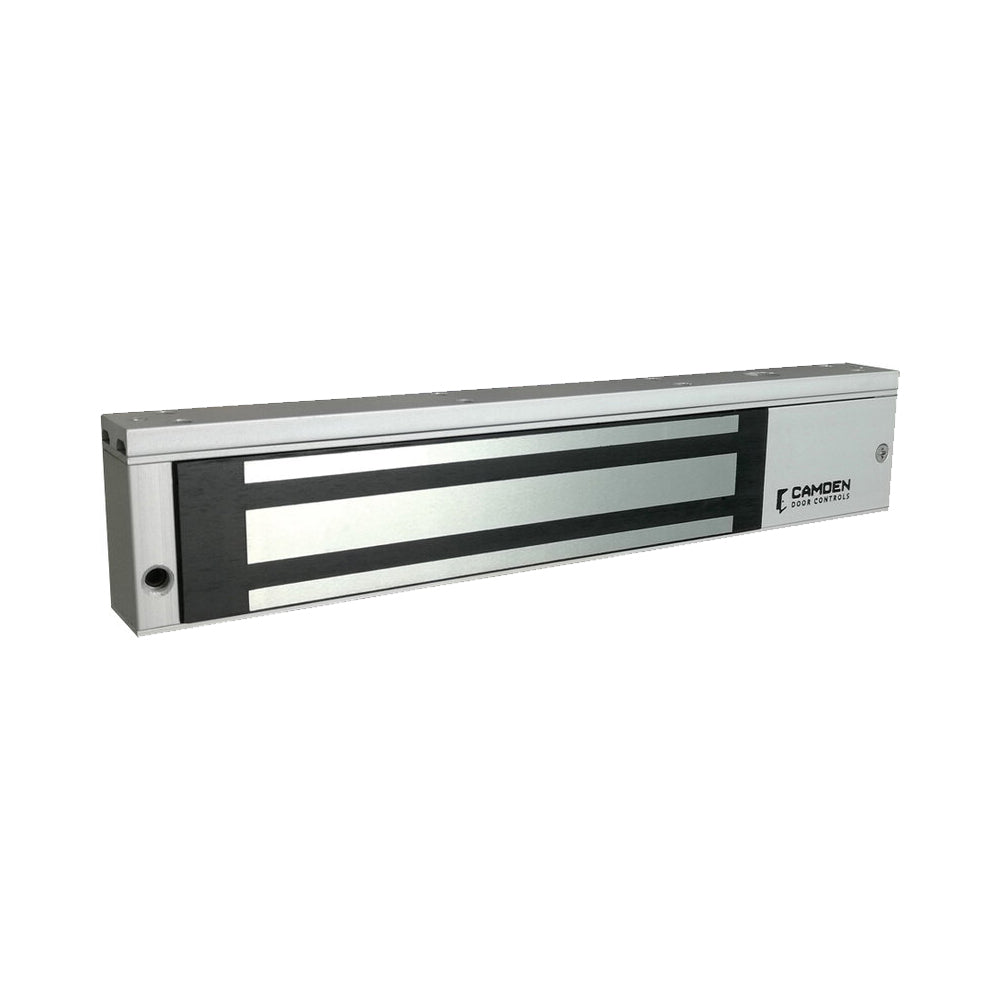

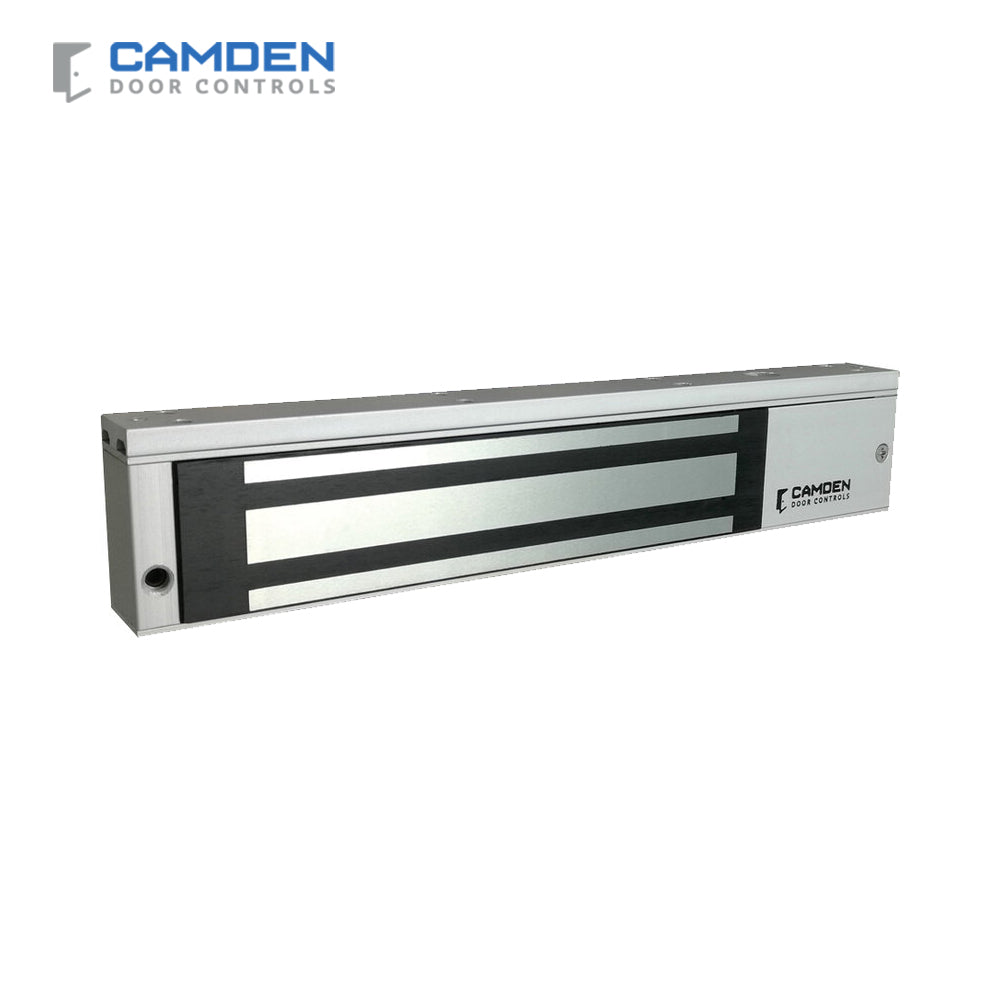

Camden CX-91S-06TDS Single Door Surface Mount Magnetic Lock with 5-25 Second Adjustable Timer - Lock Sensor/Relay and LED - 600 lb - 12/24 VDC
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Camden CX-91S-06TDS Single Door Surface Mount Magnetic Lock with 5-...
Description
Description
Camden CX-91S-06TDS Single Door Surface Mount Magnetic Lock with 5-25 Second Adjustable Timer - Lock Sensor/Relay and LED - 600 lb - 12/24 VDC
CX-91 Series 600 lbs. & 1200 lbs. Single Door Surface and Mortise Mount Magnetic Locks offer the best performance and value. A built-in 'TLS' option provides an adjustable timer, lock sensor, relay and LED. TDS option includes door status switch as well. Camden's Magnetic Locks are easily installed. A metal mounting template is packaged with the unit. Vandal resistant construction is built to last - lifetime warranty!
Feature:
- 600 lbs. single door model is UL and CUL listed
- Weather and vandal resistant construction proven over thousands of installations
- Surface mount model
- Compatible with all access/egress systems
- Field selectable 12/24V DC operation
Product Specification:
| Vendor | Camden Door Controls |
| Manufacturer | Camden |
| SKU | CX-91S-06TDS |
| UID | CAMCX91S06TDS |
| Installation | Commercial |
| Origin | China |
| Unit of Measure | Each |
| Base Material | Aluminum |
| Limited Warranty | Lifetime |
| Fire Rated | No |
Technical Specification:
| Operating Voltage | 12/24 VDC |
| Amp Draw | 510mA/285mA |
| Lights | LED |
| Holding Force | 600 LBS |
| Armature Size | 7-1/4" x 1-1/2" x 15/32" |
| Switch Type | Door Status Switch/Lock Sensor |
| Product Type | Maglocks |
