Description
Description

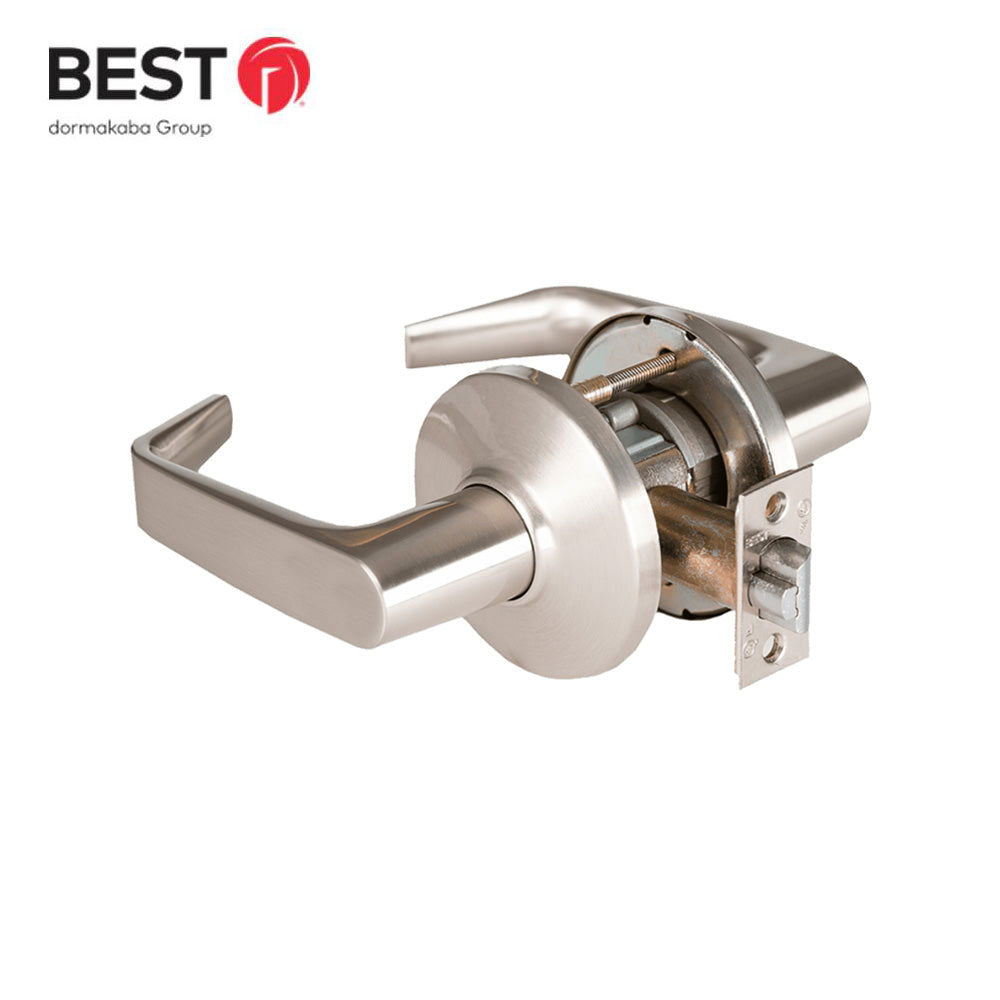

BEST - 9K30N15DS3 - Passage Cylindrical Lock with 15 Lever and S3 4-7/8″ ANSI Strike - D Rose - Grade 1 - Satin Nickel
Building on BEST’s legacy of innovation, the 9K series cylindrical lock combines top-quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. We designed the 9K series to be low maintenance, easy to install, durable, and secure.
Features:
- Proven reliability: BEST 9K locks are tested to over 5 million cycles, proving that the series exceeds ANSI Grade 1 requirements by over five times. Design features like a seamless, one piece hardened steel alloy outside sleeve protect functionality and ensure more reliable performance throughout the product’s lifespan.
- Long-term durability: Low maintenance design with solid zinc hubs protect critical components from daily wear and tear for longer product life and lower overall cost of ownership.
- Easy retrofit: to other door preps and competitor key systems.
- Quick and easy installation: The 9K’s pre-assembled design and simple instructions make installing the lock intuitive. Rose locking pin allows for quick door thickness adjustment.
- Simple to rekey: With easy core interchangeability, BEST 9K locks make rekeying simple.
- Superior security: Manufactured with top-quality materials and designed for ease of use and attack resistance, the 9K series delivers security you can trust. The 9K’s vandal resistant lever includes a lost motion design allowing the lever to move 45°-60° without engaging the retractor assembly.
- Premium aesthetics: A low profile rose design and wide variety of trims and finishes give the BEST 9K a streamlined look compatible with modern architectural trends and appropriate for any design aesthetic.
Product Specifications:
| Manufacturer | BEST |
| SKU | 9K30N15DS3619 |
| UID | BES1009K30N15DS3619 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | BHMA A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F75 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Warranty |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | N-Passage |
| Function Family | Passage |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | 15 Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | D Rose |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2-1/4" |
| Std. Latch Number | 9K3 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 9/16" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | S3 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
