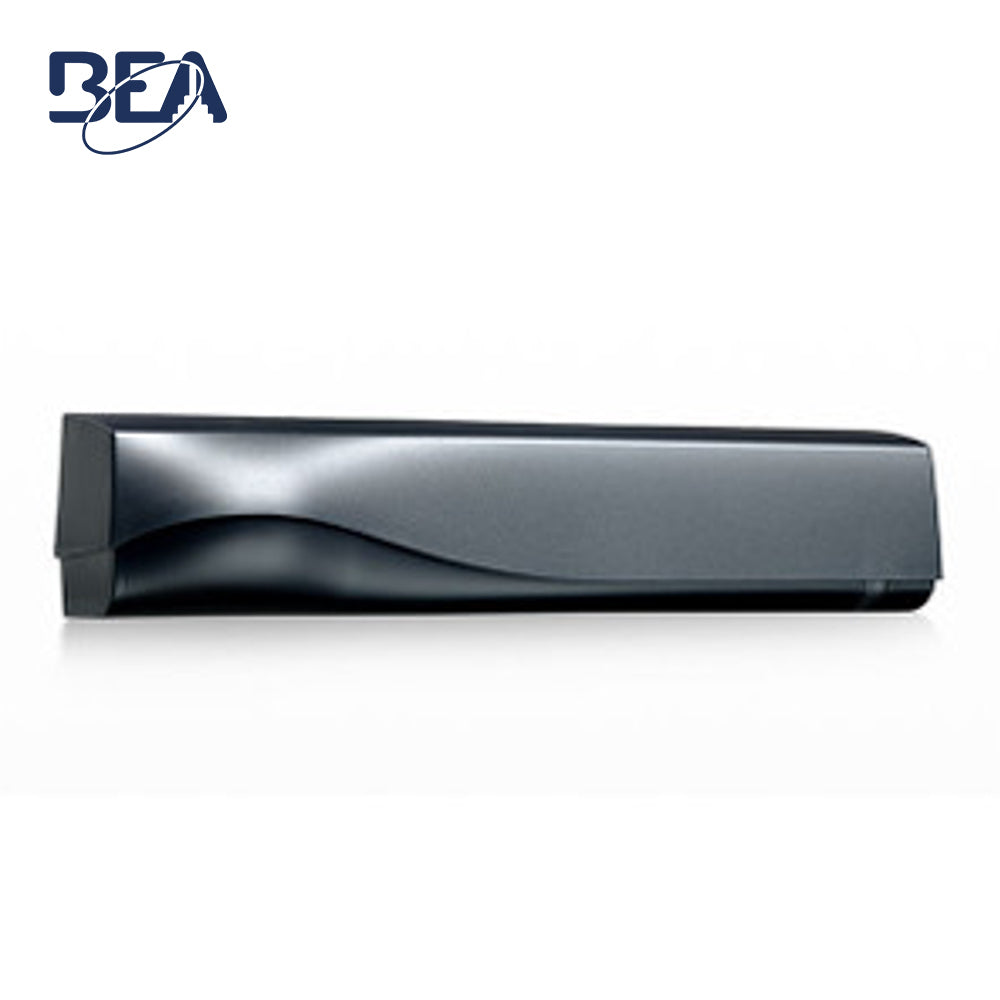

BEA - IXIO-ST - Presence Sensor for Automatic Sliding Doors - 12 to 24VAC and 12 to 30VDC
The IXIO-ST provides side-lite protection to reduce liability. Precise protection is achieved with two 24-spot, high-density, infrared safety curtains. IR curtain adjustments are easy with four visible red alignment spots projected on the ground. Programming and troubleshooting with an intelligent, menu-driven LCD screen. System integration, sensor performance monitoring and data analysis optimization performed by an on-board microprocessor. Fully monitored internally, capable of external monitoring.
Features:
- Precise Presence Detection Two 24-spot, high-density infrared, safety curtains providing precise presence detection
- Easily Adjustable Four visible, red, alignment spots are projected on the ground to assist in precise IR curtain adjustment
- Ease of Setup Intelligent programming and troubleshooting via a menu-driven LCD
- Intelligent Solution On-board microprocessor optimizes data analysis, monitors sensor performance, and enables system integration
- Standards Compliant Fully monitored internally, capable of external monitoring
Specifications:
| Model No | 10IXIOST |
| Technology | Active infrared |
| Detection Mode | Presence |
| Spot Size | 2” × 2” |
| Max. Number of Spots | 24 per curtain |
| Max. Number of Curtains | 2 |
| Output | Solid-state-relay (potential and polarity free) Max. Contact Voltage- 42 VAC/VDC Max. Contact Current- 400 mA Hold Time- 0.3 – 1 s |
| Test Input Sensitivity | Low: < 1 V High: > 10 V (max. 30 V) Response time on test request: typical < 5 ms |
| Supply Voltage | 12 – 24 VAC ±10%; 12 – 30 VDC ±10% (to be operated from SELV compatible power supplies only) |
| Power Consumption | < 2.5 W |
| Mounting Height | 6 1/2 – 11 1/2’ |
| Temperature Range | -13 – 131 °F (0 – 95% relative humidity, non-condensing) |
| Degree of Protection | IP54 |
| Applicable Directives | R and TTE 1999 / 5 / EC; LVD 2006 / 95 / EC; MD 2006 / 42 / EC; ROHS 2 2011 / 65 / EU |
| Dimension | 10 3⁄5“ (W) × 2 1/4” (H) × 2 1/4” (D) |
| Cable Length | 10' |
| Norm Conformity | ISO 13849-1:2008 PL «c» CAT. 2 |
