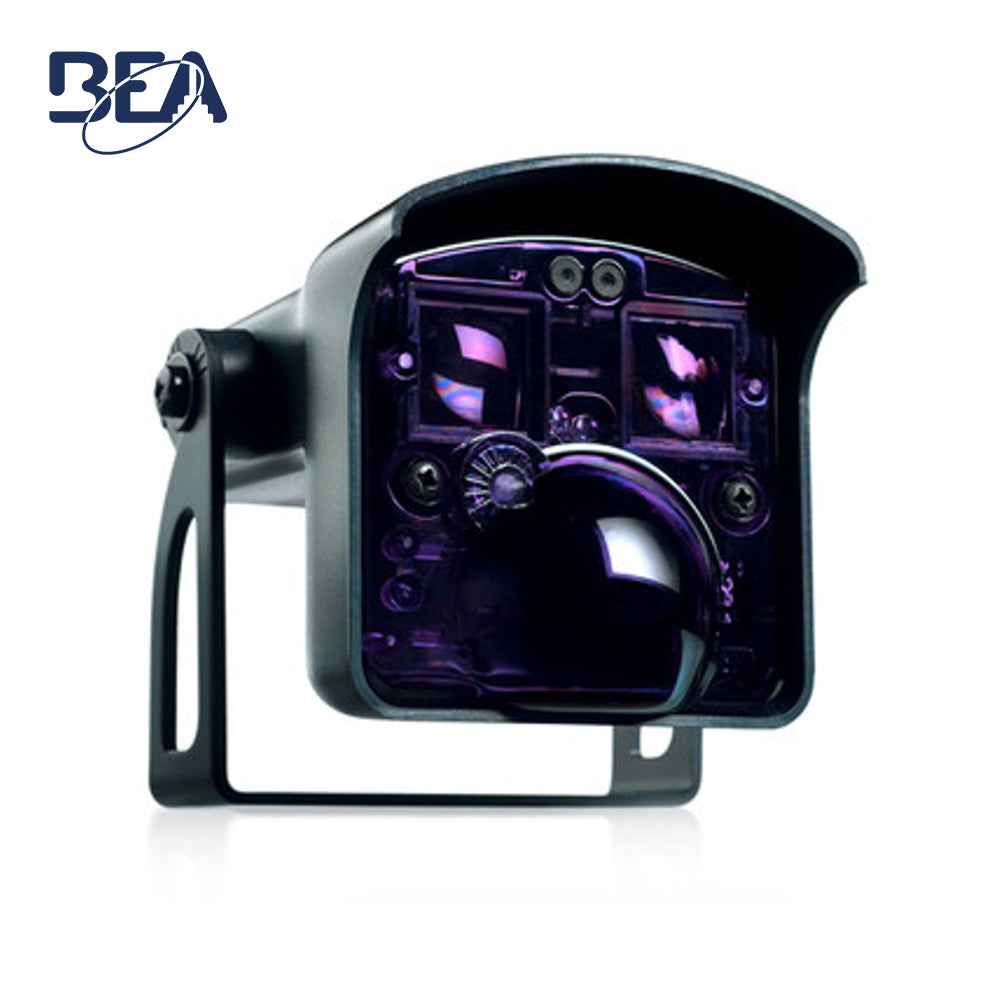

BEA - IS40P - Presence Sensor with Virtual Loop Functionality - 12 to 24V AC/DC
Introducing the BEA IS40P. Engineered specifically for industrial settings, this infrared presence sensor offers unrivaled reliability in detecting presence. Featuring an impressive array of 40 active infrared spots, the IS40P ensures accurate and consistent presence detection, making it a vital component for a variety of industrial applications. Whether it's automatic industrial doors, vehicle gates, barriers, loading docks, or any other environment that necessitates presence detection, this sensor excels in delivering optimal performance.
Features:
- Adjustable Learn Time Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment
- Reduce False Detections Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection
- Programmable Via Remote Remote control programming enables user to quickly and safely make changes from the ground (sold separately)
- Easy to Program Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light, sun, rain, and snow
Specifications:
| Model No | 10IS40P |
| Technology | Active infrared |
| Detection Mode | Presence |
| Mains Frequency | 50 – 60 Hz |
| Power Consumption | < 3.5 W |
| Output | 2 relays (free of potential change-over contact) Max. Contact Voltage (42 VAC/VDC) Max. Contact Current (1 A resistive) Max. Switching Power (30 W (DC) / 48 VA (AC) ) |
| Supply Voltage | 12 – 24 VAC; ±10% 12 – 24 VDC; 10% / -3% |
| Temperature Range | -22 – 140 °F |
| Tilt Angle | 15 – 45° |
| Transmitter Frequency | 875 nm |
| Transmitter Power Density | < 250 m W / m² |
| Detection Field | 10’ × 10’ at max. mounting height of 16’ (emitting spots) |
| Output Hold Time | 0.5 s |
| Min. Detection Speed | 0 in/s to activate detection |
| Reaction Time | 250 ms |
| Mounting Height | 8 – 16’ |
| Humidity | 0 – 95% non-condensing |

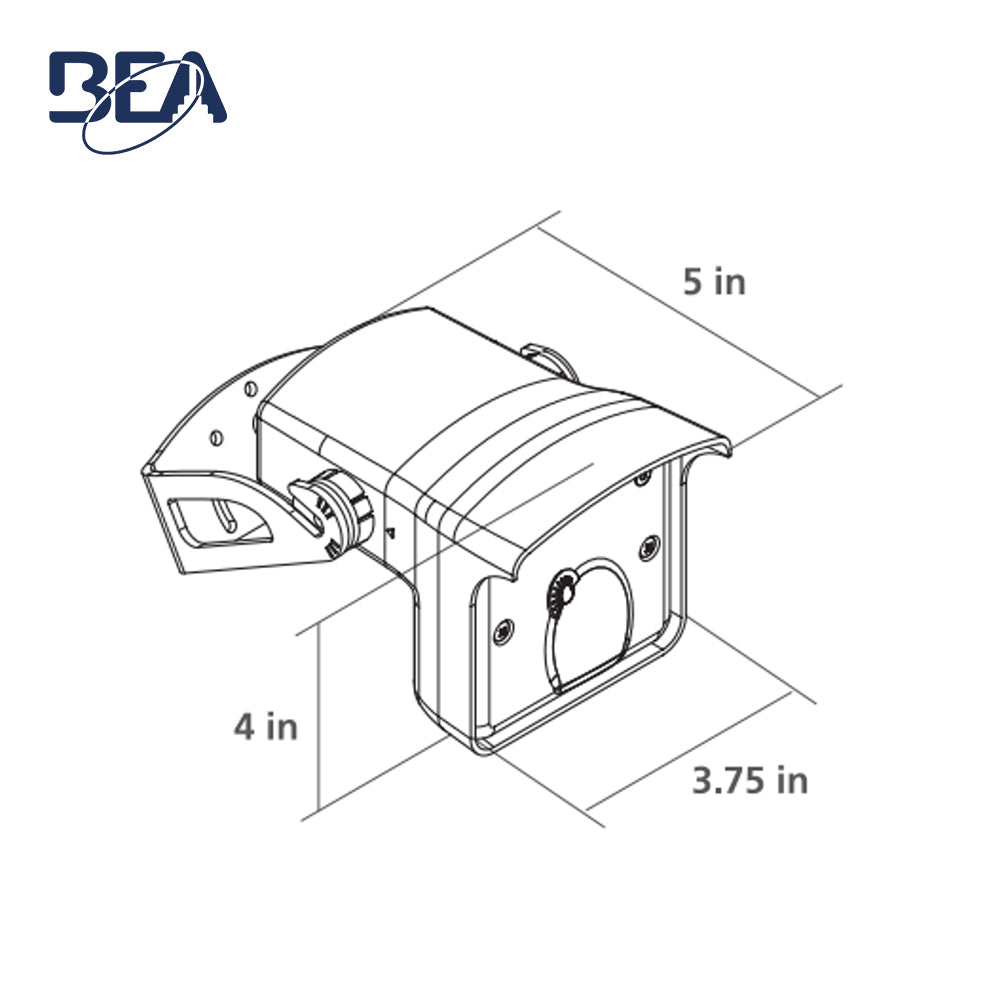

| Dimensions | 3 4⁄5“ (W) × 4” (H) × 5” (D) |
| Materials | ABS, PC |
| Cable Length | 32’ |
| Degree of Protection | IP65 |
| Norm Conformity | EMC: 2004 / 108 / EC, R and TTE: 1999 / 5 / EC |
