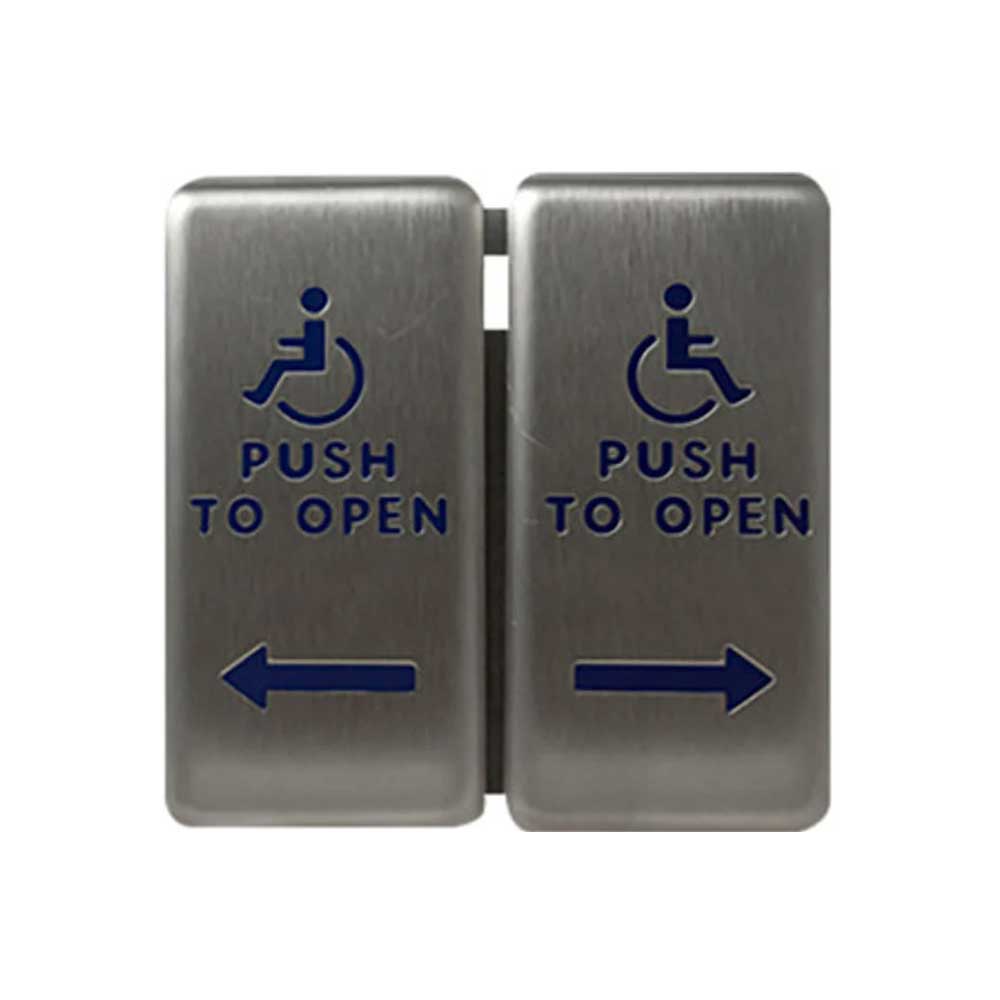

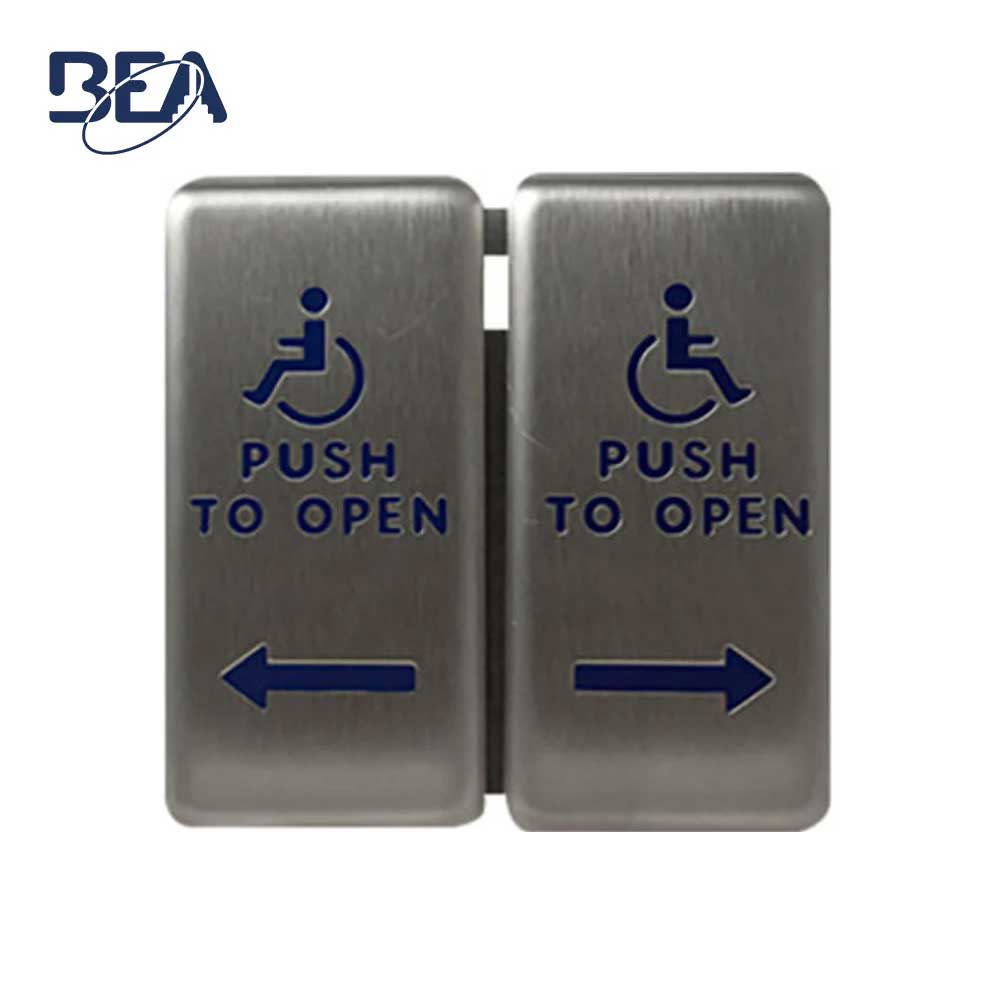

BEA - 10PBDGP1 - Vestibule Dual Push Plate with Blue Handicap Logo, Text and Arrow (Adapter Ring Included) - 4.75 by 4.75 Inch - Stainless Steel

BEA - 10PBDGP1 - Vestibule Dual Push Plate with Blue Handicap Logo, Text and Arrow (Adapter Ring Included) - 4.75 by 4.75 Inch - Stainless Steel

BEA’s VESTIBULE PUSH PLATE improve overall access, enhance accessibility for those with limited mobility and disabilities and seamlessly integrate with an automatic door’s activation. These ADA-compliant push plates combine two jamb style plates that fit into one double gang mounting box for ease of installation. This push plates may be hard wired to the door operator or connected to BEA’s line of wireless transmitters.

• Enhances Accessibility: ADA-compliant push plates are available in a variety of popular faceplate graphic options.
• Available in Complete Kits: Complete kits available including plates, mounting boxes, and optional wireless devices for ease of ordering.
• Vandal Resistant: Concealed fasteners to minimize vandalism
• Robust Design: 1⁄16 inch thick stainless steel for maximum durability.

Stainless steel dual Push Plate for vestibule includes:

• Adapter ring
• Separate Push Plates with "Push to Open" text and accessibility logo

Technical Specification:

• Faceplate Material: Stainless steel (16 gauge, 304 2B)
• Backplate Material: Aluminum (1⁄8” thick)
• Mounting Screws: Stainless steel, 6-32 × 1” and 8-32 × 1” Allen head size: 5⁄64
• Cherry Switch: Single-pole, 15 A, COM/NO/NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433, or 300 MHz
• Dimensions: 4 3⁄4” (W) × 4 3⁄4” (H) × 31⁄50” (D)

Download:

• User Guide
