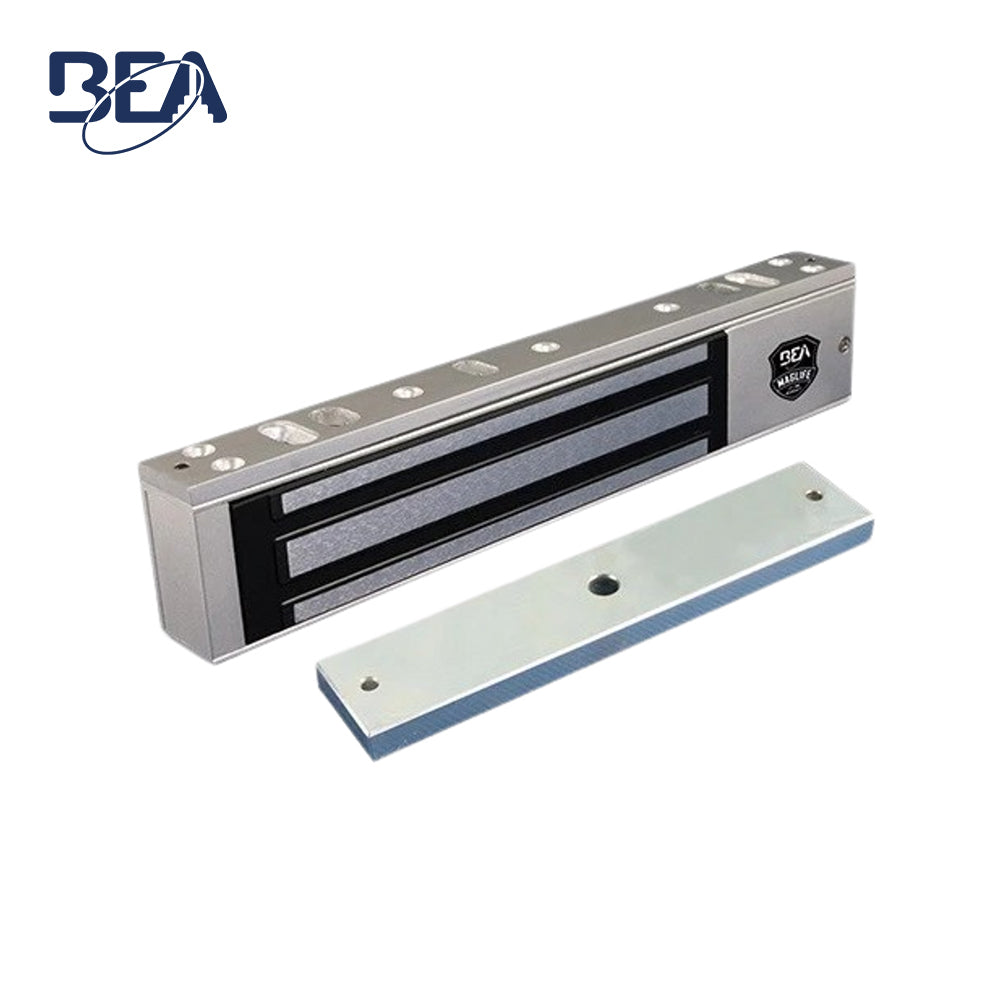

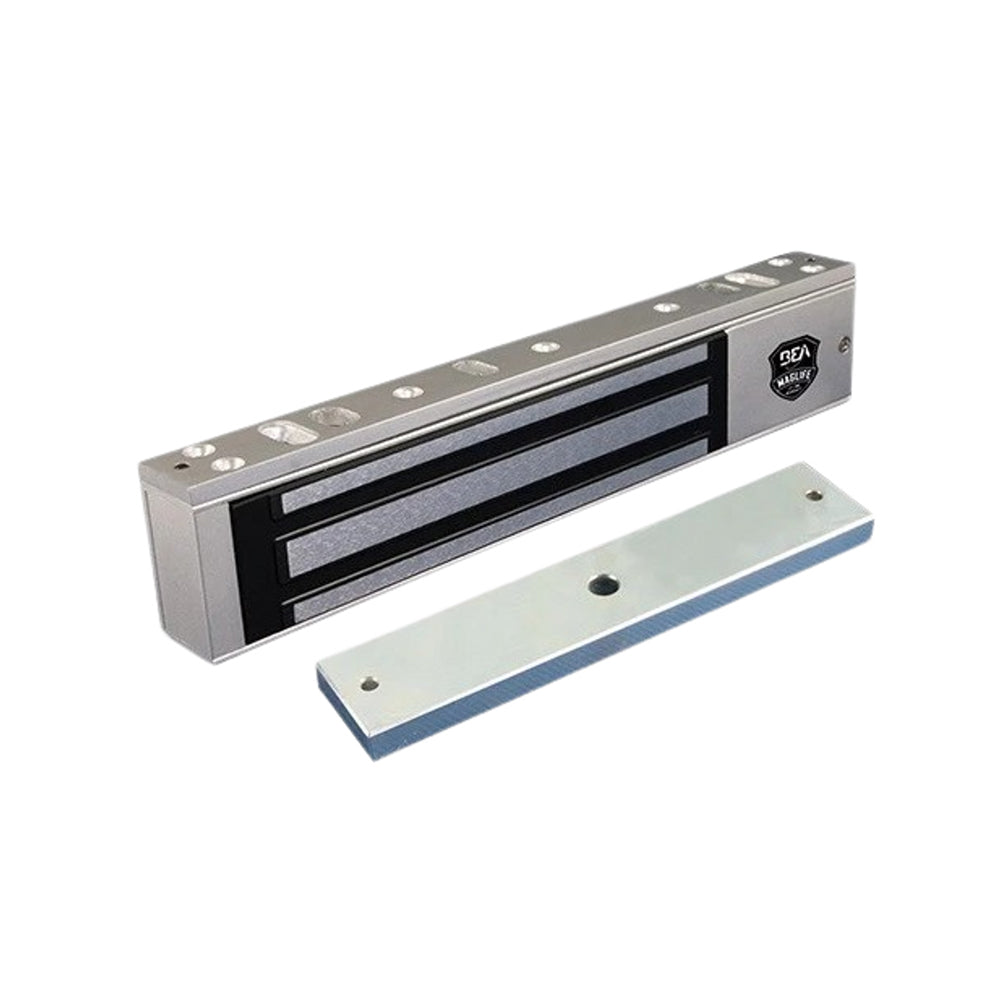

BEA - 10MAGLOCK1UL - Single Electromagnetic Surface Mount Lock with Adjustable Relock Time Delay System
BEA’s electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.
Features:
- User-Configurable Adjustable zero to 90 second relock time delay.
- Enhanced Access Control / Monitoring Lock (bond) status sensor with visible LED offers either normally open or normally closed output configurations.
- UL 294 Listed Listed for access control systems and must be used with a UL Listed power supply.
- Anti-Tampering The security screw on the front face blocks access to the bottom of the elctromagnetic lock preventing tampering or dismounting.
- Convenient Packages Available Available in access control packages with sensor, logic module, actuator, and MAGLOCK
Specifications:
| Lock | Single |
| Input Voltage | 12 or 24 VDC |
| Relay Rating | 1.0 A at 24 VDC resistive |
| Relay Power Factor | 1 |
| Reed Switch Rating | Dry Contacts: 3W (switching contact 0.25 amps max, switching voltage 30VDC max; resistive load) |
| Reed Switch Power Factor | 1 |
| Power Consumption | 500 mA at 12 VDC 250 mA at 24 VDC |
| Certification | UL294 (up to 1,000 lb static strength) File #BP10577 |
| Operating Temperature | 32 – 120 °F |
| Operating Humidity | 0 – 85% |
| Dimensions | 10 15⁄32” (W) × 2 7⁄8” (H) × 1 37⁄64” (D) |
