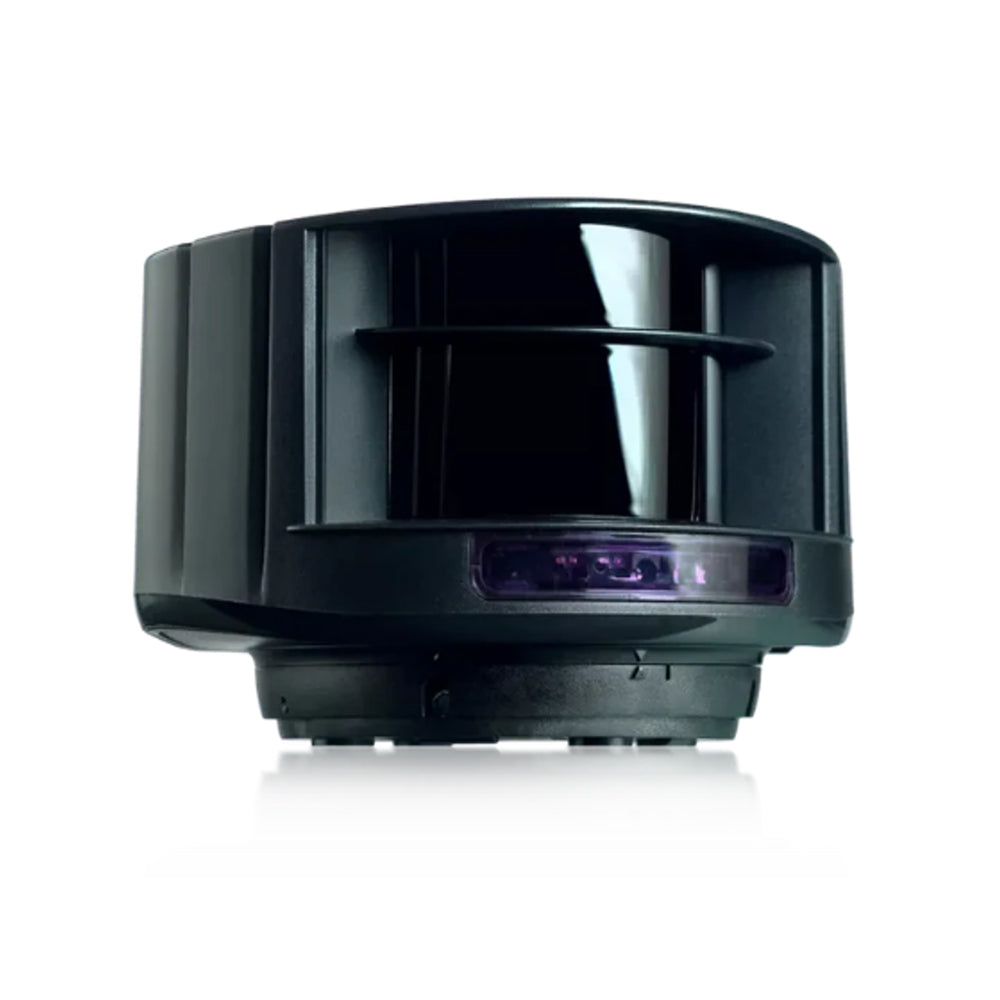

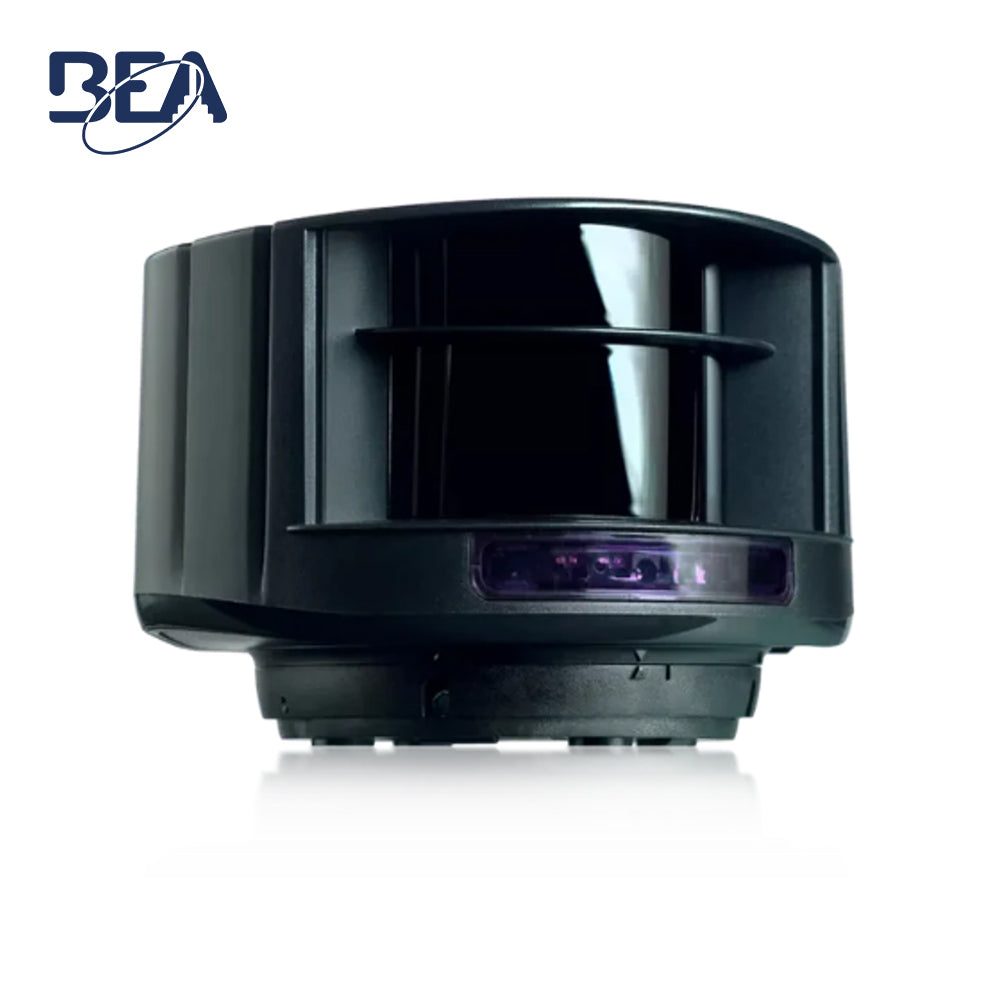

BEA - 10LZRS600 - Presence Sensor - Laser Scanner for Building Automation and Security
Features:
- Largest Detection Field Maximum detection range of 82 ft by 82 ft.
- Safe and Reliable External, entrapment protection device capable of monitoring with interfaces building management systems.
- Reduce False Detections High immunity to environmental interferences
- Eliminates False Detections Has the ability to ignore dynamic ground conditions and extreme weather
Specifications:
| Technology | LASER scanner, Time-of-Flight measurement |
| Detection Mode | Motion and presence |
| Detection Range | Default: 33’ x 33’ at 2% remission factor (max. 82' x 82') |
| Angular Resolution | 0.3516° |
| Min. Detected Object Size (typ.) | 0.8 in at 10' 1.4 in at 16' 2.8 in at 33' 6.9 in at 82' |
| Emission Characteristics | IR LASER - Wavelength 905 nm; output power 0.10mW (CLASS 1) Red visible LASER - wavelength 635 nm; output power 0.95mW (CLASS 2) |
| Supply Voltage | 10 – 35 VDC at sensor side |
| Power Consumption | < 5 W |
| Peak Current at Power-on | 1.8 A (max. 80 ms at 35 V) |
| Cable Length | 33' |
| Response Time | typ. 20 ms (max. 80 ms)+ output activation delay |
| Output | 2 electronic relays (galvanic-isolated – polarity-free) Max. switching voltage - 35 VDC / 24 VAC Max. switching current - 80 mA (resistive) Switching time - tON = 5 ms; tOFF = 5 ms Output resistance - typ 30 Ω Voltage drop on output - < 0.7 V at 20 mA Leakage current - < 10 µA |
| Input | 2 optocouplers (galvanic-isolated – polarity-free) Max. contact voltage - 30 VDC (over-voltage protected) Voltage threshold - Voltage threshold. |
| Response Time | Monitoring Input - < 5 ms |
| LED Activity | Blue - Power–on Orange - Error status Red/Green (x2) - Detection / Output Status (green = no detection, red = detection) |
| Material | PC/ASA |
| Color | Black |
| Mounting Angles on Bracket | -45°, 0°, 45° |
| Rotation Angles on Bracket | -5 – 5° (lockable) |
| Tilt Angles on Bracket | -3 – 3° |
| Protection Degree | NEMA 4 / IP65 |
| Temperature Range | powered: -22 – 140 °F (-30 – 60 ºC) unpowered: 14 – 140 °F (-10 – 60 ºC) |
| Humidity | 0 – 95% non-condensing |
| Vibrations | < 2G |
| Pollution on Front Screen | Max. 30%, homogenous |
| Norm Conformity | 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC; IEC 60529:2001; IEC 60825-1:2007; IEC 60950-1:2005; IEC 61000-6-2:2005; IEC 61000-6-3:2006 |
| Dimensions | 3 5⁄8”× 2 3⁄4”× 5” (W × H × D) mounting bracket: + 1⁄2” |
