BEA - 10LPR36-433 - Full Length Actuator - 36 Inch Vertical Actuation Bar with 433 MHz Wireless Transmitter

BEA - 10LPR36-433 - Full Length Actuator - 36 Inch Vertical Actuation Bar with 433 MHz Wireless Transmitter

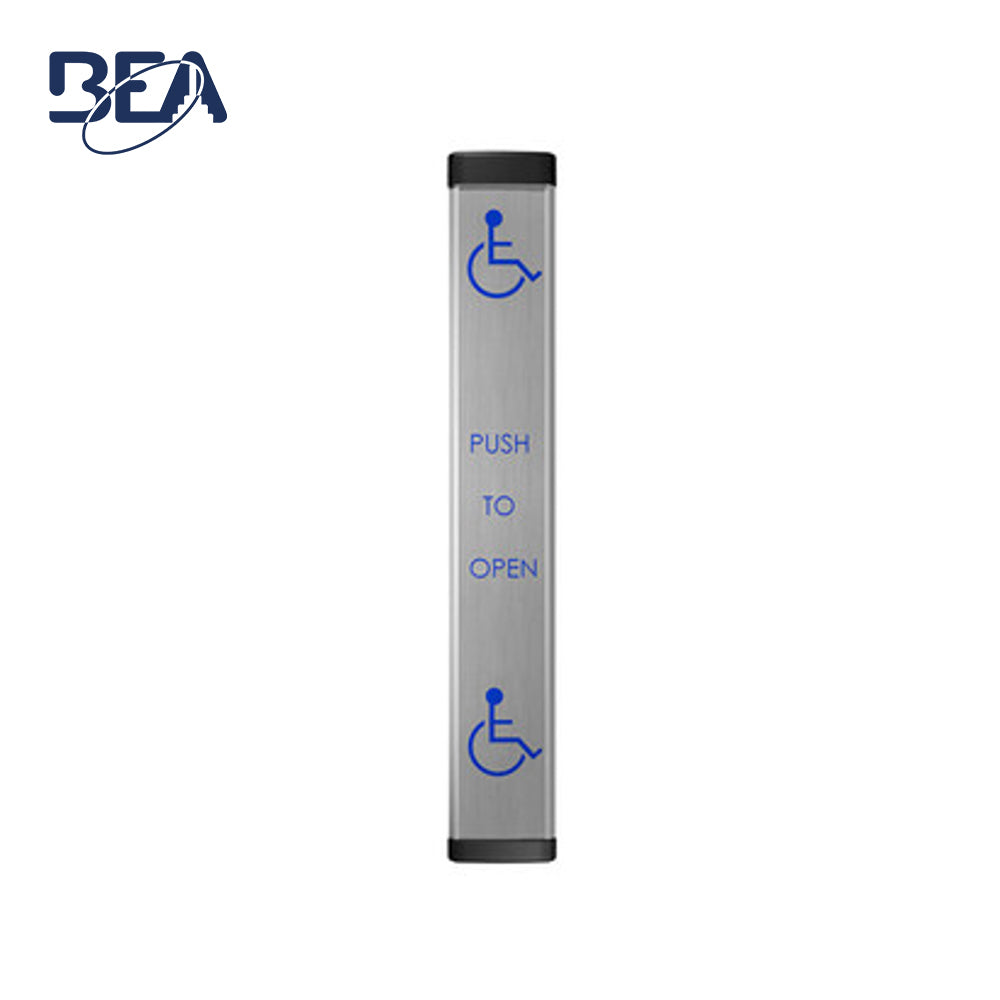

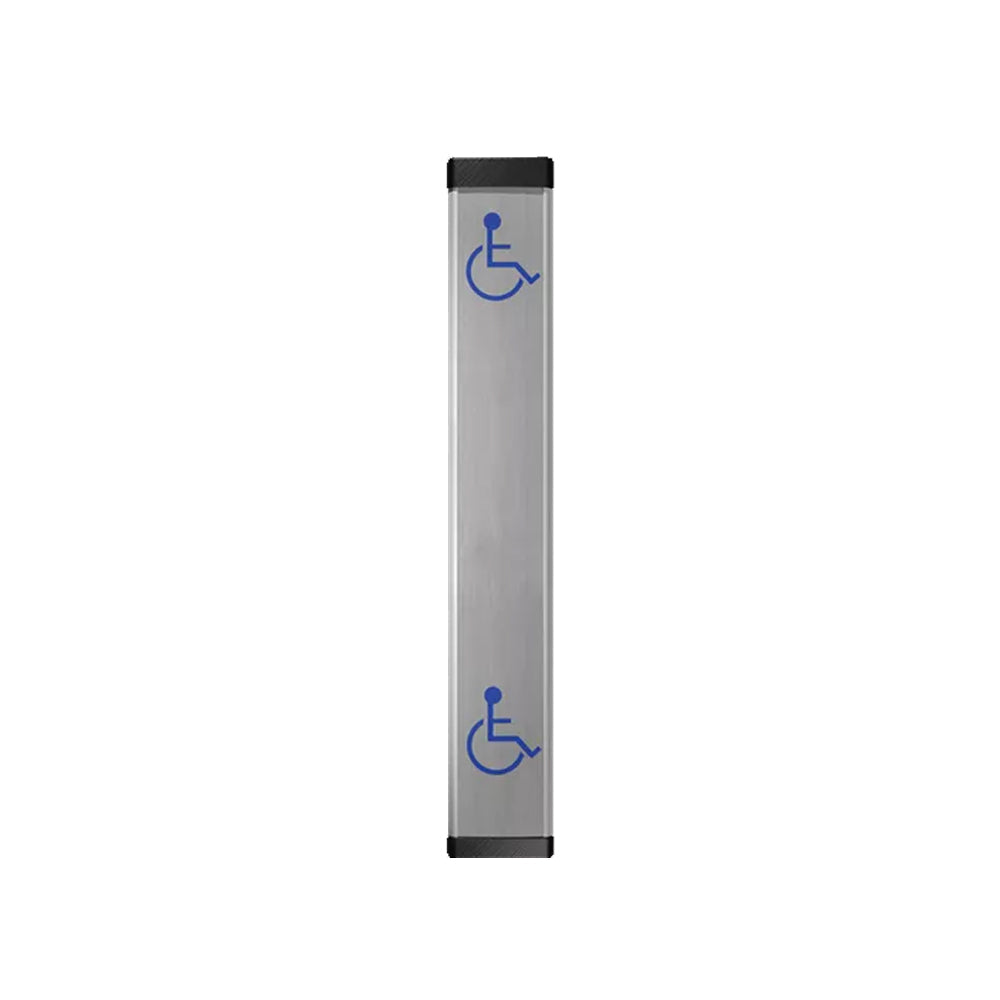

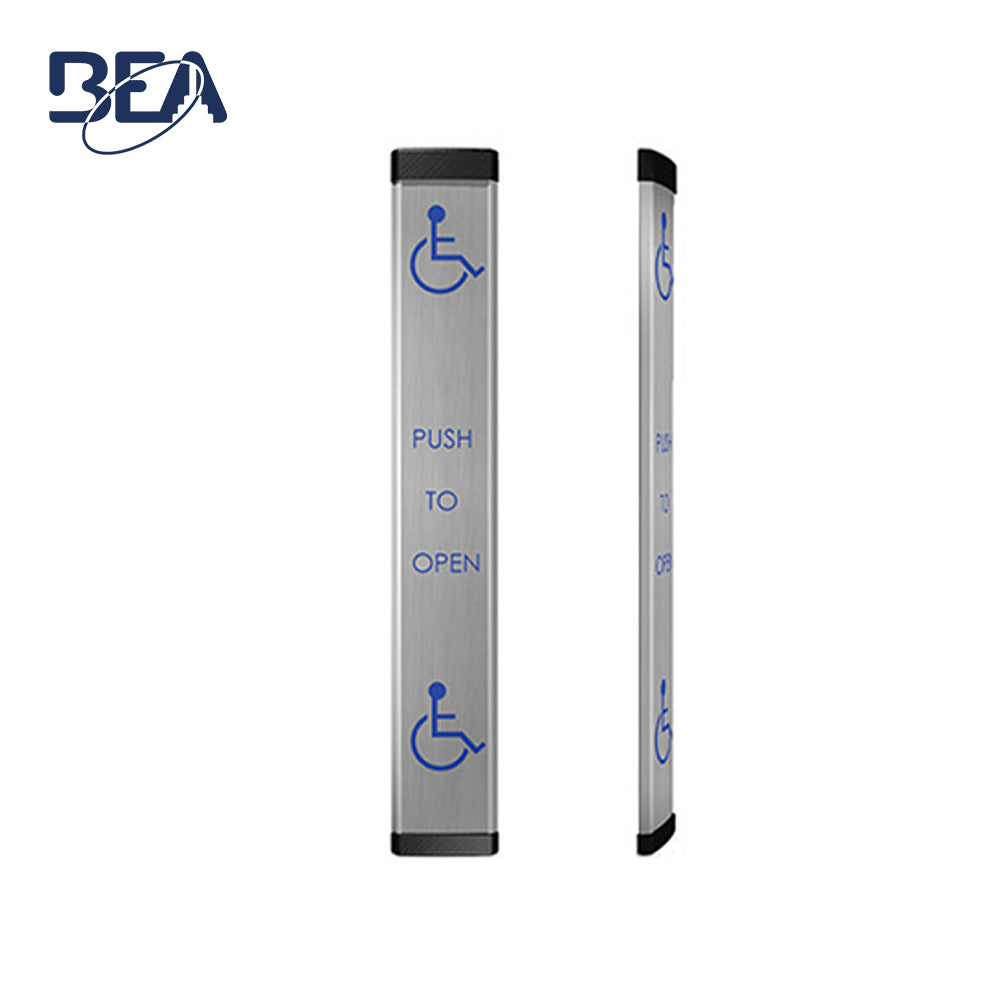

BEA’s LPR36 is a 36 inch actuator that exceeds all local ADA building codes requiring high and low actuators, eliminating the need to install two separate devices. This stainless steel plate utilizes four highly-sensitive membrane switches that require very little force and ensure actuation across the entire surface. This functionality enhances accessibility for those with limited mobility or disabilities. Available in wireless and hard wire versions, the LPR36 can be conveniently mounted in a variety of locations.

Features:

• Enhances accessibility: Offers a mean of activation of automatic doors for those with limited mobility or disabilities
• Easily converts to wireless: Available with convenient, built-in wireless transmitter (300, 433 or 900 MHz frequencies) for wireless activation applications
• Low profile, aesthetically pleasing design: Low profile (1 inch deep) design helps prevent accidental damage in high traffic areas
• Standard compliant, high accessibility plate: Exceeds California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c

Technical Specification:

• Contact Configurations SPST N.O.
• Switching Voltage 0.1 – 50 VDC
• Switching Capacity 1 W
• Switching Current 0.005 – 100 mA DC
• Operation Temperature -32 – 212 °F (-35 – 100 °C)
• Materials:
  • Base: Aluminum (6063)
  • Face Plate: Stainless steel (304)
  • Switch Actuator: Nylon (66)
  • End Cap: ABS (UL94)
  • Hardware: Stainless steel
  • Compliance: California Building Code 2013, 11B-404.2.9, Exception 2c

Download:

• User Guide
