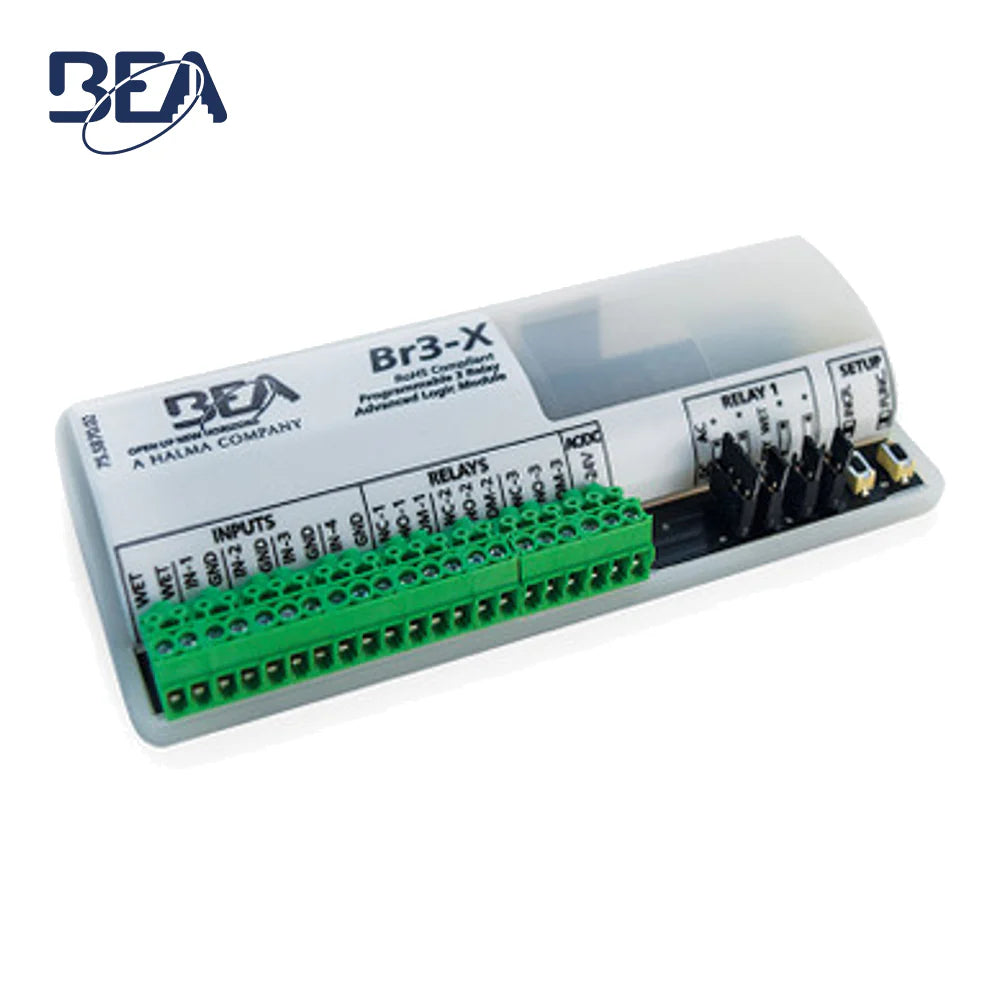

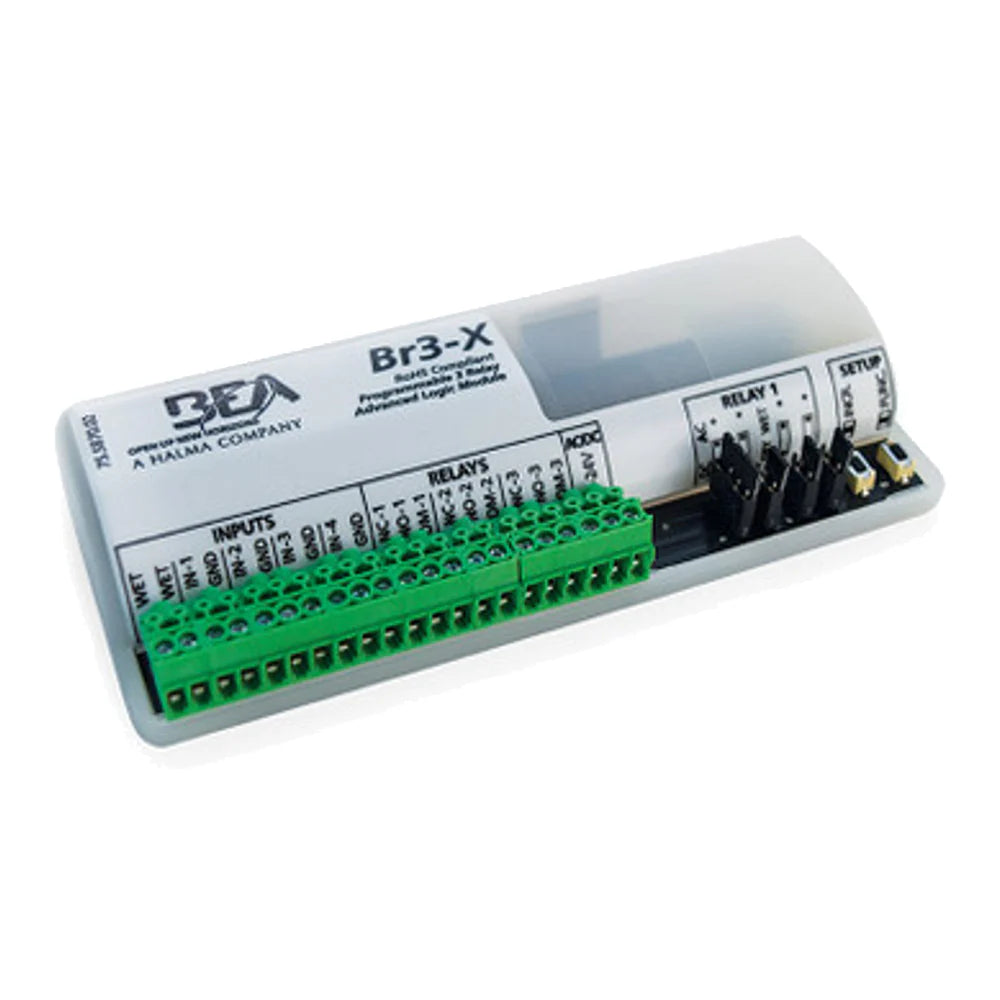

BEA - 10BR3X - Logic Module with 13 Programmable Logic Functions - 3-Relay
BEA’s BR3-X provides both simple and advanced logic controls. Functions include: timer, ratchet / latching, inhibitor, 2 relay sequencer + inhibitor, 2 relay sequencer + door position, deactivation timer, 3 relay sequencer + “1-shot”, 3 relay sequencer with “independent relay”, interlock timer, interlock ratchet / latching, 2 way 2 relay sequence, normally locked restroom, normally unlocked restroom, 3 relay sequencer + “day / night mode”. Common uses for the BR3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.
Feature:
- Customizable: Versatility with 13 programmable logic functions for the BR3-X
- Integrated Relays: Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices
- On-board Power: WET output with AC / DC voltage for powering an electric locking device directly from the module
- Integrated Relays: Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices
| Supply Voltage | 12 – 24 VAC / VDC ±10% |
| Current Consumption | 30 – 130 mA; DRY Output |
| Tempareture Range | -15 – 150 °F |
| Dimentions | 5 1⁄5” (W) × 1” (H) × 2 1⁄5” (D) |
| Relay Hold Time | Up to 60 seconds per relay |
| Drlay Between Relays | Up to 60 seconds per relay with ¼, ½ and ¾ second options |
| Housing Material | ABS Plastic |
| Input Specifications Inputs 1, 2, 3, 4 Wet Input | DRY contact 5 – 24 VAC / VDC ±10% |
| Contact Rating RELAY 1 (DRY) RELAY 1 (WET) RELAY 2 RELAY 3 | 3 A @ 24 VAC / 30 VDC 1 A 3A @ 24 VAC / 30 VDC 1 A @ 24 VAC / 30 VDC |
